Allen-Bradley 2711-K3A2L1 Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 2711-K3A2L1 Service-Ready Spare Part for Industrial Maintenance

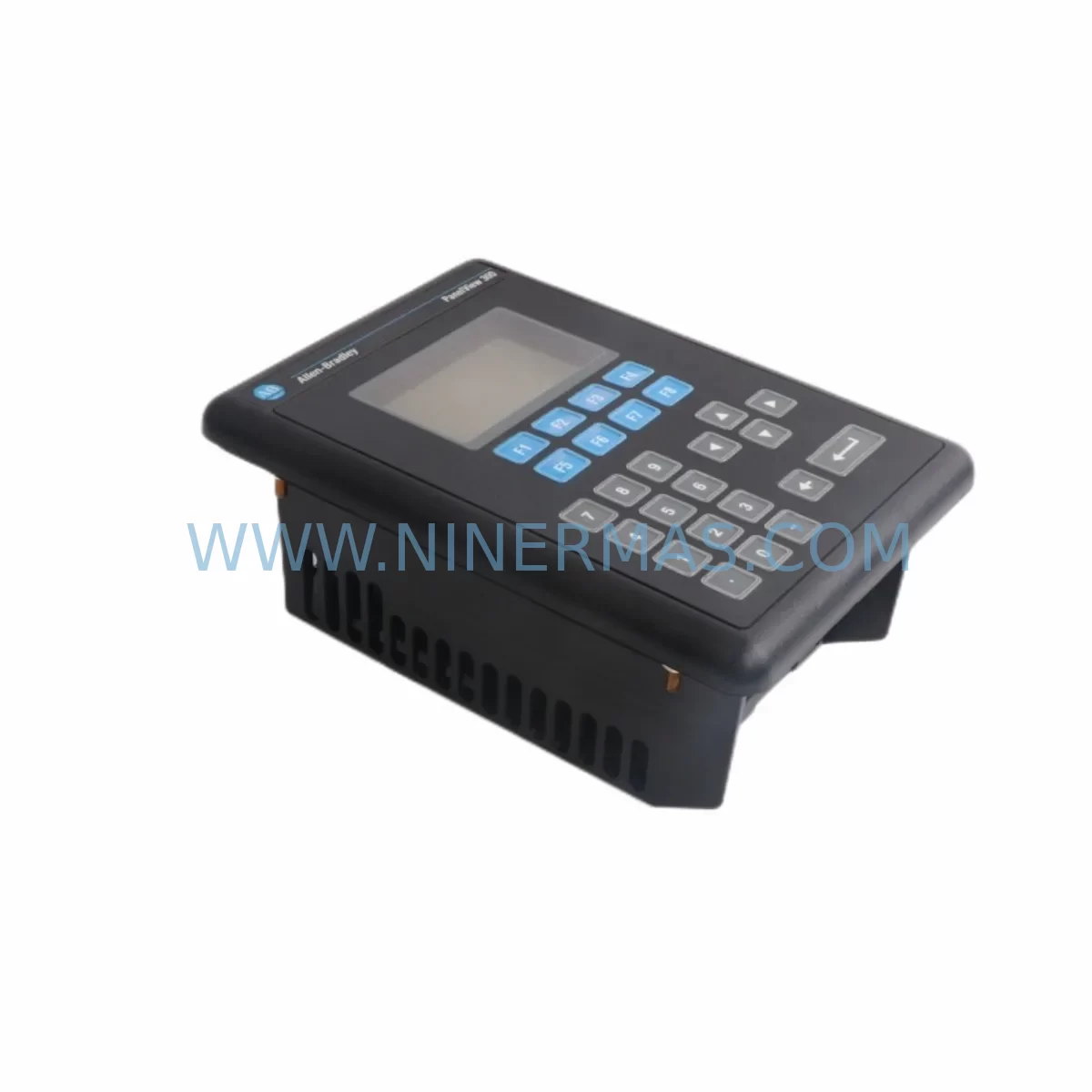

The Allen-Bradley 2711-K3A2L1 is a ruggedized HMI keypad module engineered for demanding industrial environments where operator interface reliability is non-negotiable. As a direct original spare part for the Rockwell Automation PanelView 300 series, this unit delivers the tactile response, environmental sealing, and electrical compatibility that maintenance engineers depend on during both planned shutdowns and emergency line recoveries. Whether you are managing a discrete manufacturing cell, a process control loop, or a legacy automation system, having a verified 2711-K3A2L1 in your spare parts inventory eliminates the risk of extended downtime caused by HMI interface failure.

At NINERMAS, every 2711-K3A2L1 unit is sourced, inspected, and dispatched with full functional verification. We support maintenance teams and procurement engineers across industries including automotive, food and beverage, oil and gas, water treatment, and heavy manufacturing. Our 12-month warranty covers all shipped units, and long-term supply continuity is guaranteed for customers managing aging PanelView 300 installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 2711-K3A2L1 keypad module fails or shows signs of wear — including unresponsive function keys, membrane delamination, or intermittent key registration — the replacement process should be treated as an opportunity for a broader control panel inspection. Maintenance engineers working on PanelView 300-based operator stations should simultaneously evaluate the following components to prevent cascading failures and ensure the restored HMI operates reliably through the next maintenance cycle.

The 2711-K3A2 terminal base is the direct host for the keypad module and should be inspected for backplane connector wear, cracked housing, and secure DIN rail or panel mounting. If the base shows signs of thermal stress or connector oxidation, replacement should be scheduled alongside the keypad. The 1747-L40 or equivalent SLC 500 series PLC processor connected to the PanelView 300 via DH-485 should be checked for communication faults, battery status, and firmware revision compatibility. A degraded DH-485 network cable or a failing 1747-AIC isolated link coupler can cause the new keypad to appear unresponsive even after correct installation.

Power integrity is critical. The 1606-XLP or 1606-XLS series 24V DC power supply feeding the HMI terminal base should be load-tested and inspected for output ripple, especially in environments with high motor drive activity. Unstable DC supply voltage is a leading cause of premature HMI keypad failure. Inline fuse holders and 2A slow-blow fuses on the 24V DC branch circuit should be replaced as a matter of course during any HMI keypad swap.

For sites using 1761-NET-AIC or 1761-NET-ENI communication adapters to bridge the PanelView 300 to Ethernet or DeviceNet networks, verify adapter firmware and cable integrity. A faulty communication adapter can corrupt operator input data and create phantom fault conditions that are difficult to diagnose without isolating the HMI subsystem. Terminal blocks and I/O wiring at the control cabinet should be torque-checked and inspected for insulation damage, particularly on 24V signal lines that share conduit with motor power cables.

If the installation includes signal isolators on analog I/O channels monitored through the HMI, verify isolator output accuracy and check for ground loop conditions that may have contributed to the original keypad failure. For cabinets housing PowerFlex 40 or PowerFlex 70 variable frequency drives alongside the PanelView 300 terminal, ensure adequate EMI shielding and verify that drive parameter settings have not drifted. Finally, inspect the 1492-J series terminal strips and any relay output modules in the same cabinet for contact wear and coil resistance, as these components share the same maintenance cycle as the HMI operator interface.

Site Replacement Workflow

Replacing the 2711-K3A2L1 in the field is a straightforward procedure when the correct spare is on hand, but several steps are essential to minimize downtime and avoid repeat failures.

Step 1 — Isolation and Lockout/Tagout: De-energize the control cabinet and apply LOTO procedures. Verify zero energy state at the 24V DC supply rail before opening the panel.

Step 2 — Document Current Configuration: Before removing the old keypad module, photograph the wiring, note the terminal base model, and record the PanelView application file version stored in the connected PLC. This ensures the replacement unit is configured to the same operator screen layout.

Step 3 — Module Removal: Disconnect the keypad module from the terminal base by releasing the retention clips. Inspect the backplane connector on the terminal base for bent pins or debris before installing the 2711-K3A2L1 replacement.

Step 4 — Installation and Torque: Seat the new 2711-K3A2L1 firmly onto the terminal base until the retention clips engage. Verify panel gasket seating for NEMA 4/4X integrity. Re-energize the 24V DC supply and confirm the HMI powers up and displays the correct application screen.

Step 5 — Functional Verification: Test all function keys and numeric entry keys against the operator screen logic. Confirm DH-485 or RS-232 communication link status with the connected PLC. Log the replacement in the site maintenance record with the new unit serial number and installation date.

This workflow supports rapid line recovery while maintaining system compatibility and audit traceability — critical requirements for ISO-certified manufacturing sites and regulated process industries.

Spare Parts Support FAQ

Q1: Is the 2711-K3A2L1 compatible with all PanelView 300 terminal bases?
The 2711-K3A2L1 keypad module is designed for the PanelView 300 series terminal family. Compatibility is confirmed with 2711-K3A2, 2711-K3A5, and 2711-K3A8 base units. For installations using non-standard or modified terminal bases, contact NINERMAS with your full system configuration for compatibility verification before ordering.

Q2: What is included in the 12-month warranty and how does it apply to spare parts inventory stock?
All 2711-K3A2L1 units shipped by NINERMAS carry a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. For customers purchasing inventory stock for future maintenance use, the warranty period begins at shipment — we recommend aligning stock purchase timing with your planned maintenance schedule to maximize warranty coverage at the point of installation.

Q3: How do you verify the unit before shipment, and what documentation is provided?
Every 2711-K3A2L1 undergoes pre-shipment functional testing including keypad response verification, backplane connector inspection, and visual quality check. Units are shipped with a test confirmation record. Customers requiring additional documentation such as country of origin certificates or material declarations should specify this requirement at the time of order.

Q4: Can NINERMAS support long-term supply for legacy PanelView 300 systems being kept in service beyond OEM support?
Yes. NINERMAS specializes in long-term spare parts supply for discontinued and end-of-life industrial automation products. We maintain stock continuity programs for customers managing extended service life of PanelView 300 installations. Contact our team to discuss annual supply agreements, reserved stock arrangements, and priority dispatch options for critical production sites.
