Allen-Bradley 2198-S086-ERS3 Service-Ready Industrial Spare

Allen-Bradley 2198-S086-ERS3 Service-Ready Industrial Spare: Spare Replacement and Downtime Risk Control

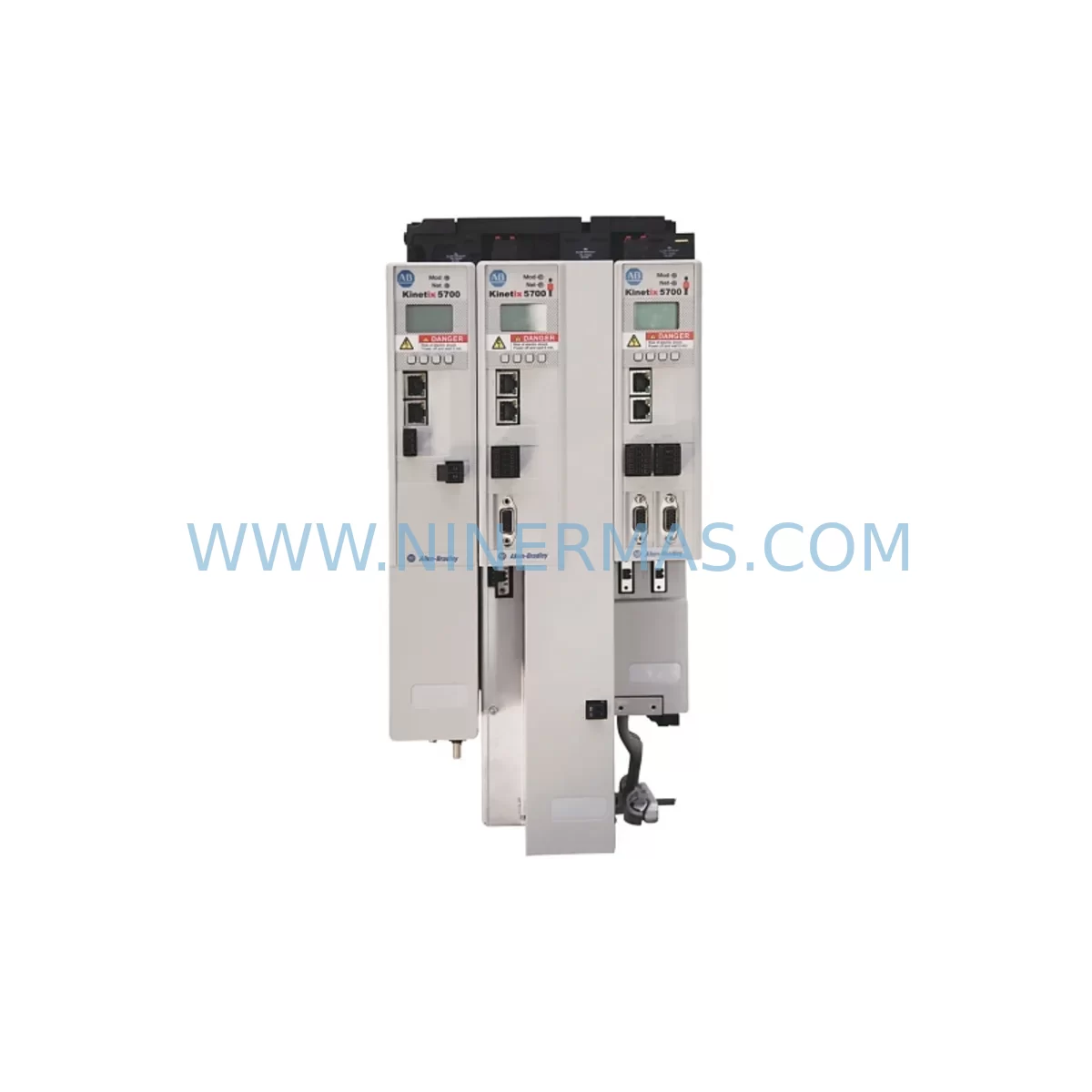

The Allen-Bradley 2198-S086-ERS3 is a dual-axis inverter module within the Kinetix 5700 servo drive family, designed for high-performance motion control in demanding industrial environments. As a service-ready spare part, the 2198-S086-ERS3 is pre-shipment tested, verified for original specification compliance, and backed by a 12-month warranty — making it a reliable choice for maintenance engineers managing critical production lines, robotic cells, and multi-axis CNC systems. Unplanned downtime caused by servo drive failure is one of the most costly disruptions in industrial automation. Stocking a verified 2198-S086-ERS3 spare reduces mean time to repair (MTTR) and ensures your Kinetix 5700 system can be restored to full operation within hours rather than days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2198-S086-ERS3 in a Kinetix 5700 system, a thorough site inspection of the surrounding electrical architecture is essential to prevent repeat failures and ensure a stable return to production. Maintenance engineers should treat the servo drive replacement as an opportunity to audit the entire motion control cabinet.

Begin with the DC bus power supply. The 2198-P031 Kinetix 5700 power supply module feeds the shared DC bus that powers the 2198-S086-ERS3 and adjacent inverter modules. Inspect the power supply for capacitor aging, bus voltage ripple, and thermal stress indicators. If the power supply has been in service for more than five years, consider scheduling a parallel replacement to avoid a secondary failure shortly after the drive is restored.

The 2198-CAPMOD-1300 capacitor module, used for bus capacitance extension and ride-through, should be checked for swelling, leakage, or elevated internal resistance. A degraded capacitor module can cause nuisance bus overvoltage faults that mimic drive failure and may damage a newly installed 2198-S086-ERS3 if left unaddressed.

Servo feedback cables are a frequent but overlooked failure point. The 2090-CPBM7DF series motor feedback cables connecting the servo motors to the 2198-S086-ERS3 should be inspected for insulation damage, connector corrosion, and bend radius violations — particularly in high-cycle applications such as pick-and-place or press-feed systems. Damaged feedback cables can generate encoder errors that are misdiagnosed as drive faults.

On the controller side, verify the health of the 1756-L83E ControlLogix processor and the 1756-EN2T EtherNet/IP communication module. The Kinetix 5700 relies on Integrated Motion over EtherNet/IP (IMC), and any network latency or controller firmware mismatch can prevent the replacement drive from commissioning correctly. Confirm that the controller firmware revision is compatible with the 2198-S086-ERS3 firmware before powering up.

For systems using a 2711P-T10C22D9P PanelView Plus 7 HMI, verify that the operator interface is correctly displaying drive status and fault codes after the replacement. HMI configuration files may reference axis tags that need to be re-mapped if the drive was replaced with a different firmware revision.

I/O integrity should also be confirmed. The 1756-IB16I digital input module and associated terminal blocks connected to the drive’s enable, fault reset, and safety circuits should be inspected for loose wiring, oxidized terminals, and correct signal levels. A faulty enable signal can prevent the replacement drive from entering run mode and is a common source of post-replacement commissioning delays.

If the system includes a 2198-D020-ERS3 single-axis inverter module on the same DC bus, inspect it simultaneously. Shared bus systems can propagate fault conditions between modules, and a failing adjacent drive may have contributed to the original 2198-S086-ERS3 failure. Similarly, if a 2198-S130-ERS3 higher-current dual-axis module is present in the same cabinet, verify its thermal performance and bus loading.

Finally, review the 24 VDC control power supply — typically a 1606-XLE240E or equivalent — that powers the drive’s logic circuits and safety relay coils. Control power instability is a known cause of intermittent drive faults and can shorten the service life of replacement modules if not corrected before commissioning.

Site Replacement Workflow

The 2198-S086-ERS3 is a direct replacement for earlier Kinetix 5700 dual-axis inverter revisions within the same current rating class. Follow this structured workflow to minimize downtime and ensure system compatibility:

Step 1 — Isolation and Lockout/Tagout: De-energize the Kinetix 5700 system following your site LOTO procedure. Discharge the DC bus capacitors and verify zero voltage before opening the cabinet. Allow a minimum of five minutes for bus discharge after power removal.

Step 2 — Documentation: Photograph the existing wiring, cable routing, and connector positions before disconnecting the faulty 2198-S086-ERS3. Record the drive’s firmware revision, axis configuration, and any custom parameter settings from the controller’s Logix Designer project file.

Step 3 — Module Removal: Disconnect the DC bus connector, motor power connectors, feedback cables, and EtherNet/IP cable. Remove the module from the shared bus mounting system following the Kinetix 5700 installation manual procedure.

Step 4 — Inspection and Cleaning: Inspect the cabinet interior for contamination, moisture ingress, or heat damage. Clean the mounting rail and bus connectors before installing the replacement module.

Step 5 — Installation: Mount the replacement 2198-S086-ERS3, reconnect all cables in the documented order, and verify connector seating. Confirm that the DC bus connector is fully engaged before applying power.

Step 6 — Commissioning: Power up the system and use Logix Designer to verify that the replacement drive is recognized on the EtherNet/IP network. Download the axis configuration, perform a motor feedback test, and run a low-speed jog to confirm correct operation before returning the system to production.

Step 7 — Documentation Update: Record the replacement date, new module serial number, and firmware revision in your maintenance management system. Update your spare parts inventory to trigger reorder of a replacement 2198-S086-ERS3 spare.

Spare Parts Support FAQ

Q1: What is the service life expectation for the 2198-S086-ERS3, and when should I plan a proactive replacement?
The Kinetix 5700 series is designed for a service life of 10 years under normal operating conditions. However, in high-cycle or thermally demanding applications, capacitor aging and IGBT wear may reduce effective service life. Proactive replacement is recommended when the drive logs increasing thermal warnings, nuisance bus faults, or when the system is approaching a planned major overhaul. Stocking a pre-tested 2198-S086-ERS3 spare ensures you can execute a proactive swap during a scheduled maintenance window rather than reacting to an unplanned failure.

Q2: How do I verify compatibility between the replacement 2198-S086-ERS3 and my existing Kinetix 5700 system?
Compatibility is determined by the DC bus current rating, the controller firmware revision, and the Logix Designer project configuration. The 2198-S086-ERS3 is compatible with all Kinetix 5700 power supply modules and is supported by Studio 5000 Logix Designer version 28 and later. Verify that your ControlLogix or CompactLogix controller firmware is at a revision that supports the drive’s firmware version. Our technical team can assist with compatibility verification before shipment upon request.

Q3: What pre-shipment testing is performed on the 2198-S086-ERS3 before dispatch?
Each 2198-S086-ERS3 unit undergoes functional electrical testing prior to shipment, including DC bus input verification, output stage continuity checks, feedback interface testing, and communication port validation. Units that do not meet original Allen-Bradley specification are not dispatched. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q4: Can you support long-term supply commitments for the 2198-S086-ERS3 to cover multi-year maintenance contracts?
Yes. We support reserved inventory programs for customers with multi-year maintenance contracts or large installed bases of Kinetix 5700 systems. Long-term supply agreements allow you to lock in pricing, guarantee availability, and reduce procurement lead time risk — particularly important as the 2198-S086-ERS3 approaches end-of-production status. Contact our sales team to discuss volume commitments and reserved stock arrangements.
