Allen-Bradley 1794-IRT8 Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1794-IRT8 Service-Ready Spare Part for Industrial Maintenance

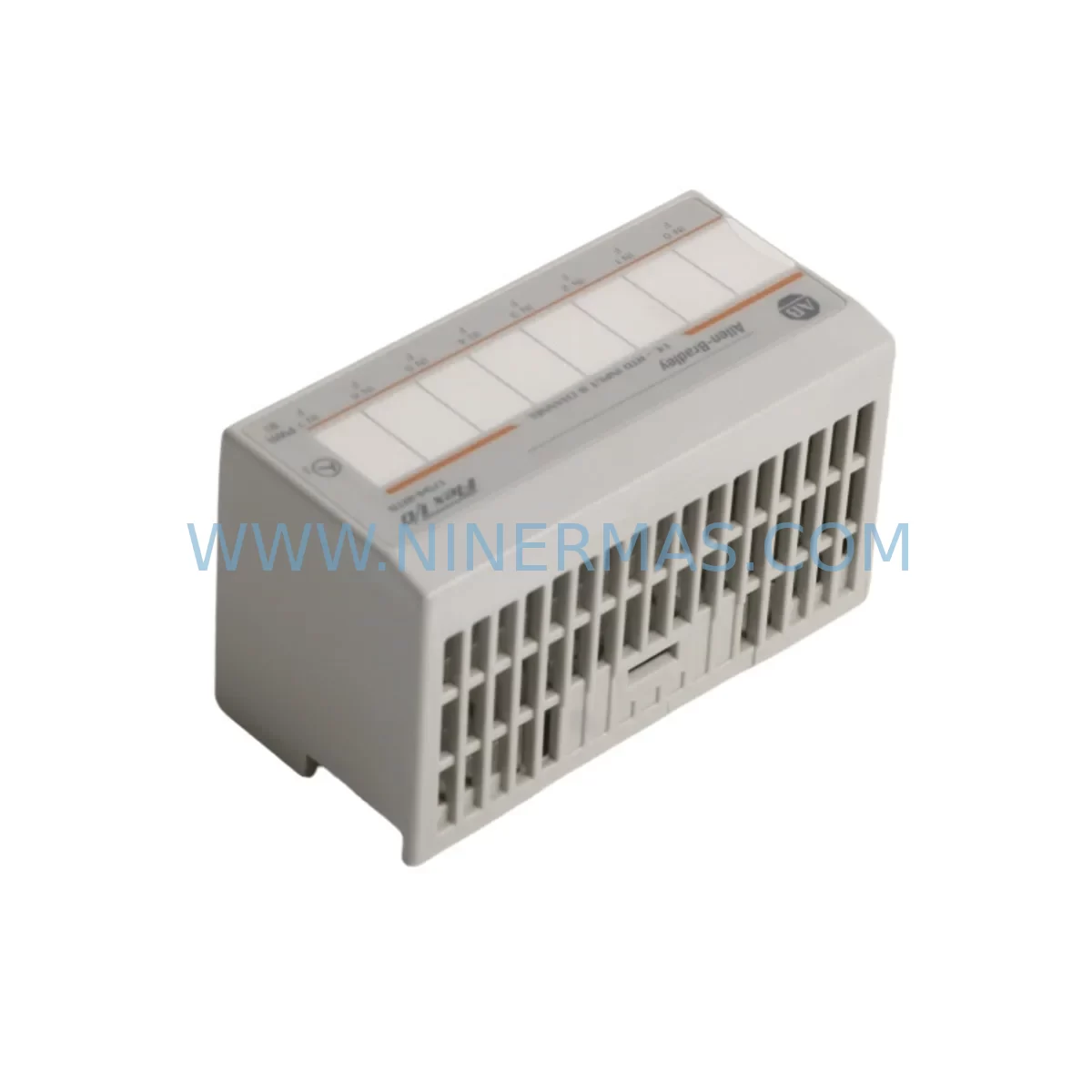

The Allen-Bradley 1794-IRT8 is an 8-channel thermocouple and RTD input module designed for the FLEX I/O platform, widely deployed in process control, temperature monitoring, and industrial automation systems across manufacturing, energy, and chemical processing facilities. As a service-ready original spare part, the 1794-IRT8 is engineered to deliver direct drop-in replacement capability, minimizing unplanned downtime and restoring system integrity without requiring software reconfiguration or hardware adaptation.

For maintenance engineers managing aging FLEX I/O control cabinets, the 1794-IRT8 represents a critical line item in any preventive maintenance (PM) schedule. Its compatibility with the 1794 FLEX I/O adapter family — including the 1794-AENT, 1794-ADN, and 1794-APB communication adapters — means that replacement can be executed during a scheduled maintenance window or as an emergency corrective action without disrupting the broader I/O architecture. The module supports a wide range of thermocouple types (J, K, E, T, B, R, S, N) and RTD configurations (100Ω Pt, 200Ω Pt, 500Ω Pt, 1000Ω Pt, 10Ω Cu, 120Ω Ni), making it a versatile asset in multi-sensor process environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1794-IRT8 in a FLEX I/O rack, a thorough maintenance engineer will treat the module swap as an opportunity to inspect the surrounding electrical environment. The 1794-TB3 or 1794-TB3S terminal base should be checked for terminal corrosion, loose field wiring, and proper torque on thermocouple or RTD signal leads — poor connections at the terminal base are a leading cause of premature module failure and erratic temperature readings.

The FLEX I/O adapter — whether a 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), or 1794-APB (PROFIBUS DP) — should be inspected for firmware currency and communication health. A degraded adapter can cause intermittent faults that are misdiagnosed as input module failures. Similarly, the 1794-OB16 or 1794-IB16 digital I/O modules sharing the same backplane should be verified for proper operation, as backplane power distribution issues can affect all modules in the rack.

Power supply integrity is equally critical. The 1794-PS13 or equivalent 24V DC power supply feeding the FLEX I/O system should be load-tested and its output voltage verified under full rack load. Voltage sag below 21.6V DC can cause erratic module behavior. Inline fusing and surge protection devices on the 24V DC rail should also be inspected and replaced if showing signs of thermal stress.

For facilities running Rockwell Automation ControlLogix or CompactLogix PLCs as the host controller, the 1756-EN2T or 1769-L33ER processor’s I/O tree should be reviewed after module replacement to confirm the 1794-IRT8 re-establishes its connection and all 8 channels report valid engineering unit values. If the system uses a 1756-ENBT or older EtherNet/IP bridge, verify that the module’s electronic keying settings in RSLogix 5000 or Studio 5000 are configured to allow the replacement module to come online without a keying mismatch fault.

Procurement engineers sourcing the 1794-IRT8 as a stocked spare should also consider maintaining buffer stock of the 1794-TB3 terminal base, as terminal bases are consumable items subject to mechanical wear from repeated field wiring operations. A recommended minimum spare parts kit for a FLEX I/O temperature monitoring rack includes: one 1794-IRT8 input module, one 1794-TB3 terminal base, one spare 1794-AENT adapter, and appropriate thermocouple extension cables rated for the process temperature range.

Site Replacement Workflow

Replacing the 1794-IRT8 on-site is a straightforward procedure when proper preparation is followed. Begin by documenting the existing channel configuration — thermocouple type, RTD wiring mode (2-wire, 3-wire, or 4-wire), and engineering unit scaling — from the controller’s I/O configuration in Studio 5000 or RSLogix 5000. This documentation ensures that the replacement module can be configured identically without requiring a controls engineer to be on-site.

Power down the FLEX I/O rack segment or isolate the terminal base using the system’s lockout/tagout (LOTO) procedure. Disconnect field wiring from the 1794-TB3 terminal base, labeling each conductor. Remove the faulty 1794-IRT8 from the terminal base by releasing the module latch and sliding it free. Install the replacement 1794-IRT8 by aligning it with the terminal base keying slot and pressing firmly until the latch engages. Reconnect field wiring per the documented terminal assignments.

Restore power and monitor the controller’s I/O status. In Studio 5000, the module should transition from “Faulted” to “Running” within seconds. Verify all 8 channels display valid temperature values within the expected process range. If any channel shows an open-circuit fault, inspect the corresponding field wiring connection at the terminal base. Complete the replacement by updating the maintenance log with the module serial number, replacement date, and post-replacement verification results.

For facilities managing legacy systems where the 1794-IRT8 has been discontinued by the OEM, NINERMAS maintains long-term supply capability for this module, supporting old system life extension programs and multi-year maintenance contracts. All units are tested before shipment and backed by a 12-month warranty, providing procurement teams with the supply chain confidence needed for critical infrastructure maintenance planning.

Spare Parts Support FAQ

Q: Is the 1794-IRT8 supplied by NINERMAS a new or refurbished unit?
A: NINERMAS supplies the 1794-IRT8 as new or surplus-new condition. All units undergo pre-shipment functional testing and are shipped in anti-static packaging to prevent ESD damage during transit. Each unit is covered by a 12-month warranty from the date of shipment.

Q: How do I confirm compatibility between the 1794-IRT8 and my existing FLEX I/O terminal base?
A: The 1794-IRT8 is compatible with the 1794-TB3 and 1794-TB3S terminal bases. Verify the terminal base catalog number printed on the housing before ordering. If your installation uses an older terminal base variant, contact NINERMAS at sale@ninermas.com with your terminal base catalog number for compatibility confirmation before purchase.

Q: Can NINERMAS support long-term or blanket purchase orders for the 1794-IRT8?
A: Yes. NINERMAS supports long-term supply agreements and blanket PO arrangements for the 1794-IRT8 and related FLEX I/O components. This is particularly valuable for facilities operating multiple FLEX I/O racks or managing multi-site maintenance programs where consistent spare parts availability is a procurement priority.

Q: What is the lead time for the 1794-IRT8, and how is it shipped?
A: In-stock units typically ship within 1–3 business days of order confirmation. NINERMAS ships globally via DHL, FedEx, or UPS with full tracking. Express shipping options are available for emergency maintenance situations. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock and lead time before placing your order.
