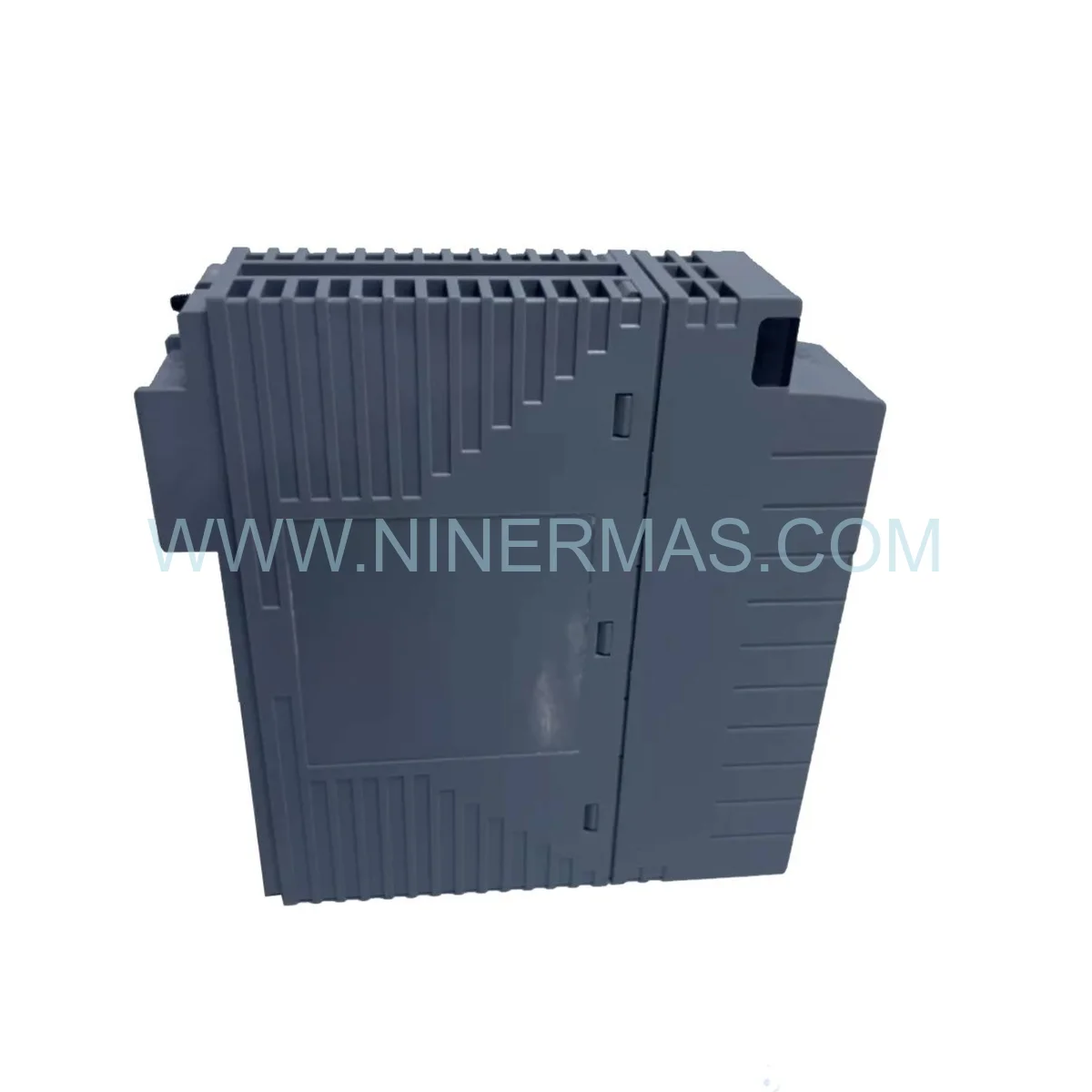

Yokogawa AAR145-S50 S1 RTD/POT Input Module (16-Ch) – New & Original

Yokogawa AAR145-S50 S1 RTD/POT Input Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in mission-critical process environments, the Yokogawa AAR145-S50 S1 stands as a cornerstone I/O module for sustaining system availability in distributed control architectures. The AAR145-S50 S1 delivers 16 fully isolated RTD/POT input channels with 16-bit A/D resolution, enabling precise temperature acquisition across CENTUM VP and ProSafe-RS platforms — a capability that directly underpins process optimization and operational excellence in high-stakes facilities.

Deployed across petrochemical refineries, pharmaceutical batch reactors, and power generation turbine halls, this module demonstrates exceptional durability under electrically noisy, thermally demanding conditions. Installation engineers must ensure proper grounding of the I/O nest and verify cable shielding continuity on all RTD leads — particularly in 2-wire configurations where lead resistance compensation is non-negotiable for measurement fidelity. Firmware compatibility with the host controller should be validated prior to hot-swap insertion to prevent transient faults during live system integration.

Maintaining a certified spare unit of the AAR145-S50 S1 in your critical parts inventory is a proven strategy for minimizing mean time to repair (MTTR). As a legacy-compatible yet actively supported module, it bridges the gap between aging DCS infrastructure and modern system integration requirements — making it an indispensable automation component for any reliability-focused maintenance program.

Key Operational Features

16 Isolated RTD/POT Input Channels — Supports 2-wire, 3-wire, and 4-wire configurations for maximum wiring flexibility
Multi-Sensor Compatibility — Pt100, Pt1000, JPt100, Ni100, Cu50, Cu100 and potentiometer inputs on a single module
High-Resolution Measurement — 16-bit A/D conversion delivers ±0.1°C typical accuracy for Pt100 sensors
Redundancy & High Availability — Hot-swappable design enables online replacement without system shutdown, ensuring seamless integration into live control loops
Intelligent Diagnostics — Built-in sensor break detection, out-of-range alarms, and drift monitoring for proactive fault management
Channel-to-Channel Isolation — Eliminates ground loop interference and cross-channel contamination across all 16 inputs simultaneously
Custom Linearization — Configurable curves for non-standard sensors, extending applicability beyond conventional RTD types

Maintenance & Performance Benchmarks

The AAR145-S50 S1 is engineered to adapt across industrial network architectures of varying scale — from compact skid-mounted control panels to enterprise-grade multi-cabinet DCS installations. Its self-calibration routines and integrated reference junction compensation maintain measurement stability over extended operational cycles, reducing the frequency of manual calibration interventions and lowering total cost of ownership.

In large-scale network deployments, the module’s configurable scan cycle allows engineers to balance I/O update rates against controller processing load — a critical tuning parameter for process optimization in high-channel-count systems. For smaller installations, its compact form factor maximizes I/O density within constrained panel footprints while preserving full thermal management capability. Across both scales, the module’s compliance with Yokogawa’s BRAIN bus protocol ensures deterministic data transmission, a prerequisite for mission-critical control loops where latency directly impacts safety and yield.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every AAR145-S50 S1 unit dispatched from our inventory is supplied in original factory packaging, complete with manufacturer documentation and traceability records. We maintain dedicated stock of this module to support both planned maintenance schedules and emergency breakdown scenarios — including EOL (End-of-Life) and legacy system replenishment where OEM lead times are no longer viable.

Same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off. Our global supply chain covers express logistics to North America, Europe, Southeast Asia, and the Middle East, with full customs documentation support for cross-border shipments. Each consignment is insured and tracked end-to-end, ensuring your mission-critical spare reaches the site without delay.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the AAR145-S50 S1 in a CENTUM VP system?
A: Power down the I/O nest slot if hot-swap is not required, insert the module until the locking lever engages, then verify recognition via the CENTUM VP Engineering Environment. For hot-swap, confirm the system is in a stable control state before insertion to avoid transient alarms.

Q2: Which firmware versions of CENTUM VP are compatible with this module?
A: The AAR145-S50 S1 is compatible with CENTUM VP R4.01 and later revisions. Always cross-reference the Yokogawa compatibility matrix for your specific system revision before deployment to ensure seamless integration.

Q3: Can this module be used in ProSafe-RS safety instrumented systems?
A: Yes. The AAR145-S50 S1 is qualified for use in ProSafe-RS architectures. Verify the SIL rating requirements of your safety loop and consult the ProSafe-RS I/O module assignment guidelines during system integration.

Q4: How is the warranty claim process handled?
A: Our 1-year warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with your order reference and a fault description. Replacement or repair is coordinated within 5 business days of fault verification.

Q5: Does the module support custom RTD linearization curves?
A: Yes. Custom linearization tables can be configured via the CENTUM VP Engineering Environment, enabling accurate measurement for non-standard resistance sensors beyond the factory-preset RTD types.

Q6: What lead resistance compensation method is recommended for 2-wire RTD wiring?
A: For 2-wire configurations, apply a fixed lead resistance offset in the engineering software based on measured cable resistance. Where accuracy requirements are stringent, upgrading to 3-wire or 4-wire wiring is strongly recommended to eliminate lead resistance error entirely.
