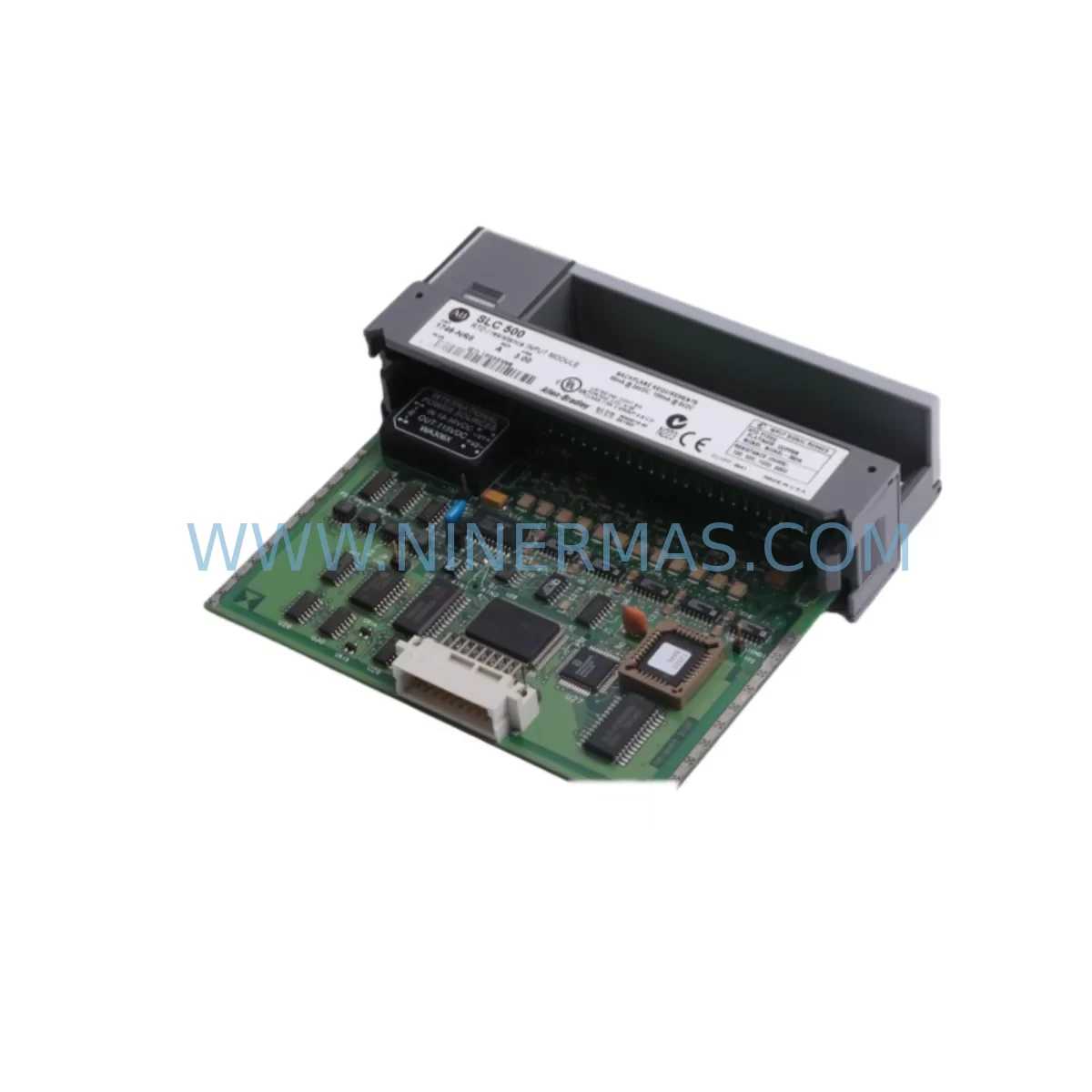

Allen-Bradley 1746-NR8 Retrofit-Compatible RTD Input Module

Allen-Bradley 1746-NR8 Retrofit-Compatible RTD Input Module for Legacy SLC 500 Systems

The Allen-Bradley 1746-NR8 is an 8-channel RTD (Resistance Temperature Detector) input module designed for the SLC 500 modular I/O platform. As legacy SLC 500 control systems approach end-of-life and original spare parts become increasingly scarce, the 1746-NR8 remains a critical component for facilities that depend on precise temperature monitoring across industrial processes. Whether you are managing a phased retrofit, replacing a failed module in an active production line, or building a long-term spare parts inventory, the 1746-NR8 provides a direct-fit, firmware-compatible solution that minimises engineering rework and eliminates the need for immediate full-system migration.

NINERMAS maintains verified stock of the 1746-NR8 sourced from authorised channels, with each unit subject to pre-shipment functional testing. All units are covered by a 12-month warranty from the date of delivery, giving procurement and maintenance teams the confidence to plan ahead without the risk of receiving untested surplus stock.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1746-NR8 in an active SLC 500 system requires a structured approach that accounts for both hardware compatibility and software continuity. Before the replacement module arrives on-site, maintenance engineers should retrieve the current RSLogix 500 program backup from the 1747-L553 or 1747-L552 SLC 5/05 or 5/04 processor and document the I/O configuration file, paying particular attention to the channel configuration for each of the eight RTD inputs — including sensor type, filter frequency, and engineering unit scaling.

The 1746-NR8 occupies a single slot in the 1746 modular chassis. Before removal, confirm that the 1746-P4 or 1746-P7 power supply has sufficient current headroom to support the replacement module alongside other installed modules such as the 1746-OB16 digital output module, 1746-IB16 digital input module, or any 1746-NI4 analog input modules sharing the same rack. Backplane current budgeting is a frequently overlooked step that can cause intermittent faults after a module swap.

Field wiring to the 1746-NR8 is terminated on a removable screw-terminal block. This design allows the terminal block to be unplugged from the failed module and transferred directly to the replacement unit, significantly reducing re-termination time and the risk of wiring errors. However, engineers should inspect each terminal for corrosion, loose strands, or incorrect torque before re-inserting the block into the new module.

For facilities planning a longer-term migration from SLC 500 to a ControlLogix 1756 or CompactLogix 1769 platform, the 1746-NR8 can continue to serve as a bridge solution during the transition period. In such scenarios, the existing SLC 500 rack may be retained as a remote I/O subsystem, communicating with the new ControlLogix processor via a 1756-DHRIO Data Highway Plus Remote I/O module or a 1761-NET-AIC Advanced Interface Converter. This approach allows the temperature monitoring infrastructure — including existing RTD sensors, field wiring, and junction boxes — to remain in service while the control logic is progressively migrated to the new platform.

Where the SLC 500 system also includes a PanelView 550 or PanelView 600 HMI communicating over DH-485, engineers should verify that the HMI tag database references the correct slot address for the 1746-NR8 after the swap. If the HMI is being upgraded concurrently to a PanelView Plus 7 or FactoryTalk View ME terminal, the temperature display screens will need to be remapped to the new tag structure. Retaining the original slot address and I/O file structure in the SLC 500 program minimises the scope of HMI rework during a phased upgrade.

For sites with multiple SLC 500 racks distributed across a production floor and networked via a 1747-SDN DeviceNet Scanner or a 1747-SN Remote I/O Scanner, the 1746-NR8 replacement should be coordinated with the network administrator to ensure that the module’s data table mapping is consistent across all nodes. A 1784-U2DHP USB-to-DH+ interface cable is recommended for on-site programming and verification using a laptop running RSLogix 500, allowing engineers to go online with the processor and force individual channels to confirm correct RTD readings before returning the system to automatic mode.

Downtime Control During System Migration

Minimising unplanned downtime during a 1746-NR8 replacement is achievable with the right preparation. The most effective strategy is to pre-stage the replacement module in the control room before the maintenance window begins. This includes verifying the module’s firmware revision, confirming the terminal block wiring diagram against the as-built drawings, and preparing the RSLogix 500 laptop with the latest program backup loaded and ready to go online.

During the swap, the SLC 500 processor should be placed in Program mode rather than powered down entirely, where process safety permits. This preserves the program in the processor’s battery-backed RAM and allows the engineer to go online immediately after the module is seated and the terminal block is reconnected. A forced I/O scan of the affected slot will confirm that all eight RTD channels are reading within expected ranges before the processor is returned to Run mode.

For critical temperature loops that feed into PID control blocks or safety interlock logic, it is advisable to place the affected control loops in manual mode at the HMI before beginning the swap. This prevents the processor from acting on invalid temperature readings during the brief period when the module is unseated. Once the replacement 1746-NR8 is confirmed operational and all channel readings are verified, the loops can be returned to automatic mode in a controlled sequence.

Where the 1746-NR8 feeds temperature data into a safety-rated interlock — for example, a high-temperature shutdown for a furnace or dryer — the safety logic should be reviewed with the process safety engineer before the swap is authorised. In some installations, a 1746-OW16 relay output module or a dedicated safety relay module may be wired in series with the interlock circuit, and the bypass procedure for this circuit must be documented and approved before work begins.

NINERMAS ships the 1746-NR8 with a pre-shipment functional test report included in the packaging. This report confirms that each channel has been verified against a calibrated RTD simulator prior to dispatch, reducing the risk of receiving a non-functional unit and the associated downtime cost of a second maintenance window.

Retrofit Support FAQ

Q1: Is the 1746-NR8 a direct replacement for a failed unit in my existing SLC 500 rack?
Yes. The 1746-NR8 is a like-for-like replacement for any existing 1746-NR8 installed in a 1746 modular chassis. The module occupies a single slot, uses the same removable terminal block wiring interface, and is configured using the same RSLogix 500 I/O configuration file. No program changes are required for a direct swap, provided the slot address remains the same.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module and reconnecting the terminal block, go online with the SLC 500 processor using RSLogix 500 and navigate to the I/O configuration for the affected slot. Verify that all eight channels are configured correctly (sensor type, filter, scaling) and compare live readings against the process values displayed on the HMI or recorded in the historian. Force each channel individually if necessary to confirm signal integrity. Return the processor to Run mode only after all channels are verified.

Q3: Can I use the 1746-NR8 in a migration to ControlLogix or CompactLogix?
Yes, as a transitional solution. The existing SLC 500 rack containing the 1746-NR8 can be retained as a remote I/O subsystem and connected to a new ControlLogix 1756 processor via a 1756-DHRIO module. This allows the temperature monitoring infrastructure to remain in service while the control logic is migrated. A full migration to native ControlLogix analog input modules (such as the 1756-IR6I RTD input module) can be planned for a subsequent maintenance window.

Q4: What does the 12-month warranty cover, and what is the lead time for stock?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. NINERMAS maintains ready stock of the 1746-NR8 and typically ships within 2–5 business days of order confirmation. A pre-shipment functional test report is included with every unit. For urgent requirements, expedited shipping options are available — contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and lead time.
