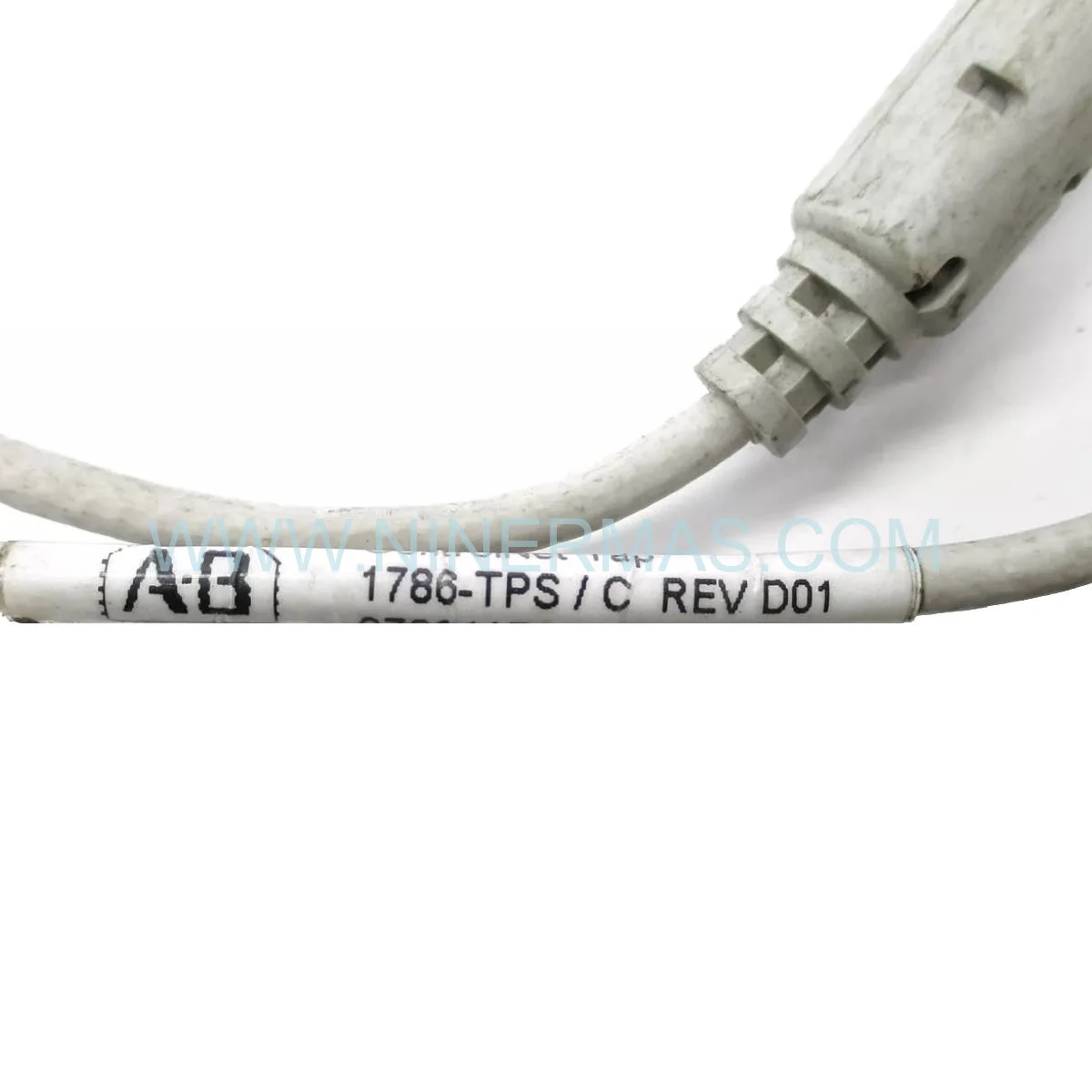

Allen-Bradley 1786-TPS — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect, the first question any retrofit project demands is: which components can anchor the transition without disrupting live operations? The Allen-Bradley 1786-TPS answers that question decisively. This ControlNet coaxial T-tap connector serves as a critical junction point in modernizing aging industrial networks — enabling facilities to extend the operational lifespan of existing ControlNet infrastructure while simultaneously preparing the physical layer for higher-throughput, deterministic communication demands. Its role in Performance Enhancement is not incidental; it is structural.

Legacy ControlNet architectures deployed across DCS and TSI platforms often face a common dilemma: the communication backbone is sound in design, but the physical connectors have degraded or become incompatible with newer field devices. The Allen-Bradley 1786-TPS resolves this by providing full Legacy Compatibility with existing RG-6 coaxial trunk cabling, allowing engineers to introduce modern I/O modules and controllers without rewiring the entire network segment. This backward-compatible design is the cornerstone of any low-risk Retrofit Solution.

From a cost-migration perspective, replacing only the tap connectors — rather than overhauling the entire coaxial backbone — reduces project expenditure by an estimated 40-60% compared to full network replacement. This targeted Hardware Upgrade strategy minimizes downtime windows, preserves validated signal paths, and dramatically lowers the risk profile of any System Migration initiative in brownfield environments.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration — Drop-in replacement for existing ControlNet coaxial tap positions; no trunk cable modification required
• Legacy Compatibility — Fully compatible with Allen-Bradley PLC-5, SLC 500, and ControlLogix platforms via ControlNet bridge modules
• ✅ Performance Enhancement — Maintains signal integrity at 5 Mbps ControlNet data rates across extended trunk lengths
• Future-Proofing — Supports phased migration: retain ControlNet segments while progressively introducing EtherNet/IP nodes
• ✅ Ease of Integration — Tool-free BNC-style tap connection reduces installation time by up to 70% vs. hardwired alternatives
• Certified Reliability — Meets IEC 60068 environmental standards; rated for -25 to 70°C operating range in harsh industrial environments

Modernization Use Cases & Success Stories

DCS Network Backbone Refresh — Chemical Processing Plant: A major petrochemical facility operating a legacy Rockwell Automation ControlNet DCS faced increasing tap connector failures causing intermittent node dropouts. By systematically replacing degraded taps with the Allen-Bradley 1786-TPS, the engineering team restored deterministic communication across 47 network nodes — achieving zero unplanned downtime during the 3-phase retrofit. The Seamless Integration approach eliminated the need for a full network redesign, saving an estimated $280,000 in project costs.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant modernizing its TSI system required maintaining ControlNet connectivity to legacy Bently Nevada interface modules during the transition to a new DCS platform. The Allen-Bradley 1786-TPS provided the physical layer bridge that kept legacy vibration monitoring online while new EtherNet/IP infrastructure was commissioned in parallel — a textbook Retrofit Solution that reduced migration risk to near zero.

Automotive Assembly Line Modernization: A Tier-1 automotive supplier upgrading robotic welding cell controllers retained their ControlNet backbone by deploying Allen-Bradley 1786-TPS taps at each robot interface point. This Performance Upgrade strategy extended the useful life of the network infrastructure by 8-12 years while new ControlLogix controllers were integrated incrementally.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1786-TPS unit shipped from our inventory is sourced directly from authorized distribution channels and arrives in original, factory-sealed packaging. Authenticity documentation and traceability records are available upon request — critical for regulated industries including nuclear, pharmaceutical, and aerospace manufacturing.

Expedited Global Logistics: We maintain strategic stock positions to support urgent retrofit and emergency replacement scenarios. Express air freight to North America, Europe, Southeast Asia, and the Middle East is available with lead times as short as 24-72 hours. All shipments include full export documentation and customs compliance support.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy ControlNet architecture. Whether you need tap positioning guidance, trunk impedance calculations, or migration pathway planning from ControlNet to EtherNet/IP, our technical advisors provide project-level consultation at no additional cost with qualifying orders.

Retrofit FAQ — Upgrade Guide

Q1: Is the Allen-Bradley 1786-TPS compatible with existing ControlNet trunk cable installations without physical modification?
Yes. The Allen-Bradley 1786-TPS is designed as a direct-fit T-tap for standard RG-6 ControlNet coaxial trunk cable. No trunk cable cutting, splicing, or re-termination is required. The BNC-style tap interface allows tool-free installation, making it ideal for live-network retrofit scenarios where minimizing disruption is paramount.

Q2: Can this tap support communication between legacy PLC-5 systems and modern ControlLogix controllers during a phased migration?
Absolutely. During phased System Migration projects, the Allen-Bradley 1786-TPS maintains the physical ControlNet layer that allows legacy PLC-5 nodes and new ControlLogix controllers (connected via 1756-CNB or 1756-CNBR bridge modules) to coexist on the same network segment. This enables a controlled, incremental cutover strategy without requiring simultaneous replacement of all controllers.

Q3: What is the maximum number of taps that can be installed on a single ControlNet trunk segment?
ControlNet architecture supports up to 48 nodes per segment, with tap spacing governed by the ControlNet Physical Layer specification. The Allen-Bradley 1786-TPS complies fully with these specifications. For high-density retrofit projects, our technical team can provide segment load calculations and tap placement optimization to ensure signal integrity across the entire modernized network.

Q4: How does the 1786-TPS perform in high-vibration environments such as turbine halls or heavy press lines?
The Allen-Bradley 1786-TPS is rated to withstand 2.5g vibration across 10-500 Hz per IEC 60068-2-6, and 30g operating shock per IEC 60068-2-27. These ratings make it suitable for deployment in turbine supervisory instrumentation (TSI) environments, heavy stamping press lines, and other high-mechanical-stress industrial settings where connector reliability is non-negotiable.

Q5: Are there alternative replacement options if the 1786-TPS is unavailable, and how do they compare?
While third-party ControlNet-compatible taps exist, only the genuine Allen-Bradley 1786-TPS guarantees full compliance with Rockwell Automation’s ControlNet Physical Layer specification and maintains warranty coverage for connected Allen-Bradley hardware. For applications where the 1786-TPS is temporarily unavailable, our team can advise on certified Allen-Bradley alternatives within the 1786 series that maintain Legacy Compatibility without compromising network determinism.

Q6: What documentation is available to support the retrofit installation and commissioning process?
We provide access to the official Allen-Bradley ControlNet Coax Media Planning and Installation Guide (Publication 1786-IN009), tap installation procedures, and network topology templates. For complex retrofit projects, our engineers can deliver site-specific migration documentation including as-built network diagrams, tap assignment tables, and commissioning checklists.
