Allen-Bradley 1785-L40B/E Retrofit-Compatible PLC Processor

Allen-Bradley 1785-L40B/E Retrofit-Compatible PLC Processor for Legacy Systems

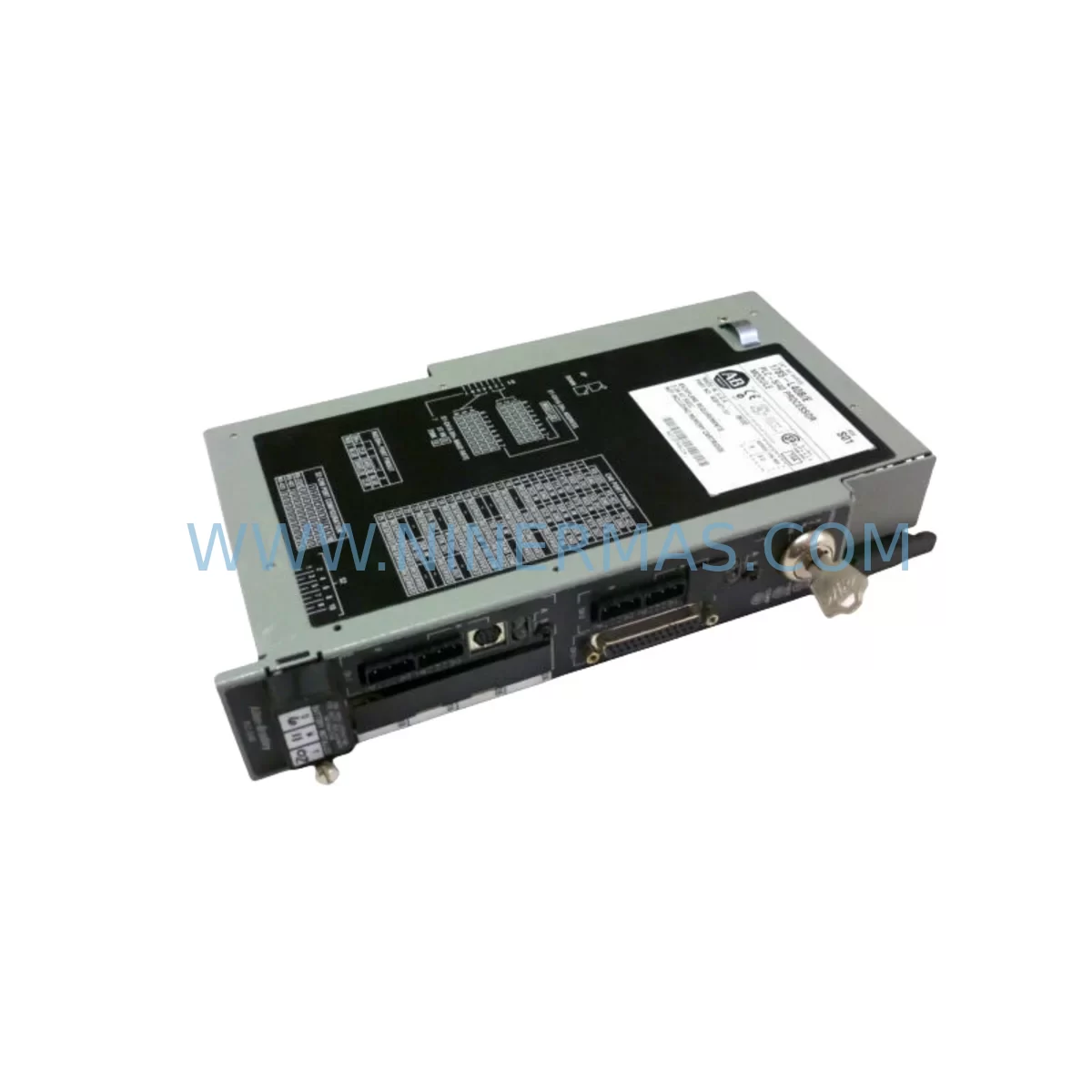

The Allen-Bradley 1785-L40B/E is a PLC-5 series programmable logic controller processor designed for demanding industrial automation environments. As a cornerstone of legacy control architectures across petrochemical, power generation, mining, water treatment, and continuous manufacturing facilities, the 1785-L40B/E remains a critical component for plants that depend on proven, field-hardened control logic. NINERMAS maintains verified stock of this discontinued processor to support retrofit projects, emergency replacements, and planned system migrations — all backed by a 12-month warranty and full pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 1785-L40B/E in an operating plant requires careful pre-migration planning across multiple system layers. Before the processor swap, engineers must verify the existing 1771 I/O chassis configuration — including all installed modules such as 1771-OBD digital output modules, 1771-IFE analog input modules, and 1771-ASB remote I/O adapter cards — to confirm that the replacement processor will correctly address each rack slot. Any mismatch in the I/O map can cause unexpected output states during the first scan cycle, which is unacceptable in safety-critical or continuous-process environments.

The 1785-L40B/E communicates over Data Highway Plus (DH+), and the existing network topology — including 1784-KTX or 1784-PKTX communication cards installed in the programming workstation — must be validated before the new processor is brought online. If the migration path leads toward a ControlLogix platform using a 1756-L series controller, a 1771-ACN15 ControlNet adapter or a 1771-SDN DeviceNet scanner may be required to bridge legacy I/O racks into the new backplane architecture. These interface decisions directly affect wiring terminal assignments and must be resolved before any physical installation begins.

Power budget verification is equally important. The 1771-P4S or 1771-P6S power supply feeding the chassis must have sufficient capacity to support the 1785-L40B/E alongside all installed I/O modules. Overloaded power supplies are a leading cause of intermittent faults and unexplained processor resets in aging control cabinets. NINERMAS recommends documenting the current draw of every module in the chassis before the replacement is scheduled.

For facilities running PanelView 550 or PanelView 900 HMI terminals connected via DH+ to the existing PLC-5 processor, the tag database and screen logic must be reviewed to ensure that all referenced data table addresses remain valid after the processor swap. If the replacement 1785-L40B/E carries a different firmware revision, certain data file structures may behave differently, and RSLogix 5 should be used to verify the program file before the cutover window opens.

Where signal isolation is required between legacy analog I/O and the new processor environment, DIN-rail-mounted signal isolators and loop-powered transmitter barriers should be pre-installed and verified during the pre-commissioning phase. This is particularly important in petrochemical and mining environments where ground loops and common-mode noise can corrupt analog readings and trigger nuisance alarms during the first hours of operation after a processor replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1785-L40B/E replacement is achievable with a structured cutover methodology. The first step is to create a full backup of the existing program using RSLogix 5, including all data table files, force tables, and online edits that may not have been saved to the original project file. This backup should be stored on at least two separate media before any hardware is touched.

A shadow-mode test — where the replacement processor is powered and loaded with the program offline while the original unit remains in control — allows the engineering team to verify scan time, I/O response, and communication link behavior before the actual cutover. This approach is especially valuable in continuous manufacturing lines where even a 15-minute unplanned stop can trigger downstream quality holds or batch losses.

During the physical swap, terminal wiring should not be disturbed unless a documented wiring correction is part of the scope. The 1771 chassis backplane connections, DH+ termination resistors, and RS-232 programming port settings should all be photographed and recorded before the old processor is removed. After the 1785-L40B/E replacement is seated and powered, the first online connection should be made in monitor mode — not program mode — to observe the first scan without risk of unintended output activation.

NINERMAS ships all 1785-L40B/E units with a pre-shipment functional test report, confirming that the processor powers up correctly, passes internal diagnostics, and communicates over DH+ before leaving the warehouse. This reduces the risk of receiving a non-functional unit during a time-critical maintenance window. Combined with our 12-month warranty coverage, customers can proceed with confidence that the replacement hardware will perform to specification from day one.

Retrofit Support FAQ

Q1: Is the 1785-L40B/E a direct drop-in replacement for other PLC-5 Enhanced processors?
The 1785-L40B/E is compatible with the standard 1771 I/O chassis and shares the same backplane interface as other PLC-5 Enhanced processors. However, memory size, firmware revision, and communication port configuration must be verified against the existing program file before substitution. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q2: What pre-shipment testing does NINERMAS perform on the 1785-L40B/E?
Every unit undergoes a full functional test including power-on diagnostics, internal memory verification, DH+ communication port check, and RS-232 interface validation. A test report is included with each shipment. Units that do not pass all test criteria are not released for sale.

Q3: Can the 1785-L40B/E be used as a long-term spare for a plant with multiple PLC-5 systems?
Yes. NINERMAS supports long-term spare parts programs for facilities managing multiple PLC-5 installations. We can reserve stock, provide scheduled delivery, and maintain documentation for each unit supplied. Our 12-month warranty applies from the date of shipment, and extended support arrangements can be discussed for high-volume or multi-site customers.

Q4: What is the recommended migration path if the 1785-L40B/E is no longer available in the future?
Rockwell Automation’s recommended migration path from PLC-5 to ControlLogix involves using a 1756-L series controller with a 1771-ACN15 or 1771-SDN adapter to retain existing 1771 I/O racks. RSLogix 5000 (Studio 5000) provides translation utilities to assist with ladder logic conversion. NINERMAS can supply both the legacy 1785-L40B/E for immediate needs and ControlLogix migration components for planned upgrades.
