Allen-Bradley 2711-K5A8 Retrofit-Compatible HMI for Legacy Systems

Allen-Bradley 2711-K5A8 Retrofit-Compatible HMI for Legacy Systems

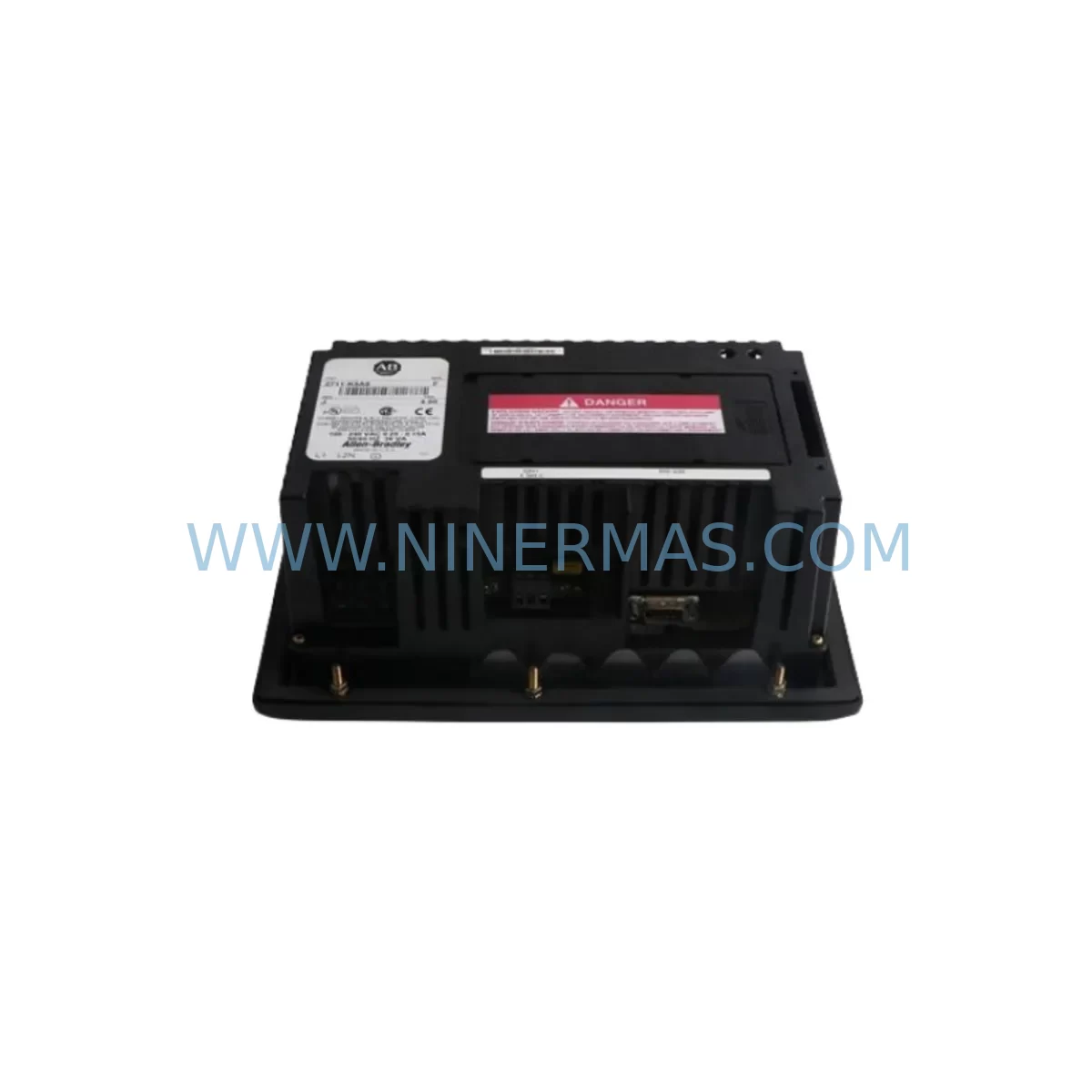

The Allen-Bradley 2711-K5A8 is a 5.5-inch monochrome keypad-based PanelView Standard operator terminal designed for direct integration with legacy Rockwell Automation control architectures. As production lines age and original HMI hardware reaches end-of-life, the 2711-K5A8 serves as a proven retrofit-compatible replacement for discontinued PanelView 550 and PanelView 600 series units, enabling facilities to extend operational continuity without full PLC or control cabinet redesign.

This unit communicates via DH-485 and RS-232 serial interfaces, making it directly compatible with SLC 500 series controllers — including the SLC 5/03, SLC 5/04, and SLC 5/05 — as well as MicroLogix 1000, MicroLogix 1100, and MicroLogix 1500 platforms. For sites running older PLC-5 architectures, the 2711-K5A8 can be integrated through a 1747-AIC link coupler or 1761-NET-AIC adapter, preserving the existing DH-485 network topology without requiring rewiring of the control cabinet backplane.

When planning a retrofit using the 2711-K5A8, engineers must verify several critical compatibility parameters before committing to installation. Power supply requirements must be confirmed: the unit operates on 24VDC and draws approximately 1.5A at full load, so the existing 1606-XLP or 1606-XLE series power supply in the control cabinet must have sufficient headroom. Terminal block wiring from the legacy HMI must be mapped against the 2711-K5A8’s connector pinout, particularly for the RS-232 port (DB-9 connector) and the DH-485 port (RJ-45 or terminal strip depending on revision).

Panel cutout dimensions are a frequent concern during retrofit planning. The 2711-K5A8 uses a standard 5.5-inch panel mount format, and the cutout template must be verified against the existing enclosure opening. In many cases, legacy PanelView 550 installations share a compatible cutout, allowing direct drop-in replacement with only minor gasket adjustment. However, if the existing installation used a PanelView 300 Micro or PanelView 300, a panel modification or adapter plate will be required.

Program compatibility is another key consideration. Application files created in PanelBuilder 1400e or PanelBuilder32 for the PanelView 550 can typically be converted and downloaded to the 2711-K5A8 using RSLinx Classic and PanelBuilder32 software. Engineers should audit all screen tags, data file references, and communication driver settings before transfer. Any N7, B3, or F8 data file references in the original SLC 500 program must be verified to ensure the HMI tag database aligns correctly with the controller’s data table.

For facilities running a 1747-SDN DeviceNet Scanner or 1756-DNB DeviceNet Bridge in the same control cabinet, the 2711-K5A8 does not participate on the DeviceNet network directly — it communicates exclusively via DH-485 or RS-232. This distinction is important when documenting the network topology for the retrofit project and ensuring that the 1747-AIC or 1761-NET-AIC adapter is correctly configured for the node address and baud rate (typically 19.2 kbps for DH-485).

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2711-K5A8 retrofit begins with a thorough audit of the existing control cabinet. In most legacy SLC 500 installations, the control rack will contain a 1746-A7 or 1746-A10 chassis populated with a combination of 1746-IB16 digital input modules, 1746-OB16 digital output modules, 1746-NI4 analog input modules, and a 1746-P2 or 1746-P4 power supply. The 2711-K5A8 connects to the SLC processor’s DH-485 port directly, so no additional communication module is required in the rack — a significant advantage over more complex migration paths.

For sites where the legacy HMI was connected via RS-232 DF1 protocol, the 2711-K5A8 supports both DF1 Full-Duplex and DF1 Half-Duplex modes, allowing direct cable reuse in many cases. The 1761-CBL-PM02 or 1747-CP3 programming cable is typically used during initial commissioning to download the application file and verify communication parameters. Once the application is loaded, the cable is removed and the unit operates standalone.

Where the existing installation includes a 1747-SDN DeviceNet scanner or a 1756-L61 ControlLogix processor in a hybrid architecture, the 2711-K5A8 can coexist in the same panel as long as the DH-485 network is properly terminated and node addresses do not conflict. In ControlLogix environments, a 1761-NET-AIC or 1747-AIC adapter bridges the DH-485 segment to the ControlLogix backplane, enabling the PanelView Standard to display data from the ControlLogix data table via MSG instructions.

Signal isolation is another consideration for noisy industrial environments. If the control cabinet contains variable frequency drives (VFDs) such as the PowerFlex 40 or PowerFlex 400, or servo drives connected via 1394 GMC, additional shielding or a 1761-NET-AIC with optical isolation may be warranted to prevent communication errors on the DH-485 segment. Proper cable routing — keeping DH-485 cables away from high-voltage conductors — is essential for reliable HMI operation post-retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any HMI retrofit project. The 2711-K5A8 replacement process can typically be completed within a planned maintenance window of 2–4 hours when all preparatory steps are completed in advance. The recommended sequence is: (1) back up the existing HMI application file using PanelBuilder32 before the maintenance window begins; (2) pre-configure the replacement 2711-K5A8 unit off-line using the same software, verifying all screen tags and communication settings against the SLC 500 data table; (3) during the maintenance window, power down the control cabinet, swap the HMI unit, reconnect the DH-485 or RS-232 cable, restore power, and verify communication; (4) perform a functional test of all operator screens, setpoint entries, and alarm displays before releasing the line.

Because the 2711-K5A8 does not require any changes to the SLC 500 processor program or data table — only the HMI application file is updated — the risk of introducing logic errors during the retrofit is minimal. The existing ladder logic in the SLC 5/04 or SLC 5/05 processor continues to execute without interruption during the HMI swap, provided the processor is not placed in Program mode unnecessarily. This approach protects original program logic and maintains field control continuity throughout the migration.

All units supplied by NINERMAS are pre-shipment tested for display function, keypad response, and communication port integrity before dispatch. This pre-testing step reduces on-site commissioning time and lowers the risk of discovering hardware defects during the maintenance window — a critical advantage when downtime costs are high.

Retrofit Support FAQ

Q: Is the 2711-K5A8 a direct drop-in replacement for the 2711-K5A2?
A: Yes, the 2711-K5A8 and 2711-K5A2 share the same panel cutout dimensions and DH-485/RS-232 communication interfaces. The application file from the 2711-K5A2 can be converted and downloaded to the 2711-K5A8 using PanelBuilder32. Minor screen layout adjustments may be required if the original application used revision-specific features.

Q: What programming cable is required for initial commissioning?
A: The 1747-PIC (AIC+ interface converter) or the 1761-CBL-PM02 serial cable is used to connect a laptop running PanelBuilder32 to the 2711-K5A8’s RS-232 port for application download. RSLinx Classic must be configured with the correct DF1 driver and COM port settings before downloading.

Q: Does NINERMAS provide pre-shipment testing and a warranty?
A: Yes. Every 2711-K5A8 unit is tested for display, keypad, and communication port function before shipment. A 12-month warranty is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping and in-stock availability are confirmed at time of order.

Q: Can the 2711-K5A8 communicate with a ControlLogix PLC directly?
A: The 2711-K5A8 does not support EtherNet/IP or ControlNet natively. For ControlLogix integration, a 1761-NET-AIC or 1747-AIC adapter is required to bridge the DH-485 segment. Alternatively, customers migrating to a full ControlLogix platform should consider upgrading to a PanelView Plus 600 or PanelView Plus 7 Standard terminal, which supports EtherNet/IP natively.
