Allen-Bradley 1775-MED Service-Ready Spare Part: Minimizing Downtime in Industrial Maintenance

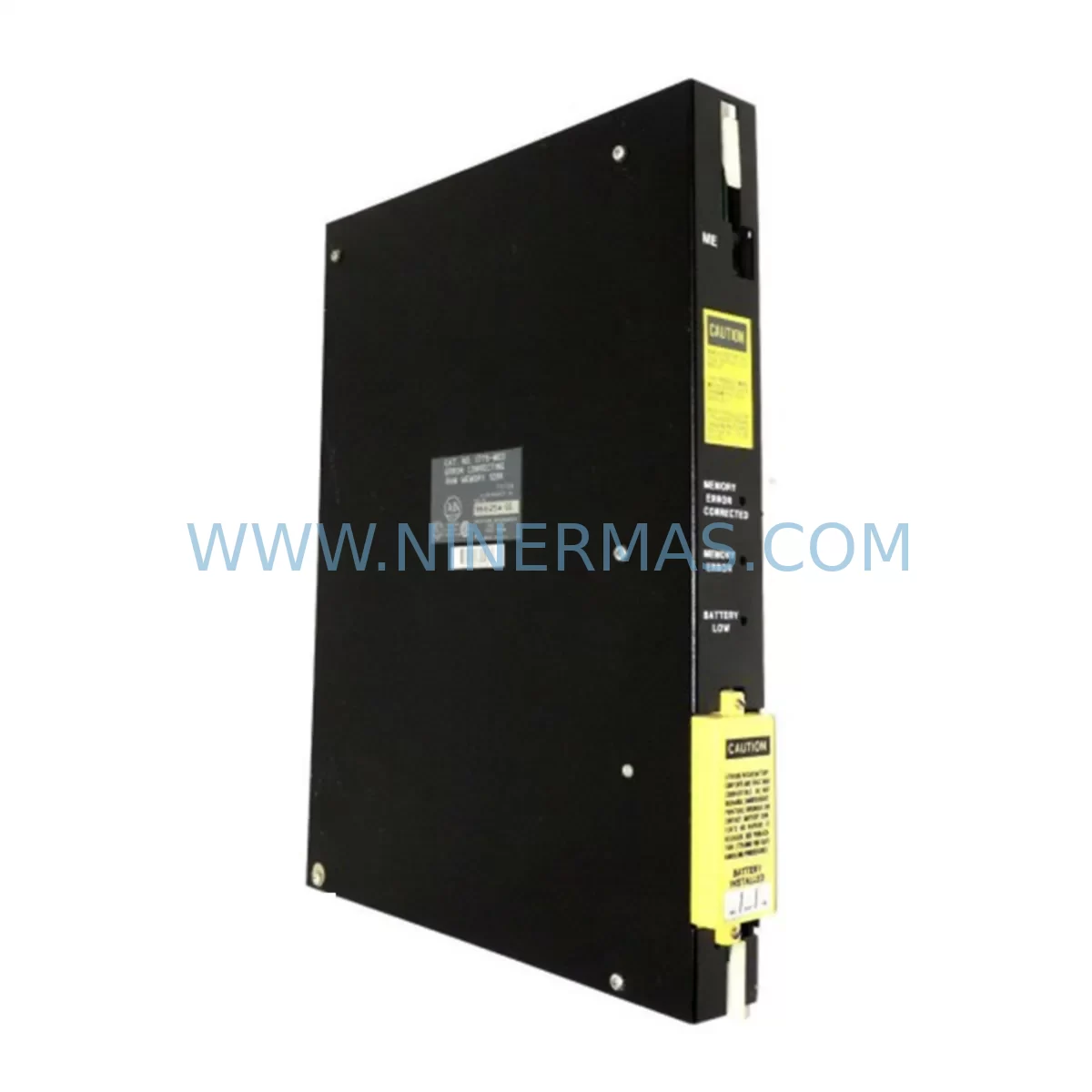

The Allen-Bradley 1775-MED is a ruggedized memory module engineered for demanding industrial environments, designed to serve as a direct replacement component within Allen-Bradley PLC-5 programmable controller systems. For maintenance engineers managing aging automation infrastructure, the 1775-MED represents a critical spare that bridges the gap between legacy system continuity and modern operational reliability. Whether you are responding to an unplanned fault, executing a scheduled annual overhaul, or building a proactive spare parts inventory, having a verified, service-ready 1775-MED on hand is essential to minimizing production downtime and protecting your facility’s control architecture.

Industrial facilities running PLC-5 platforms — including the 1785-L40, 1785-L60, and 1785-L80 processor families — depend on memory modules like the 1775-MED to retain ladder logic programs, data tables, and configuration parameters. A failed or corrupted memory module can bring an entire production line to a halt within seconds. Procurement engineers sourcing replacement modules must prioritize compatibility verification, original-grade quality, and supplier reliability to avoid secondary failures caused by counterfeit or substandard components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1775-MED memory module is flagged for replacement during a fault diagnosis or routine inspection, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site assessment should accompany every memory module swap to prevent repeat failures and ensure full system restoration.

Begin by inspecting the 1785-L40 or 1785-L60 PLC-5 processor for any co-existing faults — a corrupted memory module can sometimes be symptomatic of processor instability or power irregularities rather than a standalone module failure. Verify the 1771-P4S or 1771-P7 power supply module output voltages are within specification, as undervoltage conditions are a leading cause of memory corruption in PLC-5 systems. Fluctuating backplane power can degrade module performance over time, making the power supply a mandatory checkpoint during any 1775-MED replacement procedure.

Next, examine the 1771-A4B or 1771-A2B I/O chassis and backplane for physical damage, oxidized connector pins, or loose module seating. A compromised backplane can cause intermittent communication errors that mimic memory faults. While the control cabinet is open, it is good practice to inspect 1771-OBD or 1771-IBD digital I/O modules for signs of overheating or contact wear, particularly in high-cycle applications such as press lines or conveyor systems.

Communication integrity should also be verified. If the PLC-5 system is networked via 1785-KA5 or 1785-KE Data Highway Plus communication adapters, confirm that network cables are properly terminated and that the adapter modules show no fault indicators. A memory module replacement is an ideal opportunity to audit the full communication chain, including any 1770-KF2 or 1784-KT serial interface modules used for programming or SCADA connectivity.

For facilities using PanelView 550 or PanelView 900 HMI terminals connected to the PLC-5 system, verify that the HMI communication parameters remain intact after the memory module is restored. Program re-download procedures can occasionally reset communication port configurations, leading to HMI disconnection alarms that delay production restart.

Finally, review the 1492-J terminal block assemblies and field wiring connections within the control cabinet. Loose terminations or corroded terminal blocks can introduce noise into the I/O circuits, which may have contributed to the original memory fault. Replacing the 1775-MED without addressing upstream wiring issues risks a repeat failure within weeks.

Building a structured spare parts kit around the 1775-MED — including at least one spare processor module, a replacement power supply, and critical I/O modules — is the most effective strategy for reducing mean time to repair (MTTR) on PLC-5 platforms that are no longer in active production by the OEM.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 1775-MED, perform a full program backup using RSLogix 5 or an equivalent programming terminal connected via the 1784-KT or 1770-KF2 interface. Confirm the backup file integrity before proceeding. This step is non-negotiable — a failed memory module may still retain partial program data that can be recovered if the backup is taken prior to removal.

Step 2 — Power-Down Sequence: Follow the documented lockout/tagout (LOTO) procedure for the control cabinet. De-energize the 1771-P4S power supply and confirm zero-energy state before opening the chassis. Do not attempt hot-swap of the 1775-MED — the PLC-5 platform does not support live memory module replacement.

Step 3 — Module Removal and Inspection: Remove the 1775-MED by releasing the module locking tab and sliding it clear of the backplane connector. Inspect the connector pins on both the module and the backplane slot for oxidation, bent contacts, or debris. Clean with appropriate contact cleaner if necessary before installing the replacement unit.

Step 4 — Replacement Installation: Insert the new 1775-MED firmly into the designated backplane slot until the locking tab engages. Verify module seating is flush and secure. Restore power to the system and observe the processor status indicators during the boot sequence.

Step 5 — Program Restore and Functional Test: Download the verified program backup to the processor via the programming interface. Perform a full I/O scan and confirm all input and output signals are responding correctly before returning the system to automatic mode. Document the replacement in the site maintenance log with the module serial number, date, and technician ID.

This workflow is applicable across the PLC-5 processor family and can be adapted for both emergency breakdown response and planned maintenance windows. Sourcing the 1775-MED from a verified supplier with pre-shipment functional testing — and a 12-month warranty — eliminates the risk of installing a defective replacement and triggering a second unplanned outage.
