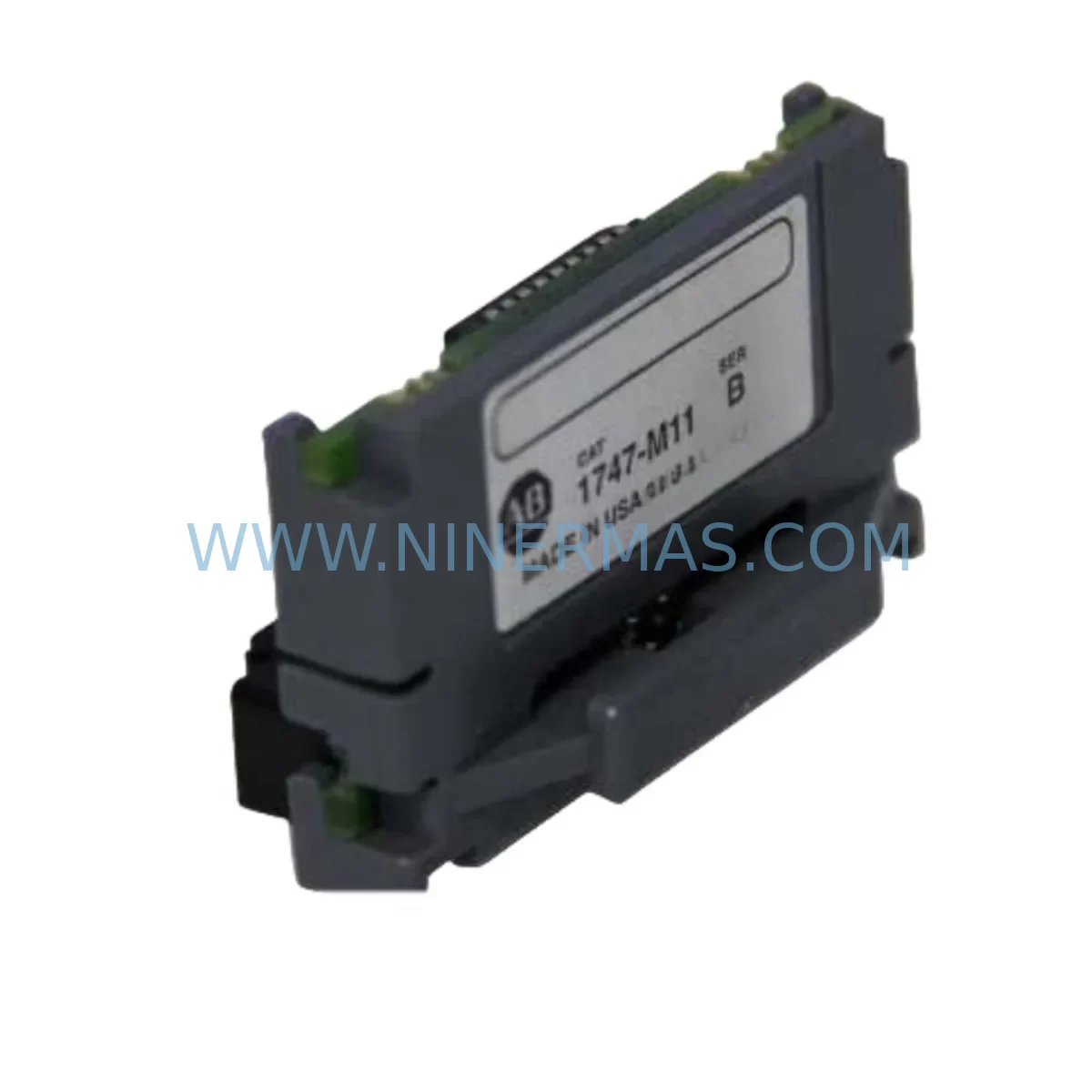

Allen-Bradley 1747-M11/B Spare Part for SLC 500

Allen-Bradley 1747-M11/B Spare Part for SLC 500: Downtime Recovery & Spare Parts Replacement

The Allen-Bradley 1747-M11/B is an original memory module adapter designed for the SLC 500 programmable logic controller series by Rockwell Automation. In industrial maintenance environments, this component plays a critical role in preserving program integrity during controller replacement, firmware migration, and emergency recovery operations. Whether you are managing a scheduled annual overhaul or responding to an unplanned line stoppage, having a service-ready 1747-M11/B in your spare parts inventory is essential for minimizing mean time to repair (MTTR) and restoring production continuity.

Maintenance engineers working with SLC 500-based control cabinets rely on the 1747-M11/B to transfer and retain ladder logic programs between processors. This adapter bridges the memory cartridge interface and ensures that program data remains intact even when the primary CPU module — such as the 1747-L532 or 1747-L543 processor — requires replacement. Without a verified spare on hand, a single processor failure can result in hours of reprogramming downtime, especially in legacy systems where original program backups may be incomplete or unavailable.

From a procurement engineering perspective, the 1747-M11/B is a low-cost, high-impact spare that belongs in every SLC 500 maintenance kit. Its compact form factor and straightforward installation make it suitable for field technicians performing rapid swap-outs during shift maintenance windows. NINERMAS supplies this component as a tested, original spare with a 12-month warranty, ensuring that your replacement unit meets factory specifications before it reaches your facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1747-M11/B memory module adapter in an SLC 500 control cabinet, a thorough maintenance engineer will not stop at the module itself. A complete cabinet inspection during the same maintenance window significantly reduces the risk of repeat failures and unplanned downtime.

Begin by verifying the condition of the 1747-L5xx processor module itself — if the memory adapter is being replaced due to read/write errors, the processor’s memory interface may also be degraded. Simultaneously, inspect the 1746-P4 or 1746-P2 power supply module, as voltage instability is a leading cause of memory corruption in SLC 500 systems. A failing power supply can damage replacement modules within weeks of installation.

Check all 1746-IB16 and 1746-OB16 digital I/O modules for blown fuses, damaged terminal blocks, and loose field wiring. I/O faults are frequently misdiagnosed as processor or memory issues, and a full I/O scan during the maintenance window prevents unnecessary module replacements. Inspect 1746-NI4 analog input modules if the system monitors process variables such as temperature, pressure, or flow — signal drift from aging analog modules can trigger false fault conditions that appear to originate from the CPU.

For systems using 1747-SDN DeviceNet Scanner modules or 1747-KE RS-232 communication interface modules, verify communication integrity and cable termination. Communication module failures are often intermittent and difficult to diagnose without a known-good spare available for substitution testing. Similarly, inspect 1746-BAS BASIC module configurations if custom communication routines are in use.

Terminal blocks and field wiring connections throughout the cabinet should be torqued to specification and inspected for signs of thermal stress or insulation degradation. Loose connections in the 24VDC control circuit can cause erratic I/O behavior that mimics processor faults. If the cabinet includes signal isolators or loop-powered transmitters, verify that isolation barriers are functioning correctly to prevent ground loop interference from corrupting analog signals.

Finally, if the SLC 500 system interfaces with an Allen-Bradley PanelView HMI — such as the 2711-K5A2 or 2711-T10C8 — confirm that the DH-485 or DH+ communication link is stable and that the HMI program version matches the current PLC ladder logic revision. Mismatched HMI and PLC programs following a processor replacement are a common source of post-maintenance operational errors.

Site Replacement Workflow

Replacing the Allen-Bradley 1747-M11/B in the field is a straightforward procedure, but proper sequencing is essential to avoid program loss and ensure system compatibility.

Step 1 — Backup Verification: Before removing any hardware, confirm that a current backup of the SLC 500 program exists in RSLogix 500 or on a separate memory cartridge. If the existing 1747-M11/B is still partially functional, attempt a program upload to a connected laptop before proceeding.

Step 2 — Power Down and Lockout: De-energize the control cabinet following site LOTO (Lockout/Tagout) procedures. Verify that the 1746-P4 power supply output is at zero volts before touching any modules.

Step 3 — Module Removal: Carefully extract the existing 1747-M11/B from the processor memory port. Inspect the connector pins for corrosion or physical damage. If pin damage is present on the processor side, the processor module itself may require replacement.

Step 4 — Replacement Installation: Insert the new 1747-M11/B firmly into the memory port until fully seated. Avoid forcing the module — misalignment can damage both the adapter and the processor interface.

Step 5 — Program Restore and Verification: Power up the system and use RSLogix 500 to download the verified program backup to the processor. Confirm that all I/O modules are recognized, all tags are mapped correctly, and the system enters RUN mode without fault codes.

Step 6 — Functional Test: Perform a controlled functional test of all critical I/O points before returning the line to production. Document the replacement in the site maintenance log, including the new module serial number and installation date.

This workflow applies equally to planned annual overhauls and emergency breakdown recoveries. Maintaining a pre-tested 1747-M11/B spare on-site reduces the replacement cycle to under 30 minutes, compared to multi-day lead times for emergency procurement from distribution channels.

Spare Parts Support FAQ

Q1: Is the 1747-M11/B compatible with all SLC 500 processor models?
The 1747-M11/B is designed for use with the SLC 500 processor family, including the 1747-L532, 1747-L541, 1747-L542, and 1747-L543 models. Compatibility should be verified against the specific processor revision and firmware version in your application. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q2: How does NINERMAS verify the condition of spare parts before shipment?
All units supplied by NINERMAS undergo functional inspection and electrical testing prior to shipment. Each 1747-M11/B is verified for connector integrity, memory interface function, and physical condition. A 12-month warranty is provided on all supplied components, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for the 1747-M11/B in a multi-line facility?
For facilities operating multiple SLC 500-based production lines, we recommend maintaining a minimum of one 1747-M11/B per control cabinet cluster, with an additional unit held as a central emergency spare. Given the low unit cost relative to downtime risk, a conservative stocking strategy significantly reduces exposure to extended outages caused by memory module failure or program loss during processor replacement.

Q4: Can NINERMAS support long-term supply of the 1747-M11/B for legacy system maintenance programs?
Yes. NINERMAS specializes in long-term supply of original and service-ready spare parts for legacy industrial automation systems, including discontinued and hard-to-source Rockwell Automation components. We maintain sourcing relationships that support multi-year maintenance contracts and annual blanket order arrangements, providing procurement engineers with supply continuity for aging SLC 500 installations.
