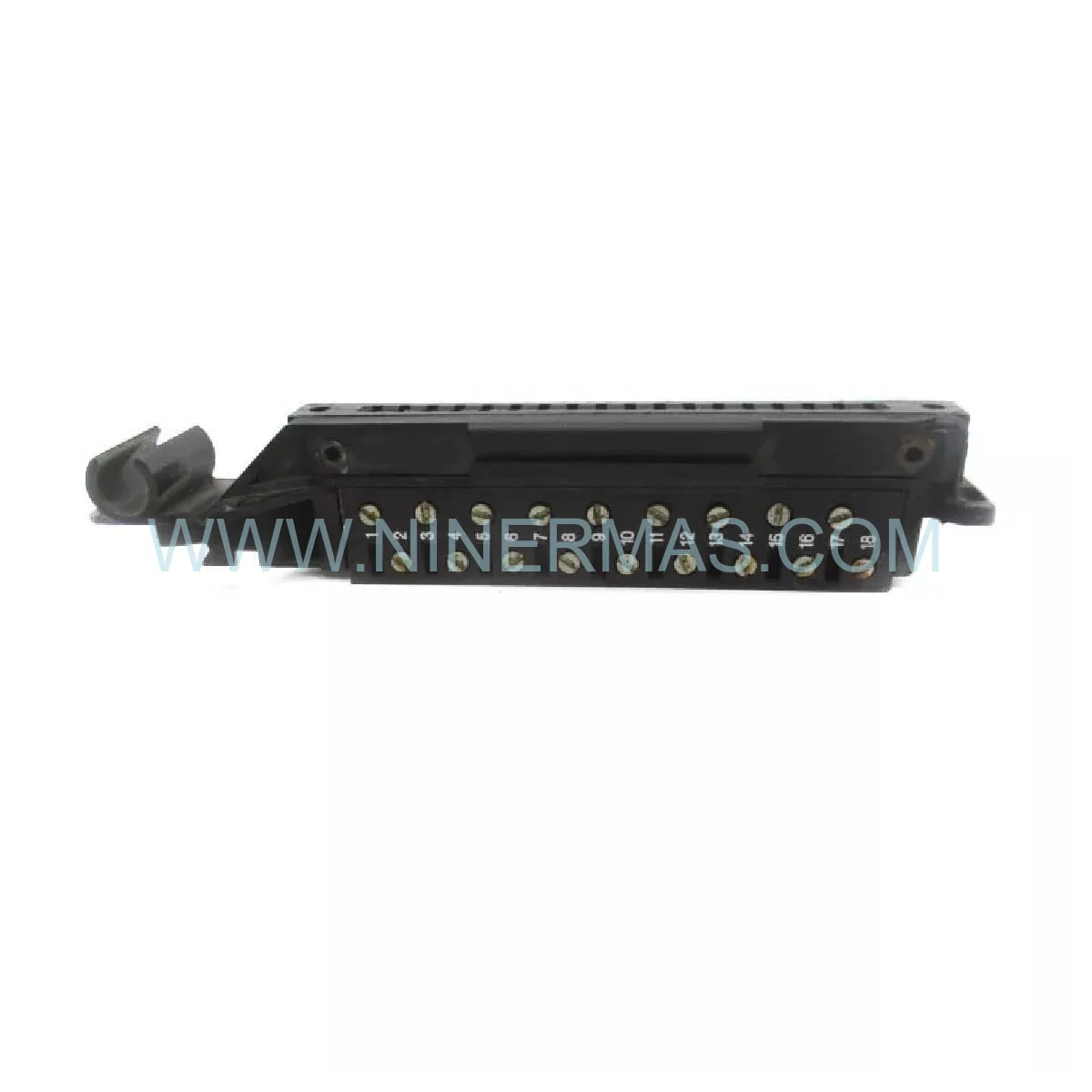

Allen-Bradley 1771-WF Field Wiring Arm (18 Gold Terminals) – New & Original

ALLEN BRADLEY 1771-WF Field Wiring Arm | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1771-WF is a mission-critical interface component that directly governs system availability in PLC-5-based control architectures. The 1771-WF provides 18 gold-plated screw terminals that establish low-resistance, corrosion-resistant connections between field instrumentation and 1771 I/O modules — a foundational element in achieving Operational Excellence across continuous process and discrete manufacturing environments. Its role in process optimization cannot be understated: a degraded wiring arm is among the leading causes of intermittent I/O faults that cascade into unplanned downtime.

In harsh industrial environments — including high-vibration machinery bays, chemical processing areas, and facilities with wide thermal cycling — the gold-plated terminal contacts of the 1771-WF maintain signal integrity where tin-plated alternatives fail prematurely. Installation requires careful torque application (typically 7-9 in-lb per terminal) and correct wire gauge selection (14-22 AWG) to prevent cold joints. Proper cable dressing and strain relief are equally critical to long-term reliability in high-cycle applications.

As a proven legacy automation component within the Allen-Bradley PLC-5 / 1771 ecosystem, maintaining a stocked quantity of the 1771-WF as a critical spare is standard practice for any reliability-driven maintenance program. With the PLC-5 platform classified as end-of-life by Rockwell Automation, global supply of original factory units is finite — making proactive sourcing an essential element of any site’s spare parts strategy.

Key Operational Features

18 Gold-Plated Screw Terminals — Superior conductivity and oxidation resistance for long-term signal fidelity
Seamless Integration with all Allen-Bradley PLC-5 1771 I/O modules and chassis configurations
High Availability Design — Supports hot-swap maintenance procedures to minimize process interruption
Redundancy-Ready — Compatible with redundant I/O architectures for fault-tolerant system integration
Corrosion-Resistant Construction — Engineered for demanding environments including chemical, oil & gas, and heavy manufacturing
Compact Form Factor — Direct chassis-rail attachment with no additional hardware required

Maintenance & Performance Benchmarks

The 1771-WF is engineered to support both small-scale standalone PLC-5 installations and large-scale distributed I/O networks spanning multiple 1771 chassis. In multi-rack architectures, consistent use of gold-plated wiring arms across all I/O slots eliminates galvanic incompatibility between dissimilar terminal materials — a subtle but significant contributor to intermittent faults in aging control systems.

Preventive maintenance intervals for the 1771-WF should align with annual shutdown schedules. Recommended checks include terminal torque verification, visual inspection for discoloration or carbon tracking, and continuity testing across all 18 positions. In high-vibration environments, semi-annual inspection is advised. Replacement of the wiring arm — rather than individual terminals — is the recommended corrective action when contact resistance exceeds 0.1 Ω, ensuring full restoration of I/O module performance benchmarks.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1771-WF unit dispatched by NINERMAS COMPANY LIMITED is sourced from verified original factory channels and ships in intact OEM packaging — preserving traceability documentation, catalog labels, and date codes essential for regulated industries. For time-sensitive plant shutdowns or emergency corrective maintenance, same-day dispatch is available for in-stock units (order confirmation required before 14:00 local time).

As a globally active supplier of end-of-life and legacy automation components, we maintain strategic inventory of the 1771-WF and related 1771 I/O accessories to support facilities that have not yet migrated from PLC-5 platforms. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. All shipments include commercial invoice, packing list, and optional third-party inspection certificates upon request.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1771-WF on a 1771 I/O chassis?
A: Power down the I/O chassis before installation. Align the wiring arm connector with the I/O module’s field-side interface, press firmly until the locking tabs engage, then secure field wiring to the 18 terminals in accordance with the module’s wiring diagram. Restore power only after all terminals are torqued and wire dressing is complete.

Q2: Which 1771 I/O module types are compatible with the 1771-WF?
A: The 1771-WF is compatible with the majority of Allen-Bradley 1771 series discrete and analog I/O modules, including but not limited to 1771-IAD, 1771-OAD, 1771-IBD, and 1771-OBD variants. Always cross-reference the specific module’s installation manual to confirm wiring arm compatibility before installation.

Q3: Is firmware or software configuration required after replacing the 1771-WF?
A: No. The 1771-WF is a passive wiring interface component with no embedded firmware. Replacement requires only mechanical installation and field wiring reconnection — no PLC programming changes or RSLogix configuration updates are necessary.

Q4: How do I verify the 1771-WF is functioning correctly after installation?
A: Use a calibrated multimeter to perform continuity checks across each of the 18 terminals before energizing the system. After power-up, monitor the associated I/O module’s status LED and verify correct I/O state reporting in the PLC-5 processor’s I/O status table via RSLogix 5 or equivalent programming software.

Q5: What is the warranty claim process for a defective unit?
A: Contact our technical support team at sale@ninermas.com within the 1-year warranty period. Provide the purchase order number, unit serial/date code, and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) and arrange replacement or refund upon inspection of the returned unit.

Q6: Can the 1771-WF be used in a redundant I/O configuration?
A: Yes. In redundant 1771 I/O architectures, a dedicated 1771-WF is installed on each redundant I/O module. Field wiring is typically split or looped between the primary and secondary wiring arms per the system integrator’s redundancy design. Consult Rockwell Automation publication 1771-UM series for detailed redundancy wiring guidelines.
