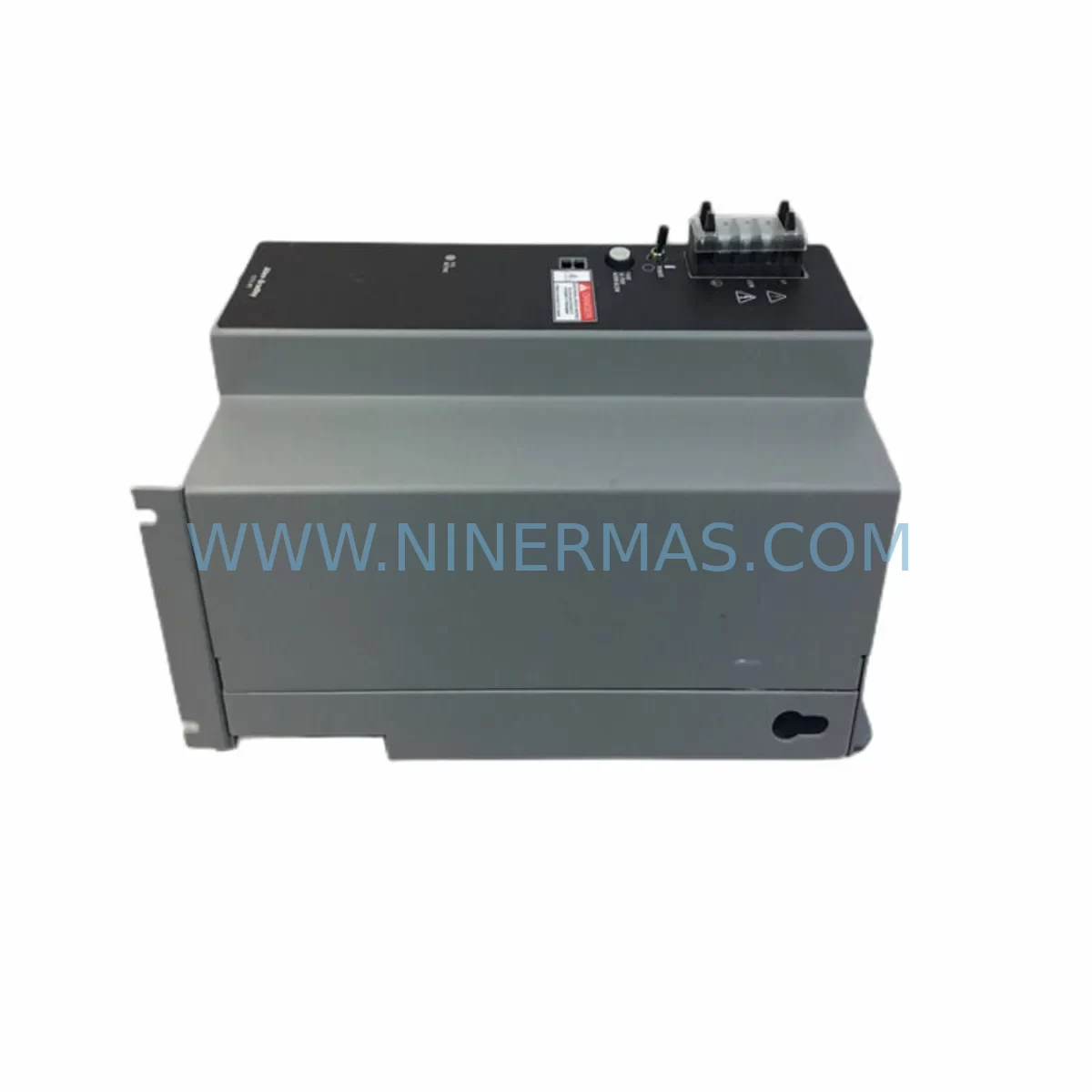

The Allen-Bradley 1771-P7 is a ruggedized DC power supply module engineered for the Allen-Bradley PLC-5 family and the 1771 I/O chassis platform — one of the most widely deployed programmable controller architectures in heavy industrial, oil & gas, automotive, and process manufacturing environments. As legacy PLC-5 systems continue to operate well beyond their original design lifecycle, maintaining a reliable inventory of service-ready 1771-P7 units has become a critical element of any plant-wide maintenance strategy. Unplanned power supply failures in a 1771 chassis can cascade into full production line shutdowns, making the 1771-P7 one of the highest-priority spare parts in any control cabinet spare parts program.

At NINERMAS, every 1771-P7 unit is sourced, inspected, and tested before shipment. Each unit is backed by a 12-month warranty, ensuring your maintenance team can deploy with confidence — whether for emergency breakdown recovery, scheduled annual overhaul, or proactive stock replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1771-P7 power supply is flagged for replacement during a routine control cabinet inspection or emergency fault diagnosis, experienced maintenance engineers know that the power supply is rarely the only component that requires attention. A systematic approach to chassis-level maintenance significantly reduces the risk of repeat failures and unplanned downtime.

Begin by verifying the integrity of the 1771 I/O chassis backplane itself — a degraded backplane can cause erratic power distribution even after a new 1771-P7 is installed. Inspect all 1771 I/O modules seated in the chassis, including digital input modules (such as the 1771-IBD and 1771-IB16), digital output modules (such as the 1771-OBD), and analog I/O modules (such as the 1771-IFE and 1771-OFE), for signs of heat stress, connector oxidation, or communication faults.

Check the 1771-ASB Remote I/O Adapter if the chassis is operating as a remote I/O rack — communication dropouts during a power event can corrupt adapter configuration and require re-initialization. Verify the Allen-Bradley 1785 PLC-5 processor module battery backup status and confirm that the processor’s memory is intact following any power interruption. A depleted 1785-BA lithium battery should be replaced as part of the same maintenance window.

On the power distribution side, inspect the 24 VDC input wiring feeding the 1771-P7, including terminal blocks, fuse holders, and any upstream Allen-Bradley 1606 or 1609 series industrial power supplies providing the DC bus. Loose terminal connections and undersized fusing are common root causes of premature power supply module failure. If the plant uses a 1771-P4S or 1771-P6S in adjacent chassis, cross-check their output stability as part of the same inspection cycle.

For facilities running DeviceNet or DH+ communication networks alongside the PLC-5 platform, confirm that 1770-KFD or 1784-KTX communication interface cards are functioning correctly after the power event. Signal isolation barriers and surge protection devices on I/O field wiring should also be inspected, particularly in environments with heavy motor loads or frequent switching transients.

Maintaining a minimum of two 1771-P7 units in your on-site spare parts inventory is strongly recommended for any facility operating more than two 1771 chassis. Pair this with a documented annual inspection schedule and a pre-approved procurement framework to eliminate lead-time risk during emergency breakdowns.

Site Replacement Workflow

Step 1 — Isolation & Safety: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the 1771 chassis by removing the DC input power to the 1771-P7. Confirm zero voltage at the power supply input terminals before proceeding.

Step 2 — Module Removal: Loosen the captive retaining screws on the 1771-P7 faceplate. Slide the module out of the left-end slot of the 1771 chassis. Inspect the backplane connector for bent pins or carbon deposits.

Step 3 — Replacement Unit Verification: Confirm the replacement 1771-P7 part number matches the installed unit. Verify input voltage range compatibility with your site’s DC bus specification (18–30 VDC). Check the NINERMAS test certification label on the unit.

Step 4 — Installation: Slide the new 1771-P7 into the left-end chassis slot. Tighten retaining screws to the manufacturer’s specified torque. Reconnect DC input wiring to the correct polarity terminals.

Step 5 — Power-Up & Verification: Restore DC input power. Confirm the chassis power LED indicators are green. Verify all I/O modules in the chassis return to normal operating status. Check the PLC-5 processor for any fault codes related to the power event. Perform a full I/O scan and confirm field device communication is restored before returning the system to production.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the date, unit serial number, and technician ID. Update your spare parts inventory to trigger a replenishment order for the consumed 1771-P7 unit.

Spare Parts Support FAQ

Q1: Is the 1771-P7 still available as a new or refurbished spare part?
The Allen-Bradley 1771-P7 has been discontinued by Rockwell Automation as part of the broader PLC-5 platform end-of-life program. However, NINERMAS maintains a dedicated inventory of service-ready 1771-P7 units — sourced from verified supply channels, fully tested, and backed by a 12-month warranty. Long-term supply agreements are available for facilities requiring guaranteed stock over a 12–36 month horizon.

Q2: How do I verify compatibility before ordering?
The 1771-P7 is compatible with all standard Allen-Bradley 1771 I/O chassis variants. Confirm your chassis model number (e.g., 1771-A1B, 1771-A2B, 1771-A3B, 1771-A4B) and your site DC input voltage (18–30 VDC). If you are unsure, share your chassis nameplate data with our technical team at sale@ninermas.com and we will confirm compatibility before shipment.

Q3: What testing is performed before shipment?
Every 1771-P7 unit dispatched by NINERMAS undergoes a functional power-on test and a load test under representative operating conditions. Units that fail any test parameter are quarantined and not shipped. A test certification label is affixed to each unit, and a test report is available upon request. This process ensures your maintenance team receives a field-ready spare, not a shelf-aged untested module.

Q4: What is the recommended spare parts strategy for facilities with multiple 1771 chassis?
For facilities operating three or more 1771 chassis, we recommend maintaining a minimum of two 1771-P7 units on-site at all times, with a replenishment trigger set at one unit. Pair this with annual inspection of all chassis power supplies and a pre-negotiated supply agreement with NINERMAS to lock in pricing and availability. This approach eliminates emergency procurement lead times and protects against production losses that typically far exceed the cost of maintaining a small buffer stock.
