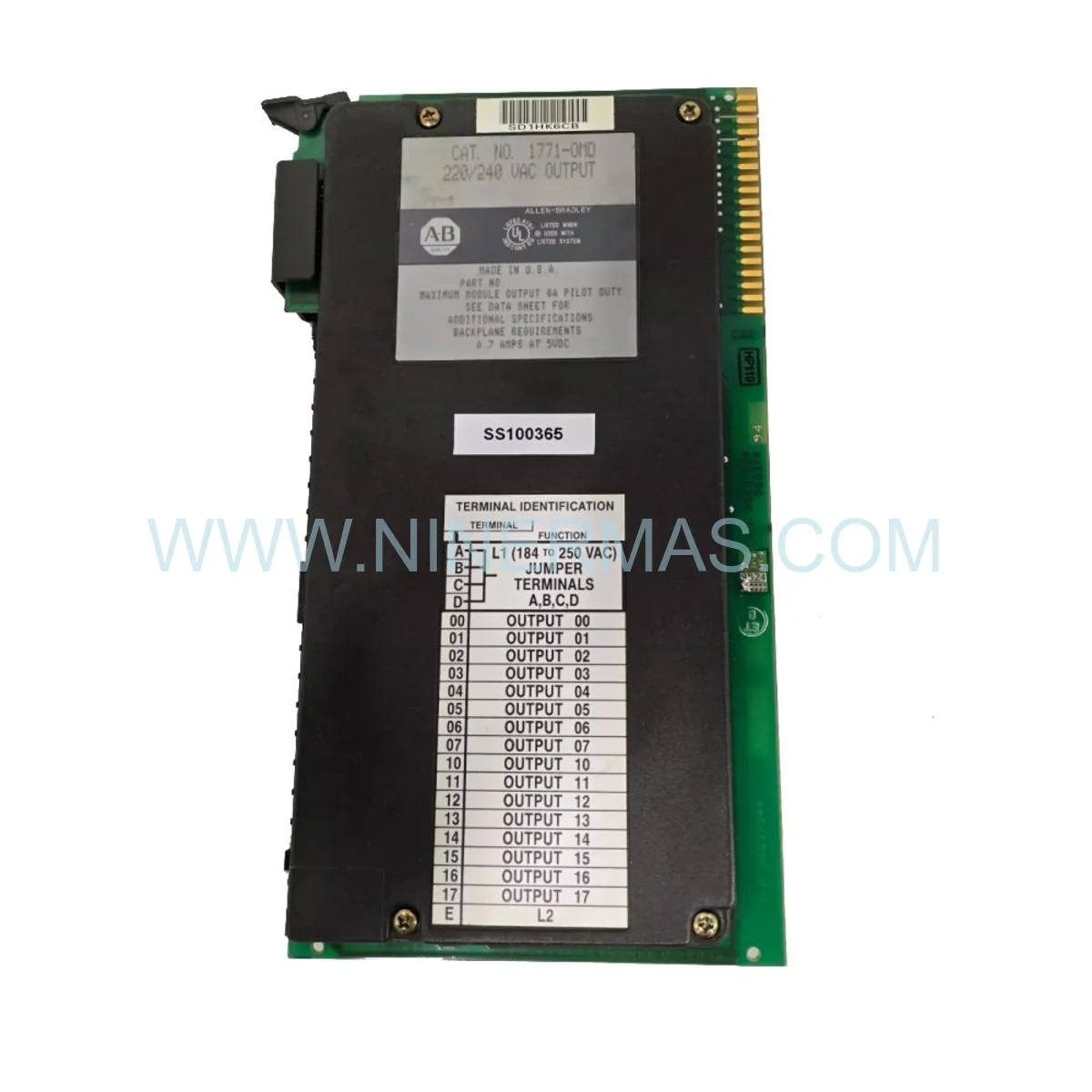

Allen-Bradley 1771-OMD Series B | PLC-5 AC Output Retrofit Module

Allen-Bradley 1771-OMD Series B — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing legacy PLC infrastructure transitions, the Allen-Bradley 1771-OMD Series B stands out as a mission-critical enabler for extending the operational lifespan of aging PLC-5 control architectures. In facilities where full DCS migration is cost-prohibitive or operationally disruptive, this 16-point AC output module delivers a high-value bridge solution — preserving existing I/O wiring investments while restoring full switching performance to 184-250V AC loads at 2A per point. Its role in performance enhancement is not merely functional; it is strategic.

The Allen-Bradley 1771-OMD Series B maintains full backward compatibility with the 1771 I/O chassis ecosystem, making it the cornerstone of any phased upgrade path. Whether your facility is executing a gradual migration from PLC-5 to ControlLogix, or simply sustaining operations on a proven legacy platform, this module integrates without rewiring, without reprogramming I/O maps, and without production shutdowns. Its seamless integration capability directly reduces the technical risk associated with mid-lifecycle system transitions.

From a migration cost perspective, deploying the 1771-OMD Series B as a like-for-like replacement or performance upgrade dramatically lowers total project expenditure. Avoiding full panel redesigns, minimizing engineering hours, and eliminating revalidation cycles translates into measurable ROI — particularly in regulated industries such as pharmaceuticals, food processing, and power generation where change management overhead is substantial.

Upgrade Highlights & Compatibility

✅ Drop-In Legacy Compatibility: Fits any 1771 I/O chassis slot — no hardware modification required. Supports 1785 and 1771 series PLC-5 processors out of the box.

Enhanced Output Performance: 16 fully isolated AC output points rated at 184-250V AC (47-63 Hz), 2A per point — delivering reliable switching for high-demand industrial actuators.

✅ 1500V AC Optical Isolation: Protects PLC backplane from electrical noise, transients, and ground loops common in retrofit environments where legacy wiring may be degraded.

Hot-Swap Capable: Module replacement without full chassis power-down — critical for continuous-process facilities where unplanned downtime carries significant financial penalties.

✅ Future-Proofing via Phased Migration: Serves as a stable I/O layer during ControlLogix or CompactLogix migration projects, allowing processor upgrades without simultaneous field wiring changes.

LED Per-Point Diagnostics: Accelerates fault isolation during commissioning and maintenance — reducing MTTR in retrofit scenarios where documentation may be incomplete.

Modernization Use Cases & Success Stories

DCS Integration & Hybrid Architecture Retrofit: In chemical processing plants operating legacy PLC-5 systems alongside modern DCS platforms, the 1771-OMD Series B enables a hybrid control architecture. The module continues to drive field devices — solenoid valves, motor starters, and contactor coils — while the DCS assumes supervisory control via OPC-DA/UA gateways. This approach eliminates the need for full field rewiring during DCS expansion projects, compressing retrofit timelines by 30-40%.

Turbine Supervisory & TSI System Modernization: Power generation facilities utilizing PLC-5 platforms for turbine sequencing and auxiliary control have successfully deployed the 1771-OMD Series B as a performance upgrade component. Its 1 ms ON / 8.3 ms OFF response time meets the timing requirements of turbine trip logic and valve actuation sequences, ensuring that legacy TSI systems maintain functional integrity during phased modernization programs.

Automotive & Discrete Manufacturing Line Upgrades: Assembly line operators managing multi-decade-old PLC-5 installations have leveraged this module to restore full I/O capacity after point failures, avoiding costly line redesigns. The removable terminal block design allows field technicians to swap modules in under 15 minutes — a critical advantage in high-throughput environments where every minute of downtime has a measurable cost impact.

Pharmaceutical & Food Processing Compliance Retrofits: In GMP-regulated environments, replacing failed output modules with validated equivalents is far preferable to triggering full system revalidation. The 1771-OMD Series B, as an original Allen-Bradley component, satisfies change control requirements with minimal documentation burden — preserving regulatory compliance while restoring system performance.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: All units are sourced as genuine Allen-Bradley components — not refurbished, not third-party clones. Factory-sealed packaging ensures full traceability and eliminates counterfeit risk, which is a growing concern in the legacy PLC spare parts market.

Expedited Global Logistics: Recognizing that retrofit projects and emergency replacements operate on compressed timelines, we maintain ready stock with expedited international shipping to North America, Europe, Southeast Asia, and the Middle East. DHL Express and FedEx Priority options are available for next-business-day delivery to major industrial hubs.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Allen-Bradley PLC-5 systems. We provide installation guidance, I/O configuration verification, and compatibility analysis for complex retrofit scenarios — including multi-chassis systems, remote I/O configurations, and DH+ network integrations.

Documentation Package: Full technical documentation including installation instructions, wiring diagrams, and compatibility matrices is available upon request — supporting your change management and revalidation processes.

Retrofit FAQ — Upgrade Guide

Q: Will the Allen-Bradley 1771-OMD Series B physically fit my existing 1771 chassis without modification?
A: Yes. The 1771-OMD Series B is designed to occupy a standard single-slot position in any 1771 I/O chassis. No mechanical modification, adapter plate, or backplane reconfiguration is required. The module’s form factor is identical to other 1771-series I/O modules, ensuring a true drop-in installation experience.

Q: How does this module communicate with newer control systems during a phased migration?
A: During a PLC-5 to ControlLogix migration, the 1771-OMD Series B continues to operate under PLC-5 processor control while the new ControlLogix system is commissioned in parallel. Communication bridging via 1756-DHRIO or 1756-ENBT modules allows the new processor to assume I/O ownership progressively — eliminating the need for a single cutover event and its associated production risk.

Q: Are there direct replacement alternatives if the 1771-OMD Series B becomes unavailable?
A: The 1771-OAN (16-point, 120V AC) and 1771-OBD (DC output variant) are functionally adjacent modules within the 1771 I/O family. However, voltage range and isolation specifications differ — always verify load compatibility before substitution. Our technical team can assist with cross-reference analysis and application-specific recommendations.

Q: What is the recommended approach for integrating this module into a system with aging or degraded field wiring?
A: The 1771-OMD Series B’s 1500V AC optical isolation provides a significant buffer against wiring-induced noise and ground faults. However, for retrofit projects involving wiring that is more than 20 years old, we recommend insulation resistance testing prior to module installation. This proactive step prevents nuisance trips and protects the module’s output circuitry from premature failure.

Q: Does installing a new 1771-OMD Series B require PLC-5 program changes?
A: No program modifications are required for a like-for-like replacement. The module occupies the same I/O address space as its predecessor, and the PLC-5 processor recognizes it transparently. For installations involving chassis slot reassignment, only the I/O configuration table requires updating — a minor change that does not affect ladder logic.

Q: What warranty and post-installation support is provided for retrofit deployments?
A: All units carry a 12-month warranty covering manufacturing defects and workmanship. Post-installation technical support is available via email and phone for configuration verification, fault diagnosis, and migration planning assistance — ensuring your retrofit project delivers sustained performance gains beyond initial commissioning.
