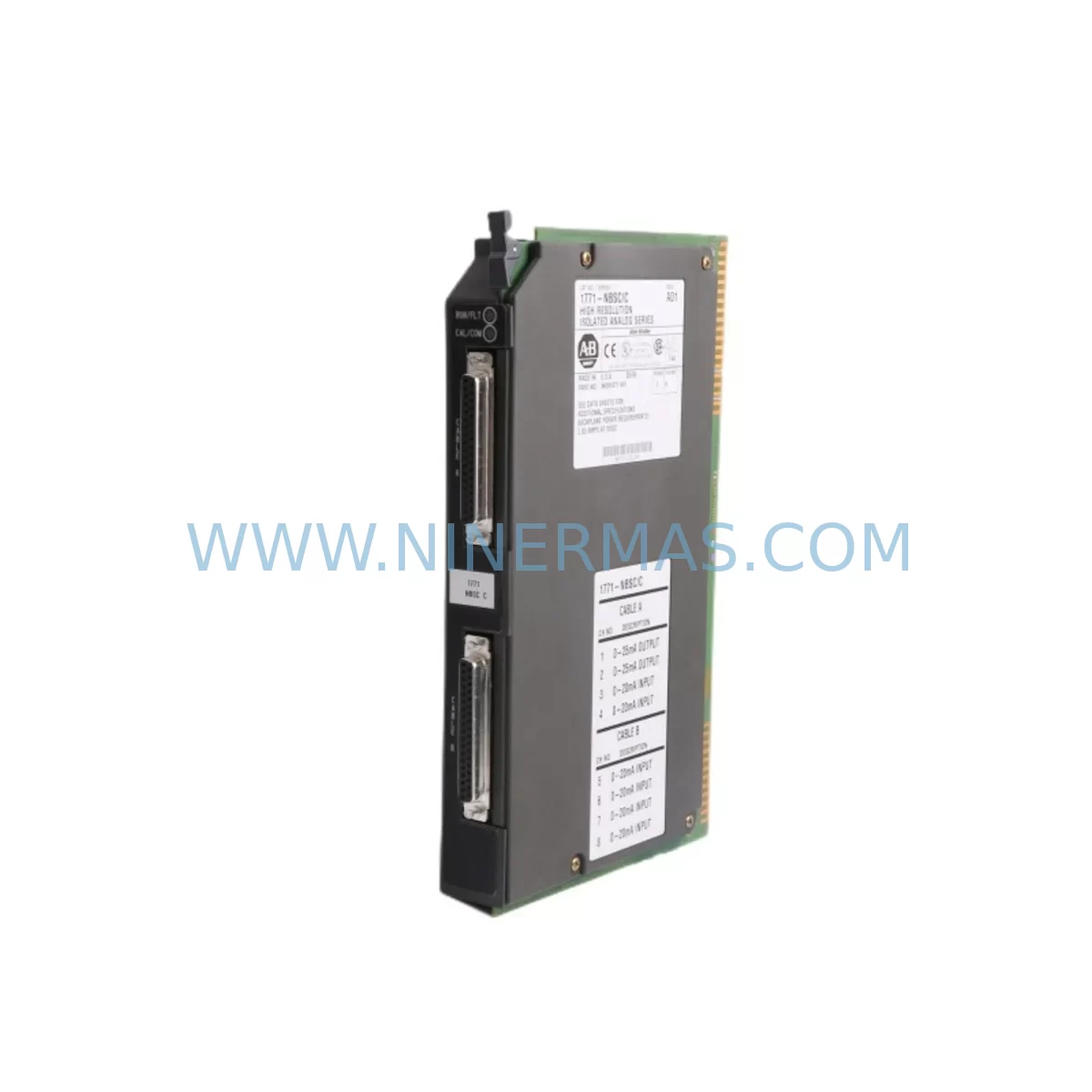

Allen-Bradley 1771-NBSC Retrofit-Compatible Analog Input Module

Allen-Bradley 1771-NBSC Retrofit-Compatible Analog Input Module: Legacy System Compatibility & Smooth Upgrade

The Allen-Bradley 1771-NBSC is a ruggedized analog input module designed for operation within the Allen-Bradley PLC-5 platform and the 1771 I/O chassis system. As industrial facilities continue to operate aging control architectures well beyond their original design life, the 1771-NBSC has become a critical component in retrofit projects, legacy system maintenance, and controlled migration strategies. Whether you are replacing a failed module in an active production line or planning a phased upgrade from a PLC-5 platform to a ControlLogix or CompactLogix environment, the 1771-NBSC serves as a reliable bridge between legacy infrastructure and modern automation demands.

This module accepts analog input signals and converts them for processing within the 1771 backplane, making it directly compatible with the 1771 I/O chassis and the broader PLC-5 control architecture. Its ruggedized design makes it suitable for harsh industrial environments including foundries, chemical processing plants, oil and gas facilities, and heavy manufacturing lines where temperature extremes, vibration, and electrical noise are common operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 1771-NBSC into an existing or aging automation system, a structured retrofit plan is essential to minimize risk and ensure continuity of production. The first step is a thorough audit of the existing 1771 I/O chassis, including slot assignments, module keying, and the current I/O map as defined in the RSLogix 5 program. Incorrect slot addressing is one of the most common causes of commissioning delays during module replacement.

Power capacity within the 1771 chassis must be verified before installation. The 1771-P7 or 1771-P4S power supply units commonly found in legacy cabinets should be assessed for available current budget, particularly in high-density chassis configurations where multiple analog modules share the same backplane. Overloading the power supply during a retrofit can cause intermittent faults across all installed modules, including communication modules such as the 1771-KGM or 1771-SDN DeviceNet scanner.

Terminal wiring is another critical checkpoint. Field wiring connected to the original 1771-NBSC must be documented and verified against the replacement module’s terminal block pinout. In many legacy installations, wiring documentation is incomplete or outdated, making physical verification at the terminal block mandatory before energizing the replacement module. Where signal isolation is required between field devices and the control system, inline signal isolators or signal conditioners should be installed to protect the new module from ground loops or voltage spikes common in older plant wiring.

For facilities planning a longer-term migration from the PLC-5 platform to a ControlLogix 1756 system, the 1771-NBSC can continue to serve in its current role while the migration is staged across multiple shutdowns. The 1756-DHRIO module enables the new ControlLogix processor to communicate with legacy PLC-5 nodes over Data Highway Plus, allowing both platforms to coexist during the transition period. This approach protects the existing RSLogix 5 program logic and HMI screens — typically built on PanelView or FactoryTalk View platforms — from requiring immediate replacement.

I/O expansion during the retrofit phase may also require the addition of 1771 I/O chassis extenders or the introduction of FLEX I/O modules such as the 1794-IB16 for digital inputs or 1794-IE8 for analog inputs, providing a scalable path toward a fully modernized I/O architecture without disrupting the existing control backbone. Programming cables such as the 1784-U2DHP USB-to-DH+ adapter are typically required for online program verification and module configuration during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team undertaking a module replacement or system migration involving the 1771-NBSC. A pre-staged replacement strategy — where the new module is bench-tested and verified against a known-good program backup before the maintenance window begins — is strongly recommended. This includes uploading the current RSLogix 5 program from the PLC-5 processor using a 1784-U2DHP or equivalent programming cable, verifying the I/O configuration file, and confirming that the module address and channel scaling parameters match the replacement unit.

During the actual replacement, the control system should be placed in program mode and all field outputs confirmed safe before the chassis is de-energized. The 1771-NBSC can typically be swapped within a standard maintenance window of two to four hours when pre-staging has been completed. After installation, a controlled return to run mode with live monitoring of analog input values against expected process readings confirms successful commissioning. Any discrepancies in signal scaling or channel offset should be corrected in the RSLogix 5 program before returning the system to automatic control.

For systems where continuous operation is critical, a parallel run strategy using a temporary 1771 chassis with a pre-configured 1771-NBSC can allow the replacement module to be validated against live process signals before the original module is removed. This approach is particularly effective in process industries where analog inputs drive critical PID control loops that cannot tolerate interruption.

Retrofit Support FAQ

Q: Is the 1771-NBSC a direct replacement for the original module in my PLC-5 system?
A: Yes. The 1771-NBSC is a direct drop-in replacement for existing 1771-NBSC units installed in any standard 1771 I/O chassis. No hardware modifications to the chassis or backplane are required. Verify module keying and slot address assignment in your RSLogix 5 program before installation.

Q: Has the unit been tested before shipment?
A: Every 1771-NBSC unit supplied by NINERMAS undergoes functional testing prior to dispatch. Units are verified for backplane communication integrity and analog channel response. A 12-month warranty is included with every unit shipped.

Q: What should I check regarding wiring compatibility before installing the replacement module?
A: Confirm field wiring termination against the module’s terminal block pinout diagram. Verify signal type (voltage or current) and range configuration match the original module settings. Check for ground loops or shield continuity issues in older field cable runs, and install signal isolators where necessary.

Q: Do you maintain stock of the 1771-NBSC for urgent replacement requirements?
A: NINERMAS maintains inventory of the 1771-NBSC to support urgent breakdown and planned maintenance requirements. Contact our team to confirm current stock availability and lead time. Express shipping options are available for critical production situations.
