Allen-Bradley 1756-OB16IEF Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1756-OB16IEF Service-Ready Spare Part for Industrial Maintenance

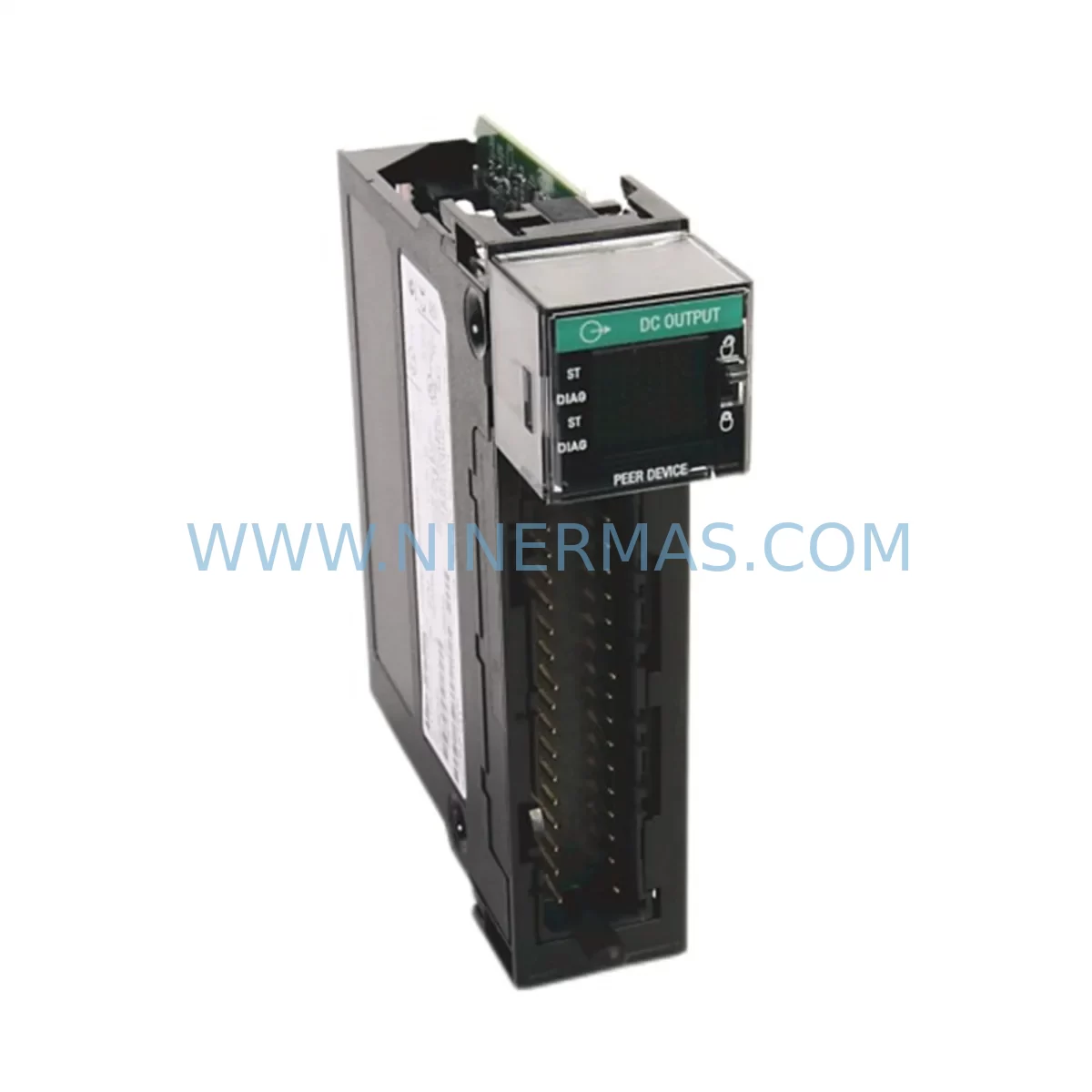

The Allen-Bradley 1756-OB16IEF is a ControlLogix 16-point 24V DC electronically fused fast output module designed for high-speed discrete output applications in demanding industrial automation environments. As a service-ready original spare part, the 1756-OB16IEF is a critical component for maintenance engineers managing ControlLogix-based control systems across manufacturing, oil & gas, automotive, water treatment, and process industries. Unplanned downtime caused by a failed output module can cascade across an entire production line — having a verified, tested replacement on the shelf is the single most effective strategy for rapid recovery.

The 1756-OB16IEF supports scheduled time-stamping and fast output response, making it particularly valuable in motion-adjacent and high-cycle applications where standard output modules cannot meet timing requirements. Its electronically fused outputs eliminate the need for external fuse replacement, reducing maintenance labor during fault recovery. For maintenance and procurement engineers responsible for ControlLogix system uptime, stocking the 1756-OB16IEF alongside complementary modules ensures that a single point of failure never becomes a prolonged production halt.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1756-OB16IEF output module is flagged during routine control cabinet inspection or fails during production, the replacement workflow extends beyond the module itself. A thorough maintenance plan requires evaluating the entire output circuit and surrounding ControlLogix infrastructure to prevent repeat failures and ensure system integrity after restoration.

Begin by verifying the 24V DC field power supply feeding the output module’s field-side terminals. A degraded or undersized power supply — such as a 1756-PA75 or 1756-PB75 power supply module — can cause erratic output behavior that mimics module failure. Inspect the 1756-BP series backplane for physical damage, corrosion on the module connector pins, or signs of thermal stress, as a compromised backplane slot can damage replacement modules immediately upon insertion.

Review adjacent I/O modules in the same chassis. If the 1756-OB16IEF shares a chassis with input modules such as the 1756-IB16 or 1756-IA16, inspect their wiring harnesses and terminal blocks for insulation breakdown or loose connections that may have contributed to the output fault. Check the 1756-EN2T or 1756-EN3TR EtherNet/IP communication module for firmware version compatibility and network health, as communication faults can trigger false output diagnostics in the controller.

For systems using relay output expansion, verify the condition of any interposing relays connected to the 1756-OB16IEF outputs. Relay coil degradation is a common secondary failure mode when output modules are repeatedly stressed by inductive loads without adequate suppression. Inspect surge suppressors and snubber circuits across all inductive field devices connected to the module outputs.

If the ControlLogix system includes a 1756-L8x or 1756-L7x series controller, confirm that the controller firmware and I/O module firmware are at compatible revision levels before commissioning the replacement 1756-OB16IEF. Mismatched firmware can prevent the module from being recognized or cause scheduled output features to malfunction. For redundant systems, also inspect the 1756-RM2 redundancy module and synchronization cable to ensure failover integrity is maintained after the I/O replacement.

Annual maintenance schedules for ControlLogix cabinets should include the 1756-OB16IEF in the critical spare parts list alongside the power supply, communication modules, and controller battery (1756-BA2). Procurement engineers should maintain at least one verified spare 1756-OB16IEF per active ControlLogix chassis in high-availability production environments, with a secondary buffer unit for facilities operating multiple chassis.

Site Replacement Workflow

The 1756-OB16IEF supports hot-swap replacement in ControlLogix systems, allowing maintenance teams to minimize downtime during module exchange. Before removal, use the Logix Designer software to inhibit the module and document the current output tag mapping and scheduled output configuration. This prevents the controller from generating faults during the physical swap and allows rapid re-commissioning after the new module is seated.

Remove the field wiring connector from the front of the failed module — the removable terminal block design of the 1756-OB16IEF allows the wiring harness to be transferred directly to the replacement unit without re-termination, eliminating a major source of wiring errors during emergency replacements. Insert the replacement module into the same chassis slot, confirm the keying matches, and re-attach the wiring connector. Re-enable the module in Logix Designer and verify all 16 output points through a functional test before returning the system to automatic operation.

For legacy systems where the 1756-OB16IEF is being used to replace an older 1756-OB16 standard output module, confirm that the application program does not rely on output behavior that differs between standard and fast output modules. The scheduled output and timestamping capabilities of the 1756-OB16IEF are additive features and do not affect basic discrete output operation, making it a compatible drop-in replacement in most applications. Document the module change in the site maintenance log and update the spare parts inventory record accordingly.

Spare Parts Support FAQ

Q: Is the 1756-OB16IEF compatible with all ControlLogix 1756 chassis and backplanes?
A: Yes. The 1756-OB16IEF is compatible with all standard ControlLogix 1756 series chassis and backplanes, including 4-slot, 7-slot, 10-slot, 13-slot, and 17-slot configurations. It operates with all 1756-L series controllers and does not require a dedicated chassis slot position.

Q: How is the 1756-OB16IEF tested before shipment?
A: Every 1756-OB16IEF unit supplied by NINERMAS undergoes functional verification prior to dispatch, including backplane communication check, output point activation test, and electronic fuse reset confirmation. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the recommended inventory strategy for the 1756-OB16IEF in a multi-chassis facility?
A: For facilities operating three or more ControlLogix chassis, we recommend maintaining a minimum of one 1756-OB16IEF spare per chassis, with an additional buffer unit held centrally. High-cycle or safety-critical applications should maintain two spares per chassis. NINERMAS supports long-term supply agreements to ensure consistent availability for annual maintenance budgets and MRO procurement programs.

Q: Can the 1756-OB16IEF replace a standard 1756-OB16 in an existing application?
A: In most cases, yes. The 1756-OB16IEF provides all the functionality of the standard 1756-OB16 with the addition of scheduled outputs and electronic fusing. Basic discrete output programs will operate without modification. For applications using advanced scheduled output features, verify the controller firmware supports the 1756-OB16IEF module profile before installation.
