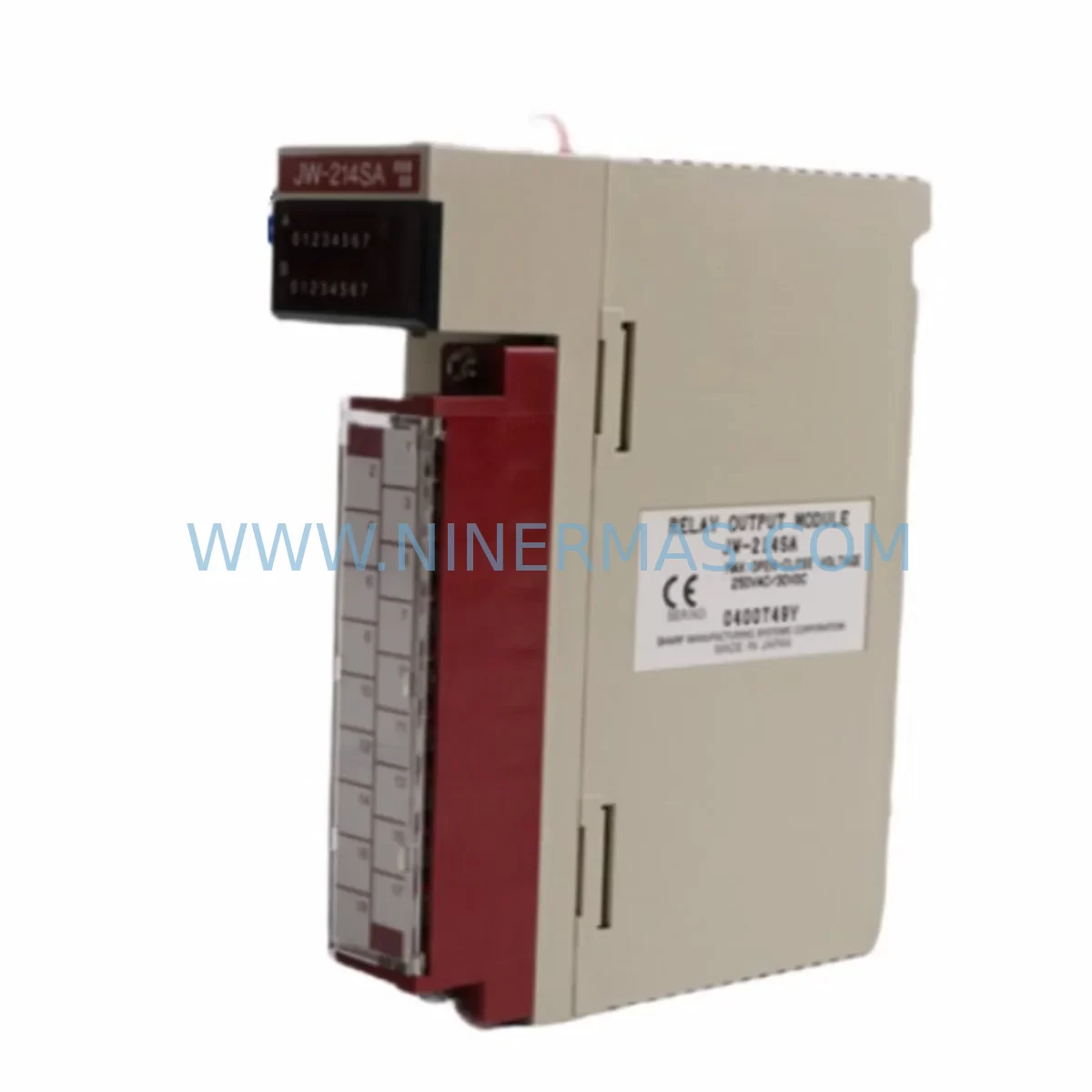

The SHARP JW-214SA is a transistor output module designed for the SHARP JW Series programmable logic controller platform — one of the most widely deployed compact PLC families in Asian manufacturing facilities throughout the 1990s and early 2000s. As original equipment manufacturers have discontinued production of JW Series components, the JW-214SA has become a critical spare part for engineers managing legacy automation lines, control cabinet upgrades, and phased system migrations. NINERMAS maintains verified stock of the JW-214SA with full pre-shipment functional testing and a 12-month warranty, supporting customers who need a reliable, drop-in replacement without committing to a full PLC platform migration.

The JW-214SA provides 14-point transistor output capacity, making it suitable for driving solenoid valves, relay coils, indicator lamps, and low-current actuators in discrete manufacturing environments. Its compact form factor fits directly into the JW Series backplane without mechanical modification, preserving existing terminal wiring layouts and reducing retrofit labor time. For facilities operating SHARP JW-32CUH, JW-22CU, or JW-50H CPU modules, the JW-214SA integrates without firmware changes, maintaining full compatibility with existing ladder logic programs and I/O address maps.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life JW-214SA in an operating production line requires careful pre-work to avoid extended downtime. Before removing the existing module, engineers should document the current I/O address assignments using the SHARP JW programming software (JW-13PG or compatible programmer cable) and capture a full program backup from the JW-32CUH or JW-22CU CPU. This ensures that if any address mapping discrepancy is discovered during commissioning, the original logic can be restored without data loss.

Terminal wiring on the JW-214SA uses a removable screw terminal block, which simplifies field replacement. Technicians should photograph or label each wire before disconnection, particularly in control cabinets where multiple output modules — such as a JW-214SA alongside a JW-212RA relay output module — share the same terminal rail. Confirming the 24V DC field power supply capacity is essential: the replacement module’s aggregate output load must not exceed the supply’s rated current, especially in cabinets where a JW-PA2 or equivalent power supply module is already near its rated output.

For facilities considering a broader JW Series expansion during the same maintenance window, it is worth auditing adjacent rack slots for aging JW-214DA analog output modules, JW-212IA input modules, or JW-232CA communication interface modules that may be approaching end of service life. Replacing multiple modules during a single planned shutdown reduces cumulative downtime risk and allows a single commissioning cycle to validate all updated I/O points together.

Where the retrofit scope extends to communication protocol migration — for example, transitioning from the JW internal bus to Modbus RTU or PROFIBUS DP for integration with newer SCADA systems — a JW Series communication module such as the JW-21CM or a third-party protocol gateway may be required alongside the JW-214SA replacement. In these cases, HMI screen tag mapping must be updated to reflect any I/O address changes, and the communication link between the PLC and the supervisory system should be verified under live conditions before returning the line to production.

Installation space confirmation is a frequently overlooked step in JW Series retrofits. While the JW-214SA occupies a standard single slot on the JW Series backplane or expansion rack, facilities that have added third-party signal isolators, terminal multipliers, or DIN rail-mounted relay modules adjacent to the PLC rack may find physical clearance reduced. Measuring available slot depth and confirming the rack’s bus integrity before ordering prevents last-minute installation delays.

Downtime Control During System Migration

Minimizing production interruption during a JW-214SA replacement begins with preparation completed before the maintenance window opens. A pre-staged replacement module — tested, addressed, and confirmed compatible — eliminates the most common source of extended downtime: discovering a fault in the replacement unit only after the original has been removed. NINERMAS ships all JW-214SA units with pre-shipment functional testing completed, reducing on-site verification time to a final loop check rather than a full module qualification.

During the swap, the CPU should be placed in STOP mode and the field power supply de-energized before the module is removed. This protects both the backplane bus and connected field devices from transient signals during the physical exchange. After the JW-214SA is seated and terminal wiring reconnected, the CPU program should be verified in monitor mode before switching outputs to RUN, allowing the technician to confirm that each output point responds correctly to the program logic without energizing field actuators prematurely.

For lines where even a brief STOP mode interruption is operationally sensitive, a parallel commissioning approach can be used: the replacement JW-214SA is pre-wired on a bench rack with a JW-22CU CPU running a copy of the production program, and all output points are verified against the field device list before the live swap. This approach is particularly valuable in process manufacturing environments where output modules control heating elements, dosing pumps, or conveyor drives that cannot tolerate unexpected state changes.

Post-swap, a structured commissioning checklist covering all 14 output points, the CPU communication status, HMI display confirmation, and a 30-minute monitored run cycle provides documented evidence that the retrofit was completed successfully — supporting both internal quality records and customer-facing maintenance logs.

Retrofit Support FAQ

Q1: Is the JW-214SA a direct replacement for a failed unit of the same model?
Yes. The JW-214SA supplied by NINERMAS is an original SHARP module compatible with all JW Series racks and CPUs that supported the original part. No hardware modification or firmware update is required for a same-model swap. I/O address mapping is preserved, and existing ladder logic programs do not require modification.

Q2: What pre-shipment testing is performed on each JW-214SA unit?
Each unit undergoes functional output verification prior to dispatch, confirming that all 14 output points activate correctly under rated load conditions. A test record is maintained for each unit and is available on request. Units that do not pass functional verification are not shipped.

Q3: Can the JW-214SA be used in a mixed-module rack alongside newer I/O modules?
The JW-214SA is designed for the SHARP JW Series backplane and is compatible with other JW Series modules in the same rack, including input modules, analog modules, and communication interfaces. Integration with non-JW Series hardware requires a gateway or protocol converter and should be evaluated on a case-by-case basis.

Q4: What does the 12-month warranty cover, and what is the supply lead time?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. In-stock units are available for prompt dispatch; lead time for confirmed orders is typically 3–7 business days depending on destination. For bulk orders or long-term supply commitments, NINERMAS offers stock reservation programs to support lifecycle extension planning.
