Allen-Bradley 1756-IC16 Retrofit-Compatible 48VDC DI Module

Allen-Bradley 1756-IC16 Retrofit-Compatible 48VDC DI Module: Legacy System Compatibility & Smooth Upgrade

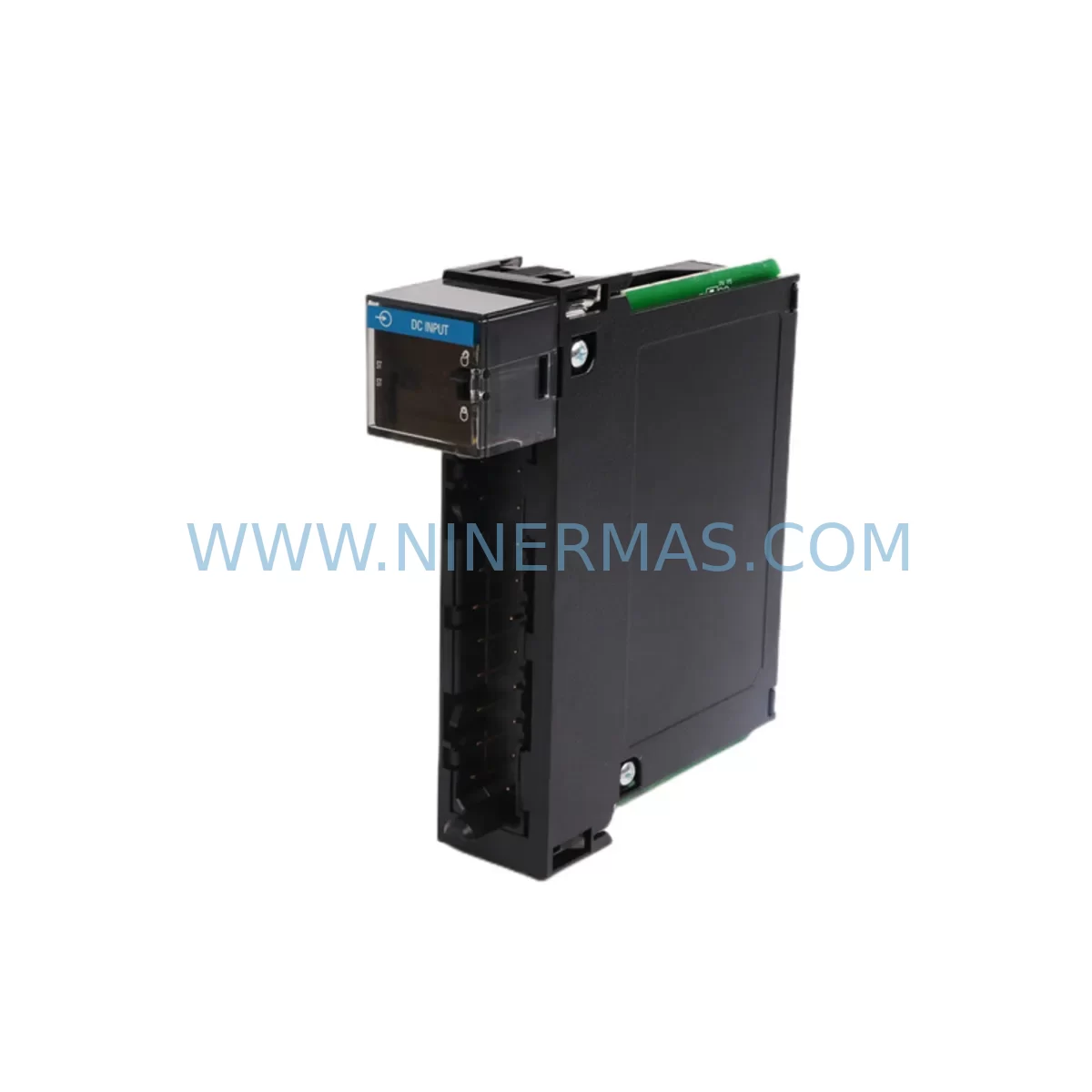

The Allen-Bradley 1756-IC16 is a 16-point, 48VDC DC input module designed for the ControlLogix 1756 Series platform. As industrial facilities face the challenge of maintaining aging automation infrastructure, the 1756-IC16 has become a critical component in retrofit projects, discontinued spare parts replacement programs, and control cabinet modernization initiatives. Whether you are restoring a legacy production line, migrating from an older PLC-5 or SLC 500 platform, or simply extending the service life of an existing ControlLogix rack, the 1756-IC16 provides a reliable, drop-in compatible solution backed by 12 months of warranty coverage and verified pre-shipment testing.

When planning a retrofit or replacement using the 1756-IC16, engineers must carefully evaluate several key parameters before committing to installation. Power supply capacity is the first consideration: the 1756-IC16 draws current from the 1756-PA72 or 1756-PB72 power supply through the ControlLogix backplane, and the total chassis load must be recalculated to confirm that the existing power supply can support the module alongside other installed cards such as the 1756-OB16E output module or 1756-EN2T EtherNet/IP communication module. Exceeding the rated backplane current will cause unpredictable faults and must be avoided.

Terminal wiring is the next critical step. The 1756-IC16 uses a removable terminal block, which simplifies field replacement without disturbing existing field wiring. However, technicians must verify that the incoming 48VDC field signals are correctly referenced to the module’s common terminals and that cable shielding practices comply with the original panel design. In older installations where wiring documentation may be incomplete, a point-by-point continuity check against the original I/O map is strongly recommended before energizing the module.

Backplane slot addressing must also be confirmed. In a ControlLogix system, each module occupies a specific slot in the 1756-A7, 1756-A10, or 1756-A17 chassis, and the slot number directly determines the I/O tag path used in the Logix Designer project. If the 1756-IC16 is replacing a module in a different slot than originally configured, the program logic must be updated to reflect the new tag path, or the module must be physically installed in the original slot to preserve program compatibility without code changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1756-IC16 into an existing automation system requires a structured approach that accounts for both hardware and software dependencies. In a typical ControlLogix retrofit scenario, the 1756-IC16 is installed alongside a 1756-L71 or 1756-L73 controller in a shared chassis, with communication handled through a 1756-EN2T EtherNet/IP module connected to the plant network. Before the replacement module arrives on site, the project team should export the current Logix Designer program and create a full backup, including all controller tags, I/O configuration, and HMI screen bindings.

HMI screen updates are frequently overlooked during module replacements. If the facility uses a PanelView Plus 7 or FactoryTalk View SE station, any faceplates or alarm triggers that reference the original I/O tag path must be reviewed and updated to match the new module configuration. Failure to update HMI bindings can result in false alarms or missing process data after the retrofit is complete.

Communication link integrity must also be verified. In systems where the 1756-IC16 feeds data to a SCADA platform via the 1756-ENBT or 1756-CN2 ControlNet bridge, the data table mapping must be confirmed to ensure that the replacement module’s tag structure matches the expected data format at the SCADA level. Any mismatch in data type or array size will cause communication faults that are difficult to diagnose without a complete I/O map review.

For facilities migrating from older PLC-5 or SLC 500 platforms, the 1756-IC16 is commonly used as part of a broader migration that also involves replacing 1771-IB16 or 1746-IB16 input cards. In these projects, a 1756-DHRIO module may be required to maintain legacy DH+ communication links during the transition period, allowing the new ControlLogix system to coexist with older remote I/O drops until the full migration is complete. Signal isolators and terminal block adapters are often needed to bridge wiring differences between the old and new systems, particularly when field device commons are wired differently between the legacy and modern platforms.

I/O expansion planning should also consider whether additional 1756-IC16 modules will be needed as the retrofit scope grows. In large panel upgrades, it is common to begin with a single chassis and expand to a second 1756-A10 or 1756-A17 rack connected via a 1756-EN2T bridge, allowing the control system to scale without requiring a complete redesign of the original architecture.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any live system retrofit. For the 1756-IC16 replacement, the recommended approach is to pre-configure the module offline using Logix Designer before the scheduled maintenance window. The replacement module should be added to the I/O tree in the offline project, with all tag paths, data types, and inhibit settings verified against the original configuration before the cutover begins.

During the cutover window, the original program should be placed in Run mode with the I/O inhibited for the affected slot, allowing the physical module to be swapped without triggering a controller fault. Once the 1756-IC16 is seated in the chassis and the terminal block is reconnected, the inhibit can be removed and the module will automatically re-establish communication with the controller. A point-by-point I/O verification test should then be performed to confirm that all 16 input points are reading correctly before the system is returned to automatic operation.

To further reduce risk, a parallel wiring strategy can be used in which the new module’s terminal block is pre-wired and tested on the bench before the cutover, allowing the field wiring to be transferred from the old RTB to the new one in a single, rapid swap. This approach is particularly effective in high-density panels where re-wiring under time pressure increases the risk of wiring errors. Pre-shipment functional testing of the 1756-IC16 ensures that the module is verified operational before it reaches the site, eliminating the risk of receiving a defective unit during a critical maintenance window.

Original program logic is preserved throughout this process because the 1756-IC16 replacement does not require any changes to the controller’s ladder logic or function block diagrams, provided the module is installed in the same chassis slot as the original. The controller will automatically recognize the replacement module and resume normal operation without requiring a program download, which further reduces the risk of introducing software errors during the retrofit.

Retrofit Support FAQ

Q: Is the 1756-IC16 a direct replacement for all series revisions of the original module?
A: The 1756-IC16 is compatible across Series A, B, and C revisions. In most cases, the replacement module can be installed in the same chassis slot without any program changes. However, if the original module was a Series A unit with specific firmware-dependent behavior, we recommend verifying the controller firmware revision and testing the replacement in a non-production environment before full deployment.

Q: What wiring changes are required when replacing the 1756-IC16?
A: The 1756-IC16 uses a removable terminal block (RTB), which means the existing field wiring can be transferred directly to the replacement module’s RTB without cutting or re-terminating individual conductors. Verify that the terminal block model (1756-TBCH or 1756-TBS6H) matches the original before proceeding. No wiring changes to the field devices are required if the input voltage and common wiring are unchanged.

Q: How is compatibility with the existing ControlLogix program verified before installation?
A: Export the current Logix Designer project and review the I/O configuration for the affected slot. Confirm that the module type, slot number, and tag paths match the replacement 1756-IC16. If the project was originally configured for the same module type, no program changes are required. Pre-shipment testing at our facility verifies that the module responds correctly to 48VDC input signals across all 16 points before dispatch.

Q: What does the 12-month warranty cover, and what is the stock availability?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes a pre-shipment functional test to verify input response, backplane communication, and LED status indication. Stock is maintained for immediate dispatch, and lead times are confirmed at the time of order. Contact our team for current inventory status and expedited shipping options.
