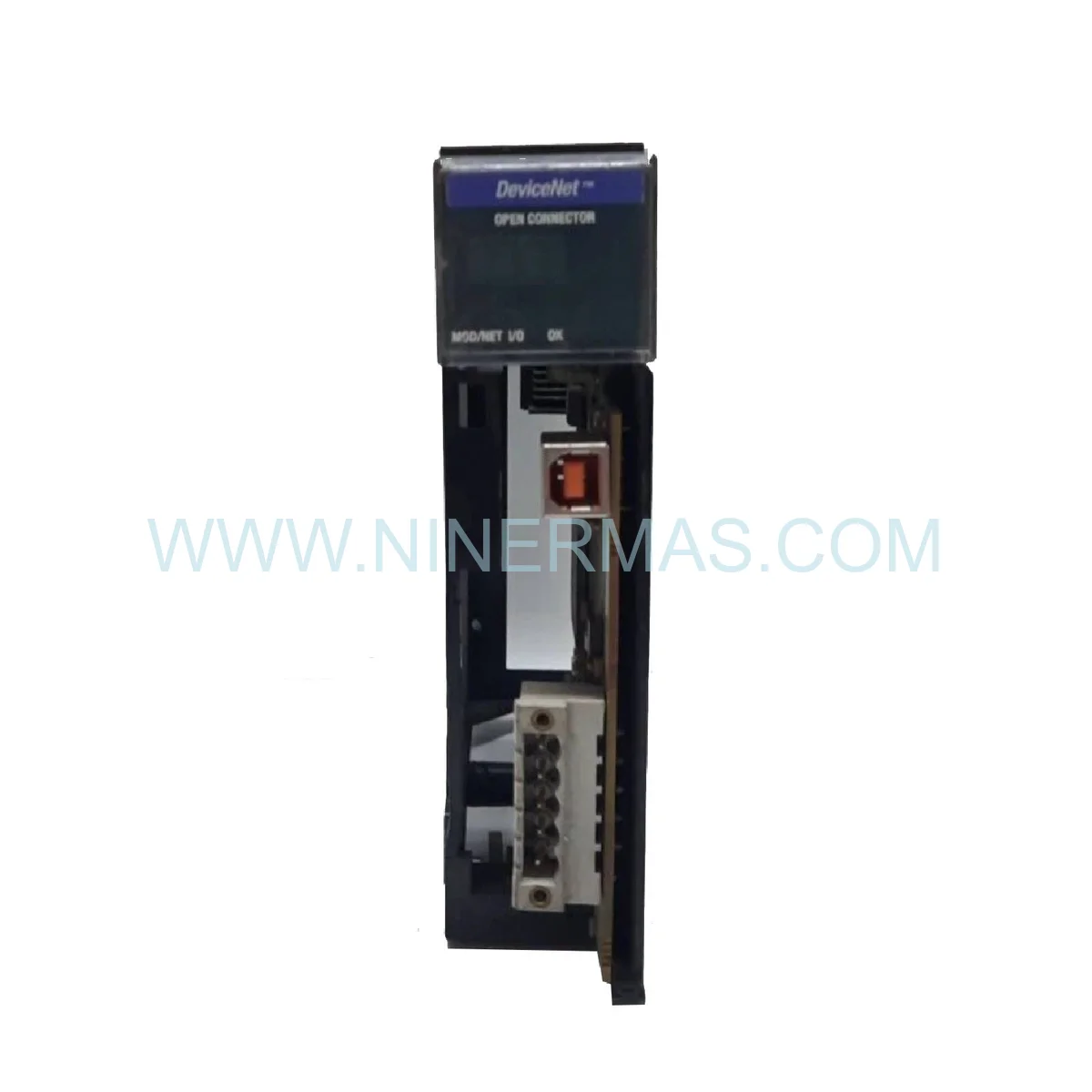

Allen-Bradley 1756-DNB/D DeviceNet Bridge | ControlLogix Retrofit Module

Allen-Bradley 1756-DNB/D – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the Allen-Bradley 1756-DNB/D stands out as a mission-critical enabler for modernization initiatives. This Series D DeviceNet Bridge Module plays a pivotal role in extending the operational lifespan of existing ControlLogix platforms while simultaneously elevating network performance, reducing unplanned downtime, and bridging the gap between aging field device infrastructure and contemporary automation architectures. Its ability to sustain high-throughput DeviceNet communication within a modern backplane environment makes it indispensable for phased migration strategies.

The Allen-Bradley 1756-DNB/D delivers exceptional backward compatibility with legacy DeviceNet topologies, making it the cornerstone of any upgrade path that must preserve existing field wiring, sensors, and actuators while introducing new control logic. Whether your facility is transitioning from a PLC-5 or SLC 500 environment to ControlLogix, or simply refreshing aging Series A/B/C bridge modules, this component ensures continuity of operations without requiring a full rip-and-replace approach — a critical advantage in high-availability production environments.

From a migration risk and cost perspective, deploying the 1756-DNB/D as part of a structured retrofit plan significantly reduces engineering hours, minimizes production interruptions, and eliminates the need for costly field device replacements. Its proven compatibility with ODVA-compliant DeviceNet devices from multiple vendors means your existing capital investments in field instrumentation remain fully protected throughout the modernization journey.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration: Drop-in replacement for earlier Series A/B/C modules — zero field rewiring required
• Enhanced Firmware Stability: Series D revision delivers improved diagnostic resolution and fault recovery vs. legacy revisions
• ✅ Multi-Rate Support: Auto-negotiates at 125 kbps, 250 kbps, and 500 kbps — adapts to existing network infrastructure
• Future-Proof Architecture: Compatible with Studio 5000 Logix Designer and RSLogix 5000 — supports long-term software lifecycle
• ✅ Legacy Compatibility: Supports all ODVA-conformant DeviceNet devices regardless of manufacturer or vintage
• Expanded Node Capacity: Up to 64 network nodes — accommodates growing distributed I/O requirements without topology changes

Modernization Use Cases & Success Stories

DCS Integration & Migration: In distributed control system (DCS) modernization projects, the 1756-DNB/D serves as the critical communication bridge that allows legacy DeviceNet field devices — including variable frequency drives, smart sensors, and remote I/O blocks — to be retained and reused within a new ControlLogix-based DCS architecture. This approach has enabled facilities to achieve 40-60% cost savings compared to full field device replacement programs, while delivering measurable improvements in network diagnostics and fault isolation speed.

Turbine Supervisory Instrumentation (TSI) Retrofit: Power generation facilities operating legacy turbine monitoring systems have successfully integrated the 1756-DNB/D to modernize their TSI communication backbone. By replacing end-of-life bridge modules with this Series D component, plant engineers gain access to enhanced change-of-state (COS) messaging and polled I/O capabilities that dramatically improve vibration and temperature data acquisition rates — a performance enhancement that directly supports predictive maintenance programs and reduces unplanned outage risk.

Automotive & Packaging Line Upgrades: High-speed assembly and packaging operations have leveraged the 1756-DNB/D’s 500 kbps data rate capability to modernize aging DeviceNet networks that previously operated at 125 kbps, achieving cycle time reductions and improved OEE metrics without disrupting existing field device investments.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed: All units sourced as genuine Allen-Bradley components — fully traceable, authenticity-guaranteed, and shipped in original manufacturer packaging to protect against counterfeit risk in retrofit projects.
• Expedited Global Logistics: Priority shipping programs available for emergency retrofit and unplanned downtime scenarios. Air freight and express courier options support rapid deployment to facilities across Asia, Europe, the Americas, and the Middle East.
• Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-sales compatibility analysis, configuration guidance for RSNetWorx for DeviceNet, and post-installation commissioning support — ensuring your retrofit project proceeds on schedule and within budget.
• Documentation Package: Full technical documentation, wiring diagrams, and firmware release notes available upon request to support engineering review and site acceptance testing.

Retrofit FAQ (Upgrade Guide)

Q1: Is the Allen-Bradley 1756-DNB/D physically compatible with all 1756 ControlLogix chassis sizes?
A: Yes. The 1756-DNB/D occupies a single slot in any standard 1756 ControlLogix chassis (4, 7, 10, 13, or 17-slot configurations). No mechanical modifications are required, making it a true drop-in hardware upgrade for existing panel layouts — a key advantage when installation space is constrained in retrofit projects.

Q2: How does the 1756-DNB/D handle communication between new ControlLogix controllers and legacy DeviceNet devices?
A: The module acts as a DeviceNet master (scanner), managing all network traffic between the ControlLogix backplane and up to 64 legacy or modern DeviceNet slave devices. It translates backplane I/O data into DeviceNet protocol frames transparently, requiring no changes to existing field device configurations — a seamless integration approach that preserves legacy system investments.

Q3: Can the 1756-DNB/D replace an older Series A or Series B module without reprogramming the controller?
A: In most cases, yes. The Series D module maintains backward compatibility with earlier revisions at the network configuration level. Minor firmware updates and RSNetWorx for DeviceNet re-commissioning may be required, but controller logic modifications are typically unnecessary — significantly reducing retrofit engineering effort and risk.

Q4: What are the recommended spare part alternatives if the 1756-DNB/D is unavailable?
A: For applications requiring a migration path away from DeviceNet, the Allen-Bradley 1788-EN2DN/A EtherNet/IP-to-DeviceNet gateway provides a protocol conversion solution that allows DeviceNet field devices to be retained while transitioning the control network to EtherNet/IP. This represents a forward-looking hardware upgrade strategy for facilities planning long-term network modernization.

Q5: Does the 1756-DNB/D support both polled and event-driven (COS/Strobe) messaging simultaneously?
A: Yes. The module supports concurrent Poll, Change-of-State (COS), and Strobe messaging modes across different network nodes. This flexibility allows engineers to optimize network bandwidth utilization during retrofit projects — assigning time-critical devices to COS messaging while using polled connections for lower-priority status monitoring.

Q6: What diagnostic tools are available to verify network health after a retrofit installation?
A: RSNetWorx for DeviceNet provides comprehensive network health visualization, node status monitoring, and fault diagnostics accessible directly through the 1756-DNB/D. The module’s built-in LED indicators (MS, NS, and I/O status) also provide real-time field-level diagnostics without requiring a connected laptop — essential for rapid fault isolation during commissioning and ongoing performance enhancement monitoring.
