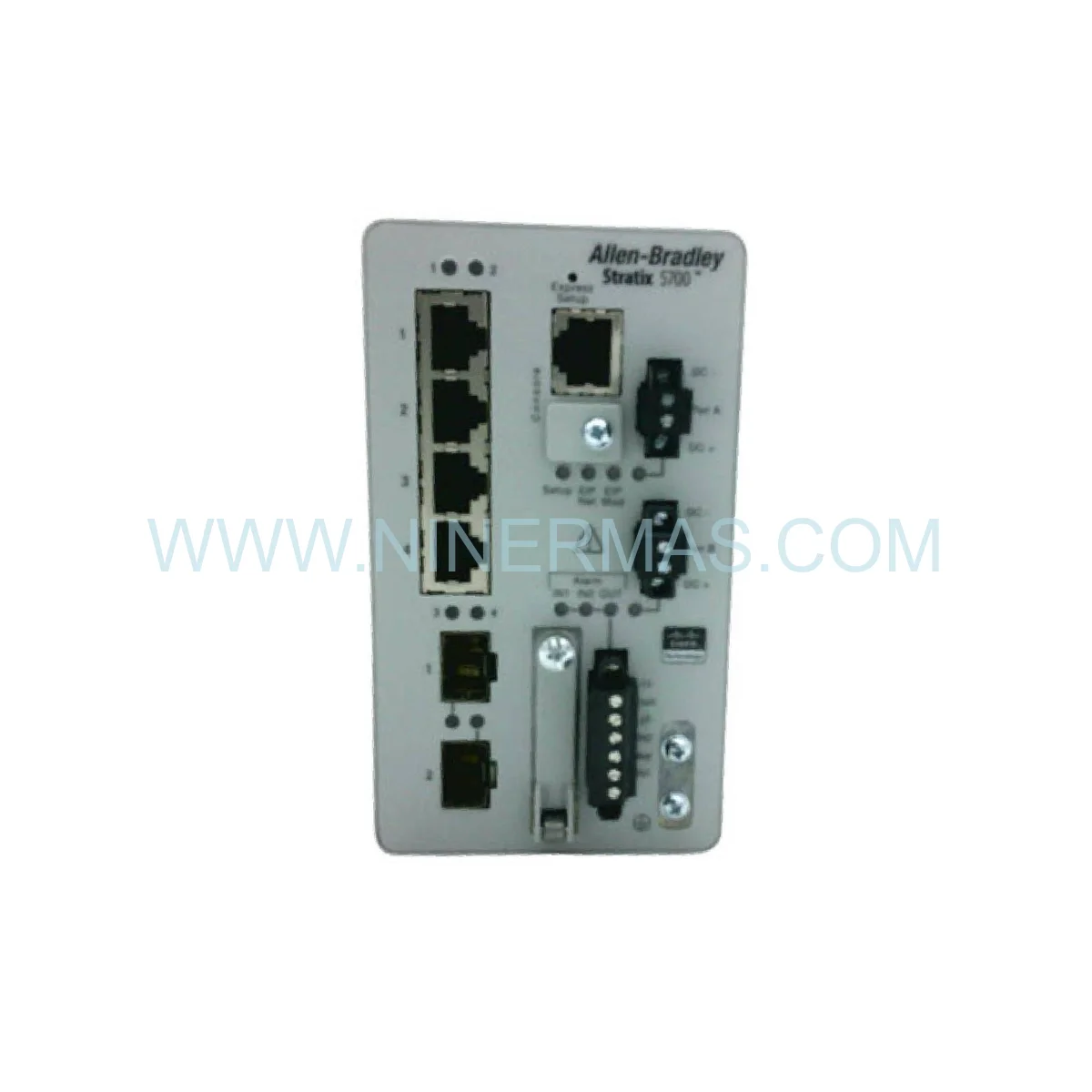

Allen-Bradley 1783-BMS06SGL | Stratix 5700 Retrofit & Network Upgrade Switch

Allen-Bradley 1783-BMS06SGL – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial network transformations, the Allen-Bradley 1783-BMS06SGL stands out as a cornerstone component in any system modernization initiative. Aging factory networks built on unmanaged or early-generation switches frequently suffer from bandwidth bottlenecks, lack of redundancy, and zero visibility into traffic flows ll of which translate directly into unplanned downtime and escalating maintenance costs. The 1783-BMS06SGL, part of Rockwell Automation’s Stratix 5700 family, addresses these pain points head-on by delivering enterprise-grade Layer 2/Layer 3 managed switching in a hardened, DIN-rail-mountable form factor purpose-built for industrial environments.

One of the most compelling advantages of the Allen-Bradley 1783-BMS06SGL in a retrofit context is its backward compatibility with existing Allen-Bradley control architectures. Whether your facility is running legacy ControlLogix L6x chassis, older CompactLogix platforms, or even first-generation EtherNet/IP segments, this switch integrates without requiring a wholesale replacement of the underlying control layer. Its 6 — Gigabit SFP fiber ports allow engineers to extend network reach and eliminate copper-distance limitations while preserving the existing PLC and I/O topology critical advantage when migration budgets are constrained and production schedules cannot accommodate extended shutdowns.

From a risk and cost perspective, deploying the 1783-BMS06SGL as part of a phased modernization strategy dramatically reduces migration complexity. Rather than a disruptive rip-and-replace approach, facilities can introduce this switch at the cell or area level, validate performance, and progressively expand the upgrade scope. The result is a lower total cost of ownership, reduced commissioning risk, and a clear, auditable upgrade path that satisfies both operations and capital expenditure requirements.

Upgrade Highlights & Compatibility

✅ Seamless Legacy Integration: Fully compatible with ControlLogix, CompactLogix, and GuardLogix platforms o control-layer changes required during network retrofit phases.

✅ Fiber-First Architecture: 6 — Gigabit SFP ports support single-mode and multi-mode transceivers, extending reach up to 80 km and eliminating EMI-induced packet loss common in aging copper infrastructures.

Sub-Millisecond Redundancy: Native Device Level Ring (DLR) and Parallel Redundancy Protocol (PRP) deliver <1 ms failover ritical for maintaining continuous operation during network topology changes mid-migration.

Performance Enhancement via Layer 3 Routing: Enables VLAN segmentation and inter-subnet routing, allowing modernized network zones to coexist with legacy flat-network segments during transition periods.

✅ Future-Proofing & IEC 62443 Compliance: IEEE 802.1X authentication, ACLs, and port security features align with current industrial cybersecurity mandates, ensuring the upgraded network meets evolving regulatory requirements.

Studio 5000 / Logix Designer Native Support: Configure, monitor, and diagnose directly within the existing Rockwell engineering environment ero additional tooling investment for retrofit teams.

Modernization Use Cases & Success Stories

DCS Network Backbone Upgrade — Chemical Processing Plant: A mid-sized chemical facility operating a legacy DCS with unmanaged switches across 12 process cells faced recurring network storms that triggered spurious alarms and emergency shutdowns. By deploying the 1783-BMS06SGL as the cell-level aggregation switch, the retrofit team introduced VLAN isolation between process zones, eliminating broadcast storms entirely. DLR ring topology replaced the existing daisy-chain wiring, reducing mean time to recovery from 4+ minutes to under 1 ms. The phased rollout ne cell per maintenance window llowed continuous production throughout the 6-month migration project.

Turbine Supervisory Instrumentation (TSI) Network Modernization — Power Generation: A combined-cycle power plant required upgrading its TSI communication backbone to support new vibration monitoring sensors with higher data throughput demands. The existing copper-based network introduced ground loop interference that corrupted sensor readings. The retrofit solution centered on the Allen-Bradley 1783-BMS06SGL‘s all-fiber SFP architecture, which eliminated ground loop issues and provided the bandwidth headroom needed for real-time vibration spectrum data. Integration with the plant’s existing ControlLogix L73 controllers was achieved without any PLC firmware changes, validating the switch’s hardware upgrade value as a non-disruptive performance enhancement tool.

Legacy SCADA Segment Isolation — Oil & Gas Terminal: An offshore terminal needed to isolate its aging SCADA network from a newly commissioned safety instrumented system (SIS) without interrupting ongoing operations. The 1783-BMS06SGL‘s Layer 3 routing capability enabled the creation of a logical network boundary between the legacy SCADA VLAN and the new SIS subnet, providing the required traffic segregation while maintaining shared historian access textbook retrofit solution for brownfield environments.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1783-BMS06SGL unit we supply is sourced as original Rockwell Automation hardware, factory sealed with full manufacturer documentation. Counterfeit or refurbished components introduce unacceptable risk in retrofit projects where network reliability is non-negotiable ur supply chain integrity is your assurance of genuine performance.

Expedited Global Logistics: Retrofit and emergency replacement timelines are rarely forgiving. We maintain strategic inventory positions to support expedited shipping to manufacturing hubs across North America, Europe, Southeast Asia, and the Middle East. Whether your project is in a planned maintenance window or an unplanned outage scenario, our logistics team prioritizes your deployment schedule.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in brownfield integration challenges. From SFP transceiver selection for specific fiber plant types to VLAN configuration guidance for coexistence with legacy unmanaged segments, we provide the application-level expertise that goes beyond simply shipping a box.

Retrofit FAQ — Upgrade Guide

Q1: Will the 1783-BMS06SGL physically fit in my existing control panel enclosure designed for older, smaller switches?
The 1783-BMS06SGL uses a standard DIN-rail mounting form factor consistent with most Allen-Bradley and third-party industrial enclosures. Its compact profile makes it suitable for retrofit installations where panel space is at a premium. We recommend verifying the enclosure’s available DIN-rail length and ensuring adequate clearance for SFP transceiver insertion and fiber cable bend radius management before finalizing the installation design.

Q2: How does the 1783-BMS06SGL communicate with older, non-EtherNet/IP legacy devices still present in my system?
The switch supports Modbus TCP and PROFINET in addition to EtherNet/IP, enabling it to serve as a convergence point for multi-protocol legacy environments. For devices using older serial protocols (RS-232/485), a protocol gateway can be positioned upstream of the switch to bridge legacy communications onto the modernized EtherNet/IP backbone common and proven retrofit architecture.

Q3: Can I use the 1783-BMS06SGL as a direct replacement for an older unmanaged switch without reconfiguring my PLCs?
Yes, in most cases. When deployed in its default out-of-box configuration, the 1783-BMS06SGL operates as a standard Layer 2 switch, making it a transparent drop-in replacement for unmanaged switches. PLC IP addresses, I/O module configurations, and HMI connections remain unchanged. Advanced features such as VLANs, QoS, and DLR can then be enabled progressively during subsequent maintenance windows as part of a phased performance upgrade strategy.

Q4: What spare parts or backup components should I stock alongside the 1783-BMS06SGL for a long-term retrofit deployment?
For long-term operational continuity, we recommend stocking compatible 1783-SFP series transceivers matched to your specific fiber plant (single-mode vs. multi-mode, wavelength, and connector type). Additionally, maintaining a spare 1783-BMS06SGL unit at critical network nodes provides rapid swap capability in the event of hardware failure, minimizing mean time to repair in production-critical environments.

Q5: How does the DLR redundancy feature benefit a retrofit project where I cannot rewire the entire network at once?
DLR is specifically designed for incremental deployment. You can enable DLR on a subset of devices within a single network segment while the remainder of the network continues operating in a standard linear topology. This allows retrofit teams to validate ring redundancy performance in one production zone before expanding the configuration educing commissioning risk and enabling a controlled, auditable migration path.

Q6: Is the 1783-BMS06SGL suitable for use in a system where the existing DCS or TSI platform is from a different vendor?
Absolutely. The switch’s support for PROFINET and Modbus TCP, combined with its standard IEEE 802.1Q VLAN and QoS capabilities, makes it interoperable with DCS and TSI platforms from Siemens, Honeywell, Emerson, ABB, and others. In multi-vendor retrofit environments, the 1783-BMS06SGL functions as a neutral network infrastructure layer, providing the performance enhancement and segmentation capabilities required without imposing Allen-Bradley-specific constraints on connected third-party devices.

—
