Allen-Bradley 1746-NI04I Analog Input Module (SLC 500) – New & Original in Stock

Allen-Bradley 1746-NI04I | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1746-NI04I stands as a cornerstone I/O module for sustaining system availability in demanding process environments. Deployed within SLC 500 modular chassis architectures, the 1746-NI04I delivers four independent differential analog current input channels with 16-bit resolution — enabling precise acquisition of 4-20 mA and 0-20 mA field signals from transmitters monitoring flow, pressure, level, and temperature. Its role in process optimization is direct: accurate signal fidelity at the I/O layer eliminates measurement drift that cascades into costly control deviations and unplanned shutdowns.

Engineered for operational excellence in harsh industrial environments, the 1746-NI04I incorporates 500V optical isolation between the field wiring and the SLC 500 backplane — a critical safeguard against ground loops and transient voltage spikes common in heavy manufacturing and chemical processing facilities. Installation demands attention to cable shielding practices and proper grounding at a single point to preserve signal integrity. The module’s compact form factor integrates seamlessly into existing SLC 500 chassis without requiring additional power supplies, drawing only 150 mA at 5V DC from the backplane.

For maintenance teams managing aging automation infrastructure, maintaining a certified stock of the 1746-NI04I as a mission-critical spare is a non-negotiable reliability strategy. As an end-of-life (EOL) component in many facilities, sourcing verified original units from a trusted global supplier ensures rapid restoration of system integration without the risk of counterfeit or refurbished substitutes compromising your process uptime.

Key Operational Features

4-Channel Differential Analog Current Input — Supports 4-20 mA and 0-20 mA ranges, configurable per channel for flexible field device compatibility.
16-Bit High-Resolution Conversion — 1-in-65,536 resolution ensures measurement precision for tight process control loops.
500V Optical Isolation — Galvanic separation between field and backplane protects controller integrity in electrically noisy environments.
Seamless SLC 500 System Integration — Drop-in compatibility with all SLC 500 modular chassis; no additional hardware or firmware modifications required.

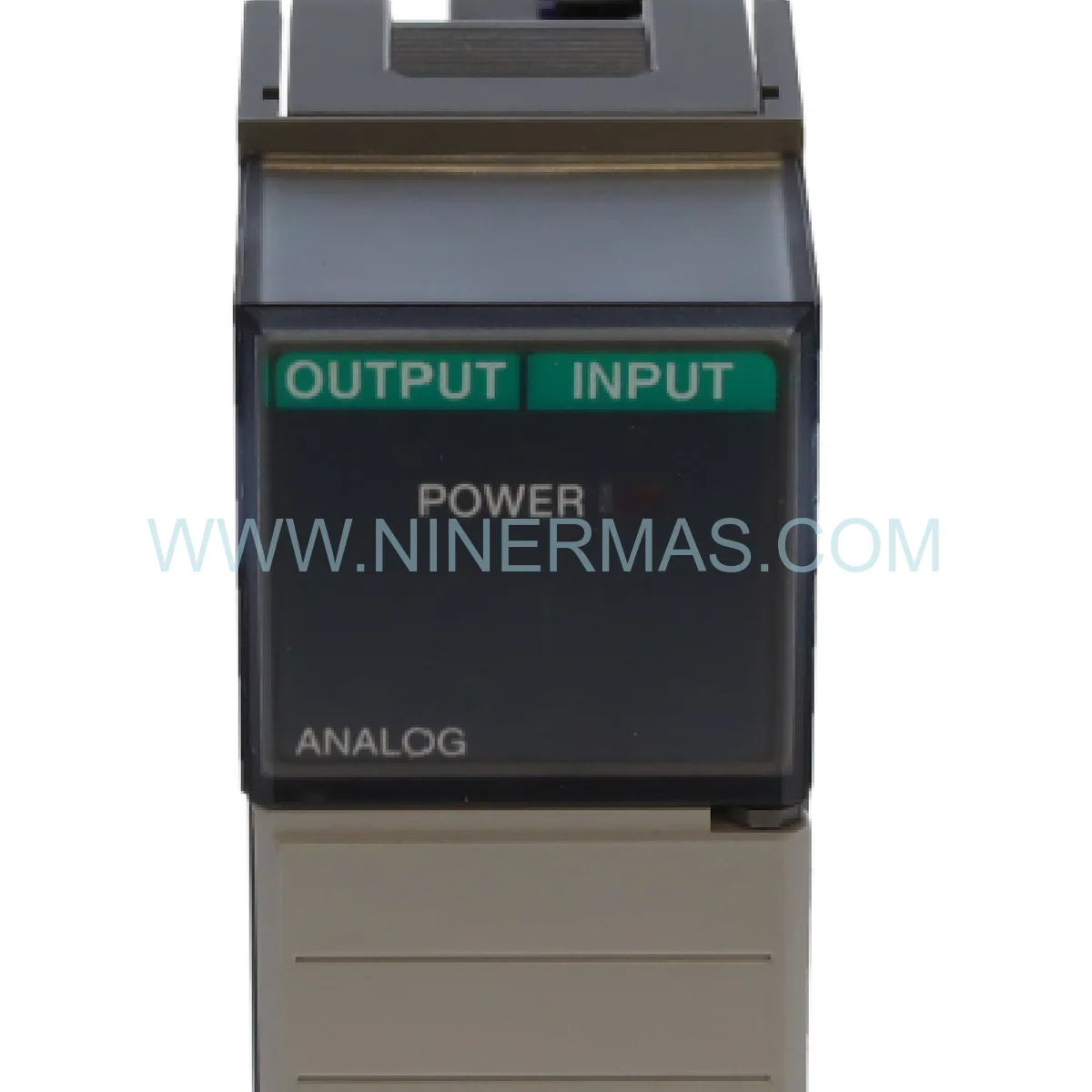

High Availability Design — Hot-swap capability minimizes mean time to repair (MTTR); front-panel diagnostic LEDs enable rapid fault isolation without test equipment.
Factory-Calibrated Accuracy — ±0.1% full-scale accuracy at 25°C, verified at the factory, eliminating field calibration overhead during commissioning.
Redundancy-Ready Architecture — Compatible with SLC 500 redundancy configurations to support high-availability control system designs.

Maintenance & Performance Benchmarks

The 1746-NI04I is engineered to sustain performance across a broad spectrum of industrial network architectures — from compact standalone SLC 5/03 systems to large-scale SLC 5/05 Ethernet-networked installations. Its 10 ms per-channel update time supports real-time process monitoring without introducing latency that could compromise closed-loop control stability.

In multi-chassis distributed I/O configurations, the module maintains consistent signal acquisition performance regardless of chassis slot position. Maintenance benchmarks indicate a mean time between failures (MTBF) consistent with Allen-Bradley’s industrial-grade component standards, making it a dependable element in preventive maintenance schedules. RSLogix 500 software provides full access to channel scaling, filter time constants, and alarm threshold configuration — enabling engineers to fine-tune module behavior to match specific process dynamics without hardware changes.

For facilities transitioning toward IIoT-enabled architectures, the 1746-NI04I continues to serve as a reliable data acquisition front-end, feeding process values into SCADA and historian systems via the SLC 500 communication network. Its proven track record in automation components across petrochemical, water treatment, food & beverage, and discrete manufacturing sectors underscores its role as a benchmark for analog I/O reliability.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1746-NI04I unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging — complete with Allen-Bradley documentation, protective anti-static packaging, and factory seal intact. This guarantees that the module you receive is the same unit that passed Rockwell Automation’s quality verification process.

For mission-critical procurement scenarios, we offer same-day dispatch on confirmed in-stock units, with worldwide express logistics via DHL, FedEx, and UPS — ensuring your production line is restored within the shortest possible timeframe regardless of your geographic location. We maintain dedicated global inventory for EOL and legacy SLC 500 automation components, providing a reliable supply chain for facilities that cannot migrate to newer platforms on short notice. All shipments include full traceability documentation to support your incoming inspection and quality assurance processes.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 1746-NI04I in an SLC 500 chassis?
A: Power down the SLC 500 chassis before insertion. Align the module with the chassis slot guides and press firmly until the backplane connector seats fully. Secure the module locking tab. Reconnect field wiring to the removable terminal block — positive lead to IN+, negative to IN for each channel. Power up the chassis and verify the module status LED illuminates green. Configure channel parameters in RSLogix 500 under the I/O configuration tree.

Q2: Which firmware versions of the SLC 5/03, 5/04, and 5/05 processors are compatible with the 1746-NI04I?
A: The 1746-NI04I is compatible with all firmware revisions of the SLC 5/03 (OS302), SLC 5/04 (OS401), and SLC 5/05 (OS501) processors. No minimum firmware version restriction applies. Verify your RSLogix 500 software version supports your processor OS revision for full diagnostic visibility.

Q3: Can the 1746-NI04I support 2-wire loop-powered transmitters?
A: Yes. For 2-wire transmitters, an external 24V DC loop power supply is required. Connect the supply positive to the transmitter positive terminal, transmitter negative to the IN+ terminal of the module, and IN to the supply common. Each channel operates independently, allowing mixed 2-wire and 4-wire configurations within the same module.

Q4: How does the warranty claim process work for the 1746-NI04I?
A: In the event of a verified manufacturing defect within the 12-month warranty period, contact our technical support team at sale@ninermas.com with your order reference and a description of the fault symptom. We will issue a Return Merchandise Authorization (RMA) and arrange express replacement shipment to minimize your downtime exposure. No-fault returns are evaluated on a case-by-case basis.

Q5: Is the 1746-NI04I suitable for use in hazardous (classified) locations?
A: The standard 1746-NI04I is rated for general industrial environments (Pollution Degree 2). For Class I Division 2 hazardous locations, the module must be installed within an appropriately rated enclosure meeting NEC Article 501 requirements. Consult Rockwell Automation publication 1746-IN009 for detailed installation guidelines in classified areas.

Q6: What diagnostic data does the 1746-NI04I report back to the SLC 500 processor?
A: The module reports channel-level fault bits in the input image file, including open-wire detection (for 4-20 mA range), over-range, and under-range conditions. These bits can be mapped to alarm routines in RSLogix 500 ladder logic to trigger operator alerts or safe-state outputs without requiring additional hardware diagnostics.
