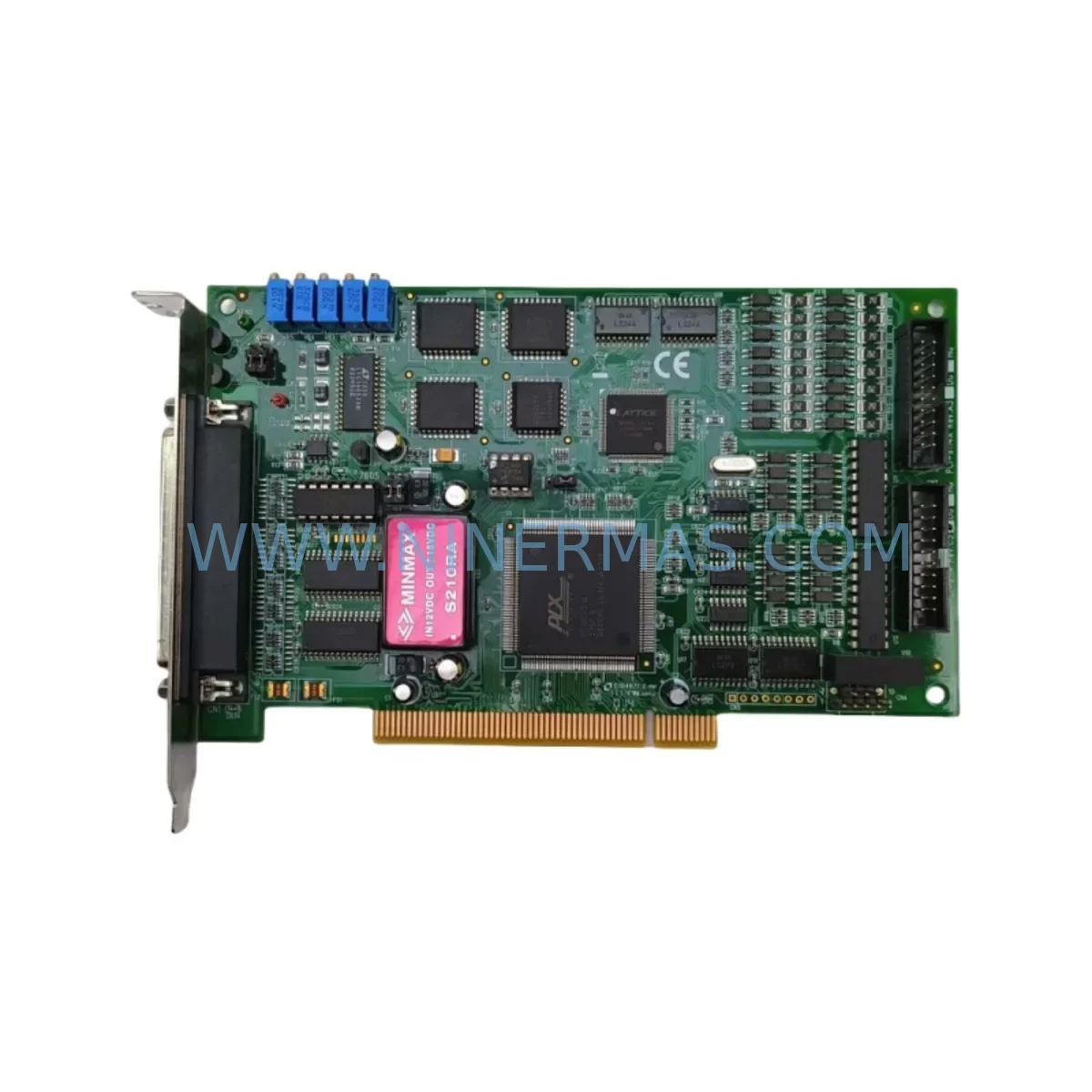

The ADLINK PCI-9114DG is a high-performance, 12-bit multifunction data acquisition card designed for PCI bus architectures and widely deployed across industrial automation, process control, and laboratory measurement systems. As legacy automation platforms age and OEM support windows close, the PCI-9114DG has become one of the most sought-after retrofit components for engineers tasked with extending the operational life of existing control infrastructure without committing to a full system overhaul.

NINERMAS maintains verified stock of the PCI-9114DG and ships globally with full functional testing, a 12-month warranty, and pre-shipment burn-in verification. Whether you are replacing a failed card in a running production line or sourcing a strategic spare for a critical system, our team can support your procurement and technical integration requirements.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the PCI-9114DG into an aging automation system requires a structured approach that accounts for both hardware compatibility and software continuity. In most retrofit scenarios, the card is being installed into an industrial PC or embedded controller that also hosts legacy components such as an ADLINK PCI-7230 isolated digital I/O card, an ADLINK PCI-7248 96-channel DIO module, or an ADLINK PCI-8164 motion control card — all sharing the same PCI backplane. Before pulling the failed or end-of-life card, engineers should document the existing IRQ assignments, base address settings, and DMA channel allocations to avoid resource conflicts after reinstallation.

Terminal block wiring is one of the most time-sensitive steps in any retrofit. The PCI-9114DG uses a 68-pin SCSI-II connector, and field wiring is typically routed through an ADLINK ACLD-9182 or compatible 68-pin terminal board. If the existing installation used a different breakout board — such as one designed for an older ISA-based card — a wiring adapter or new terminal block must be sourced before the maintenance window opens. Confirm signal polarity, shielding continuity, and ground loop isolation before powering up.

On the software side, the PCI-9114DG is supported by ADLINK’s DAQPilot and PCIS-DASK SDK, which provide compatibility with LabVIEW, MATLAB, and custom C/C++ applications. If the legacy system was running an older version of PCIS-DASK, a driver update may be required — but this must be validated against the existing HMI screen logic and SCADA tag database. In systems where the HMI is built on Wonderware InTouch or a similar platform, I/O server configurations referencing the old card’s channel addresses will need to be updated to reflect the PCI-9114DG’s memory-mapped register layout.

For systems that also include communication modules — such as an ADLINK PCI-7841 CAN bus card or an ADLINK MIL-PCI-1553 interface — the retrofit plan should include a communication link verification step after the DAQ card swap. Signal isolation between analog input channels and digital outputs is particularly important in environments with high electromagnetic interference, and the addition of a DIN-rail-mounted signal isolator or surge protector on field wiring terminals is strongly recommended before final commissioning.

Power budget verification is another critical pre-retrofit step. The PCI-9114DG draws power from the PCI slot’s 5V and 3.3V rails. In older industrial PCs where the power supply has been running at near-capacity for years, adding or replacing a DAQ card can push the system over its rated output. Measure actual rail voltages under load before and after installation, and consider replacing the system power supply if voltage sag is detected.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live production environment retrofit. The recommended approach is to pre-configure and bench-test the PCI-9114DG in an offline system that mirrors the target machine’s OS, driver stack, and application software before the scheduled maintenance window. This allows engineers to validate channel mapping, confirm interrupt handling, and run a full I/O scan cycle without touching the production line.

During the actual swap, the original program logic — whether stored in a PLC, an embedded controller, or a PC-based soft PLC — should be backed up to an external storage device before any hardware is removed. If the system uses a real-time OS or a deterministic control loop, the watchdog timer configuration should be noted and restored after the card replacement to prevent nuisance trips during the first power-up cycle.

For systems where continuous control is required, a hot-standby strategy using a secondary industrial PC with a pre-installed PCI-9114DG can reduce switchover time to under five minutes. Once the replacement card is confirmed operational, the standby unit takes over control while the primary system undergoes the physical card swap and driver reinstallation. This approach is particularly effective in chemical processing, water treatment, and power generation applications where even brief interruptions carry significant operational or safety consequences.

After the card is installed and the system is powered up, a structured commissioning sequence should be followed: verify PCI device enumeration in Device Manager or equivalent, run a channel-by-channel analog input calibration check, confirm digital I/O state transitions match the field device responses, and log the first 30 minutes of operational data for comparison against the pre-retrofit baseline. Any deviation in signal levels or timing should be investigated before returning the system to full automatic control.

Retrofit Support FAQ

Q: Is the PCI-9114DG a direct drop-in replacement for the PCI-9114 or PCI-9112?
A: The PCI-9114DG is functionally compatible with the PCI-9114 and shares the same connector pinout and register map. It is also a close replacement for the PCI-9112, though the channel count and resolution differ slightly. We recommend verifying the software address configuration before finalizing the swap. Our technical team can assist with compatibility confirmation at no charge.

Q: What pre-shipment testing does NINERMAS perform on the PCI-9114DG?
A: Every unit undergoes a full functional test covering analog input accuracy across all channels, digital I/O state verification, counter/timer operation, and PCI bus enumeration. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for critical applications.

Q: Can the PCI-9114DG be used with the original wiring and terminal blocks from the legacy installation?
A: In most cases, yes — provided the existing terminal block uses a 68-pin SCSI-II interface compatible with the ADLINK standard. If the legacy card used a different connector type, a wiring adapter or new breakout board will be required. We can advise on compatible terminal board options based on your existing field wiring documentation.

Q: What is the warranty coverage and what does it include?
A: All PCI-9114DG units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty service includes repair or replacement at our discretion, with priority turnaround for customers with active production requirements. Extended warranty and on-site support options are available — contact our sales team for details.
