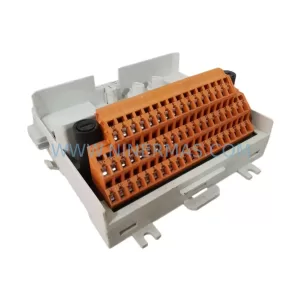

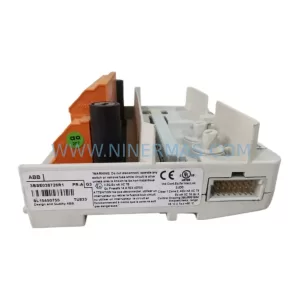

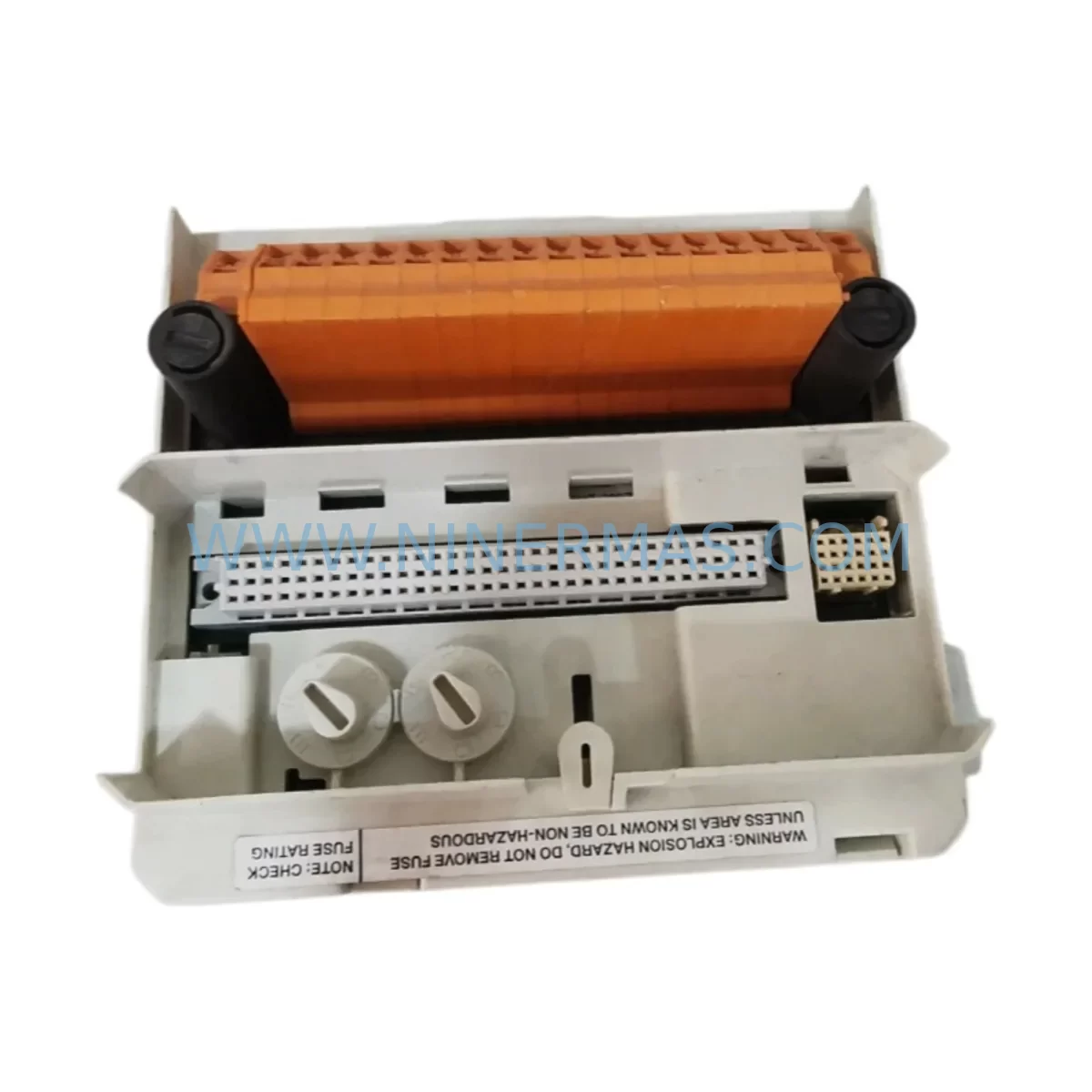

ABB TU833 3BSE038726R1 Retrofit-Compatible Terminal for S800 I/O

ABB TU833 3BSE038726R1 Retrofit-Compatible Terminal Unit for Legacy S800 I/O Systems

The ABB TU833 (3BSE038726R1) is a field-proven terminal unit designed for seamless integration within the ABB S800 I/O platform, widely deployed across process automation, power generation, oil & gas, and discrete manufacturing environments. As legacy control systems approach end-of-life and original spare parts become increasingly scarce, the TU833 3BSE038726R1 serves as a critical retrofit component — enabling engineers to extend the operational lifespan of existing ABB AC800M controller architectures without requiring a full system overhaul.

Whether you are replacing a failed terminal unit in a running production line, upgrading an aging control cabinet, or executing a phased migration from an obsolete DCS platform, the TU833 provides the mechanical and electrical compatibility required to maintain system continuity. Its DIN rail mounting profile and standard S800 backplane interface allow direct substitution in most existing panel layouts, minimizing installation time and reducing the risk of wiring errors during changeover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TU833 3BSE038726R1 into an existing control architecture requires careful pre-installation planning. Before removing the legacy terminal unit, engineers should document all existing field wiring terminations, confirm the 24 VDC power supply capacity available on the S800 I/O rail, and verify that the replacement module’s channel configuration matches the original I/O assignment in the application program.

In many retrofit scenarios, the TU833 is installed alongside companion modules such as the AI810 analog input module, AO810 analog output module, DI810 digital input module, and DO810 digital output module — all of which share the same S800 I/O backplane architecture. When the control cabinet also houses a CI854 PROFIBUS DP communication interface or a CI801 Modulebus optical port, the TU833’s bus connectivity must be confirmed against the existing network topology to avoid address conflicts.

For systems running on the ABB AC800M PM864 or PM866 processor modules, the Control Builder M engineering tool is used to reassign module addresses after physical installation. If the retrofit involves migrating from an older Advant OCS or Master 200/300 platform, additional signal conditioning may be required, and the use of a TB820 ModuleBus modem or equivalent interface adapter should be evaluated. Panel space assessment is essential — confirm that the DIN rail segment can accommodate the TU833’s footprint alongside existing SD802 power distribution modules and terminal blocks without compromising airflow or cable management.

Where the original installation used a TP830 termination panel or marshalling cabinet, field cable re-termination should be planned as a discrete work package to isolate risk. Programming cable access via the TK212A USB programming cable or equivalent should be arranged in advance to allow rapid firmware verification and I/O force-testing during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system retrofit. For the TU833 3BSE038726R1 replacement, the recommended approach is to pre-configure the replacement module offline — verifying channel assignments, address settings, and wiring continuity on a bench setup before the scheduled maintenance window begins.

Where the process allows, a hot-standby or redundant I/O path should be maintained during the physical swap. The original application program logic stored in the AC800M controller is not affected by terminal unit replacement, provided the module type and address remain consistent. Engineers should export and archive the current Control Builder M project before any hardware change, ensuring a verified restore point is available if unexpected compatibility issues arise.

Field wiring should be labeled and photographed prior to disconnection. Re-termination should follow the original wiring schedule, with each channel verified against the I/O list before power-up. After installation, a structured commissioning sequence — including power-on self-test confirmation, channel-by-channel I/O force test, HMI faceplate verification, and PROFIBUS or Modulebus communication link check — should be completed before returning the loop to automatic control. With proper preparation, the physical swap and recommissioning of a TU833 terminal unit can typically be completed within a single planned maintenance shift, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the TU833 3BSE038726R1 a direct drop-in replacement for earlier TU830 and TU831 terminal units?
In most cases, yes. The TU833 shares the same S800 I/O backplane connector and DIN rail mounting as the TU830 and TU831. However, engineers should verify the specific I/O module type seated on the terminal unit, as channel count and signal type assignments may differ between revisions. Confirm compatibility against the existing I/O list before ordering.

Q2: What commissioning steps are required after installing the TU833 in an AC800M system?
After physical installation and field wiring re-termination, open the Control Builder M project and confirm the module address matches the hardware address set on the unit. Perform a full I/O force test on each channel, verify communication link status on the CI854 or CI801 interface, and confirm HMI faceplate signals are updating correctly before releasing the loop to automatic.

Q3: Can you supply the TU833 3BSE038726R1 from stock, and what is the lead time?
NINERMAS maintains inventory of the TU833 3BSE038726R1 and selected S800 I/O companion modules. Standard in-stock orders are processed and shipped within 1–3 business days. For urgent requirements, expedited dispatch is available — contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and delivery schedule.

Q4: What warranty coverage applies to the TU833 3BSE038726R1?
All TU833 3BSE038726R1 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify electrical integrity and communication interface performance. Warranty claims are supported by our technical team with replacement or repair turnaround coordinated to minimize your system downtime.
