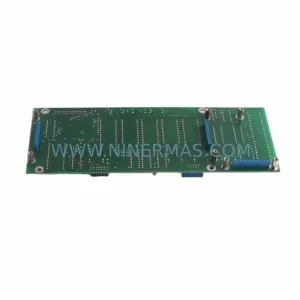

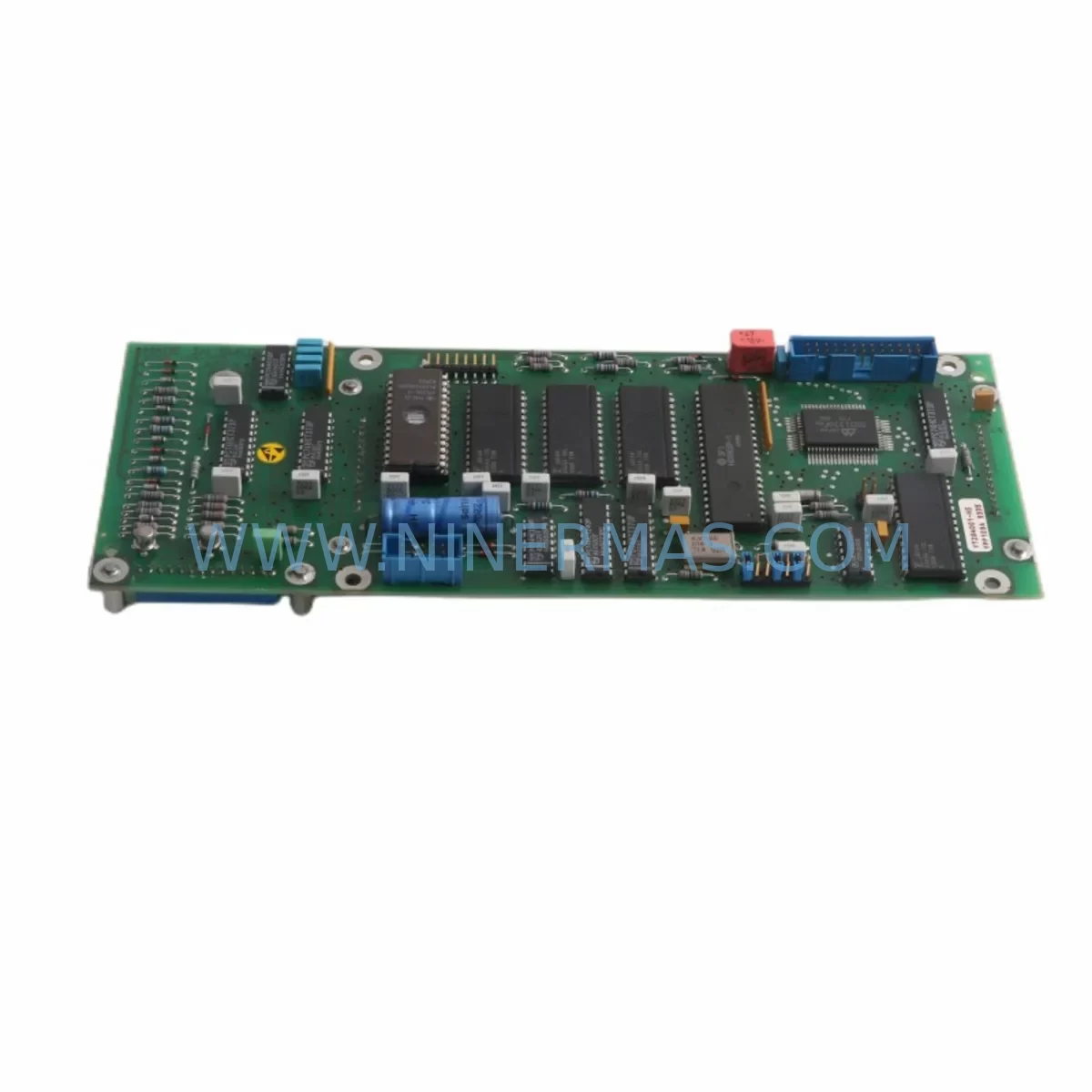

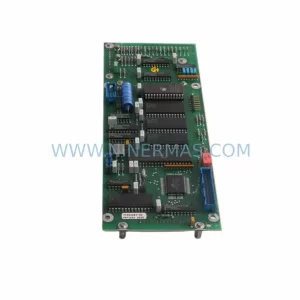

The ABB YPP109A is an original digital input board designed for the ABB S800 I/O series, widely deployed in distributed control systems (DCS) across oil & gas, power generation, chemical processing, and pulp & paper industries. As a critical field I/O component, the YPP109A handles discrete signal acquisition from field instruments, limit switches, and process interlocks — making it a high-priority spare for any maintenance team managing ABB Freelance, Symphony Plus, or 800xA control architectures.

Unplanned downtime caused by a failed digital input board can cascade rapidly across a control loop. Procurement engineers and maintenance planners managing aging S800 I/O racks should treat the YPP109A as a Tier-1 spare — stocked on-site or available through a qualified supplier with short lead times. NINERMAS maintains verified stock of the YPP109A with pre-shipment functional testing and a 12-month warranty, ensuring your replacement unit arrives ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the YPP109A digital input board in an S800 I/O rack, a disciplined maintenance engineer will not stop at the board itself. The surrounding electrical environment must be inspected to prevent repeat failures and ensure the replacement module operates within specification from day one.

Begin with the S800 I/O power supply module (such as the SD821 or SD822) that feeds the I/O rail. A degraded or out-of-tolerance 24 VDC supply is a common root cause of digital input board failures and must be verified before the new YPP109A is energized. Alongside the power supply, inspect the TB820 ModuleBus modem or equivalent communication interface — a faulty bus coupler can cause the replacement board to appear unresponsive during commissioning, wasting valuable recovery time.

Check the field terminal units (TU810 or TU830 series) that the YPP109A plugs into. Corroded or loose terminal contacts are a frequent source of intermittent DI faults and should be cleaned or replaced as part of the same maintenance window. If the control cabinet has been in service for more than five years, inspect the 24 VDC field wiring harness and cable shields for insulation degradation, particularly in high-vibration or high-humidity environments.

For sites running ABB AC800M controllers with S800 remote I/O, verify the CI854 PROFIBUS DP communication module or the CI801 ModuleBus optical interface is operating without bus errors. A single CRC fault on the fieldbus can mask a healthy replacement board and delay restart. Similarly, review the DO module (YPP110A or equivalent digital output board) in the same rack — output modules in the same cabinet often share the same failure timeline as input boards under identical thermal and electrical stress.

Maintenance planners should also include signal isolators and surge protection barriers on high-risk DI channels connected to field devices in hazardous areas. Replacing the YPP109A without inspecting upstream surge protection leaves the new board exposed to the same transient conditions that may have caused the original failure. Finally, confirm that the S800 I/O rack backplane and its bus connectors are free of oxidation — a degraded backplane connection will cause intermittent communication errors that are difficult to diagnose after the new board is installed.

A complete spare parts kit for an S800 I/O cabinet supporting the YPP109A should also include: a spare TB820 ModuleBus modem, at least one SD821 power supply, a set of TU810 terminal units, and a spare CI854 PROFIBUS module — ensuring that any single-point failure in the cabinet can be resolved within one maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Isolation & Safety: Place the affected I/O channel in manual or safe state via the DCS operator station. Confirm the field device connected to the failed DI channel is de-energized or bypassed per site safety procedures (LOTO).

Step 2 — Module Removal: The YPP109A plugs into the S800 terminal unit (TU810/TU830) without requiring field wiring disconnection — the terminal unit remains in place. Unlatch and extract the failed board. Note the slot address and channel configuration for reference during recommissioning.

Step 3 — Compatibility Verification: Confirm the replacement YPP109A firmware revision is compatible with the installed AC800M controller version and the 800xA / Freelance project configuration. Check the ABB product revision history if the site has undergone a controller software upgrade since the original board was installed.

Step 4 — Installation & Power-On: Insert the replacement YPP109A into the terminal unit. The ModuleBus will auto-detect the new module within seconds. Observe the module status LED — a solid green indicates successful initialization. If the LED flashes or shows red, check the bus coupler and power supply before proceeding.

Step 5 — Functional Test: From the DCS engineering station, force-test each DI channel on the new board against known field device states. Confirm signal integrity and correct channel mapping before returning the loop to automatic control.

Step 6 — Documentation: Update the site maintenance log with the replacement date, new board serial number, and any observations from the inspection. Record the failed board’s condition for root cause analysis and warranty claim if applicable.

This workflow minimizes downtime to under 30 minutes for a prepared maintenance team with the spare board on-site — compared to 24–72 hours or more when waiting for emergency procurement from an unqualified supplier.

Spare Parts Support FAQ

Q1: Is the YPP109A still available as a new original part, or only as refurbished?
NINERMAS supplies the ABB YPP109A as an original spare part. Each unit undergoes pre-shipment functional testing. Where new stock is available, it is shipped as new; where sourced from certified surplus, it is clearly identified and tested to the same standard. All units carry a 12-month warranty regardless of source classification.

Q2: How do I confirm compatibility between the YPP109A and my installed S800 I/O rack version?
The YPP109A is compatible with standard S800 I/O terminal units (TU810, TU830) and communicates via the ModuleBus interface. Compatibility with your AC800M controller or 800xA system version depends on firmware revision. Provide your controller firmware version and project configuration version when ordering, and our technical team will confirm compatibility before shipment.

Q3: Can NINERMAS support long-term supply of the YPP109A for a multi-year maintenance contract?
Yes. NINERMAS offers long-term spare parts supply agreements for critical S800 I/O components including the YPP109A. We can reserve stock, establish annual delivery schedules, and provide priority fulfillment for emergency orders — reducing procurement risk for sites operating aging ABB DCS infrastructure beyond the standard product lifecycle.

Q4: What does the 12-month warranty cover for the YPP109A?
The 12-month warranty covers functional failure under normal operating conditions. If the YPP109A fails within the warranty period due to a manufacturing or component defect, NINERMAS will provide a replacement unit at no charge. Warranty claims require the failed unit to be returned for inspection. Damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified operating range is excluded.
