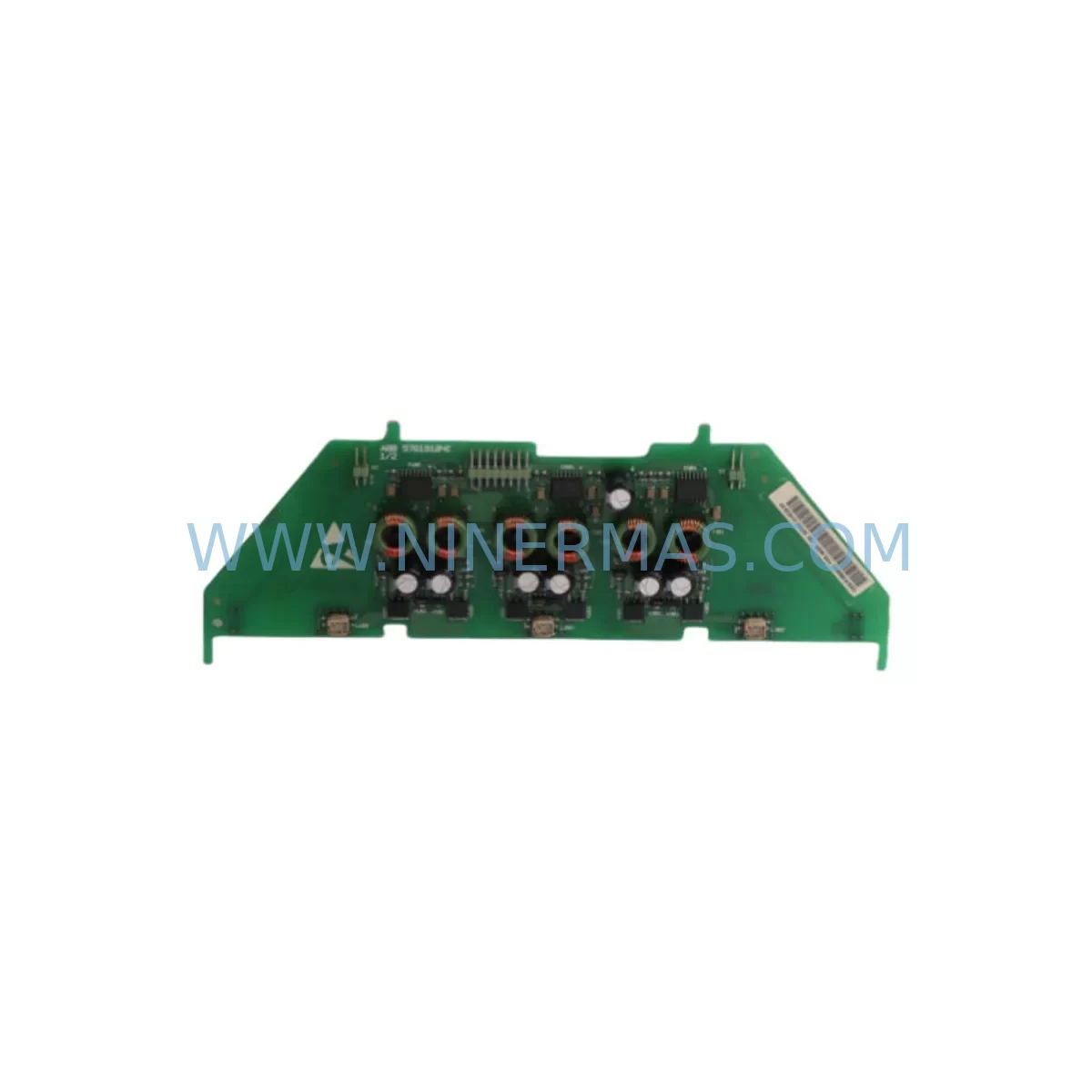

The ABB NGDR-03C (part number 61353364D) is a ruggedized gate drive module engineered for demanding industrial environments. Designed for use within ABB’s ACS800 series variable frequency drives and related AC drive platforms, this module provides the critical IGBT gate firing signals that govern inverter switching performance. When this component fails or degrades, the entire drive train is at risk of unplanned shutdown — making rapid access to a verified, original spare part essential for any maintenance-conscious facility.

At NINERMAS, every NGDR-03C 61353364D unit is sourced from authorized supply channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month warranty and full traceability documentation, supporting your site’s maintenance records and audit requirements. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts buffer for aging ACS800 installations, this listing provides a reliable, procurement-ready solution.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The NGDR-03C 61353364D does not operate in isolation. In any ACS800 drive cabinet, the gate drive module works in close coordination with a network of interdependent components — and a fault in any one of them can mask or mimic a gate drive failure. Experienced maintenance engineers know that when replacing the NGDR-03C, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and reduce future downtime.

Begin with the AINT-02C or AINT-14C auxiliary interface board, which provides the logic-level command signals that the NGDR-03C translates into gate pulses. A degraded AINT board can send erratic firing commands that stress the gate drive module prematurely. Similarly, inspect the APOW-01C power supply module — unstable auxiliary DC supply voltage is a leading cause of gate drive malfunction and should be verified with a calibrated multimeter before commissioning a replacement NGDR-03C.

The IGBT power module stack (typically a 3-phase bridge assembly such as the ABB 5SNA series or equivalent) should be checked for gate-emitter leakage and threshold voltage drift using a dedicated IGBT tester. A shorted or weakened IGBT will immediately destroy a new gate drive module if not identified beforehand. Alongside this, inspect the DC bus capacitor bank for ESR degradation and capacitance loss — capacitor failure creates voltage spikes that propagate directly to the gate drive circuitry.

For drives with fieldbus communication, verify the condition of the RDCO-01C or RDCO-03C DDCS communication module, which handles real-time control data between the drive and the host PLC or DCS. A communication fault can generate spurious enable/disable signals that cycle the gate drive unnecessarily. If the installation includes an IOEC-04 I/O extension module for digital or analog I/O expansion, confirm that all signal commons are properly grounded and that no floating inputs are present.

Terminal block integrity on the X1 and X2 control wiring terminals should be checked for loose connections, oxidation, and correct torque — particularly in high-vibration environments where the NGDR-03C’s ruggedized rating is most relevant. Inspect any signal isolators or galvanic barriers in the analog reference circuit, as ground loops introduced through poorly isolated 4–20 mA speed reference signals can cause intermittent drive trips that are often misdiagnosed as gate drive faults.

Finally, if the drive cabinet includes an ACS800 control panel (CDP312R or ACS-CP-C) or a remote HMI interface, verify that the panel firmware is compatible with the drive’s current software revision. Firmware mismatches can generate fault codes that appear hardware-related but are resolved through a software update — saving unnecessary component replacement costs.

Building a structured spare parts kit around the NGDR-03C 61353364D — including at minimum one APOW-01C, one AINT board, and a set of pre-tested IGBT modules — is a best-practice approach for facilities operating multiple ACS800 drives or running critical continuous processes where unplanned downtime carries significant production cost.

Site Replacement Workflow

Step 1 — Fault Isolation: Log the active fault code from the ACS800 control panel (CDP312R). Cross-reference with the ACS800 Firmware Manual fault code table to confirm the fault points to the gate drive circuit (typically fault codes 0022, 0023, or related IGBT overcurrent/short-circuit events).

Step 2 — Safe Isolation: Isolate the drive from the main supply and engage the local lockout/tagout procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage is below 50 V DC using a calibrated meter before opening the drive cabinet.

Step 3 — Visual Inspection: Before removing the NGDR-03C, inspect the surrounding PCB area for burn marks, cracked solder joints, or damaged gate resistors. Document findings with photographs for maintenance records.

Step 4 — Module Replacement: Remove the faulty NGDR-03C 61353364D by releasing the board connectors and any retention hardware. Install the replacement unit, ensuring all connectors are fully seated and locking tabs are engaged. Do not apply force to the PCB edge connectors.

Step 5 — Pre-Power Checks: Verify auxiliary supply voltage at the APOW-01C output before re-energizing. Confirm IGBT gate-emitter resistance is within specification using a multimeter in diode-check mode.

Step 6 — Commissioning: Re-energize the drive in local control mode. Run a no-load test at low speed (5–10 Hz) and monitor output current waveform symmetry on all three phases. Confirm no fault codes are active before returning the drive to automatic/remote control.

Step 7 — Documentation: Record the replacement in the site CMMS (Computerized Maintenance Management System), including the new part serial number, installation date, and technician sign-off. Retain the 12-month warranty certificate from NINERMAS for future reference.

This workflow is applicable to direct like-for-like replacement of the NGDR-03C 61353364D in ACS800 drives. For legacy ACS600 installations where the NGDR-03C may be used as a cross-compatible upgrade, consult the drive’s hardware manual to confirm connector pinout compatibility before installation.

Spare Parts Support FAQ

Q1: Is the NGDR-03C 61353364D compatible with all ACS800 drive variants?
The NGDR-03C is the standard gate drive module used across the ACS800 single-drive and cabinet-built drive range. Compatibility depends on the specific drive frame size and hardware revision. Always cross-reference the drive’s spare parts list (available in the ACS800 Hardware Manual) or contact NINERMAS with your drive’s type code and serial number for a confirmed compatibility check before ordering.

Q2: What testing is performed before shipment?
Every NGDR-03C 61353364D dispatched by NINERMAS undergoes a pre-shipment functional test covering gate signal output integrity, isolation resistance, and auxiliary power input range. Units are packed in anti-static ESD-safe packaging with a test certificate included. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery.

Q3: Can NINERMAS support long-term supply for end-of-life ABB components?
Yes. NINERMAS specializes in long-term supply continuity for discontinued and end-of-life industrial automation components. For facilities operating legacy ACS800 installations beyond ABB’s standard support lifecycle, we offer scheduled procurement agreements, consignment stock arrangements, and multi-unit bulk pricing to support 3–5 year maintenance horizons. Contact our technical sales team to discuss your site’s specific requirements.

Q4: What is the recommended spare parts holding strategy for ACS800 gate drive modules?
