ABB NDCU-11CK 64053868B Spare Part for ACS600 Drive

ABB NDCU-11CK 64053868B Spare Part for ACS600 Drive: Reliable Replacement for Continuous Industrial Operation

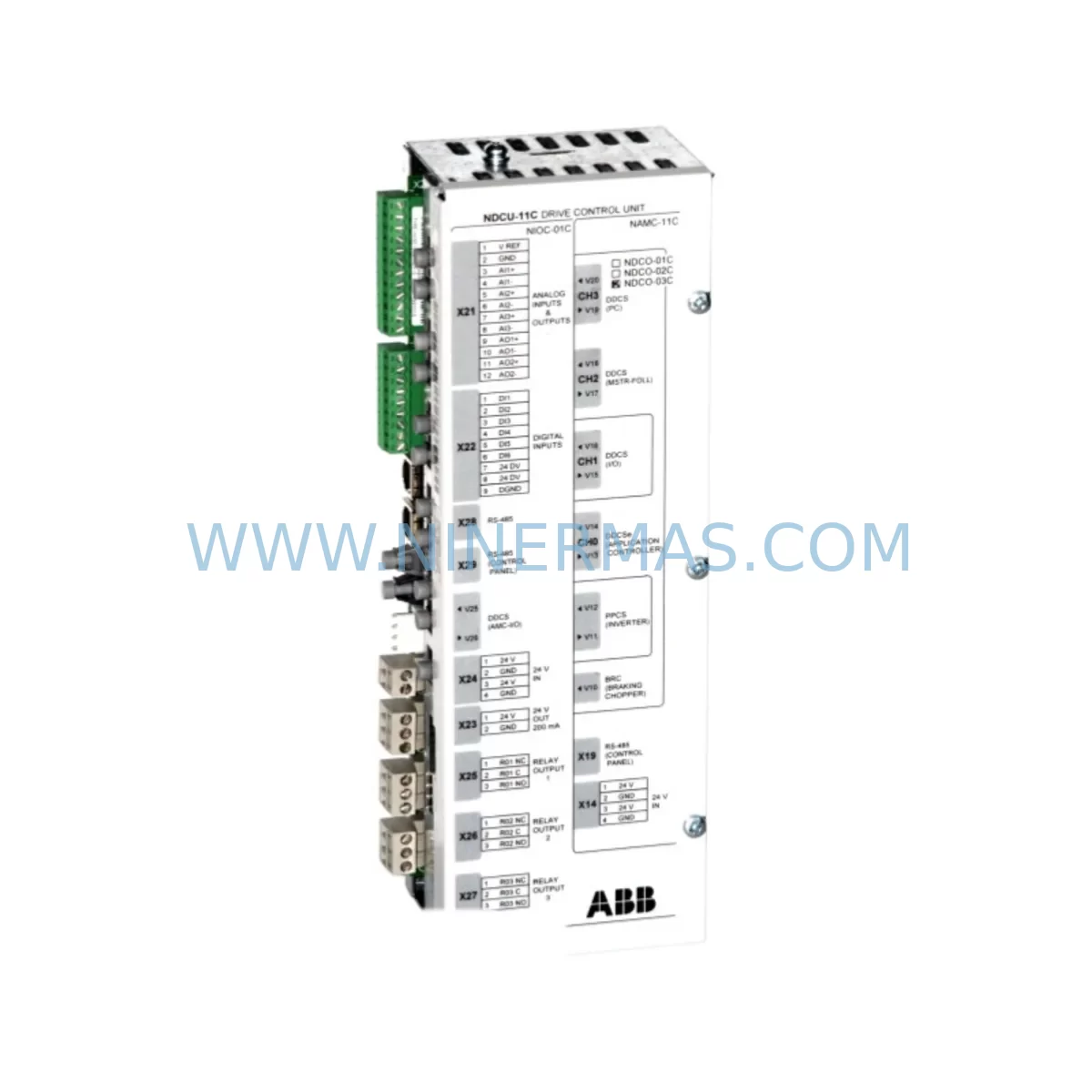

The ABB NDCU-11CK 64053868B is an original drive control unit (DCU) designed for the ABB ACS600 series variable frequency drives, widely deployed across heavy industrial environments including steel mills, mining operations, pulp and paper plants, water treatment facilities, and continuous process manufacturing lines. As a critical spare part, the NDCU-11CK 64053868B governs the core control logic of the ACS600 drive system — managing speed reference processing, torque control, fault diagnostics, and communication interfacing between the drive and the plant-level control architecture.

For maintenance engineers responsible for aging ACS600 installations, holding a verified stock of the NDCU-11CK 64053868B is a fundamental risk mitigation strategy. Drive control unit failures are among the most disruptive events in a production environment: they cause immediate unplanned shutdowns, trigger cascading process alarms, and — without a ready replacement — can extend downtime from hours into days while sourcing a compatible unit. Stocking this spare eliminates that exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the NDCU-11CK 64053868B as a replacement unit, the inspection scope should extend well beyond the control board itself. A failed DCU in an ACS600 drive is rarely an isolated event — it is often preceded or accompanied by stress on adjacent components that must be assessed before the replacement unit is commissioned.

Begin with the APBU-44C pulse encoder interface unit, which feeds speed feedback signals directly to the NDCU. If the encoder interface has been operating under vibration or thermal stress, its signal integrity may have degraded, and installing a new NDCU-11CK without verifying the APBU-44C can result in immediate speed control faults on the replacement board. Similarly, the AINT-02C inverter control board — which handles gate drive signals for the IGBT power stage — should be inspected for signs of thermal fatigue or capacitor aging, as a compromised AINT-02C will stress the new DCU from the moment of startup.

The NINT-41C inverter module interface and associated NDIO-01C digital I/O extension module are also part of the standard ACS600 control architecture and should be included in any scheduled inspection when the NDCU-11CK is being replaced. These modules handle discrete I/O signals — run/stop commands, fault resets, and status outputs — and their terminal connections should be cleaned and re-torqued during the maintenance window.

On the power supply side, verify the condition of the APOW-01C auxiliary power supply board, which provides regulated 24 VDC to the control electronics. A marginal power supply that has been delivering slightly out-of-spec voltage is a common root cause of DCU failures and must be confirmed healthy before the replacement NDCU-11CK is energized. If the drive cabinet includes an NETA-01 Ethernet adapter module or NPBA-12 PROFIBUS adapter for plant network integration, these communication modules should also be checked for firmware compatibility with the replacement control unit.

For sites running multiple ACS600 drives in a master-follower configuration via the DDCS fiber optic ring, inspect all fiber connectors and transceivers at the time of replacement. Dirty or damaged fiber connections are a frequent source of communication faults that are incorrectly attributed to the DCU itself. Replacing the NDCU-11CK 64053868B without cleaning the fiber optic links can result in persistent communication alarms on the new board.

Finally, review the condition of the NXPP-01C parameter backup module or equivalent memory unit if the site uses one. Drive parameters stored in the backup module must be verified compatible with the replacement NDCU firmware version before automatic parameter restore is attempted. Mismatched parameter sets can cause incorrect motor control behavior on first startup.

Site Replacement Workflow

Replacing the NDCU-11CK 64053868B in the field follows a structured sequence that minimizes downtime and protects both the new module and the connected motor system. Before beginning, isolate the ACS600 drive from the main supply and allow the DC bus to fully discharge — confirm with a calibrated DC voltmeter that bus voltage is below 50 VDC before opening the drive cabinet.

Document the existing parameter set using the drive keypad or DriveWindow software before removing the old NDCU. If the original board is partially functional, a parameter upload at this stage can save significant commissioning time. Remove the faulty NDCU-11CK by disconnecting the fiber optic cables, ribbon connectors, and any I/O terminal blocks in the sequence specified in the ACS600 hardware manual. Handle the replacement board using ESD precautions — the NDCU contains sensitive CMOS logic that can be damaged by electrostatic discharge during handling.

Install the new NDCU-11CK 64053868B, reconnect all cables and terminals, and perform a visual inspection of the entire control section before re-energizing. On first power-up, verify that the drive displays the correct software version and that no hardware fault codes are active. Restore the parameter set and perform a no-load motor test before returning the drive to production service. Document the replacement in the site maintenance log, including the serial number of the new module and the date of installation, to support warranty claims and future maintenance planning.

For sites managing large fleets of ACS600 drives, a recommended spare parts strategy is to hold at least one NDCU-11CK 64053868B per five drives in service, with a minimum of one unit regardless of fleet size. This ratio balances inventory carrying cost against the financial exposure of an unplanned production stoppage.

Spare Parts Support FAQ

Q1: Does the NDCU-11CK 64053868B carry a warranty, and what does it cover?
A: Yes. Every NDCU-11CK 64053868B supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a full functional test before dispatch to verify electrical performance and communication integrity.

Q2: Is the NDCU-11CK 64053868B compatible with all ACS600 drive variants?
A: The NDCU-11CK 64053868B is designed for the ABB ACS600 series. Compatibility depends on the specific ACS600 variant, software version, and hardware revision of the drive. We recommend providing your drive nameplate data and existing DCU part number when placing an order so our technical team can confirm compatibility before shipment.

Q3: How quickly can the NDCU-11CK 64053868B be shipped for emergency maintenance situations?
A: NINERMAS maintains stock of the NDCU-11CK 64053868B to support urgent maintenance requirements. Emergency orders are prioritized for same-day or next-business-day dispatch depending on destination. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipping.

Q4: Can NINERMAS provide long-term supply of the NDCU-11CK 64053868B for ongoing maintenance programs?
A: Yes. NINERMAS supports long-term procurement agreements for industrial spare parts including the NDCU-11CK 64053868B. For sites with multiple ACS600 drives or annual maintenance schedules, we can arrange scheduled supply contracts to ensure consistent availability without repeated spot-market sourcing risk.
