ABB FS225R12KE3/AGDR-81C | 1200V 225A IGBT Module – Original Spare Parts

FS225R12KE3/AGDR-81C — ABB High-Performance IGBT Power Module | 100% Original Spare Parts

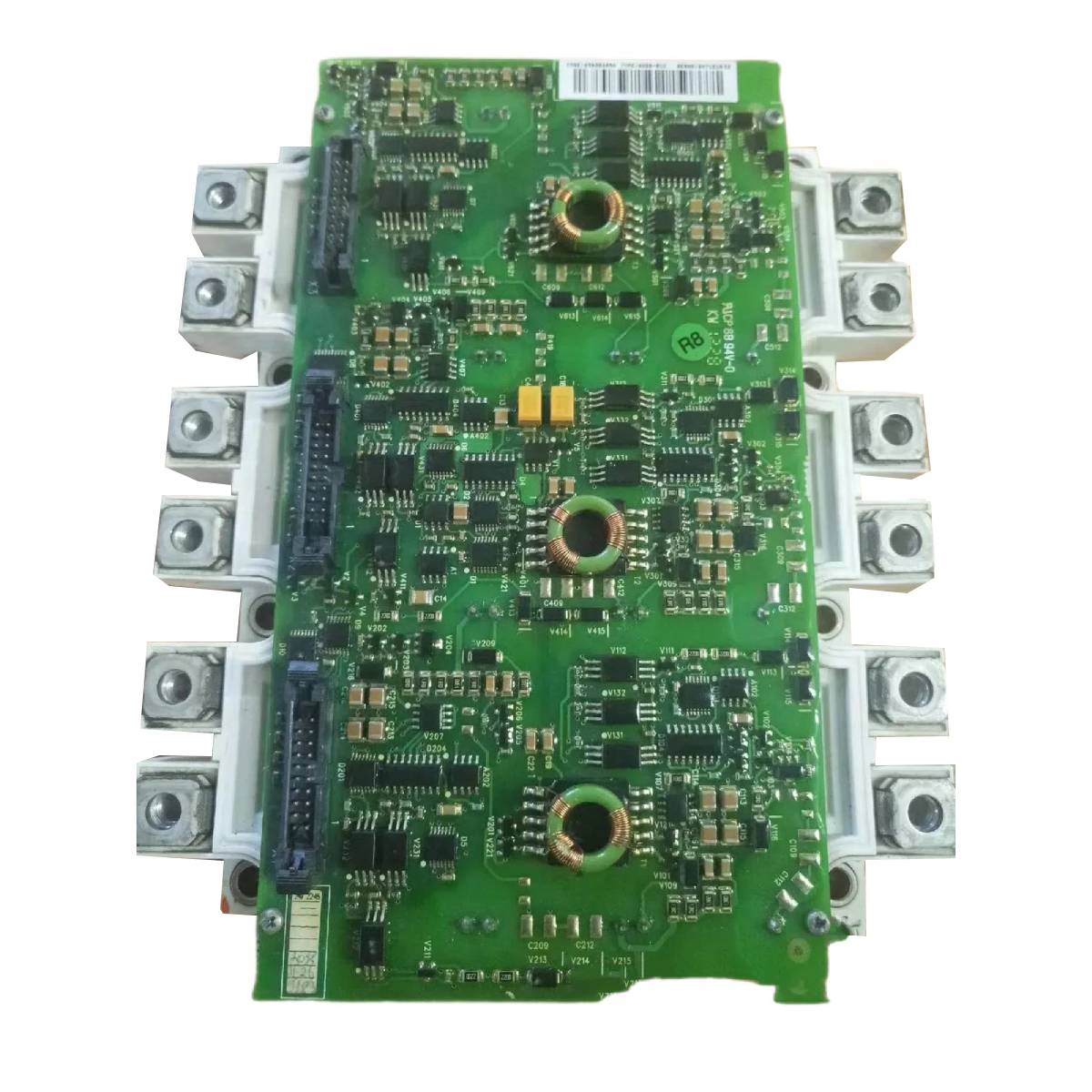

Sourced directly from ABB’s authorized supply chain, the FS225R12KE3/AGDR-81C is a premium 1200V / 225A IGBT power module engineered for mission-critical industrial automation environments. This unit is 100% Brand New and Factory Sealed, carrying ABB Part Number 3AUA0000109330. It integrates a high-voltage IGBT die with the AGDR-81C intelligent gate driver board, delivering precise switching control, robust short-circuit protection, and superior thermal performance — all within a compact, standardized footprint compatible with existing ABB PLC System and DCS infrastructure.

Procurement managers and site engineers across Oil & Gas, Power Generation, and heavy manufacturing consistently specify the FS225R12KE3/AGDR-81C as a direct replacement or upgrade component in variable-speed drive systems and industrial inverter racks. Its compatibility with ABB’s ACS800 and ACS880 drive platforms makes it an indispensable Original Spare Part for facilities that cannot afford unplanned downtime. Whether you are maintaining a legacy Control Module or commissioning a new PLC System, this module delivers the reliability your operation demands.

As a trusted global distributor of Industrial Automation components, we stock this module ready-to-ship. Contact our technical team today for a competitive quote and same-day dispatch confirmation.

Core Features & Technical Advantages

• Collector-Emitter Voltage (VCES): 1200V — handles high-voltage industrial bus rails with confidence
• Continuous Collector Current (IC @ 25°C): 225A — robust current capacity for heavy-duty drive applications
• Integrated AGDR-81C Gate Driver: Precision gate signal conditioning with built-in desaturation detection and active clamping
• Short-Circuit Withstand Time: 10µs — protects downstream equipment during fault events
• Switching Frequency: Optimized up to 20kHz for low-loss, high-efficiency PWM operation
• Low Thermal Resistance (Rth j-c): Ensures stable junction temperature under continuous full-load conditions
• 100% Original and Brand New: Factory-sealed with ABB traceability documentation — meets E-E-A-T standards for industrial procurement

Technical Specifications & Selection Guide

Use the table below to verify compatibility before ordering:

Selection Tip: If your application requires higher current capacity, consider the ABB FS300R12KE3 (300A) or FS450R12KE3 (450A) variants. For higher voltage requirements (1700V), the FS225R17KE3/AGDR-76C is the recommended upgrade path.
