Honeywell 51454196-100 Service-Ready Spare Part

Honeywell 51454196-100 Service-Ready Spare Part for Industrial Maintenance

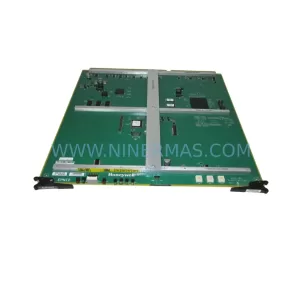

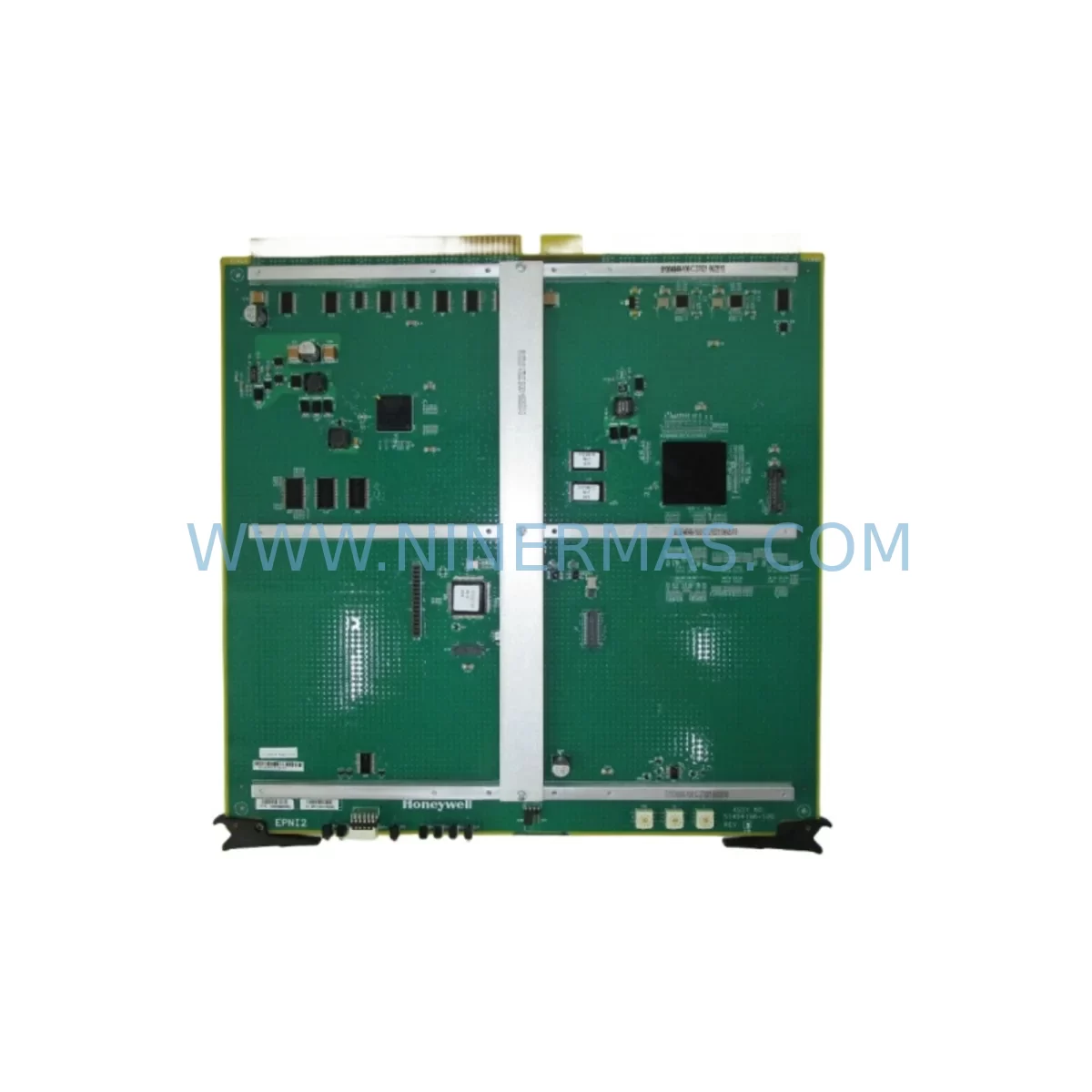

The Honeywell 51454196-100 is a ruggedized EPNI2 Ethernet communication module engineered for continuous operation in harsh industrial environments. Designed for integration within Honeywell’s Experion PKS distributed control system (DCS) architecture, this module provides reliable Ethernet connectivity between controllers, I/O subsystems, and supervisory networks. As a service-ready original spare part, the 51454196-100 is a critical component for maintenance engineers managing aging DCS infrastructure, executing planned shutdowns, or responding to unplanned network communication failures on the plant floor.

At NINERMAS, every 51454196-100 unit is sourced, inspected, and dispatched with a 12-month warranty, ensuring procurement engineers can commit to long-term spare parts programs with confidence. Whether you are building a buffer stock for a refinery control room, replacing a failed module during an emergency shutdown, or qualifying a spare for your annual maintenance cycle, the 51454196-100 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Honeywell 51454196-100 EPNI2 Ethernet module is flagged for replacement during a control system audit or after a communication fault alarm, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site inspection should extend to the surrounding control cabinet infrastructure to prevent repeat failures and reduce the risk of secondary downtime.

Begin by verifying the Honeywell CC-PWRR01 redundant power supply feeding the Experion PKS chassis — a degraded power rail is a common root cause of intermittent Ethernet module resets. Inspect the Honeywell 51309288-175 or equivalent backplane assembly for signs of corrosion, bent connector pins, or thermal stress, as a compromised backplane slot will cause repeated module failures regardless of how many replacement units are installed.

Check the Honeywell C300 or C200 controller module seated in the same chassis — if the EPNI2 module has been experiencing persistent link drops, the controller firmware version should be verified for compatibility with the current network configuration. Alongside the controller, inspect any installed Honeywell IOTA (I/O Termination Assembly) units and associated FTA (Field Termination Assembly) panels for loose terminal connections that may be injecting noise into the communication loop.

For the Ethernet infrastructure side, examine the industrial-grade managed Ethernet switches (such as Hirschmann or Cisco IE series) connecting the EPNI2 network segment. Verify port speed/duplex settings, check for excessive CRC errors or collision counts, and confirm that VLAN configurations have not drifted. Replace any Cat5e or Cat6 industrial Ethernet patch cables showing physical damage or exceeding recommended bend radius — cable integrity is frequently overlooked during module-focused fault investigations.

If the control cabinet houses Honeywell SM (Safety Manager) modules or FSC (Fail-Safe Controller) components on the same network segment, confirm that the EPNI2 replacement does not alter network topology in a way that affects safety system polling intervals. Additionally, review any installed signal isolators or surge protection devices on the Ethernet ports — industrial environments with frequent lightning events or heavy motor switching can degrade unprotected RJ45 interfaces over time.

For sites running legacy Honeywell TDC 3000 or PlantScape systems alongside Experion PKS, the 51454196-100 replacement is also an opportunity to audit gateway or protocol converter modules bridging older Hiway or LCN networks to the modern Ethernet backbone. Ensuring these converters are firmware-current reduces the risk of communication timeouts that can be misdiagnosed as EPNI2 module failures.

Procurement engineers should consider maintaining a minimum buffer of two 51454196-100 units per Experion PKS cluster, particularly for facilities operating 24/7 continuous process lines where unplanned downtime carries significant production cost. Pairing this buffer with a scheduled inspection of Honeywell 51304485-100 or 51304485-150 power conditioner modules and associated 24VDC terminal block fuse assemblies creates a comprehensive spare parts strategy that addresses the most common failure modes in a single maintenance cycle.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing 51454196-100, document the current module slot position, LED status indicators, and any active alarms in the Experion PKS Station. Export the current network configuration from Experion Configuration Studio if accessible. Confirm the replacement unit’s firmware label matches or is compatible with the installed Experion PKS software release.

Step 2 — Safe Removal: Follow Honeywell’s hot-swap procedure if the chassis supports it — many EPNI2 configurations allow module replacement without a full controller shutdown, significantly reducing process interruption. If hot-swap is not supported, coordinate with the control room operator to place the affected controller in manual mode before proceeding. Ground yourself with an ESD wrist strap before handling the module.

Step 3 — Installation and Link Verification: Seat the replacement 51454196-100 firmly into the chassis slot until the locking tab engages. Observe the module’s link and activity LEDs — a solid green link LED within 30 seconds of insertion confirms physical layer connectivity. Log into Experion Station and verify that the module appears online in the network topology view with no fault flags.

Step 4 — Functional Test: Confirm that all I/O points previously communicating through the EPNI2 segment are reporting correctly. Run a brief data integrity check by comparing live process values against field instrument readings. Document the replacement in the site maintenance log with the new module’s serial number, installation date, and technician ID.

Step 5 — Disposal and Warranty Registration: Retain the replaced module for failure analysis if required by your site’s root cause investigation procedure. Register the new 51454196-100 with NINERMAS for warranty activation. All units supplied by NINERMAS are covered by a 12-month warranty from the date of dispatch, with support available via sale@ninermas.com.

Spare Parts Support FAQ

Q1: Is the Honeywell 51454196-100 compatible with both C200 and C300 Experion PKS platforms?
The 51454196-100 EPNI2 module is designed for the Experion PKS chassis architecture and is compatible with both C200 and C300 controller platforms in standard EPNI2 network configurations. Always verify the installed Experion PKS software release against Honeywell’s compatibility matrix before installation. NINERMAS technical support can assist with compatibility confirmation prior to dispatch.

Q2: What pre-shipment testing does NINERMAS perform on the 51454196-100?
Every unit undergoes visual inspection, connector integrity verification, and functional power-on testing before dispatch. Units are packed in anti-static ESD-safe packaging with individual serial number documentation. A test report is available upon request for quality-critical procurement programs.

Q3: Can NINERMAS support long-term supply agreements for the 51454196-100?
Yes. NINERMAS specializes in long-term spare parts programs for discontinued and hard-to-source industrial automation components. We can commit to scheduled delivery quantities, hold buffer stock on behalf of clients, and provide advance notification of inventory changes. Contact sale@ninermas.com to discuss a supply agreement tailored to your maintenance cycle.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will arrange replacement dispatch upon receipt and inspection of the returned unit. Warranty support is available via sale@ninermas.com or +0086 187 5021 5667.
