ABB NPOW-62C Retrofit-Compatible Power Supply for Legacy Systems

ABB NPOW-62C Retrofit-Compatible Power Supply for Legacy Systems: Smooth Upgrade for AC800M DCS Platforms

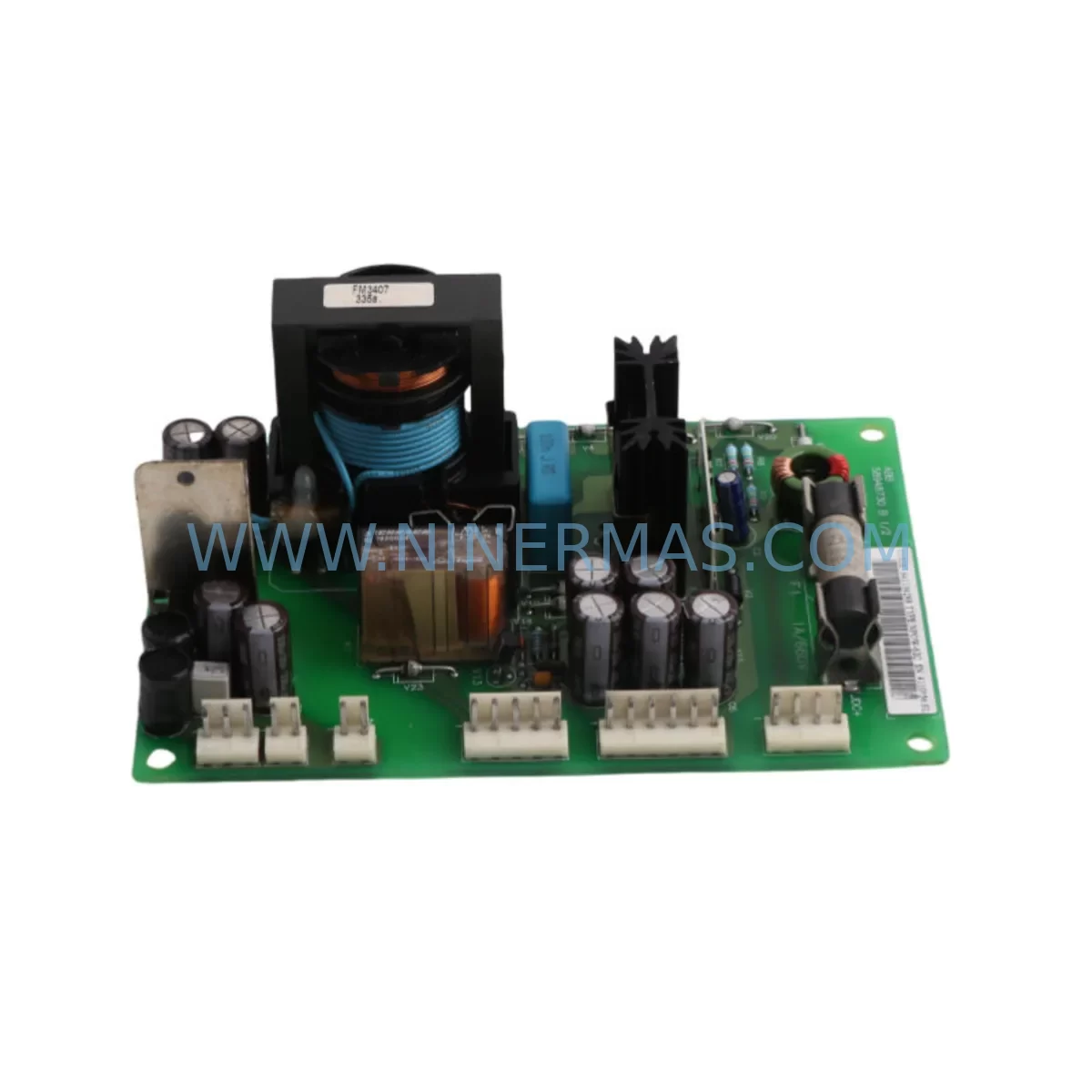

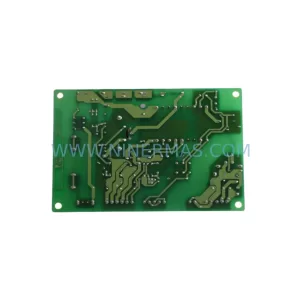

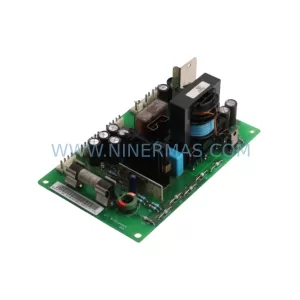

The ABB NPOW-62C is a dedicated power supply module engineered for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in process industries including oil and gas, pulp and paper, power generation, and chemical manufacturing. As the AC800M platform ages and original spare parts become increasingly scarce, the NPOW-62C has become a critical component in retrofit projects, legacy system maintenance, and control cabinet modernization programs worldwide.

NINERMAS COMPANY LIMITED maintains verified in-stock inventory of the ABB NPOW-62C, pre-shipment tested and backed by a 12-month warranty. Whether you are executing a planned system upgrade, responding to an unplanned module failure, or building a long-term spare parts strategy for an aging AC800M installation, the NPOW-62C represents a direct, drop-in compatible solution that minimizes engineering risk and reduces total downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading the power supply in an operational AC800M system requires careful pre-engineering to avoid unplanned shutdowns and protect existing program logic. The NPOW-62C retrofit process typically begins with a full audit of the controller rack configuration. Engineers must confirm the slot assignment of the existing power supply, the current draw of all installed modules — including the PM891K01 or PM861AK01 main processor, any CI854AK01 PROFIBUS communication interface modules, and CI867AK01 Ethernet-based fieldbus communication units — and the total load presented by connected S800 I/O modules such as AI830A analog input cards, AO820 analog output cards, and DO810 digital output modules.

Terminal wiring is a critical checkpoint. The 24 VDC supply feeding the NPOW-62C must be verified against the site’s UPS or power distribution panel capacity. In many legacy installations, the original cable sizing was calculated for the original module complement; any I/O expansion added over the years may have increased the load beyond the original design margin. Before removing the old power supply, engineers should document all terminal connections using the TB840A or TP830 termination panel drawings and confirm that the replacement NPOW-62C will be installed in the identical slot position to preserve backplane addressing.

For sites running redundant power supply configurations, both NPOW-62C units should ideally be replaced during the same maintenance window to ensure matched firmware and hardware revisions. Mismatched revisions between redundant power modules can cause unexpected switchover events or diagnostic alarms in the AC800M system. The programming cable TK212A is recommended for connecting a laptop to the controller for live monitoring during the power supply swap, allowing engineers to observe system status in ABB Control Builder without interrupting the running application program.

Communication link continuity is another key concern during NPOW-62C replacement. PROFIBUS DP segments connected through CI854AK01 modules and Foundation Fieldbus segments managed by CI867AK01 interfaces must remain powered throughout the swap if the process cannot be interrupted. In such cases, a temporary external 24 VDC bench supply can be used to maintain backplane power while the NPOW-62C is exchanged, provided the site’s safety procedures permit this approach. After installation, the system should be allowed to complete its full power-on self-test sequence before the process is returned to automatic control.

Downtime Control During System Migration

Minimizing downtime during an NPOW-62C replacement is achievable with proper preparation. The most effective strategy is to pre-stage the replacement module on-site before the maintenance window begins. NINERMAS ships the NPOW-62C with full pre-shipment functional testing completed, so no incoming inspection delay is required at the plant. Engineers should prepare a step-by-step swap procedure that includes: isolating the 24 VDC input to the rack, recording all diagnostic states from the PM891K01 or PM861AK01 controller, removing the failed or end-of-life NPOW-62C, inserting the replacement unit, restoring power, and confirming that all I/O modules — including AI830A, AO820, and DO810 cards — return to their pre-swap states without requiring a cold restart of the application program.

In most AC800M installations, the application program resides in non-volatile memory on the controller module itself and is not affected by a power supply replacement. However, any unsaved runtime parameter changes or setpoint adjustments made since the last program download will be lost if the controller loses power during the swap. Engineers should perform a full program backup using TK212A and Control Builder before beginning the physical replacement. HMI screens connected via OPC or Ethernet should be monitored throughout the procedure to confirm that process values return to normal within the expected timeframe after power restoration.

For sites where even a brief interruption is unacceptable, a hot-swap approach using a redundant NPOW-62C configuration is the recommended long-term solution. NINERMAS can supply matched pairs of NPOW-62C modules to support redundant power supply architectures, ensuring that a single module failure does not interrupt the control system.

Retrofit Support FAQ

Q1: Is the NPOW-62C a direct replacement for the original ABB module without any hardware modification?
Yes. The NPOW-62C is a direct slot-compatible replacement for the original ABB AC800M power supply module. No adapter plates, wiring changes, or backplane modifications are required. Confirm the hardware revision of your existing rack before ordering if your installation predates the AC800M S2 generation.

Q2: What commissioning steps are required after installing the replacement NPOW-62C?
After physical installation, restore 24 VDC input power and observe the controller’s LED status indicators. The PM891K01 or PM861AK01 should complete its self-test and resume normal operation within 60–90 seconds. Verify that all I/O modules report healthy status in Control Builder and that communication interfaces CI854AK01 and CI867AK01 have re-established their fieldbus links. No firmware update or address reconfiguration is required for a like-for-like NPOW-62C replacement.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
Every NPOW-62C shipped by NINERMAS undergoes 100% functional testing prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Warranty claims are processed directly through NINERMAS with a target response time of 48 hours.

Q4: What is the typical lead time and do you maintain long-term stock for the NPOW-62C?
NINERMAS maintains dedicated inventory of the NPOW-62C to support emergency and planned procurement. In-stock units are typically dispatched within 1–3 business days. For customers requiring reserved inventory agreements or long-term supply contracts to support multi-year maintenance programs, please contact our sales team directly to discuss stocking arrangements.
