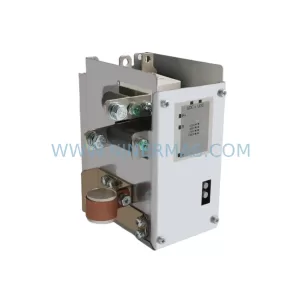

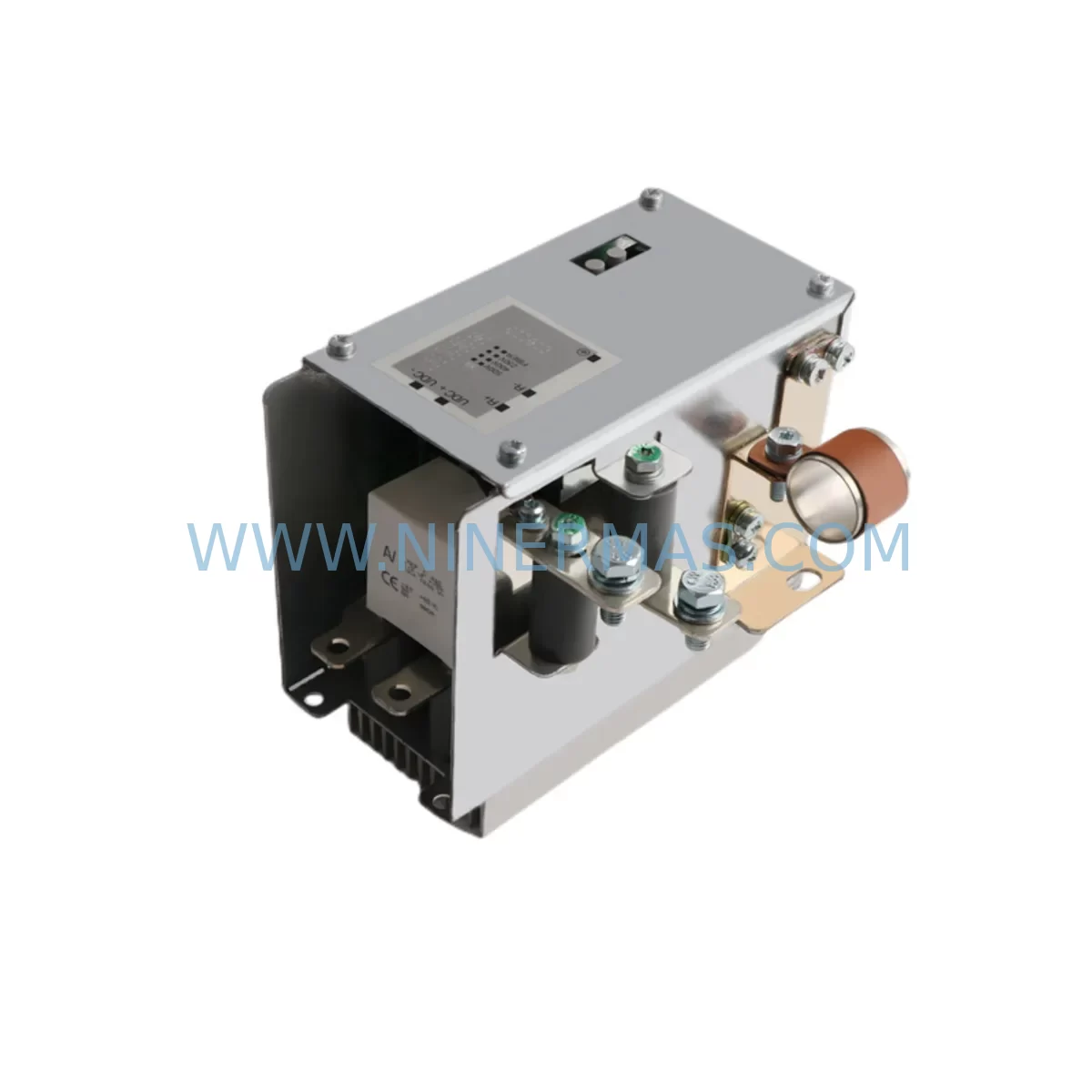

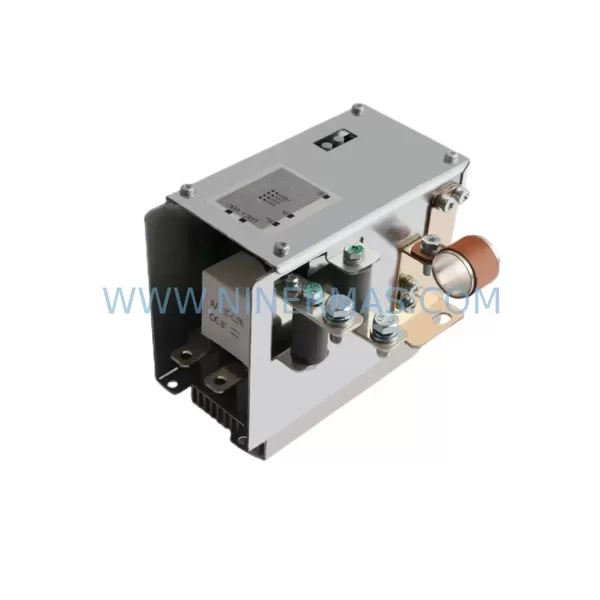

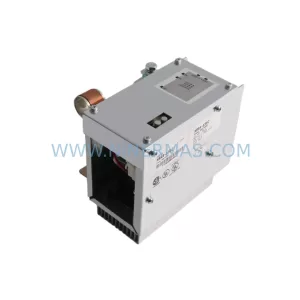

The ABB NBRA-656C is a ruggedized brake chopper module engineered for demanding industrial environments where drive systems must maintain continuous, reliable operation. Designed for use within the ABB ACS800 series variable frequency drive platform, the NBRA-656C dissipates regenerative braking energy through an external braking resistor, protecting the DC bus from overvoltage conditions during deceleration or load-side regeneration. For maintenance engineers managing aging drive systems, crane controls, hoisting equipment, centrifuges, or high-inertia conveyor lines, having a verified, service-ready NBRA-656C in your spare parts inventory is a critical element of any downtime prevention strategy.

At NINERMAS, every NBRA-656C unit is sourced as an original ABB component, inspected prior to dispatch, and backed by a 12-month warranty. We support procurement engineers and plant maintenance teams with long-term supply continuity, even for legacy ACS800 installations that are no longer in active ABB production cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a brake chopper fault is identified on an ACS800 drive, experienced maintenance engineers know that the NBRA-656C is rarely the only component requiring attention. A thorough site inspection should accompany any brake chopper replacement to prevent repeat failures and ensure the drive system returns to full operational health.

Begin by inspecting the ACS800 main power supply module and input rectifier section — overvoltage events that trigger brake chopper faults can sometimes indicate upstream supply instability or phase imbalance. Verify that the DC bus capacitor bank within the drive frame is within specification, as degraded capacitors reduce the drive’s ability to absorb regenerative energy before the chopper activates. Check the AINT-02C or AINT-14C auxiliary interface board for any fault log history that may indicate recurring chopper activation patterns.

The external braking resistor connected to the NBRA-656C must be inspected for thermal damage, open-circuit conditions, or resistance drift — a failed resistor will destroy a replacement chopper module within minutes of commissioning. Ensure the resistor cable connections and terminal blocks are secure and free from heat discoloration. If the installation uses an ABB NINT-41C or NINT-43C fieldbus adapter for drive communication, verify that the communication link is stable and that no parameter corruption occurred during the fault event.

For cabinet-level inspection, check the 24VDC auxiliary power supply feeding the drive control board — voltage sags on the auxiliary rail can cause spurious chopper faults and should be ruled out before finalizing the root cause. Inspect I/O terminal strips and signal wiring connected to the drive’s digital input board, particularly any speed reference or run/stop signals that may have been affected by the fault event. If the installation includes an RDCO-03 or RDCO-04 DDCS communication module, verify fiber optic connections are clean and undamaged.

For plants running multiple ACS800 drives in a common DC bus configuration, also inspect the NBRA-656C units on adjacent drives — shared DC bus systems distribute braking load across multiple choppers, and a failure in one unit increases stress on the remaining modules. Procurement engineers supporting multi-drive installations should consider maintaining at least one NBRA-656C per drive frame as a rotating spare, alongside a matched ABB NBRH-xx braking resistor assembly.

Annual maintenance schedules for ACS800 systems should include visual inspection of the NBRA-656C heatsink for dust accumulation, verification of chopper IGBT gate drive signals using the drive’s diagnostic tools, and a review of the drive’s fault history log for any intermittent overvoltage or chopper overtemperature events that may indicate early-stage module degradation.

Site Replacement Workflow

Replacing the NBRA-656C on an ACS800 drive is a structured process that, when followed correctly, minimizes total downtime and eliminates the risk of repeat failure. Begin by isolating the drive from the main supply and allowing the DC bus to fully discharge — verify with a calibrated DC voltmeter before opening the drive cabinet. Document the existing parameter set using the ACS800 control panel (CDP312R) or drive commissioning software before disconnecting any wiring, as some parameter groups may need to be re-verified after the module swap.

Remove the faulty NBRA-656C by disconnecting the DC bus connections (R+ and R- terminals to the braking resistor), the gate drive ribbon cable, and any auxiliary signal connectors. Install the replacement NBRA-656C, ensuring all connectors are fully seated and torqued to ABB specification. Reconnect the braking resistor cable and verify resistor resistance with a multimeter before energizing.

On first power-up, navigate to the ACS800 fault log and clear any latched chopper fault codes. Run a controlled deceleration test at reduced load to confirm the NBRA-656C activates correctly and the DC bus voltage remains within the programmed overvoltage trip threshold. This workflow is compatible with both direct NBRA-656C-to-NBRA-656C replacements and upgrades from earlier NBRA-6xx series modules, provided the drive firmware version supports the installed chopper hardware revision.

For sites where the ACS800 drive is approaching end-of-life but replacement of the full drive is not yet budgeted, maintaining a service-ready NBRA-656C spare extends system life and defers capital expenditure — a strategy widely used in process industries, water treatment, and heavy manufacturing where drive replacement requires extended shutdown planning.

Spare Parts Support FAQ

Q1: Is the NBRA-656C compatible with all ACS800 drive frame sizes?
The NBRA-656C is designed for specific ACS800 frame sizes within the ruggedized product range. Compatibility depends on the drive’s power rating and frame configuration. NINERMAS recommends confirming your ACS800 drive type code before ordering to ensure the NBRA-656C matches your installation. Our technical team can assist with compatibility verification based on your drive nameplate data.

Q2: What is included with the NBRA-656C and what is the warranty coverage?
Each NBRA-656C supplied by NINERMAS is an original ABB spare part, pre-inspected before shipment. The unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Warranty does not cover damage resulting from incorrect installation, mismatched braking resistors, or operation outside ABB-specified parameters.

Q3: How quickly can NINERMAS supply the NBRA-656C for emergency breakdown situations?
NINERMAS maintains stock of high-demand ACS800 spare parts including the NBRA-656C to support emergency breakdown procurement. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 with your urgency requirements. We provide pre-shipment testing confirmation and can coordinate expedited dispatch for critical production recovery situations.

Q4: Can NINERMAS support long-term supply of the NBRA-656C for legacy ACS800 systems?
Yes. NINERMAS specializes in long-term spare parts supply for industrial automation systems, including legacy ABB drive platforms. We maintain sourcing relationships that allow us to continue supplying original components such as the NBRA-656C even as products move through end-of-life cycles. Procurement engineers managing multi-year maintenance contracts are encouraged to discuss blanket order or reserved stock arrangements with our team.
