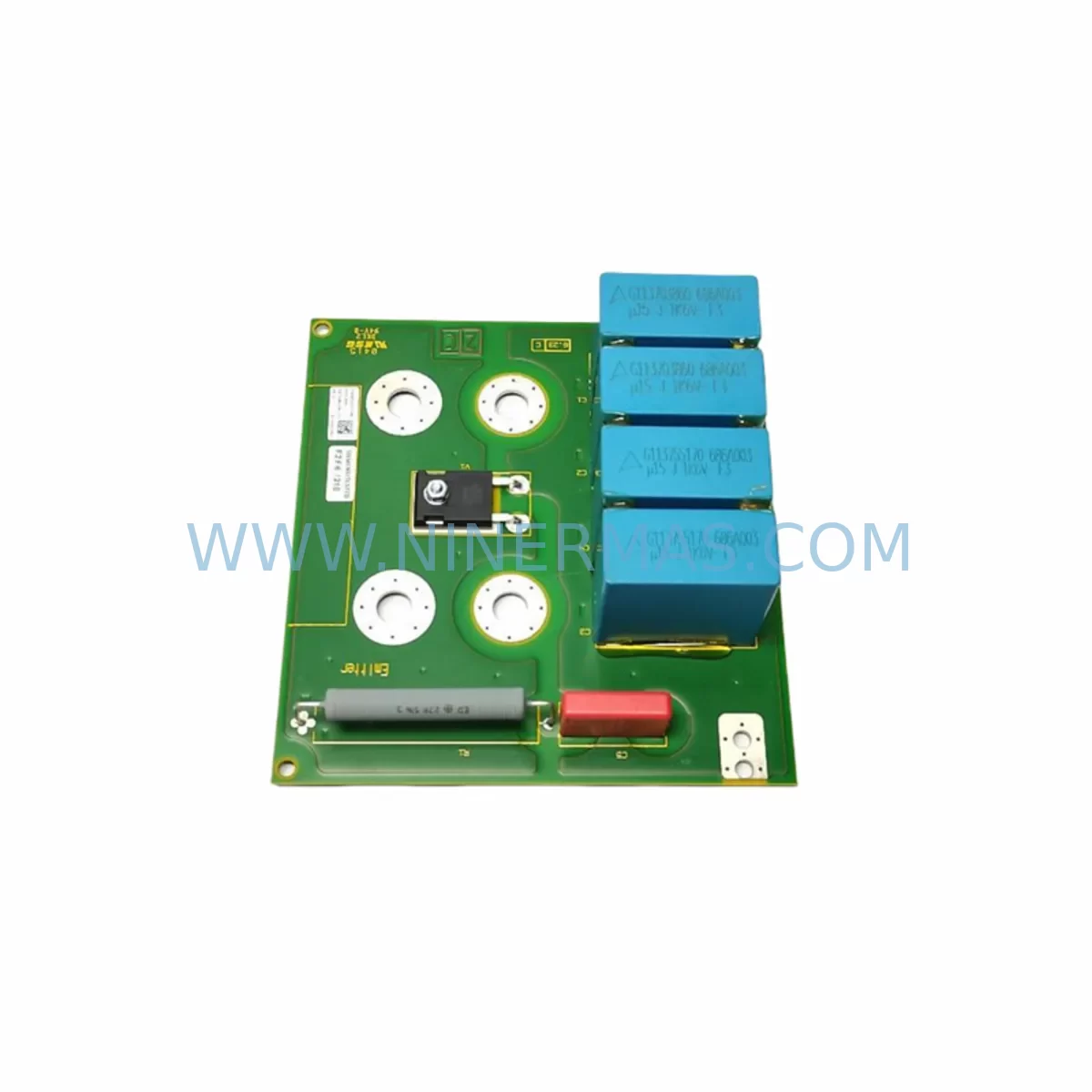

The Siemens 6SE7031-7HG84-1GF0 is a verified retrofit-compatible inverter drive board designed for direct replacement within the Siemens SIMOVERT MASTERDRIVES series. As a critical spare component for legacy 6SE70 drive cabinets, this board addresses the growing challenge of maintaining aging automation infrastructure where original OEM supply has been discontinued. It preserves the original backplane interface geometry and electrical specifications, enabling seamless integration into existing control architectures without requiring cabinet redesign or PLC reprogramming. For plant engineers managing end-of-life MASTERDRIVES installations, the 6SE7031-7HG84-1GF0 represents a reliable, cost-effective path to extending operational life by years rather than committing to a full drive replacement project.

Maintaining MASTERDRIVES systems beyond their official support lifecycle requires careful sourcing of verified spare boards. The 6SE7031-7HG84-1GF0 interfaces directly with the 6SE7090-0XX84-0AB0 CUVC (Closed-loop Vector Control) board, which remains the primary control intelligence in most MASTERDRIVES Vector Control cabinets. When replacing this inverter board, engineers must also confirm the condition of the 6SE7031-5EF60 power module mounted in the same rack, as degraded power supply components can cause premature failure of a newly installed inverter board. Sourcing both components together from a verified supplier significantly reduces the risk of repeat downtime events.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6SE7031-7HG84-1GF0 begins well before the board arrives on site. Engineers should start by auditing the existing cabinet’s power supply capacity — particularly the DC bus rail — to confirm it can support the replacement board under full load conditions. Terminal wiring must be cross-referenced against the original schematic drawings, paying close attention to the gate driver signal lines and temperature sensor connections that are unique to the 6SE7031 frame. If the installation includes a 6SE7024-7ED84-1HF3 Compact Plus unit operating in the same control network, its parameter set should be backed up before any power interruption, as shared PROFIBUS segments can lose node addressing during uncontrolled shutdowns. For larger installations involving a 6SE7033-2EG60 frame drive in the same cabinet row, the sequence of re-energization must be coordinated to avoid inrush conflicts on the shared DC bus. The 6SE7090-0XX84-0FF5 CBP2 communication board, if installed, should be inspected for firmware version compatibility with the replacement inverter board, as mismatched firmware revisions have been known to cause intermittent fault codes during initial commissioning.

HMI screen compatibility is another critical checkpoint. If the plant uses a SIMATIC HMI panel linked to the MASTERDRIVES via USS protocol, the drive parameter block structure must remain intact after board replacement — any deviation in parameter numbering will cause the HMI to display incorrect process values or fail to write setpoints. Engineers migrating from a heavily customized 6SE7021-0EA61 installation to a newer control platform should document all P-parameter settings before removal. Where the long-term roadmap includes migration to SINAMICS, the 6SL3120-1TE21-0AA3 double motor module represents a common upgrade target; however, the 6SE7031-7HG84-1GF0 allows the existing MASTERDRIVES infrastructure to remain operational during a phased transition, avoiding the cost and risk of a full cutover. Signal isolators and the 6SE7038-6GL84 line reactor should also be inspected during the retrofit window, as these components experience the same thermal aging as the inverter board itself. For sites where the original A5E00297621 CUVC replacement board has already been installed, confirm that the board revision is compatible with the 6SE7031-7HG84-1GF0 before proceeding.

Downtime Control During System Migration

Minimizing production downtime during a MASTERDRIVES board replacement requires a structured pre-commissioning approach. Before the maintenance window opens, the replacement 6SE7031-7HG84-1GF0 should be bench-tested using a controlled DC bus supply to verify gate driver output signals and thermal sensor response. The original drive’s parameter set — including all P-parameters, motor data, and control word configurations — must be saved to a PC using STARTER or DriveMonitor software before the old board is removed. This backup ensures that if the replacement board requires parameter re-entry, the process is deterministic rather than reliant on operator memory. During the physical swap, the backplane connector should be inspected for bent pins or corrosion, as these are common failure points in drives that have operated in humid or chemically aggressive environments. After installation, a controlled ramp-up sequence — starting at reduced speed setpoint — allows the commissioning engineer to verify current feedback, speed feedback, and fault-free operation before returning the drive to full production load. Having verified stock of the 6SE7031-7HG84-1GF0 available from a reliable supplier is itself a downtime reduction strategy: emergency procurement of discontinued boards from unverified sources introduces lead time uncertainty and quality risk that can extend an unplanned outage from hours to weeks.

Retrofit Support FAQ

Q: Is the 6SE7031-7HG84-1GF0 a direct drop-in replacement for my existing MASTERDRIVES inverter board?
A: Yes. The 6SE7031-7HG84-1GF0 is dimensionally and electrically compatible with the original OEM board of the same part number. It uses the same backplane connector pinout and mounting footprint, requiring no cabinet modification. Customers are advised to confirm the DC bus voltage and gate driver signal levels match their specific drive configuration before installation.

Q: What pre-shipment testing is performed on each board?
A: Every 6SE7031-7HG84-1GF0 unit undergoes a functional power-on test, connector integrity check, and visual inspection for component damage or corrosion before dispatch. A test report is available upon request. Boards that do not pass all test criteria are not shipped.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are processed through sale@ninermas.com with a fault description and photographic evidence.

Q: How can I confirm stock availability and lead time before placing an order?
A: Real-time stock levels and lead times for the 6SE7031-7HG84-1GF0 can be confirmed by contacting our team directly at sale@ninermas.com or by calling +0086 187 5021 5667. We maintain buffer stock of high-demand MASTERDRIVES spare boards to support urgent replacement requirements.
