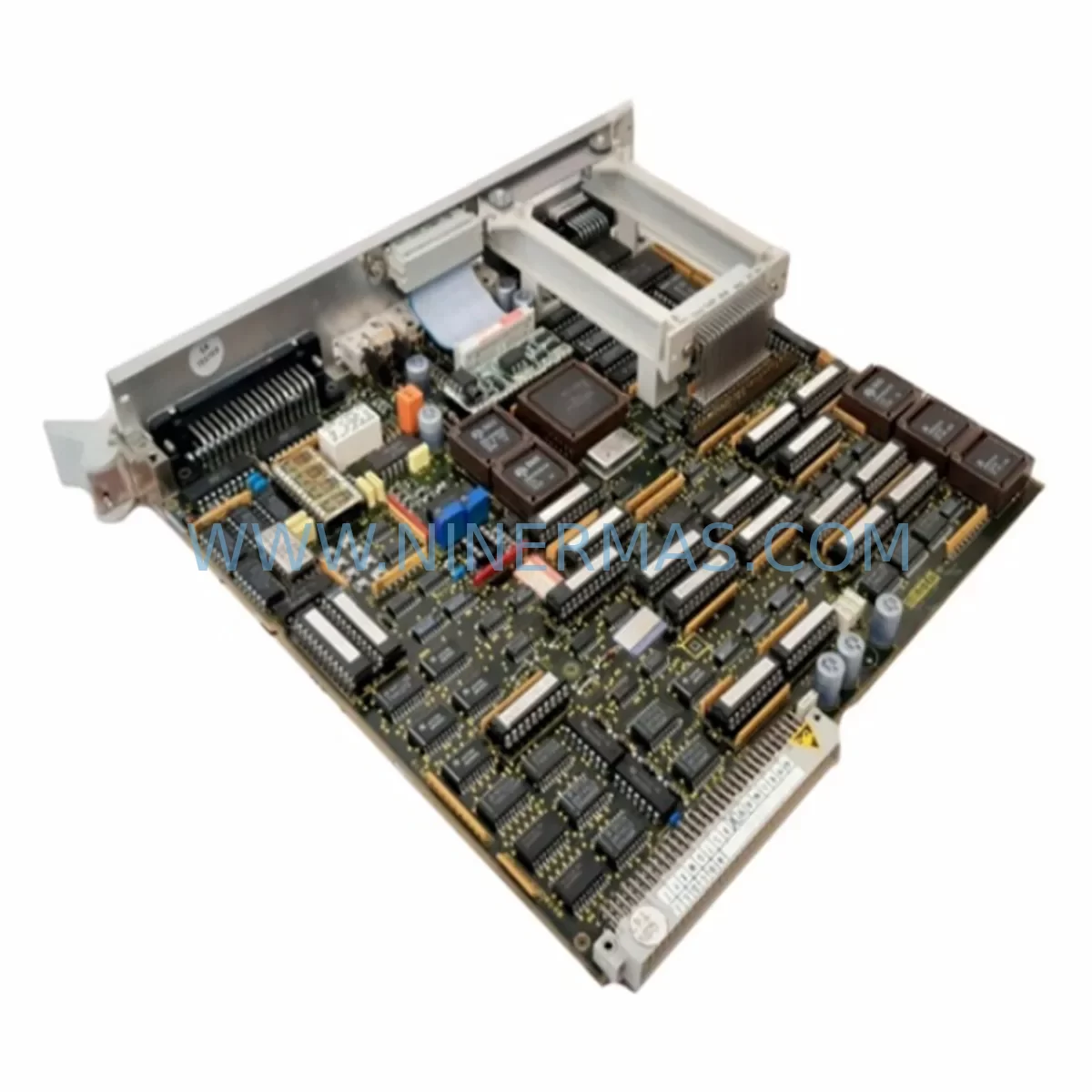

The Siemens 6DD1601-0AE0 is an original control module designed for the SIMADYN D series — Siemens’ modular, high-performance digital control platform widely deployed in drive systems, power generation, rolling mills, and heavy industrial process control. As aging SIMADYN D installations continue to operate across critical infrastructure worldwide, maintaining a reliable inventory of service-ready spare parts such as the 6DD1601-0AE0 is essential for minimizing unplanned downtime and sustaining long-term system availability.

At NINERMAS, every 6DD1601-0AE0 unit is sourced as an original Siemens component, subject to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a strategic spare parts buffer for a critical production line, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6DD1601-0AE0 control module fails or is flagged during a scheduled inspection, experienced maintenance engineers know that the fault rarely exists in isolation. The SIMADYN D platform is a tightly integrated modular system, and a thorough site replacement should include a systematic review of all interdependent components within the same control cabinet and electrical circuit.

Begin with the rack power supply module — SIMADYN D subracks rely on a dedicated DC power rail, and a degraded or intermittently failing power supply is a common root cause of processor board faults. Verify output voltage stability under load before inserting the replacement 6DD1601-0AE0. Next, inspect the backplane bus connectors for oxidation, bent pins, or mechanical damage; a compromised backplane will cause recurring faults even after a board swap.

Review the AM (Analog Module) and PM (Pulse Module) boards installed in adjacent slots. These signal-conditioning and pulse-generation boards share the internal SIMADYN D bus with the control processor, and degraded signal integrity on any one board can produce cross-faults that appear as processor errors. Similarly, check the IM (Interface Module) if the system uses PROFIBUS-DP or serial communication links — a failing interface module can cause the control processor to report communication timeouts that mimic hardware failure.

For systems integrated with SIMATIC S5 or S7 PLCs, verify the coupling links and any CP (Communication Processor) modules on the PLC side. A 6DD1601-0AE0 replacement in the SIMADYN D rack may expose latent communication issues on the PLC end that were previously masked by the faulty control module’s behavior.

Inspect all terminal blocks and field wiring connections on the I/O side. Loose or corroded terminals on analog input/output circuits connected to the SIMADYN D system can introduce noise that stresses the control module. Check signal isolators on any 4–20 mA or thermocouple loops feeding into the system — a failed isolator can inject ground loops that damage sensitive processor inputs.

Review the fuse and circuit protection on the 24 VDC supply feeding the subrack. Blown or weakened fuses are often overlooked during emergency replacements and can cause the new module to fail prematurely. If the installation includes an HMI panel (such as a Siemens OP or TP series operator panel) connected to the SIMADYN D system, verify the HMI communication link and panel power supply as part of the post-replacement commissioning check.

For long-running installations, consider holding a minimum of one 6DD1601-0AE0 unit as a dedicated cold spare alongside complementary boards such as the AM and PM modules, a spare rack power supply, and a set of pre-tested interface modules. This spare parts strategy is particularly critical for facilities where SIMADYN D systems control primary production equipment and where sourcing lead times for original Siemens boards can extend to several weeks from standard distribution channels.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the exact module revision of the installed 6DD1601-0AE0 by checking the label on the existing board. Cross-reference the firmware version with the SIMADYN D system documentation to ensure the replacement unit is compatible with the current software build loaded on the system.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the SIMADYN D subrack via the main cabinet isolator. Allow capacitors in the power supply to discharge fully before opening the cabinet door.

Step 3 — Board Removal: Release the ejector levers on the 6DD1601-0AE0 module and withdraw it carefully from the subrack slot. Avoid touching the PCB edge connectors. Place the removed board in an anti-static bag immediately.

Step 4 — Backplane Inspection: Before inserting the replacement, visually inspect the backplane slot for debris, bent pins, or signs of arcing. Clean with dry compressed air if necessary.

Step 5 — Replacement Installation: Insert the new 6DD1601-0AE0 firmly and evenly into the subrack slot until the ejector levers click into the locked position. Do not force the board.

Step 6 — Power-Up and Commissioning: Re-energize the rack and monitor the module’s status LEDs during boot. Refer to the SIMADYN D commissioning manual for expected LED sequences. Verify communication with the connected PLC or DCS and confirm all I/O signals are reading correctly before returning the system to automatic operation.

Step 7 — Documentation: Record the replacement in your site maintenance log, including the date, replaced module serial number, and the technician’s name. Retain the faulty board for failure analysis if required by your maintenance program.

Spare Parts Support FAQ

Q1: Is the 6DD1601-0AE0 supplied by NINERMAS an original Siemens component?
Yes. All 6DD1601-0AE0 units supplied by NINERMAS are original Siemens spare parts. Each unit undergoes pre-shipment functional testing and is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility between the replacement 6DD1601-0AE0 and my existing SIMADYN D system?
Compatibility is primarily determined by the module revision and the firmware version loaded on your SIMADYN D system. We recommend providing your existing module’s label information (revision suffix, order number) when placing your order. Our technical team can cross-reference this against available stock to confirm a compatible match before shipment.

Q3: Can NINERMAS support long-term supply of 6DD1601-0AE0 and related SIMADYN D spare parts?
Yes. NINERMAS maintains ongoing procurement channels for SIMADYN D series components, including control modules, interface boards, and power supply units. We support customers with annual spare parts programs and can provide scheduled delivery arrangements to align with your planned maintenance windows.

Q4: What is the typical lead time, and is express shipment available?
In-stock units are dispatched within 3–5 business days under standard terms. Express shipment options are available for emergency breakdown situations — please contact our sales team directly to arrange priority dispatch. All units are packaged in anti-static, shock-protected packaging suitable for international air freight.
