ABB DSQC639 3HAC025097-001 Retrofit-Compatible Processor

ABB DSQC639 3HAC025097-001 Retrofit-Compatible Processor for Legacy IRC5 Systems

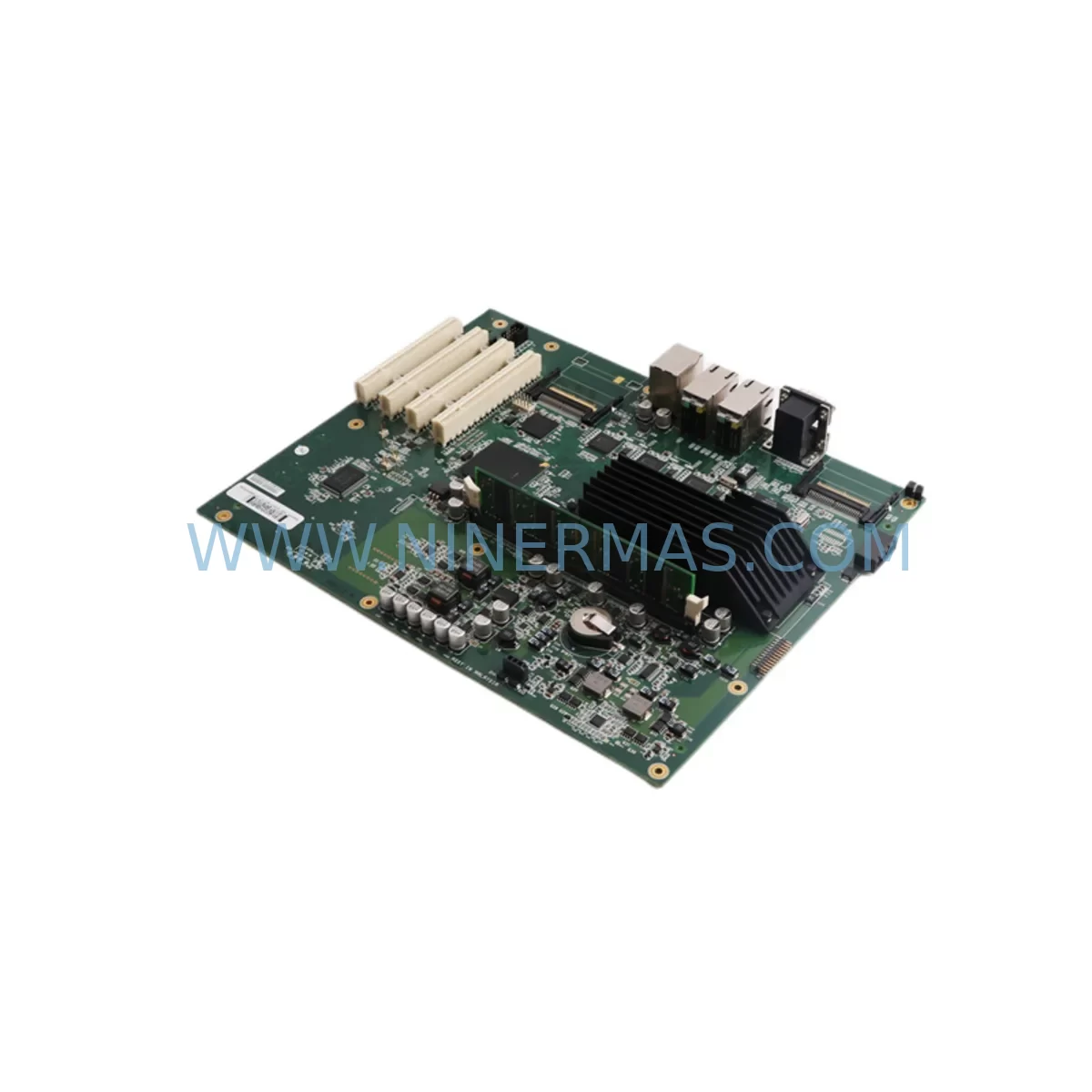

The ABB DSQC639 (3HAC025097-001) is a ruggedized main computer processor module designed for the ABB IRC5 robot controller platform. As a critical component in industrial automation environments, this module serves as the central processing unit responsible for executing robot programs, managing I/O communication, and coordinating motion control across the entire controller cabinet. With the DSQC639 now reaching end-of-life status in many production environments, sourcing a verified retrofit-compatible replacement has become a top priority for maintenance engineers and system integrators managing legacy robot lines.

At NINERMAS, we supply the DSQC639 3HAC025097-001 as a direct drop-in replacement for existing IRC5 controller installations. Each unit undergoes pre-shipment functional testing to verify processor boot integrity, backplane communication, and I/O bus response before dispatch. Our 12-month warranty covers hardware defects and ensures your retrofit project is protected from day one.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Planning a successful DSQC639 retrofit begins well before the replacement unit arrives on-site. Engineers should start by auditing the existing IRC5 controller cabinet to document all installed modules, including the power distribution unit (typically a DSQC661 or DSQC662 power supply module), any installed fieldbus communication boards such as the DSQC688 DeviceNet adapter or DSQC679 PROFIBUS master, and the I/O modules connected to the backplane — commonly DSQC651 digital I/O or DSQC652 analog I/O boards.

The backplane itself — the DSQC609 or equivalent IRC5 backplane assembly — must be inspected for pin damage or corrosion before the new processor is seated. A damaged backplane connector is one of the most common causes of post-retrofit communication faults and can be mistakenly attributed to the replacement module. Similarly, the CompactFlash card installed in the DSQC639 carries the robot’s system software, RAPID programs, and configuration parameters. This card should be cloned or backed up using RobotStudio before the swap begins.

For installations where the IRC5 controller communicates with a PROFINET or EtherNet/IP network, the DSQC688 or DSQC690 communication module settings must be verified post-swap to ensure the IP address assignments and network node configurations are preserved. In multi-robot cells where the IRC5 is linked to a PLC via a DSQC679 PROFIBUS DP master, the GSD file and station address must be re-confirmed after the processor module is replaced.

Terminal wiring on the I/O modules does not need to be disturbed during a processor swap, but engineers should photograph or document all wiring connections to the DSQC651 and DSQC652 I/O boards as a precaution. If the installation includes a DSQC377B conveyor tracking board or a DSQC354 analog I/O expansion, these peripheral modules should also be logged as part of the pre-retrofit audit. Confirming that all module addresses and slot assignments match the backed-up system parameters will significantly reduce commissioning time after the new DSQC639 is installed.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSQC639 processor replacement requires a structured approach to pre-staging, execution, and validation. The most effective strategy is to prepare the replacement module in advance — loading the backed-up system image onto a cloned CompactFlash card and verifying the boot sequence on a bench test rig before the scheduled maintenance window begins.

During the actual swap, the IRC5 controller should be powered down following the standard ABB shutdown procedure, with all axis brakes confirmed engaged and the teach pendant disconnected. The DSQC639 module is secured by a front-panel locking mechanism; releasing this and carefully extracting the module along the backplane guide rails avoids damage to the connector pins. The replacement unit should be inserted with the controller still powered off and the main circuit breaker locked out.

Once the new module is seated and the controller is powered on, the system will perform a self-test sequence. If the CompactFlash card contains a valid system image, the IRC5 will boot directly into the familiar FlexPendant interface without requiring a full system reinstallation. Engineers should verify that all I/O signals are responding correctly by running a manual I/O check from the teach pendant before releasing the robot back to automatic mode. For cells with safety-critical interlocks, the safety PLC or safety relay chain should be tested independently before resuming production. A well-prepared DSQC639 swap can typically be completed within a two-to-four hour maintenance window, keeping production disruption to a minimum.

Retrofit Support FAQ

Q: Is the DSQC639 3HAC025097-001 a direct replacement for the DSQC608?
A: In many IRC5 configurations, the DSQC639 is the designated successor to the DSQC608 main computer. However, compatibility depends on the specific IRC5 cabinet revision and installed software version. We recommend confirming your cabinet’s hardware generation before ordering. Our technical team can assist with compatibility verification based on your controller serial number.

Q: Do I need to reconfigure my RAPID programs after replacing the DSQC639?
A: No, provided you restore the original system backup (including RAPID modules and system parameters) to the CompactFlash card before installation. The RAPID program logic, tool data, work object definitions, and I/O signal mappings are all stored on the CompactFlash card, not on the processor module itself. A verified backup eliminates the need for reprogramming.

Q: What pre-shipment testing does NINERMAS perform on the DSQC639?
A: Each DSQC639 unit supplied by NINERMAS undergoes a functional power-on test, backplane communication verification, and visual inspection for connector pin integrity and PCB condition. Units that fail any stage of testing are not dispatched. A test report is available upon request, and all units are covered by a 12-month warranty from the date of shipment.

Q: How quickly can NINERMAS ship the DSQC639 3HAC025097-001?
A: We maintain stock of the DSQC639 and can typically dispatch within 1-3 business days of order confirmation. Express shipping options are available for urgent breakdown situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time.
