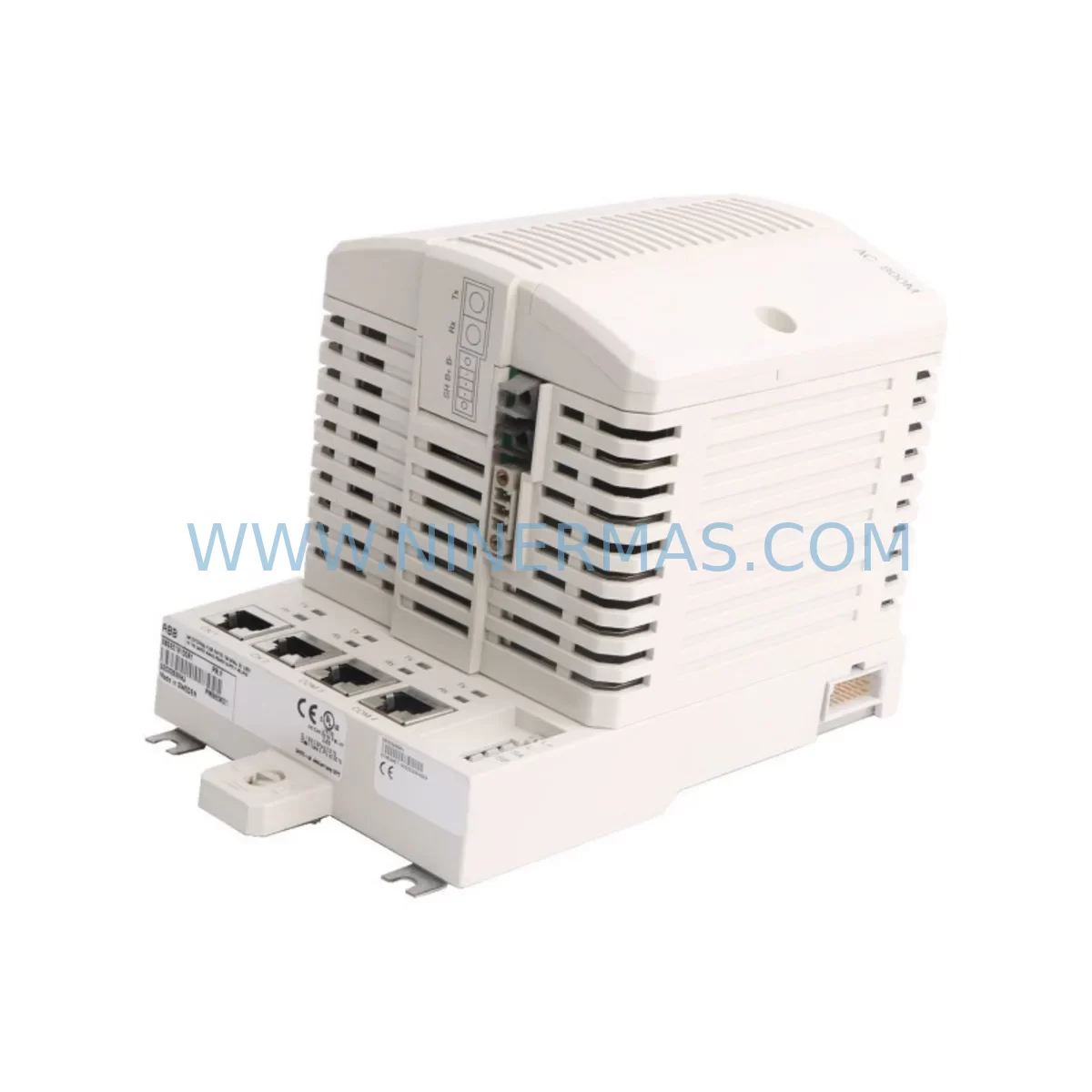

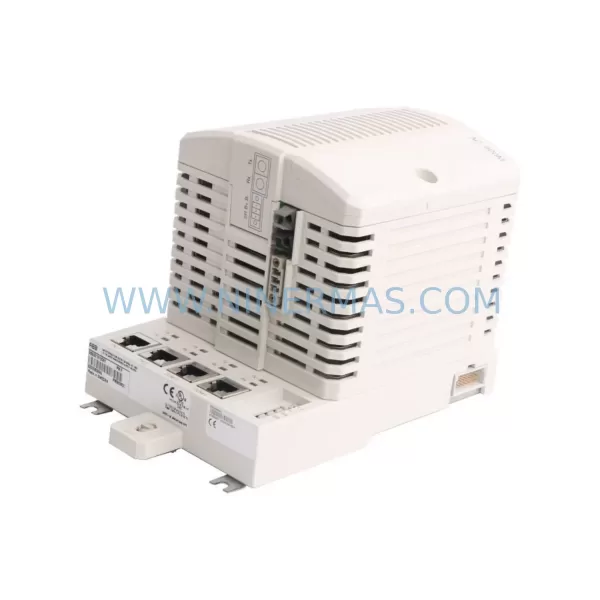

The ABB PM860K01 (3BSE018100R1) is a ruggedized processor module designed for the AC 800M controller platform, engineered to operate reliably in harsh industrial environments including high-vibration, wide-temperature, and high-humidity conditions. As a critical CPU component within ABB’s flagship DCS and process automation architecture, the PM860K01 is widely deployed across oil & gas, power generation, chemical processing, pulp & paper, and heavy manufacturing facilities worldwide. When this module fails or reaches end-of-life, the consequences are immediate: unplanned downtime, loss of process control, and costly production interruptions. Maintaining a service-ready PM860K01 3BSE018100R1 in your spare parts inventory is one of the most effective strategies for minimizing mean time to repair (MTTR) and protecting operational continuity.

At NINERMAS, every PM860K01 unit is sourced from verified supply channels, inspected against ABB’s original specifications, and dispatched with full documentation. Our 12-month warranty covers functional integrity under normal industrial operating conditions, giving maintenance engineers and procurement teams the confidence to stock this module as a long-term replacement asset.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing AC 800M-based control systems, the PM860K01 3BSE018100R1 does not operate in isolation. A processor module failure is rarely a standalone event — it is often accompanied by or preceded by stress on adjacent components within the same controller rack and electrical cabinet. A disciplined spare parts strategy must account for the full ecosystem surrounding this CPU module.

During annual shutdowns or corrective maintenance events involving the PM860K01, experienced engineers routinely inspect and consider stocking the following associated components: the SD821 and SD822 24 VDC power supply modules, which provide regulated power to the AC 800M rack and are subject to capacitor aging over time; the TB820V2 and TB840A backplane units, which serve as the physical and electrical backbone connecting the processor to I/O and communication modules; and the CI854A PROFIBUS DP communication interface module, which handles fieldbus connectivity to remote I/O stations and field devices. A degraded CI854A can produce intermittent communication faults that are often misdiagnosed as processor failures.

On the I/O side, the DI810 digital input module and DO810 digital output module are high-cycle components that accumulate wear in process-intensive environments. When replacing the PM860K01, it is prudent to verify the health of these I/O modules, particularly in systems running continuous 24/7 operations. Similarly, the AI810 analog input module should be checked for signal drift, especially in temperature-sensitive measurement loops.

For systems utilizing redundant processor configurations, the PM861A or PM864A processor modules may serve as the redundant partner to the PM860K01. Ensuring both primary and redundant CPUs are at equivalent firmware levels and in verified condition is essential before returning a system to service. Additionally, the CI840A DeviceNet communication module and CI853 serial communication interface are worth inspecting if the control system interfaces with legacy field devices or third-party PLCs.

From a procurement engineering perspective, consolidating the PM860K01 3BSE018100R1 into a broader AC 800M spare parts kit — covering power supplies, backplanes, I/O modules, and communication interfaces — reduces emergency sourcing lead times and provides a structured response framework for both planned and unplanned maintenance events. NINERMAS supports long-term supply agreements for AC 800M platform components, enabling procurement teams to establish multi-year inventory strategies without exposure to spot-market price volatility.

Site Replacement Workflow

Replacing the PM860K01 3BSE018100R1 in the field requires a structured approach to minimize control system downtime and ensure seamless restoration of process operations. The following workflow reflects best practices for AC 800M processor module replacement in live industrial environments:

Step 1 — Pre-Replacement Preparation: Back up the current application program and configuration data using ABB Control Builder M. Verify that the replacement PM860K01 carries the same or compatible firmware version. Confirm that the 3BSE018100R1 reference number matches the installed unit to avoid hardware revision mismatches.

Step 2 — Safe Isolation: If the system supports hot standby redundancy, switch control authority to the redundant processor module before removing the primary PM860K01. For non-redundant systems, coordinate a controlled process hold with operations personnel. De-energize the controller rack following site lockout/tagout (LOTO) procedures.

Step 3 — Module Extraction and Inspection: Remove the PM860K01 from the backplane slot. Inspect the backplane connector pins and the TB820V2 or TB840A backplane for signs of corrosion, mechanical damage, or contamination. Clean the slot if necessary before installing the replacement unit.

Step 4 — Installation and Firmware Verification: Insert the new PM860K01 3BSE018100R1 into the designated rack slot. Power up the controller and verify that the module initializes correctly. Load the backed-up application program via Control Builder M and confirm all I/O assignments, communication links, and process variables are restored to pre-fault states.

Step 5 — Functional Testing and Return to Service: Conduct a full I/O scan, verify PROFIBUS and Ethernet communication status, and confirm that all control loops are operating within normal parameters before releasing the system to automatic control. Document the replacement event, including the removed module’s serial number, fault history, and the date of installation of the new unit.

This structured replacement workflow reduces the risk of secondary faults, ensures compatibility is maintained across the AC 800M platform, and provides a clear audit trail for maintenance records and regulatory compliance.

Spare Parts Support FAQ

Q1: Is the PM860K01 3BSE018100R1 still available as a new original spare part?
A: Yes. NINERMAS maintains stock of the ABB PM860K01 3BSE018100R1 as a service-ready original spare. Although ABB has introduced successor processor modules for newer AC 800M configurations, the PM860K01 remains a supported replacement for installed base systems. We recommend confirming your system’s firmware compatibility before ordering. Contact our technical team at sale@ninermas.com for availability and lead time confirmation.

Q2: What is the recommended inventory strategy for the PM860K01 in a multi-controller facility?
A: For facilities operating three or more AC 800M controllers with PM860K01 processors, a minimum of one spare unit per five installed controllers is a widely adopted benchmark. For critical process units — such as compressor control, boiler management, or safety instrumented systems — a dedicated hot spare is strongly recommended. Pairing the PM860K01 spare with SD821/SD822 power supply modules and TB820V2 backplane units in a pre-configured spare kit further reduces MTTR in emergency scenarios.

Q3: How does NINERMAS verify the PM860K01 before shipment?
A: Every PM860K01 3BSE018100R1 unit dispatched by NINERMAS undergoes a pre-shipment inspection that includes visual examination for physical damage, verification of part number and reference number markings, and functional bench testing where applicable. Units are packaged in anti-static protective materials and shipped with a test report and 12-month warranty certificate. Our quality control process is designed to ensure that the module you receive is ready for immediate installation without additional incoming inspection delays.

Q4: Can NINERMAS support long-term supply of PM860K01 and related AC 800M components?
A: Yes. NINERMAS offers long-term supply agreements for the PM860K01 3BSE018100R1 and the broader AC 800M spare parts ecosystem, including processor modules, power supplies, I/O modules, communication interfaces, and backplane units. Our procurement team works with maintenance and reliability engineers to establish annual or multi-year supply plans that align with scheduled maintenance windows and budget cycles. This eliminates emergency sourcing risk and ensures price stability over the contract period.
