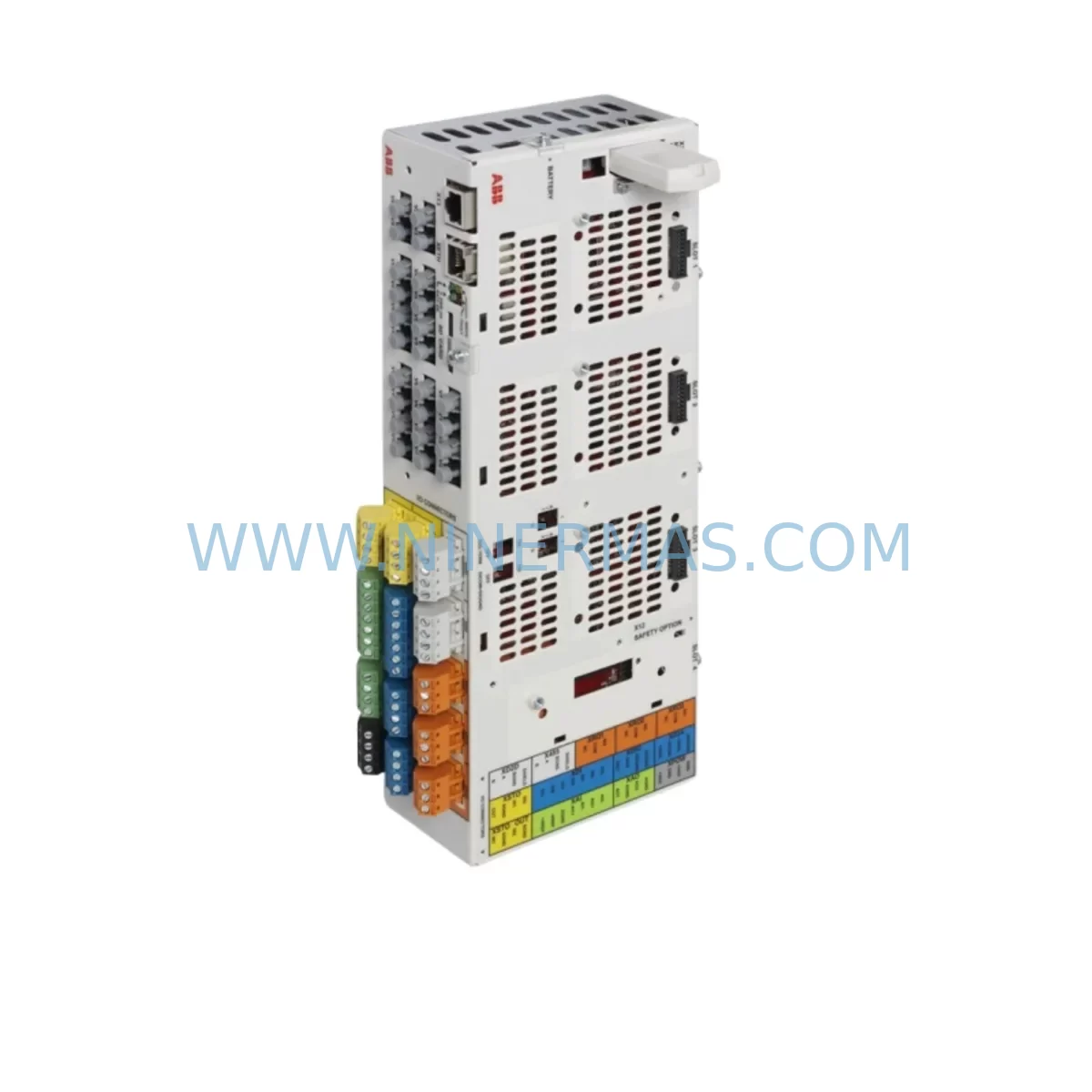

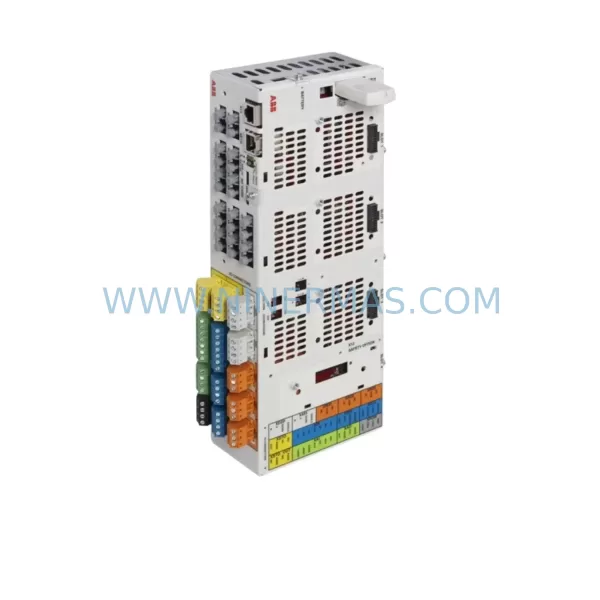

ABB BCU-02 3AUA0000110429 Retrofit-Ready Control Unit

ABB BCU-02 3AUA0000110429 Retrofit-Ready Control Unit: Legacy System Compatible Upgrade for ACS800 Drive Platforms

The ABB BCU-02 (part number 3AUA0000110429) is a drive control unit designed for use within the ABB ACS800 series variable frequency drive platform. As industrial facilities face increasing pressure to extend the operational life of existing automation infrastructure while managing the obsolescence of legacy components, the BCU-02 has become a critical spare part and retrofit solution for engineers tasked with maintaining ACS800 drive systems in continuous process and discrete manufacturing environments.

This control unit serves as the central processing and communication interface within the ACS800 drive cabinet. It manages the drive’s control logic, parameter storage, fieldbus communication, and I/O coordination. When the original BCU-02 fails or reaches end-of-service life, replacement with a tested, pre-configured unit is the fastest path to restoring drive operation without requiring a full drive replacement — a significant cost and downtime advantage in production-critical applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the BCU-02 within an operating ACS800 installation requires a structured approach that accounts for the full control architecture of the drive system. Before initiating a swap, maintenance engineers should confirm the drive’s current firmware version and application macro using the ACS800 control panel or DriveWindow software. Parameter sets should be exported and stored offline as a precaution against data loss during the control unit exchange.

The BCU-02 interfaces directly with the ACS800’s internal DDCS fiber optic communication ring, which may also connect to an NDBU-95 branching unit in multidrive configurations. If the installation includes an RDCO-02 or RDCO-03 fieldbus adapter for Profibus DP or DeviceNet communication, these modules remain in place during the BCU-02 swap and do not require reconfiguration provided the node address and baud rate settings are preserved in the parameter backup.

Terminal block wiring on the ACS800 control section — including digital inputs, analog inputs, relay outputs, and the 24 VDC auxiliary power supply — connects to the drive’s I/O terminal board rather than directly to the BCU-02. This means that in most standard ACS800 configurations, no field wiring changes are required when replacing the BCU-02. Engineers should nonetheless verify the wiring diagram against the drive’s hardware manual to confirm the specific I/O board variant installed, such as the RMIO-02 or RMIO-11, and check that all terminal connections are secure before powering the drive.

For installations where the ACS800 communicates with a higher-level control system via an ABB AC500 PLC or a third-party DCS, the communication link should be tested after the BCU-02 replacement to confirm that the drive responds correctly to start, stop, speed reference, and fault reset commands from the controller. In Profibus networks, the GSD file and station address configuration in the PLC’s hardware configuration tool should be verified to match the drive’s parameter settings.

Where the ACS800 is part of a larger motor control center or drive cabinet assembly, the retrofit plan should also account for the APBU-44 or APBU-12 branching units used in parallel inverter configurations, as well as any AINT-02 or AINT-14 inverter control boards that share the DDCS ring with the BCU-02. These components are not affected by the BCU-02 replacement but should be inspected for condition and connection integrity as part of the planned maintenance window.

HMI panels connected to the ACS800 via the panel bus — including the ACS-CP-C or ACS-CP-D control panels — will resume normal operation after the BCU-02 is replaced and parameters are restored. If the installation uses a remote panel mounting kit, the panel communication cable should be checked for continuity and secure connection at both ends before the drive is returned to service.

Power supply integrity within the drive cabinet is a prerequisite for a successful BCU-02 retrofit. The APOW-01 auxiliary power supply board, which provides the 24 VDC logic supply to the BCU-02 and other control electronics, should be verified for correct output voltage before and after the replacement. A degraded auxiliary power supply can cause intermittent control faults that may be misdiagnosed as BCU-02 failures, so confirming supply voltage stability is an important diagnostic step in any ACS800 control section repair.

Downtime Control During System Migration

Minimizing production downtime during a BCU-02 replacement requires preparation that begins well before the maintenance window. The most effective approach is to complete all pre-work — parameter backup, firmware version documentation, wiring diagram review, and spare parts staging — during normal operation so that the physical swap can be completed within a single planned shutdown period.

A tested, pre-configured BCU-02 replacement unit should be on-site before the drive is taken offline. Each BCU-02 supplied by NINERMAS is powered-on and functionally tested prior to shipment, reducing the risk of receiving a non-functional unit and eliminating the need for incoming inspection testing at the customer site. This pre-shipment testing protocol is a standard part of our quality assurance process and is documented for each unit dispatched.

During the swap, the drive should be isolated from the supply voltage and the DC bus fully discharged before any work begins on the control section. The BCU-02 is removed by disconnecting the fiber optic cables, the panel bus connector, and the control section ribbon cable or connector, depending on the ACS800 frame size. The replacement unit is installed in reverse order, and all connections should be verified for correct seating before power is restored.

After power-up, the parameter set should be restored from the backup using the control panel or DriveWindow. The drive should then be run in local control mode with the motor uncoupled from the load if possible, to verify that speed reference, direction, and fault handling operate correctly before returning the drive to automatic control from the PLC or DCS. This staged commissioning approach protects the original program logic and ensures that the drive responds correctly to all control signals before production is resumed.

For facilities with strict uptime requirements, maintaining a dedicated BCU-02 spare in the site stores is the most reliable strategy for minimizing unplanned downtime. NINERMAS supports long-term spare parts programs with fixed lead times and committed stock allocation for customers managing large ACS800 fleets, providing supply continuity for components that are no longer available through standard distribution channels.

Retrofit Support FAQ

Q1: Is the BCU-02 3AUA0000110429 a direct drop-in replacement for the original unit in my ACS800 drive?
Yes. The BCU-02 3AUA0000110429 is designed as a direct replacement for the original BCU-02 control unit in ACS800 single drive and multidrive configurations. No mechanical modification to the drive cabinet is required. After installation, parameters must be restored from a backup taken before the swap. Firmware version compatibility should be confirmed before installation if the drive uses a non-standard application macro.

Q2: What commissioning steps are required after installing the replacement BCU-02?
After physical installation, restore the parameter backup using the ACS800 control panel or DriveWindow software. Verify communication with the fieldbus adapter (RDCO-02/03) and the higher-level control system. Test the drive in local mode before returning to automatic control. Confirm that all digital inputs, analog references, and relay outputs respond correctly. Check the DDCS fiber optic link status if the drive is part of a multidrive system.

Q3: Does NINERMAS test the BCU-02 before shipment, and what warranty is provided?
Yes. Every BCU-02 unit is powered-on and functionally tested prior to dispatch as part of our standard quality assurance process. Each unit is supplied with a 12-month warranty from the date of shipment, covering defects in materials and workmanship. Test documentation is available upon request. Units are carefully packaged to prevent damage during transit.

Q4: Can NINERMAS support long-term spare parts supply for BCU-02 and other ACS800 components?
Yes. NINERMAS operates a long-term spare parts program for ABB ACS800 series components, including the BCU-02, RMIO-02, RDCO-02, APOW-01, and related control section modules. We maintain committed stock for customers managing large drive fleets and can provide fixed lead time agreements to support planned maintenance schedules. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your inventory requirements.
