ABB DSAO110 57120001-AT/2 Retrofit-Compatible Analog Output for Legacy Systems

ABB DSAO110 57120001-AT/2 Retrofit-Compatible Analog Output Module for Legacy Advant AC Systems

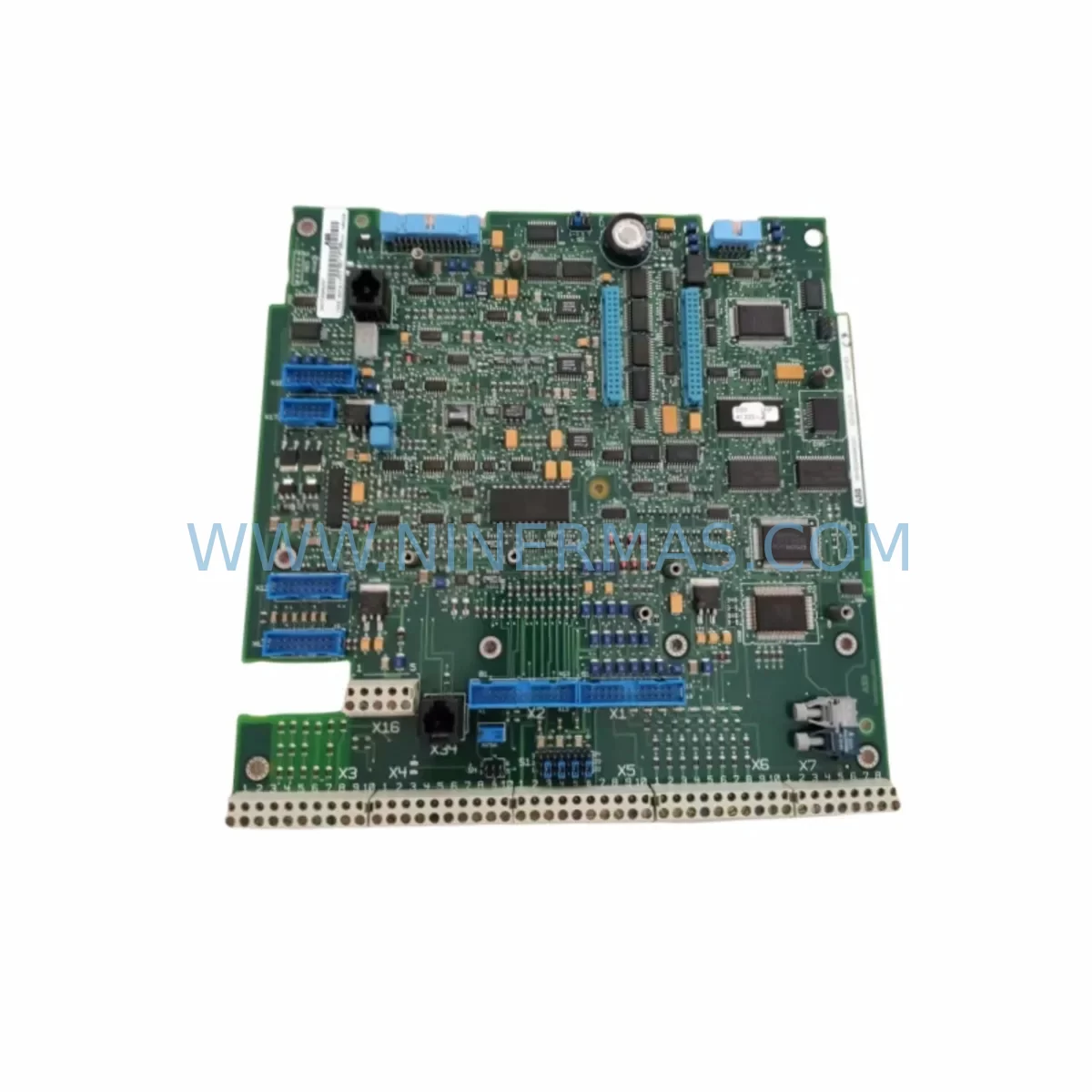

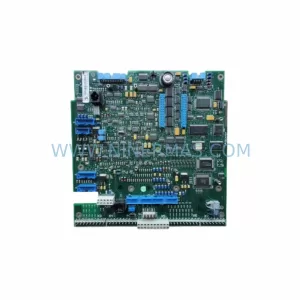

The ABB DSAO110 57120001-AT/2 is a multi-channel analog output module originally designed for the ABB Advant OCS / Master Series distributed control platform. As ABB has progressively discontinued support for the Advant AC product line, plant engineers and maintenance teams across process industries are increasingly sourcing verified replacement units to sustain production continuity without committing to a full DCS migration. NINERMAS maintains ready stock of the DSAO110 57120001-AT/2 to support emergency replacements, planned shutdowns, and phased retrofit programs — backed by a 12-month warranty and pre-shipment functional testing.

The DSAO110 module provides isolated analog output channels (typically 4–20 mA or 0–10 V configurable) and slots directly into the Advant S100 I/O subrack. Its compact DIN-rail-compatible form factor and standard backplane connector make it a preferred choice for engineers who need to restore a failed output channel without redesigning the control cabinet or rewriting the application program in MasterSoft or Control Builder M.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the DSAO110 57120001-AT/2, the scope of work typically extends beyond the module itself. A successful analog output channel restoration requires a coordinated review of the surrounding hardware and software environment within the Advant control cabinet.

Start with the subrack and power budget. The S100 I/O subrack hosting the DSAO110 is powered by a dedicated module such as the DSPU110 or DSDP140 power supply unit. Before inserting a replacement DSAO110, confirm that the subrack’s total current draw — including all installed I/O modules — remains within the rated capacity of the power supply. Overloading the backplane power rail is a common cause of intermittent faults after module replacement.

Next, review the field wiring termination. The DSAO110 connects to field instruments through a termination unit — typically the DSAX110 analog termination board or a compatible marshalling panel. Inspect the terminal block for corroded contacts, loose ferrules, or miswired channels before inserting the new module. A wiring fault at the termination level will produce the same symptom as a failed output module and can damage a new unit if not corrected first.

Address and slot configuration must be verified in the MasterSoft application database. Each S100 I/O module is assigned a hardware address via DIP switches on the module itself. Before removing the failed DSAO110, photograph or record the existing switch positions. The replacement unit must be configured identically to ensure the Advant controller recognizes it at the correct logical address without requiring a program download or cold restart of the AC450 or AC410 controller.

For plants running communication-intensive architectures, also verify the DSCB110 communication bus interface or DSCS110 serial communication module that links the S100 I/O station to the main controller. A degraded communication link can cause the controller to report the new DSAO110 as offline even when the module itself is functioning correctly. Similarly, if the plant uses a PROFIBUS DP gateway such as the DSPB110 for integration with third-party SCADA or HMI systems, confirm that the output channel tags are correctly mapped in the gateway configuration after the swap.

HMI faceplate verification is another critical step. If the plant operates an ABB Operate IT or a third-party SCADA system with hardcoded I/O channel references, the engineering team should confirm that analog output tags bound to the DSAO110 channels are still resolving correctly after the replacement. In some older configurations, the HMI tag database references the physical slot address directly, and a module swap — even with identical addressing — may require a tag refresh or OPC server reconnect.

Finally, for plants considering a longer-term migration from the Advant S100 I/O platform toward the ABB S800 I/O system or an AC800M controller, the DSAO110 replacement provides an opportunity to document the existing I/O channel inventory. Capturing the current wiring schedule, signal ranges, and module addresses during the retrofit creates the baseline engineering data needed for a future migration to AO810V2 analog output modules or equivalent S800 I/O hardware — without requiring a separate site survey.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a failed DSAO110 in a live production environment. The following approach has been validated across multiple Advant-based process control installations:

Pre-replacement preparation: Before the maintenance window, obtain the replacement DSAO110 57120001-AT/2 unit and verify its functional status using a bench test or the supplier’s pre-shipment test certificate. Configure the DIP switches to match the failed module’s address settings while the plant is still running — this eliminates configuration time during the actual outage window.

Program logic protection: The Advant controller — whether an AC450, AC410, or AC160 — will continue executing its application program during a single module failure, provided the program logic includes fault-tolerant output handling. Before the swap, confirm that the affected output channels are in a safe fallback state (e.g., hold-last-value or forced to a defined safe output) to prevent uncontrolled actuator movement during the brief period when the module is physically absent from the subrack.

Hot-swap procedure: The S100 subrack supports module replacement without powering down the entire subrack in most configurations, but this must be verified against the specific subrack revision and power supply type. If hot-swap is not supported, coordinate a controlled shutdown of the affected I/O station only, rather than a full controller restart, to minimize the impact on other control loops sharing the same AC450 or DSCB110 communication bus.

Post-replacement verification: After insertion, use MasterSoft I/O diagnostics to confirm the module is recognized at the correct address and that all output channels are reporting healthy status. Perform a forced output test on each channel — stepping the output from 4 mA to 20 mA — and verify the corresponding field instrument response before releasing the loop back to automatic control. Document the replacement in the plant’s maintenance management system with the new module’s serial number and the date of installation to support future warranty claims and lifecycle tracking.

Retrofit Support FAQ

Q1: Is the DSAO110 57120001-AT/2 a direct drop-in replacement for all DSAO110 variants?
The 57120001-AT/2 is a specific hardware revision of the DSAO110. In most cases it is functionally interchangeable with earlier AT/1 revisions within the same S100 subrack, but you should verify the DIP switch layout and output channel count against your existing module’s documentation before installation. NINERMAS can provide the datasheet and revision comparison on request prior to shipment.

Q2: Can this module be used in an ABB S800 I/O subrack or AC800M system?
No. The DSAO110 is designed exclusively for the ABB Advant S100 I/O platform and is not compatible with the S800 I/O subrack or the AC800M controller architecture. For S800-based systems, the equivalent analog output module is the AO810V2 or AO820. If you are planning a migration from S100 to S800, NINERMAS can assist with identifying the correct replacement modules for your I/O inventory.

Q3: What pre-shipment testing does NINERMAS perform on the DSAO110?
Each DSAO110 57120001-AT/2 unit shipped by NINERMAS undergoes a functional output test covering all analog channels across the full 4–20 mA range. The test verifies channel isolation, output linearity, and backplane connector integrity. A test record is available upon request and accompanies units shipped under project or bulk purchase orders.

Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers functional failure of the module under normal operating conditions — correct supply voltage, within-rated load, and proper installation per ABB guidelines. It does not cover damage caused by incorrect wiring, overvoltage, or physical mishandling. To initiate a warranty claim, contact NINERMAS with the module serial number, purchase order reference, and a description of the fault. Replacement units are dispatched after fault confirmation, with return shipping of the defective unit required for warranty processing.
