ABB ACS880-01-430A-3 Service-Ready Spare Part

ABB ACS880-01-430A-3 Service-Ready Spare Part for Industrial Maintenance

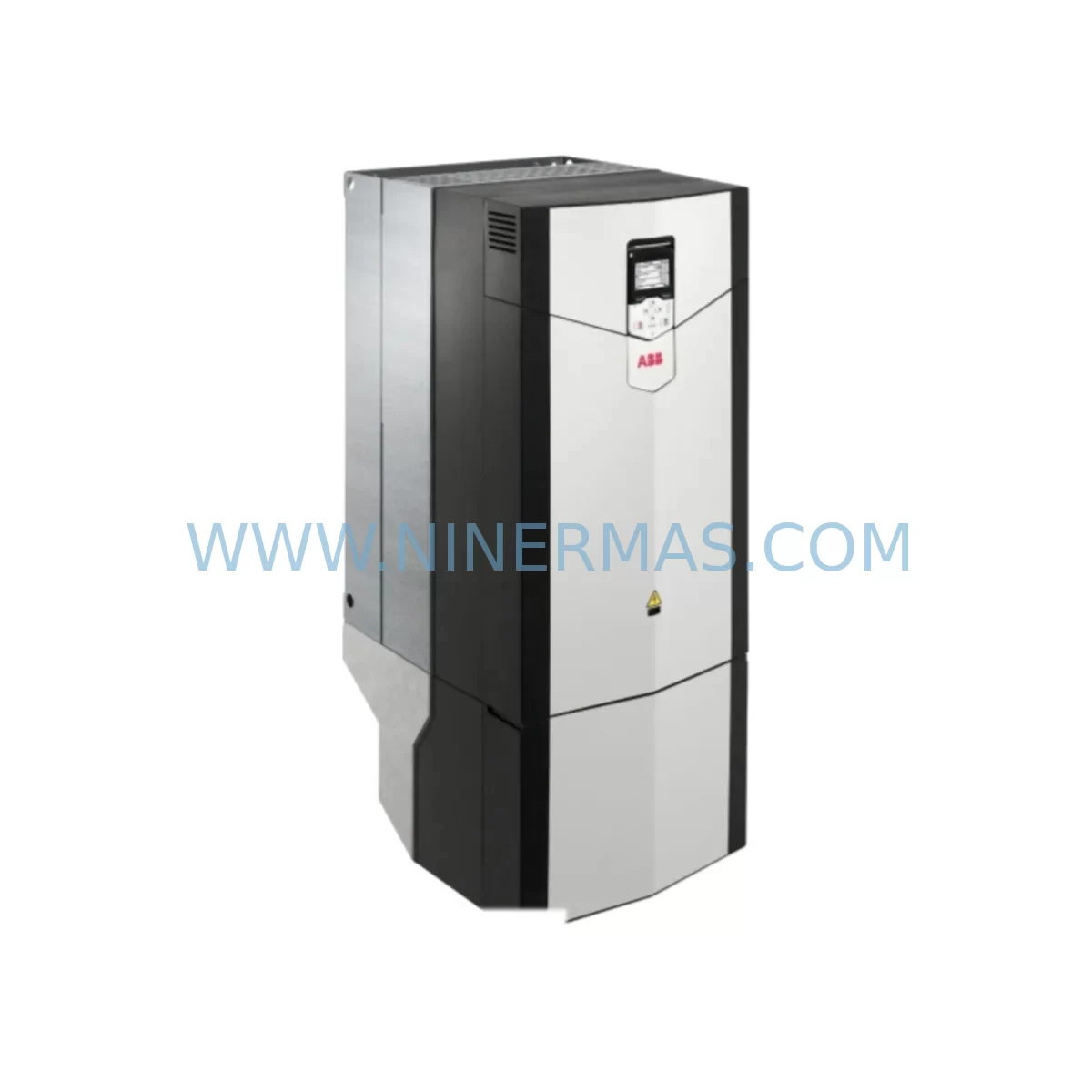

The ABB ACS880-01-430A-3 is a high-performance variable frequency drive (VFD) from ABB’s ACS880 series, rated at 430A for three-phase 380–480V industrial applications. As a service-ready spare part, it is designed to support rapid on-site replacement, minimize unplanned downtime, and maintain full system compatibility in demanding industrial environments including steel mills, mining operations, paper mills, water treatment facilities, and large-scale manufacturing lines. Each unit supplied by NINERMAS is pre-tested, individually inspected, and shipped with a 12-month warranty to ensure procurement confidence and long-term operational reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the ACS880-01-430A-3, a thorough inspection of the surrounding electrical system is essential to prevent repeat failures and ensure a clean handover. Begin by verifying the integrity of the input power supply — the ABB ACS880 series requires a stable 380–480V three-phase supply, and any upstream voltage fluctuation or phase imbalance can cause premature drive failure. Check the input line reactor or du/dt filter (such as the ABB NOCH0100-60 or equivalent) for signs of overheating or insulation degradation.

Next, inspect the motor cable and output terminals. Long cable runs without proper shielding can introduce reflected wave voltage stress on the motor windings. If the existing motor cable exceeds 50 meters, confirm that an output du/dt filter or sine filter is installed. The motor itself — particularly its insulation resistance — should be tested with a megohmmeter before reconnecting to the new drive.

The ACS880-01-430A-3 communicates with the plant control system via optional fieldbus adapter modules. If the site uses PROFIBUS DP, verify that the FPBA-01 PROFIBUS adapter is seated correctly and that the bus termination resistors are active at both ends of the network. For PROFINET or EtherNet/IP installations, check the FENA-21 adapter and confirm IP address settings are preserved. Communication faults are a common source of post-replacement downtime that can be avoided with a pre-commissioning checklist.

The ACS880 control panel (ACS-AP-I or ACS-AP-W) should also be inspected. If the panel shows corrupted parameter sets or fails to communicate after drive replacement, a parameter backup via Drive Composer or the panel’s memory unit is recommended before the old drive is removed. The ZMEM-01 memory unit can store full parameter sets and simplify recommissioning significantly.

On the I/O side, check the AIAO-01 analog I/O extension module and any BDIO-01 digital I/O modules for loose terminal connections or corrosion. Terminal blocks on the control board — particularly the X1 and X2 connectors — should be re-torqued to specification. Relay outputs used for fault signaling or run/stop confirmation should be tested for continuity before the drive is energized.

For sites running the ACS880 in a multi-drive cabinet configuration, inspect the common DC bus connections and the ACH580 or ACS580 drives sharing the same bus. A failed braking chopper or braking resistor (such as the SACE-type resistor bank) can cause overvoltage trips on the replacement drive within minutes of startup. Confirm that the braking resistor is within its rated resistance and thermal capacity before commissioning.

Finally, review the site’s spare parts inventory. A well-managed maintenance program for ACS880-series installations typically includes on-hand stock of the AIAO-01 I/O module, FPBA-01 or FENA-21 communication adapter, ACS-AP-I control panel, ZMEM-01 memory unit, and a set of replacement cooling fans for the drive’s internal fan assembly. Keeping these components in stock reduces mean time to repair (MTTR) and supports a proactive rather than reactive maintenance strategy.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Back up all drive parameters using the ACS-AP-I panel or Drive Composer software. Record fault history, motor nameplate data, and fieldbus node address. Isolate the drive from mains power and confirm zero voltage with a calibrated multimeter before opening the cabinet.

Step 2 — Mechanical Removal: Disconnect input power cables (U1, V1, W1), output motor cables (U2, V2, W2), control wiring, and fieldbus adapter. Label all connections before removal. Remove the drive from its mounting rail or cabinet frame following ABB’s installation guide for the ACS880-01 frame size.

Step 3 — New Unit Installation: Mount the ACS880-01-430A-3 replacement unit. Reconnect all cables in reverse order — control wiring first, then power cables. Torque all power terminals to ABB specification (refer to the hardware manual for frame-specific values). Reinstall the fieldbus adapter and memory unit.

Step 4 — Parameter Restore and Commissioning: Restore parameters from backup using the ZMEM-01 memory unit or Drive Composer. Verify motor data, control mode (DTC or scalar), and reference signal source. Run the drive in local mode at low speed before switching to remote/fieldbus control. Confirm all I/O signals, relay outputs, and fault relay functions are operating correctly.

Step 5 — System Handover: Document the replacement in the site maintenance log. Update the spare parts inventory and initiate a reorder for the consumed unit to maintain buffer stock. Notify the procurement team to source a replacement ACS880-01-430A-3 for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the ACS880-01-430A-3 a direct drop-in replacement for the existing unit?
Yes. The ACS880-01-430A-3 supplied by NINERMAS is an original ABB spare part with identical electrical ratings, mounting dimensions, and firmware compatibility. It is a direct replacement for the same model number and is compatible with all standard ACS880-01 frame accessories including control panels, memory units, and fieldbus adapters.

Q2: How is the unit tested before shipment?
Every ACS880-01-430A-3 unit undergoes a pre-shipment functional test covering power-on self-diagnostics, I/O signal verification, and communication interface checks. Units are individually packaged with anti-static protection and shipped with a test report. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for ACS880 series drives?
For critical production lines, NINERMAS recommends maintaining at least one ACS880-01-430A-3 unit in on-site buffer stock, particularly for applications where drive failure would result in extended production downtime. For multi-drive installations, a shared spare strategy — one spare per three to five identical drives — is a cost-effective approach that balances inventory cost against downtime risk.

Q4: Can NINERMAS support long-term supply for legacy ACS880 installations?
Yes. NINERMAS maintains long-term sourcing relationships for ABB ACS880 series components, including discontinued and end-of-life models. If your site operates older ACS880 variants or requires sustained supply over a multi-year maintenance contract, contact our technical sales team to discuss a dedicated supply agreement with guaranteed lead times.
