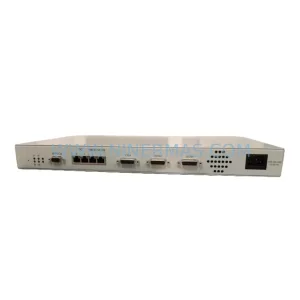

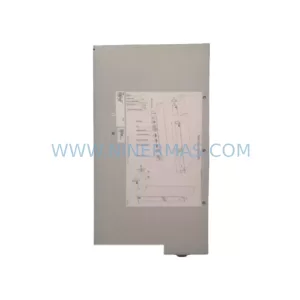

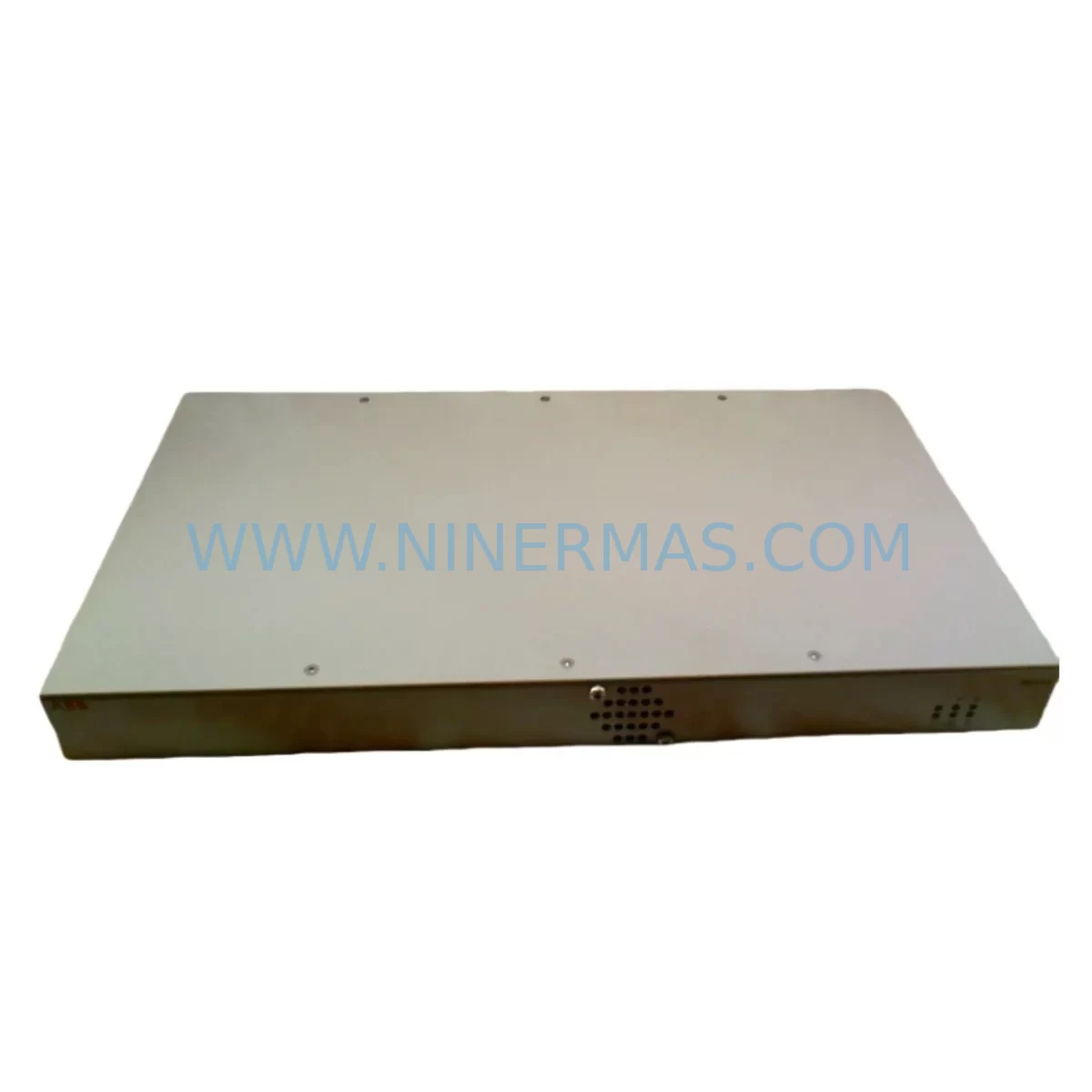

ABB 3BSE056478R1 PU410 Retrofit-Compatible Communication Module

ABB 3BSE056478R1 PU410 Retrofit-Compatible Communication Module: Legacy System Compatibility & Smooth Upgrade

The ABB 3BSE056478R1 — commercially designated as the PU410 — is a ruggedized communication module engineered for demanding industrial environments. Originally deployed across ABB’s Advant OCS and AC800M control platforms, this module has become a critical retrofit component for facilities managing aging automation infrastructure. As production lines extend beyond their original design life, the PU410 3BSE056478R1 continues to serve as a reliable bridge between legacy field devices and modern supervisory systems, making it one of the most sought-after discontinued spare parts in the process automation and power industries.

For engineers and procurement teams managing brownfield upgrades, the 3BSE056478R1 addresses a common challenge: replacing a discontinued communication node without triggering a full control system overhaul. Its compatibility with existing backplane slots, terminal wiring layouts, and communication protocol stacks means that facilities can restore system integrity with minimal disruption to ongoing operations. Whether you are recovering from an unexpected module failure or executing a planned control cabinet upgrade, the PU410 provides a cost-effective, field-proven solution.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the ABB 3BSE056478R1 begins well before the module arrives on site. Experienced automation engineers typically start by auditing the existing rack configuration — confirming available slot positions within the ABB S800 I/O rack or Advant OCS chassis, verifying that the PM865 or PM891 processor module firmware version supports the PU410’s communication stack, and reviewing the existing network topology for PROFIBUS DP segment addressing conflicts.

Power budget verification is a non-negotiable step. The PU410 draws its operating power from the rack’s internal bus, supplied by the PS800 or equivalent power supply module. Before insertion, engineers should confirm that the existing power supply has sufficient headroom to support the additional communication module load, particularly in racks already populated with AI810 analog input modules, DI810 digital input modules, or AO810 analog output modules. Overloading the rack power bus is a common cause of intermittent faults in retrofit projects that skip this verification step.

Terminal block wiring should be mapped against the original I/O list before any physical work begins. In most Advant OCS installations, the TB820 or TB840 terminal units connect field wiring to the module through a standardized interface, which simplifies the swap process. However, if the existing installation uses non-standard cable routing or has been modified over the years, a point-to-point continuity check is recommended before powering up the replacement module.

Communication link verification is equally important. If the PU410 is operating as a PROFIBUS DP master or slave within a larger network that includes CI854 communication interface modules or AF100 fieldbus adapters, the network segment must be re-scanned after module replacement to confirm that the new unit has assumed the correct station address and is responding to the master’s polling cycle. In systems where the HMI — such as an ABB Panel 800 or a third-party SCADA connected via OPC — displays process values sourced from this communication node, screen tag mapping should be validated before returning the system to automatic control.

For facilities migrating from older Advant Master platforms toward the AC800M architecture, the 3BSE056478R1 can serve as an interim communication node while the broader migration is staged across multiple planned outages. This approach allows engineering teams to preserve existing program logic in the PM865 controller, maintain field device connectivity through the S800 I/O bus, and defer the more complex tasks of HMI screen rebuilding and historian reconfiguration to later phases of the project.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any facility undertaking a communication module replacement on a live production system. The ABB 3BSE056478R1 supports a structured hot-swap approach in racks that have been configured for redundant communication paths, allowing the replacement module to be inserted and initialized while the redundant path maintains field device connectivity.

For non-redundant installations, the recommended practice is to pre-configure the replacement PU410 offline using a laptop running Control Builder M and a compatible programming cable, loading the correct module parameters, station address, and communication profile before the scheduled maintenance window. This preparation reduces the in-rack commissioning time to a matter of minutes, limiting the control interruption to the minimum required for physical module swap and bus re-initialization.

Program logic protection is achieved by ensuring that a verified backup of the AC800M or Advant OCS application program is stored on a secure engineering workstation before any hardware changes are made. If the controller’s battery-backed RAM has not been serviced recently, this is also the appropriate time to replace the PM865 or PM891 memory backup battery to prevent program loss during the power cycle that follows module installation.

Field control continuity can be further protected by placing affected control loops in manual mode at the DCS or SCADA level before beginning the swap, allowing process operators to maintain safe operating conditions using manual setpoints while the communication link is temporarily interrupted. Once the replacement PU410 has been confirmed online and all I/O signals are reading correctly, loops can be returned to automatic control in a controlled, sequential manner.

Every unit supplied by NINERMAS undergoes pre-shipment functional testing to verify communication link establishment, backplane bus integrity, and module self-diagnostics before dispatch. This testing protocol, combined with the 12-month warranty coverage, ensures that the replacement module performs to specification from the moment it is installed, reducing the risk of a repeat failure during the critical post-retrofit period.

Retrofit Support FAQ

Q1: Is the ABB 3BSE056478R1 a direct drop-in replacement for the original PU410 installed in my Advant OCS rack?
In the vast majority of installations, yes. The 3BSE056478R1 occupies the same single backplane slot, uses the same terminal wiring interface, and is recognized by the same firmware versions that supported the original PU410. Minor firmware differences between production batches may require a parameter download via Control Builder M, but no hardware modifications to the rack or cabinet are typically required.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the module should be powered up and its diagnostic LEDs observed for normal startup behavior. A communication scan using Control Builder M or the Advant Builder tool should confirm that the module has assumed its configured station address and established links with connected field devices or network segments. If the system includes a CI854 or AF100 interface in the same communication chain, those devices should also be verified for correct status before returning the system to automatic operation.

Q3: Does NINERMAS test the 3BSE056478R1 before shipment, and what does the 12-month warranty cover?
Yes. Every unit undergoes functional testing prior to dispatch, including communication link verification, backplane interface checks, and module self-diagnostic confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications.

Q4: Can this module support a migration from PROFIBUS DP to Ethernet-based communication in a phased upgrade?
The PU410 3BSE056478R1 is primarily a PROFIBUS DP and MasterBus 300 communication module. For facilities planning a phased migration toward Ethernet-based protocols — such as PROFINET or Modbus TCP — the PU410 is best used as a stable interim solution that maintains existing field device connectivity while the broader network architecture is redesigned. Parallel installation of an Ethernet communication module in an adjacent rack slot, alongside the PU410, allows both protocol layers to operate simultaneously during the transition period, reducing migration risk.
