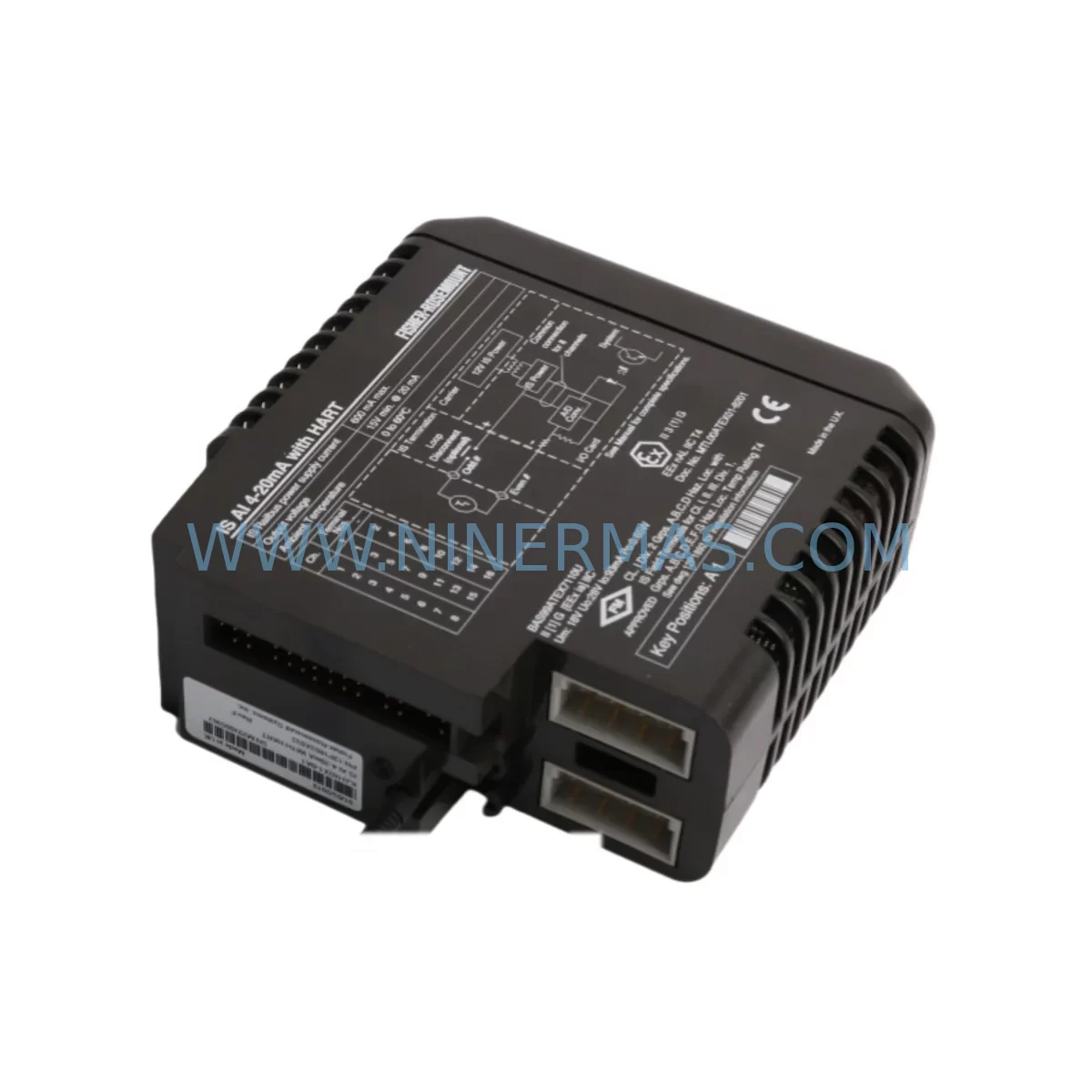

Emerson VE4012S2B1 KJ3102X1-BA1 Retrofit Process Control Module

Emerson VE4012S2B1 KJ3102X1-BA1 12P1863X032 Retrofit Process Control Module: Legacy-Compatible Upgrade for Aging Automation Systems

The Emerson VE4012S2B1 / KJ3102X1-BA1 / 12P1863X032 is a ruggedized process control module engineered for demanding industrial environments. As legacy DeltaV and PROVOX-era control architectures approach end-of-life, this module serves as a critical retrofit-compatible replacement, enabling facilities to extend the operational lifespan of existing control infrastructure without committing to a full platform migration. Whether you are managing a refinery, chemical plant, power generation facility, or offshore processing unit, this module provides a reliable, pre-tested solution for maintaining control system continuity.

Sourced from verified supply channels and subjected to pre-shipment functional testing, each unit is backed by a 12-month warranty and is available for rapid global dispatch. NINERMAS maintains standing inventory of this module to support emergency replacement, planned maintenance windows, and long-term spare parts programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a discontinued process control module in a live production environment requires careful pre-engineering. When integrating the VE4012S2B1 / KJ3102X1-BA1 into an existing control cabinet or DeltaV node, engineers must begin by auditing the current backplane and carrier assembly. The module occupies a defined slot within the I/O subsystem, and any mismatch in slot addressing will prevent the controller from recognising the replacement unit during the next scan cycle.

Power budget verification is a non-negotiable first step. The local power supply module — typically a DeltaV PS-series or equivalent PROVOX power conditioner — must have sufficient headroom to support the replacement module’s inrush and steady-state draw. In aging control cabinets where multiple modules have been added over the years, cumulative power loading can be close to the supply’s rated limit. A power audit before installation prevents nuisance trips and protects adjacent modules such as the KJ3204X1-BA1 analog input module and KJ3221X1-BA1 digital output module sharing the same carrier.

Terminal wiring compatibility must be confirmed against the original I/O marshalling drawings. The VE4012S2B1 interfaces with field instruments through a defined terminal block layout. If the existing wiring was routed to a legacy PROVOX marshalling panel, a wiring adapter or re-termination at the junction box may be required. Signal isolators — such as those in the MTL or P+F series — are commonly used in these retrofit paths to protect the new module from field-side transients in older cable runs.

Communication link integrity is equally critical. In DeltaV architectures, the module communicates over the DeltaV fieldbus network managed by the MD Plus Controller or MD Controller. In PROVOX-era systems, the serial communication link must be verified for baud rate, parity, and node address settings before the replacement module is brought online. Where protocol migration is part of the upgrade scope — for example, transitioning from PROVOX serial to DeltaV FOUNDATION Fieldbus or HART — a DeltaV CHARM I/O card or a CHARM Baseline Interface Module (CIOM-A) may be introduced alongside this module to bridge legacy and modern signal types.

HMI faceplate re-mapping is often overlooked during module replacement. After the physical swap, the DeltaV operator workstation must be updated to reflect the new module’s tag assignments. If the original module was configured under an older DeltaV version, a database export and re-import may be required to align the replacement module’s parameters with the current control strategy. This is particularly relevant in plants running DeltaV v11 or earlier, where module parameter structures differ from current releases.

For facilities managing I/O expansion as part of the retrofit, the VE4012S2B1 can be deployed alongside KJ3002X1-BA1 I/O expansion carriers and VE4046 redundant controller modules to increase channel density without replacing the entire node. This approach is common in brownfield upgrades where the control room footprint is fixed and rack space is limited. Confirm backplane slot availability and carrier compatibility before ordering additional I/O modules.

Programming cable access is required during commissioning. A DeltaV engineering workstation connected via the plant network or a dedicated commissioning laptop with DeltaV Diagnostics installed is needed to verify module health, confirm I/O channel assignments, and run loop checks. Where the plant network is segmented, a portable DeltaV USB-to-serial programming cable may be used for direct module access during initial configuration.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing a process control module in a live production environment. The VE4012S2B1 / KJ3102X1-BA1 / 12P1863X032 is designed to support a controlled replacement sequence that protects the original control logic and maintains field-side continuity throughout the swap.

The recommended approach is to schedule the module replacement during a planned maintenance window, even if the module has not yet failed. Proactive replacement of aging or end-of-life modules — particularly those flagged by DeltaV Diagnostics with increasing error counts or communication retries — prevents unplanned shutdowns that carry far greater cost than a scheduled outage. NINERMAS recommends maintaining at least one spare unit of the VE4012S2B1 on-site as part of a structured spare parts program, particularly for critical process loops where a module failure would trigger a plant-wide safety interlock.

Before removing the existing module, export the current module configuration from the DeltaV engineering workstation. This preserves all tuning parameters, alarm setpoints, and I/O channel assignments. If the module is part of a redundant controller pair, initiate a controlled switchover to the secondary controller before beginning the physical replacement. This keeps the process running on the backup path while the primary module is swapped, eliminating the need for a full process shutdown in most configurations.

After installing the replacement module, perform a structured loop checkout before returning the process to automatic control. Verify each I/O channel against the field instrument, confirm communication link status on the DeltaV operator workstation, and check HMI faceplate displays for correct tag resolution. A phased return to service — starting with manual control mode before switching to automatic — reduces the risk of process upsets caused by tuning parameter mismatches or signal scaling differences between the old and new module.

For facilities where a cold replacement is unavoidable, NINERMAS can support expedited dispatch of pre-tested units to minimise the gap between module failure and restoration of control. All units are functionally tested before shipment and are accompanied by a test report on request.

Retrofit Support FAQ

Q1: Is the VE4012S2B1 / KJ3102X1-BA1 / 12P1863X032 a direct drop-in replacement for the original module?
In most DeltaV and PROVOX installations, yes. The module is designed to be retrofit-compatible with the original carrier and backplane. However, customers should verify slot addressing, terminal wiring, and communication link settings against their site-specific I/O drawings before installation. NINERMAS technical support can assist with compatibility verification based on your system configuration details.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes functional power-on testing and I/O signal verification before dispatch. A test report is available on request. Units are inspected for physical condition, connector integrity, and firmware version compatibility. The 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: Can this module be used in a system that has already been partially upgraded to DeltaV CHARM I/O?
Yes, in most cases. The VE4012S2B1 operates within the traditional DeltaV I/O subsystem and can coexist in the same DeltaV node as CHARM-based I/O, provided the controller firmware supports mixed I/O configurations. Confirm your DeltaV controller version and node configuration with your system integrator before mixing traditional and CHARM I/O in the same node.

Q4: What is the lead time and warranty coverage?
NINERMAS maintains standing inventory of the VE4012S2B1 / KJ3102X1-BA1 / 12P1863X032 for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments, subject to export documentation and logistics routing. All units are covered by a 12-month warranty from the date of shipment. Emergency dispatch arrangements are available for critical plant situations — contact our sales team directly to discuss expedited options.
