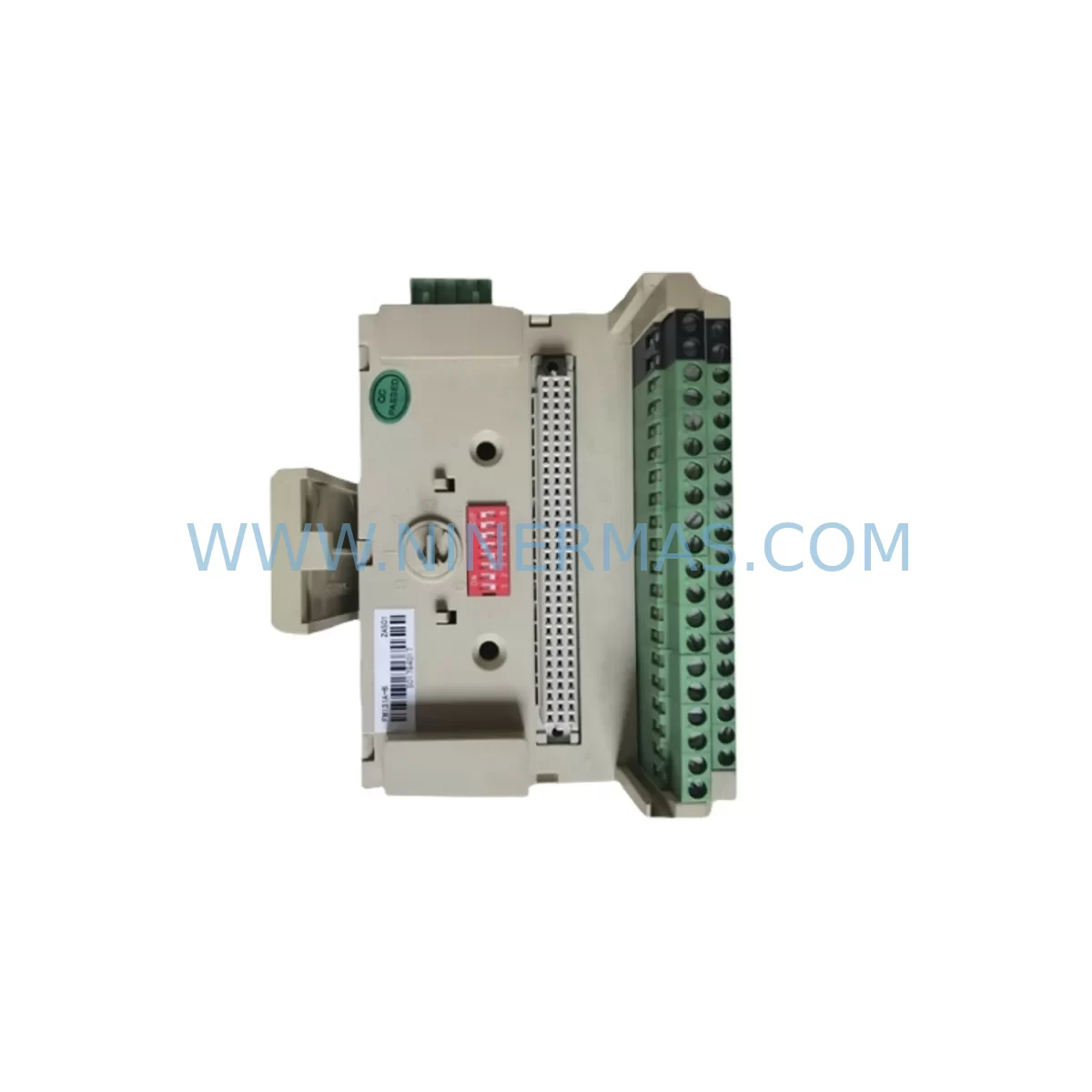

The HOLLYSYS FM131A-B is a main control module designed for the HOLLiAS MACS distributed control system (DCS) platform, widely deployed across petrochemical, power generation, water treatment, metallurgical, and continuous manufacturing facilities. As a core processing unit within the DCS architecture, the FM131A-B governs real-time scan cycles, I/O data acquisition, control algorithm execution, and inter-module communication — making it one of the most maintenance-critical components in any HOLLYSYS-based control cabinet.

For maintenance engineers managing aging DCS infrastructure, having a verified, pre-tested FM131A-B spare on hand is not optional — it is a fundamental risk control measure. Unplanned failure of the main control module can halt an entire process unit, triggering cascading shutdowns across interlock loops, safety instrumented systems, and upstream/downstream equipment. Sourcing a reliable replacement with confirmed firmware compatibility and hardware revision matching is essential to minimizing mean time to repair (MTTR) and restoring production safely.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the FM131A-B, a thorough maintenance engineer will treat the module swap as an opportunity to audit the surrounding control cabinet ecosystem. The FM131A-B does not operate in isolation — its performance depends on the integrity of every connected component in the DCS rack.

Begin with the HOLLYSYS FM141 power supply module, which provides regulated 24 VDC to the backplane. A degraded power module can cause intermittent resets or corrupt scan cycles even after a controller replacement. Verify output voltage stability and ripple levels before commissioning the new FM131A-B. Similarly, inspect the FM151 communication module for link errors or CRC fault logs that may indicate bus degradation rather than controller failure.

On the I/O side, review the FM161 digital input module and FM162 digital output module channel diagnostics. Faulty field wiring or shorted output channels can generate spurious interrupts that stress the main controller. If the system includes analog loops, the FM171 analog input module should be checked for signal drift, particularly in high-EMI environments near variable frequency drives or large motor starters.

For systems with redundant controller configurations, the FM131A-B redundancy synchronization cable and the secondary controller module must both be verified. A mismatch in firmware revision between primary and standby controllers is a common cause of failed switchover during fault conditions. Ensure both units carry identical firmware builds before returning the system to automatic mode.

Terminal blocks and field wiring connectors — particularly Phoenix Contact MKDS series or equivalent DIN-rail terminal strips used in HOLLYSYS cabinets — should be inspected for oxidation, loose ferrules, or thermal discoloration. Poor termination quality at the I/O marshalling level can introduce signal noise that manifests as controller-level alarms, misleading maintenance teams into replacing the FM131A-B unnecessarily.

If the plant uses PROFIBUS DP or Modbus RTU for field device integration, inspect the FM181 fieldbus communication module for segment termination resistance and cable shielding continuity. Communication faults at the fieldbus layer can cause the main controller to log excessive retry cycles, degrading overall scan performance. A HOLLYSYS HMI operator station running the MACS supervisory software should also be checked for alarm history and event logs that predate the controller fault — these records often reveal the true root cause before the FM131A-B is ever touched.

Finally, for sites with surge exposure from nearby high-voltage switching equipment, verify that DIN-rail surge protection devices (SPDs) on the 24 VDC supply rail are functional and have not sacrificed their protection element. A spent SPD provides no protection and is visually indistinguishable from a healthy unit without testing.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Export the current controller configuration from the HOLLYSYS MACS engineering station. Record the firmware version, I/O mapping, and control strategy revision. Confirm the replacement FM131A-B carries a compatible hardware revision (check the label suffix: FM131A-B vs. FM131A-B/C if applicable).

Step 2 — Safe isolation: Place the DCS loop in manual mode at the operator station. Notify field operators and interlock the relevant process unit. If the system supports hot-swap, confirm the redundant controller has assumed control before removing the faulty module. If no redundancy exists, coordinate a planned shutdown window.

Step 3 — Module extraction and inspection: Remove the FM131A-B from the backplane slot. Inspect the backplane connector pins for corrosion or mechanical damage. Clean the slot with dry compressed air if contamination is present.

Step 4 — Replacement installation: Insert the new FM131A-B firmly into the backplane slot. Verify the module status LED sequence on power-up. Allow the controller to complete its self-diagnostic cycle before re-enabling I/O communication.

Step 5 — Configuration restore and verification: Download the saved control strategy from the engineering station. Verify all I/O channel assignments, PID parameters, and interlock logic are correctly loaded. Run a loop check on critical analog and digital channels before returning to automatic control.

Step 6 — Return to service: Gradually transfer control from manual to automatic. Monitor the first 30 minutes of operation for any unexpected alarms, scan overruns, or communication faults. Log the replacement in the plant maintenance management system (CMMS) with the new module serial number and installation date.
