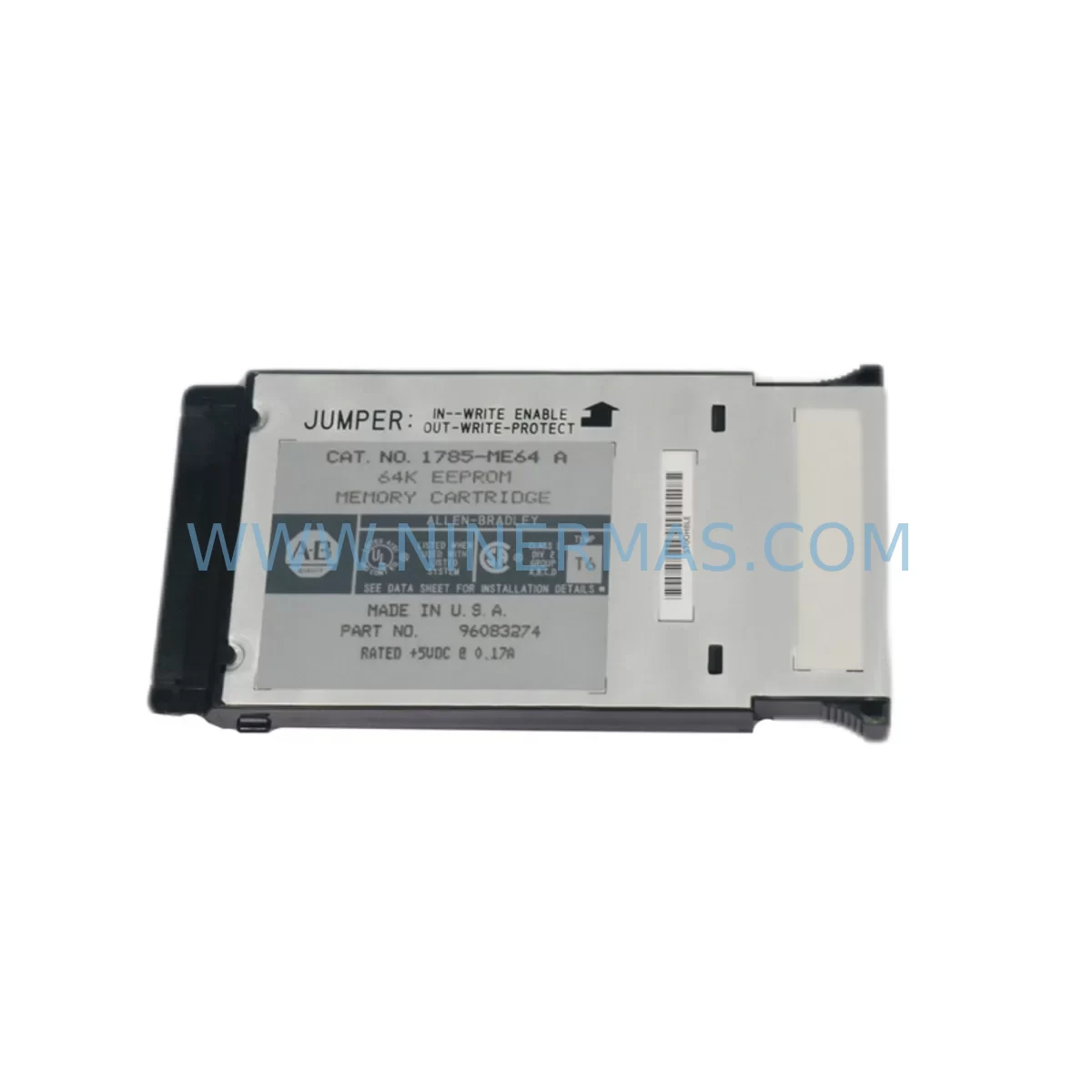

The Allen-Bradley 1785-ME64 is a 64K EEPROM memory module designed for use with the PLC-5 programmable controller family. As a critical spare part in industrial maintenance programs, the 1785-ME64 enables maintenance engineers to back up, transfer, and restore ladder logic programs without reliance on a programming terminal — a capability that becomes indispensable during emergency shutdowns, unplanned line stoppages, or scheduled annual overhauls. Whether your facility operates continuous process lines, batch manufacturing cells, or discrete assembly systems, maintaining a verified stock of the 1785-ME64 is a foundational element of any responsible spare parts strategy for legacy Allen-Bradley PLC-5 platforms.

From a maintenance engineering perspective, the 1785-ME64 serves as the program memory backup medium for PLC-5 processors such as the 1785-L20B, 1785-L40B, 1785-L60B, and 1785-L80B. When a processor fails in the field, a pre-programmed 1785-ME64 module allows technicians to restore full control logic to a replacement processor within minutes, dramatically reducing mean time to repair (MTTR) and protecting production throughput. Procurement engineers sourcing this module should confirm compatibility with the specific PLC-5 processor variant installed on-site, as memory capacity and firmware revision requirements may vary across processor generations.

During routine control cabinet inspections, maintenance teams should evaluate the condition of the 1785-ME64 alongside other critical components in the same rack. The 1785-A7 or 1785-A10 chassis backplane, the 1771-P4S or 1771-P7 power supply module, and any installed 1771-OAD output modules or 1771-IAD input modules should all be checked for signs of wear, corrosion, or thermal stress. A failing power supply delivering unstable DC voltage is one of the most common causes of memory module corruption, making the health of the power supply directly relevant to the integrity of data stored on the 1785-ME64. Similarly, if the control cabinet houses a 1785-KA5 communication adapter for DH+ network connectivity, verifying its status during the same maintenance window prevents compounding failures during a recovery event.

For procurement engineers managing multi-site spare parts inventories, the 1785-ME64 represents a low-cost, high-impact line item. Its compact form factor and non-volatile storage characteristics make it straightforward to store and rotate in a controlled spare parts room. Recommended practice is to maintain at least two pre-programmed units per PLC-5 processor installation — one as an active backup and one as a cold standby — with program versions clearly labeled and dated. When sourcing replacement units, buyers should request factory-sealed packaging, confirm the module has not been previously written beyond its rated write cycle endurance, and verify that the supplier provides a minimum 12-month warranty covering both hardware defects and data retention integrity.

During a site replacement workflow, the technician should first power down the PLC-5 rack in accordance with local lockout/tagout (LOTO) procedures. The 1785-ME64 is inserted into the dedicated memory module slot on the front face of the PLC-5 processor. After insertion, the processor can be commanded to load the stored program from the EEPROM into RAM, restoring the control application without requiring a programming terminal or laptop running RSLogix 5. This self-contained recovery capability is particularly valuable in remote installations or facilities where programming software access is restricted. After program load, the technician should verify I/O status on the 1771-OAD and 1771-IAD modules, confirm communication link integrity on any installed 1785-KA5 or 1785-KE serial communication module, and check HMI screen data on any connected PanelView terminal before returning the system to automatic mode.

Annual maintenance schedules should include a functional test of the 1785-ME64 by performing a program save and load cycle under controlled conditions. This confirms that the module’s EEPROM cells retain data correctly and that the processor’s memory interface is operating within specification. Modules that fail this test should be replaced immediately and removed from the spare parts rotation. Facilities running extended production campaigns with minimal scheduled downtime should consider pre-positioning a replacement 1785-ME64 in the control cabinet itself, secured in a labeled anti-static pouch, so that emergency replacement can be completed without waiting for parts delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for PLC-5-based control systems requires a holistic view of the entire control cabinet ecosystem. When scheduling a maintenance window that includes inspection or replacement of the 1785-ME64, maintenance engineers should simultaneously assess the condition of the 1771-P4S or 1771-P7 power supply module, which provides regulated DC power to the entire 1785-A7 or 1785-A10 chassis. A degraded power supply is the leading cause of premature memory module failure and program data corruption in aging PLC-5 installations.

I/O modules within the same rack — including 1771-OAD 120V AC output modules, 1771-IAD 120V AC input modules, and 1771-OBD DC output modules — should be inspected for terminal corrosion, loose wiring, and blown fuses. Terminal blocks and wiring ferrules connecting field devices to the I/O modules are frequent failure points in high-vibration or high-humidity environments and should be torqued to specification during each annual inspection. If the system includes analog I/O, the 1771-IFE or 1771-OFE analog modules should be calibrated and their signal isolation verified to prevent ground loop interference from corrupting process data.

Communication infrastructure supporting the PLC-5 system — including the 1785-KA5 DH+ communication adapter, the 1785-KE RS-232 serial module, or any installed 1784-PCMK data highway interface — should be tested for link integrity and error-free data transfer. HMI terminals such as the PanelView 550 or PanelView 900 connected via DH+ or RS-232 should be verified for correct tag mapping and alarm display functionality. Any discrepancy in HMI screen data following a memory module replacement should be investigated before returning the system to production.

Signal isolators and surge protection devices installed between field instruments and PLC-5 I/O modules provide an additional layer of protection for the control system and should be included in the maintenance checklist. Replacing a 1785-ME64 without verifying the integrity of upstream signal conditioning components risks exposing the new module to the same electrical stress conditions that may have caused the original failure.

Site Replacement Workflow

Replacing the Allen-Bradley 1785-ME64 in a live production environment requires careful preparation to minimize downtime and ensure a seamless transition. Begin by documenting the current processor status, I/O force table, and communication link states before initiating any power-down sequence. Implement LOTO procedures on the control cabinet and verify zero-energy state before opening the enclosure.

Remove the existing 1785-ME64 from the processor’s memory module slot and insert the replacement unit. Power up the rack and command the processor to execute a memory load from the EEPROM module. Monitor the processor status indicators during the load sequence — a successful load will be confirmed by the processor transitioning to RUN mode without fault codes. Verify all I/O module status LEDs, confirm DH+ or serial communication link re-establishment, and validate HMI screen data before releasing the system to operations.

For facilities with strict change management requirements, the replacement event should be logged in the maintenance management system (CMMS) with the module serial number, program version loaded, technician ID, and post-replacement test results. Pre-shipment testing of the 1785-ME64 by the supplier — including a write/read/verify cycle — provides additional confidence that the replacement unit will perform correctly on first installation, reducing the risk of a second unplanned outage.

Spare Parts Support FAQ

Q: Is the 1785-ME64 still available as a new spare part, or only as refurbished stock?
A: NINERMAS maintains inventory of the 1785-ME64 sourced from authorized channels. Each unit undergoes pre-shipment inspection and a write/read/verify functional test. Units are supplied with a 12-month warranty covering hardware defects and data retention performance. Contact our team to confirm current stock availability and lead time.

Q: How do I verify that a 1785-ME64 is compatible with my specific PLC-5 processor?
A: The 1785-ME64 is compatible with PLC-5 processors including the 1785-L20B, 1785-L40B, 1785-L60B, and 1785-L80B. Compatibility depends on the processor’s firmware revision and memory slot specification. Provide your processor catalog number and firmware version to our technical team and we will confirm compatibility before shipment.

Q: What is the recommended spare parts stocking strategy for the 1785-ME64?
A: Industry best practice recommends maintaining a minimum of two pre-programmed 1785-ME64 units per PLC-5 processor installation — one active backup and one cold standby. Modules should be stored in anti-static packaging in a temperature-controlled spare parts room, with program version and date clearly labeled. Annual functional testing (write/load/verify cycle) is recommended to confirm data retention integrity.

Q: Does NINERMAS offer long-term supply assurance for the 1785-ME64?
A: Yes. NINERMAS specializes in long-term supply of legacy industrial automation spare parts, including discontinued and hard-to-source Allen-Bradley PLC-5 components. We maintain strategic inventory reserves and can support blanket purchase orders for facilities requiring guaranteed supply over multi-year maintenance contracts. All units are supplied with a 12-month warranty and pre-shipment test documentation.
