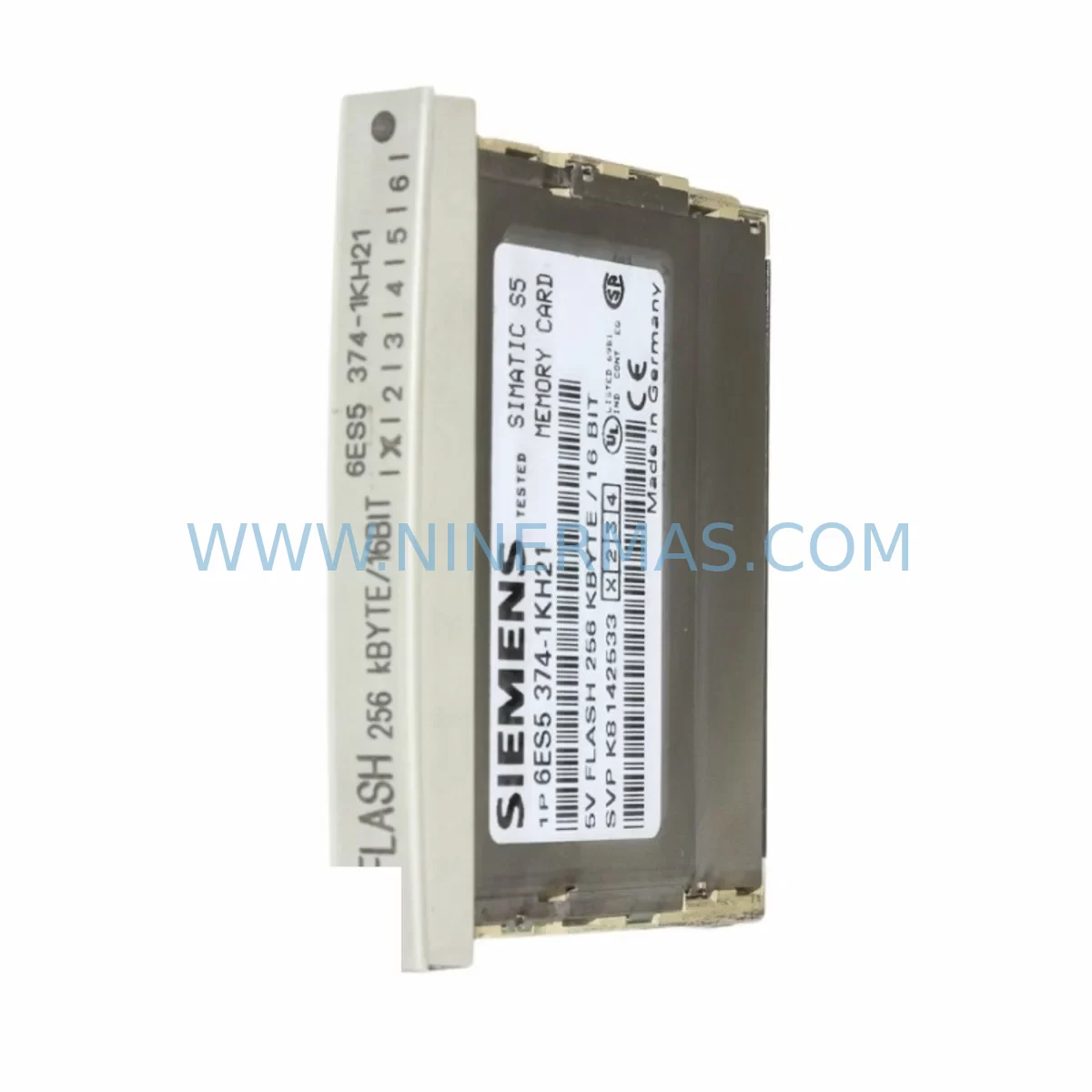

The Siemens 6ES5374-1KH21 is an EPROM memory module designed for the SIMATIC S5 programmable logic controller (PLC) platform — one of the most widely deployed industrial automation systems in manufacturing, process control, and critical infrastructure worldwide. As legacy SIMATIC S5 systems continue to operate well beyond their original design life, maintaining a reliable inventory of service-ready spare parts such as the 6ES5374-1KH21 is essential for minimizing unplanned downtime, protecting production continuity, and extending the operational lifespan of existing control architectures.

At NINERMAS, every unit of the 6ES5374-1KH21 is sourced, inspected, and dispatched with full traceability. Our supply chain is built around the needs of maintenance engineers and procurement teams who cannot afford delays when a memory module failure brings a production line to a halt. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts buffer for your control cabinet, the 6ES5374-1KH21 is available for immediate dispatch with a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES5374-1KH21 memory module is flagged for replacement during a fault investigation or scheduled inspection, experienced maintenance engineers know that the module itself is rarely the only component that warrants attention. A thorough control cabinet inspection at the time of replacement significantly reduces the risk of repeat failures and secondary faults.

Begin by verifying the S5 CPU module — such as the 6ES5315-8MA11 or 6ES5316-8MA12 — for any accumulated fault codes or battery-backed RAM errors that may have contributed to memory corruption. The backup battery module (e.g., 6ES5980-0MA11) should be tested and replaced on a fixed cycle, as a depleted battery is one of the most common root causes of EPROM data loss in long-running S5 systems.

Inspect the power supply module in the S5 rack — units such as the 6ES5955-3LC41 or 6ES5955-3LF41 — for output voltage stability. Voltage fluctuations or ripple on the 5V DC bus can cause intermittent memory read errors that are difficult to diagnose without proper instrumentation. At the same time, check the backplane bus connectors and rack slot contacts for oxidation or mechanical wear, which are common in high-vibration or high-humidity environments.

For systems with active I/O, review the digital input modules (e.g., 6ES5421-8MA11) and digital output modules (e.g., 6ES5441-8MA11) for channel faults or blown output drivers. If the system includes analog signal processing, inspect analog input modules such as the 6ES5466-8MA11 for drift or calibration deviation. Signal isolators and terminal blocks in the field wiring circuit should also be checked for loose connections, which can introduce noise into the control loop and trigger spurious CPU faults.

Where the S5 system communicates with supervisory systems or HMI panels, verify the integrity of the CP communication processor (e.g., 6ES5523-3UA11) and associated PROFIBUS or serial communication cables. Communication timeouts are frequently misdiagnosed as CPU or memory faults when the actual cause is a degraded communication module or a damaged cable shield.

Finally, for sites managing aging S5 installations, it is advisable to maintain a consolidated spare parts kit that includes the 6ES5374-1KH21 alongside a CPU module, power supply, at least one I/O module of each type in use, and a set of fuses rated for the control cabinet. This approach supports rapid fault isolation and same-shift recovery without waiting for emergency procurement.

Site Replacement Workflow

Replacing the 6ES5374-1KH21 on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Before removing the existing module, ensure the S5 CPU is in STOP mode and the rack power supply is de-energized in accordance with your site’s lockout/tagout (LOTO) procedure. Document the current program version and any parameter settings stored in the memory module, if accessible, before extraction.

Remove the faulty 6ES5374-1KH21 by releasing the module locking mechanism and sliding it out of the CPU slot. Inspect the slot contacts for contamination or damage before inserting the replacement unit. Seat the new module firmly and restore power. Perform a CPU cold restart and verify that the user program loads correctly from the new EPROM. Confirm all I/O channels are responding as expected before returning the system to RUN mode.

For sites transitioning from older S5 variants or managing mixed-generation control cabinets, the 6ES5374-1KH21 provides a direct, pin-compatible replacement that requires no firmware changes or parameter reconfiguration. This makes it particularly valuable for emergency recovery scenarios where minimizing downtime is the primary objective. NINERMAS supplies this module pre-tested and ready for installation, reducing the risk of receiving a defective unit during a critical recovery window.

Long-term, sites operating SIMATIC S5 systems should consider a structured obsolescence management plan. While Siemens has officially discontinued the S5 product line, the installed base remains substantial, and original spare parts continue to be available through specialist distributors. Maintaining a minimum stock of two to three units of the 6ES5374-1KH21 per site is a widely recommended practice among industrial maintenance teams managing legacy PLC infrastructure.

Spare Parts Support FAQ

Q1: Is the 6ES5374-1KH21 compatible with all SIMATIC S5 CPU variants?
The 6ES5374-1KH21 is specifically designed for use with SIMATIC S5-115U, S5-135U, and S5-155U CPU modules. Compatibility with other S5 variants should be verified against the CPU’s technical documentation or the Siemens SIMATIC S5 hardware manual before installation. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q2: How is each unit tested before shipment?
Every 6ES5374-1KH21 dispatched by NINERMAS undergoes functional inspection and electrical testing prior to packaging. Units are verified for correct memory addressing, data integrity, and physical condition. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for this module?
For sites with one to three S5 racks in operation, maintaining a minimum of two spare units of the 6ES5374-1KH21 is recommended. For larger installations or sites with extended lead times for emergency procurement, a buffer of three to five units is advisable. Spare modules should be stored in anti-static packaging in a dry, temperature-controlled environment away from direct sunlight and electromagnetic interference sources.

Q4: Can NINERMAS support long-term supply of the 6ES5374-1KH21?
Yes. NINERMAS maintains ongoing sourcing relationships for legacy Siemens SIMATIC S5 components, including the 6ES5374-1KH21. We support both single-unit emergency orders and bulk procurement for annual maintenance planning. For long-term supply agreements or scheduled delivery programs, contact our sales team directly to discuss volume pricing and reservation options.
