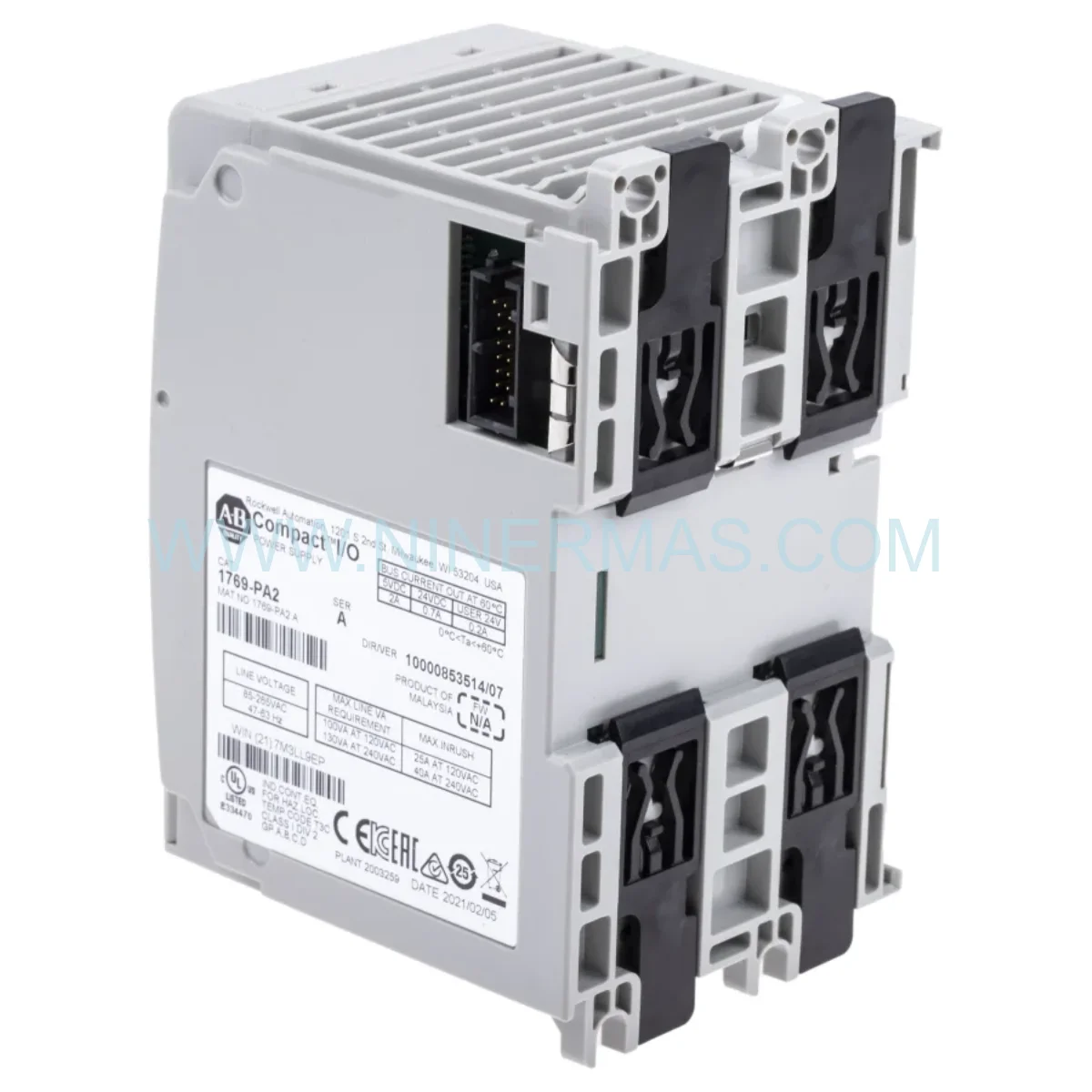

1769-PA2 Allen-Bradley CompactLogix AC Power Supply (New & Original)

Allen-Bradley 1769-PA2 CompactLogix AC Power Supply | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1769-PA2 represents a cornerstone of system availability in CompactLogix-based automation architectures. This AC power supply module delivers dual regulated outputs — 2A at 5V DC for backplane logic and 0.8A at 24V DC for field-level I/O — ensuring uninterrupted power distribution across the entire control node. In high-uptime environments where process optimization is non-negotiable, the 1769-PA2 provides the stable electrical foundation that keeps automation components performing at specification, cycle after cycle.

Engineered for durability in demanding industrial environments, this module accepts a wide AC input range of 85-265V at 47-63 Hz, making it inherently resilient to voltage fluctuations common in heavy manufacturing facilities. During installation, engineers should mount the unit on the left end of the CompactLogix 1769 chassis, verify DIN rail seating before energization, and confirm that total downstream current draw remains within the 2A backplane budget. Proper ventilation clearance of at least 50mm above and below the module is essential for convection cooling efficiency and long-term operational excellence.

As production lines age and OEM support windows close, maintaining a verified stock of EOL and legacy automation components becomes a strategic imperative. Sourcing a genuine 1769-PA2 as a critical spare eliminates unplanned downtime risk — a single unscheduled stoppage can cost far more than the component itself. Proactive inventory of this module is standard practice among reliability-focused maintenance teams across process industries worldwide.

Key Operational Features

Wide-Range AC Input (85-265V AC): Seamless system integration across global power infrastructure without additional conditioning hardware.
Dual Regulated Outputs: 5V DC / 2A for backplane logic + 24V DC / 0.8A for field devices — full I/O module support in a single compact unit.
Built-in Overcurrent & Short-Circuit Protection: Automatic shutdown safeguards connected I/O modules and controllers from fault propagation.
High Availability Design: Convection-cooled, no moving parts — minimizes mechanical failure vectors in continuous-duty applications.
Redundancy-Ready Architecture: Compatible with CompactLogix redundancy configurations for high-availability control system deployments.
LED Diagnostic Indicators: Instant visual status feedback accelerates fault isolation during commissioning and live troubleshooting.
UL / cUL / CE / RCM Certified: Meets international safety and EMC compliance standards for global deployment.

Maintenance & Performance Benchmarks

The 1769-PA2 is designed to integrate cleanly into both small-scale standalone CompactLogix nodes and larger distributed I/O networks spanning multiple chassis. In single-chassis configurations, the module powers up to the full complement of 1769 I/O modules within the 2A backplane current budget — engineers should perform a current audit using Rockwell’s RSLogix 5000 or Studio 5000 I/O configuration tools prior to commissioning.

For multi-chassis or extended-local I/O architectures, the 1769-PA2 serves as the local power source for each chassis segment, with inter-chassis communication handled via 1769-SDN or EtherNet/IP adapter modules. This modular approach supports scalable process optimization without requiring centralized power distribution infrastructure. Mean Time Between Failures (MTBF) data from field deployments consistently positions this module among the most reliable automation components in the CompactLogix ecosystem, with typical service intervals exceeding 10 years under normal operating conditions.

Preventive maintenance protocols should include annual inspection of terminal connections for oxidation, verification of input voltage within specification, and thermal imaging of the module under full load to detect early-stage degradation. Firmware compatibility is not applicable to this hardware-only power supply — no software configuration or firmware updates are required.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1769-PA2 unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging with full OEM labeling and documentation intact. For in-stock orders, same-day dispatch is available for orders confirmed before the daily cut-off time — a critical advantage when production continuity is at stake.

We maintain a dedicated global supply pipeline for both current-production and end-of-life (EOL) / legacy automation components, ensuring that facilities running older CompactLogix architectures can source verified genuine parts without compromise. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to manufacturing sites across North America, Europe, Asia-Pacific, and the Middle East within 3-7 business days. All shipments include tracking, commercial invoice documentation, and export compliance certification for smooth customs clearance.

Engineering Support & FAQ

Q1: What is the correct installation position for the 1769-PA2 within a CompactLogix chassis?
A: The 1769-PA2 must be installed at the left end of the 1769 chassis bank. It cannot be placed in the middle or right end of the system. Ensure the chassis end cap is installed on the rightmost module to complete the backplane circuit.

Q2: Is firmware configuration required for the 1769-PA2?
A: No. The 1769-PA2 is a hardware-only power supply module with no embedded firmware or software configuration requirements. It operates automatically upon AC power application. No entries are needed in RSLogix 5000 or Studio 5000 for this module.

Q3: Which CompactLogix controllers are compatible with this power supply?
A: The 1769-PA2 is compatible with all CompactLogix 1769-series controllers, including the 1769-L20, L23, L30, L35, L37, and L38 processors. It is not compatible with ControlLogix or MicroLogix platforms.

Q4: How do I calculate whether the 1769-PA2 can support my I/O configuration?
A: Sum the 5V DC current draw of each I/O module in your chassis using the specifications in Rockwell’s 1769 I/O Selection Guide. The total must not exceed 2A. Use Studio 5000’s I/O configuration tool for automated current budget verification.

Q5: What is the warranty process if the unit develops a fault?
A: Contact our technical support team at sale@ninermas.com with your order number and a description of the fault symptom. We will initiate an RMA within 24 hours. Defective units are replaced or refunded within the 1-year warranty period, covering manufacturing defects and component failures under normal operating conditions.

Q6: Can this power supply be used in a redundant control system configuration?
A: Yes. In redundancy architectures, each chassis in the primary/secondary pair requires its own dedicated 1769-PA2. The power supply itself does not participate in the redundancy switchover logic — that function is managed by the 1769-L3xER redundancy controllers and the 1756-RM redundancy module.
