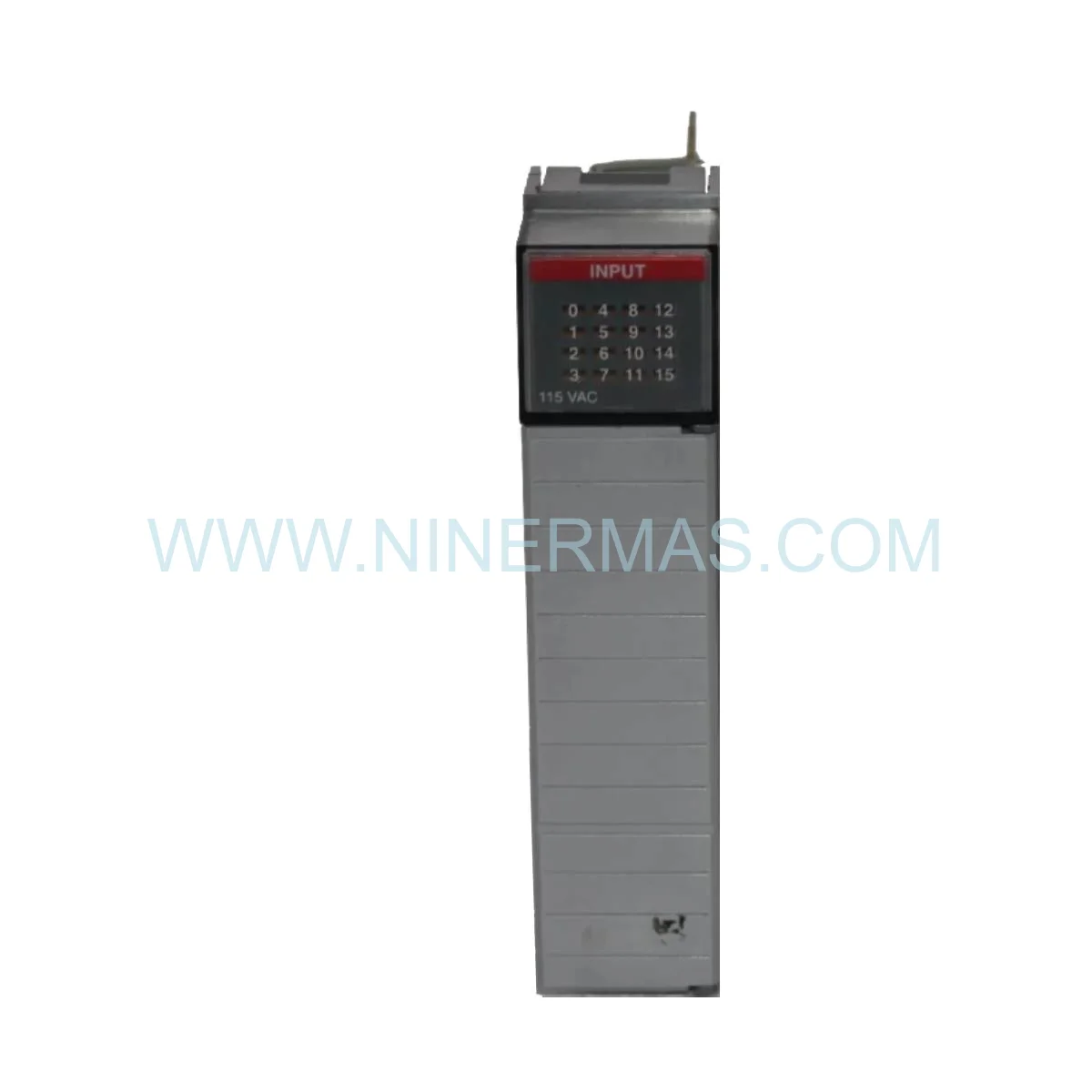

1746-IA16/C Allen-Bradley SLC 500 AC Input Module 120V | New & Original

Allen-Bradley 1746-IA16/C | Reliable Automation Component for SLC 500 Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1746-IA16/C stands as a cornerstone I/O module within mission-critical SLC 500 control architectures. Its 16-point discrete AC input capability enables seamless integration of field-level sensing devices — limit switches, pushbuttons, and proximity sensors — directly into the PLC backplane, dramatically improving system availability and reducing unplanned downtime across continuous process and discrete manufacturing environments. The 1746-IA16/C supports operational excellence by delivering deterministic signal acquisition at 100/120V AC, a specification that aligns with the majority of North American and Asian industrial power standards.

Engineered for durability in harsh industrial conditions, the 1746-IA16/C features conformal-coated circuitry that resists moisture ingress, airborne particulates, and corrosive chemical exposure — factors that routinely degrade lesser-grade automation components. During installation, engineers should verify that the 1746-TB3 terminal base is firmly seated and that field wiring is routed away from high-voltage conductors to prevent induced noise. Torque specifications for terminal screws must be observed to maintain connection integrity over thermal cycling.

As production lines age and OEM support windows close, maintaining a qualified inventory of legacy I/O modules becomes a strategic imperative. Stocking the 1746-IA16/C as a critical spare eliminates the risk of extended lead times during emergency replacements, safeguarding process continuity and protecting capital investment in existing SLC 500 infrastructure.

Key Operational Features

16 Discrete AC Input Points — High-density I/O for compact panel designs and process optimization
100/120V AC Operation (85-132V Range) — Broad voltage tolerance ensures compatibility across global facility standards
1500V AC Optical Isolation — Galvanic separation between field and logic circuits for high availability and personnel safety
Conformal-Coated PCB — Enhanced environmental protection for demanding industrial deployments
Per-Point LED Status Indicators — Instant visual diagnostics accelerate fault isolation and reduce MTTR
Hot-Swap Compatible — Supports seamless integration and module replacement without full system shutdown
RSLogix 500 Compatible — Native system integration with Allen-Bradley programming environment, zero configuration overhead

Maintenance & Performance Benchmarks

The 1746-IA16/C is engineered to perform reliably across a wide spectrum of industrial network architectures — from compact single-chassis SLC 5/01 installations to multi-rack SLC 5/05 Ethernet-connected systems. Its 20ms typical response time (on/off) satisfies the timing requirements of most discrete control loops, while its 150mA backplane current draw allows dense I/O configurations without exceeding standard SLC 500 power supply budgets.

For maintenance teams implementing predictive reliability programs, the module’s per-point LED indicators provide a first-pass diagnostic layer that reduces dependency on software-based fault analysis. Integration with RSLogix 500 enables deeper diagnostic interrogation, including input state logging and fault history review — capabilities that support root-cause analysis and continuous process optimization initiatives.

In multi-chassis architectures utilizing 1747-SN Remote I/O Scanner or 1747-ASB Adapter modules, the 1746-IA16/C maintains full functional compatibility, enabling distributed I/O strategies that extend system reach without compromising signal integrity or scan-time performance.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1746-IA16/C unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original Allen-Bradley factory packaging — complete with manufacturer labels, revision markings, and protective anti-static enclosures. This ensures full traceability and eliminates the risk of counterfeit or refurbished components entering your control system.

For time-sensitive maintenance scenarios, same-day dispatch is available on in-stock units when orders are confirmed before the daily logistics cutoff. Our global supply network specifically addresses end-of-life (EOL) and legacy module procurement challenges, providing reliable access to SLC 500 I/O components that are no longer available through standard distribution. Worldwide express logistics options — including DHL Express, FedEx International Priority, and UPS Worldwide — ensure your critical spare reaches the production floor with minimal delay, regardless of geographic location.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1746-IA16/C in an existing SLC 500 chassis?
A: Power down the SLC 500 chassis before inserting the module. Align the module with the chassis slot guides and press firmly until the locking tab engages. Attach the 1746-TB3 terminal base, connect field wiring per the I/O wiring diagram, then restore power. RSLogix 500 will auto-detect the module at its assigned slot address.

Q2: Which firmware revisions of the SLC 5/03, 5/04, and 5/05 processors are compatible with this module?
A: The 1746-IA16/C is hardware-compatible with all firmware revisions of SLC 5/03 (FRN 1-10), SLC 5/04 (FRN 1-10), and SLC 5/05 (FRN 1-10) processors. No firmware-level configuration is required for standard discrete input operation.

Q3: Can the 1746-IA16/C be used in a Remote I/O (RIO) expansion rack?
A: Yes. When paired with a 1747-ASB Adapter module, the 1746-IA16/C operates fully in remote chassis configurations connected via the SLC 500 Remote I/O link, supporting distributed I/O strategies across large-scale plant architectures.

Q4: How do I initiate a warranty claim if the module fails within the coverage period?
A: Contact our technical support team at sale@ninermas.com with your order reference number, module serial number, and a description of the observed fault. Our engineering team will issue a Return Merchandise Authorization (RMA) within 24 business hours and arrange expedited replacement shipping to minimize production impact.

Q5: Are there any known compatibility issues when mixing Series C and earlier series revisions in the same chassis?
A: No functional incompatibilities have been documented between Series C and earlier revisions (Series A/B) of the 1746-IA16 within the same SLC 500 chassis. Each module operates independently at its assigned slot address. However, it is recommended to standardize on a single series revision for simplified spare parts management.

Q6: What diagnostic data is accessible via RSLogix 500 for this module?
A: RSLogix 500 provides real-time input state monitoring for all 16 points of the 1746-IA16/C via the I/O status file. Fault detection, including open-wire conditions (where applicable), is reported through the processor’s fault routine, enabling proactive maintenance and rapid fault isolation within mission-critical automation environments.
