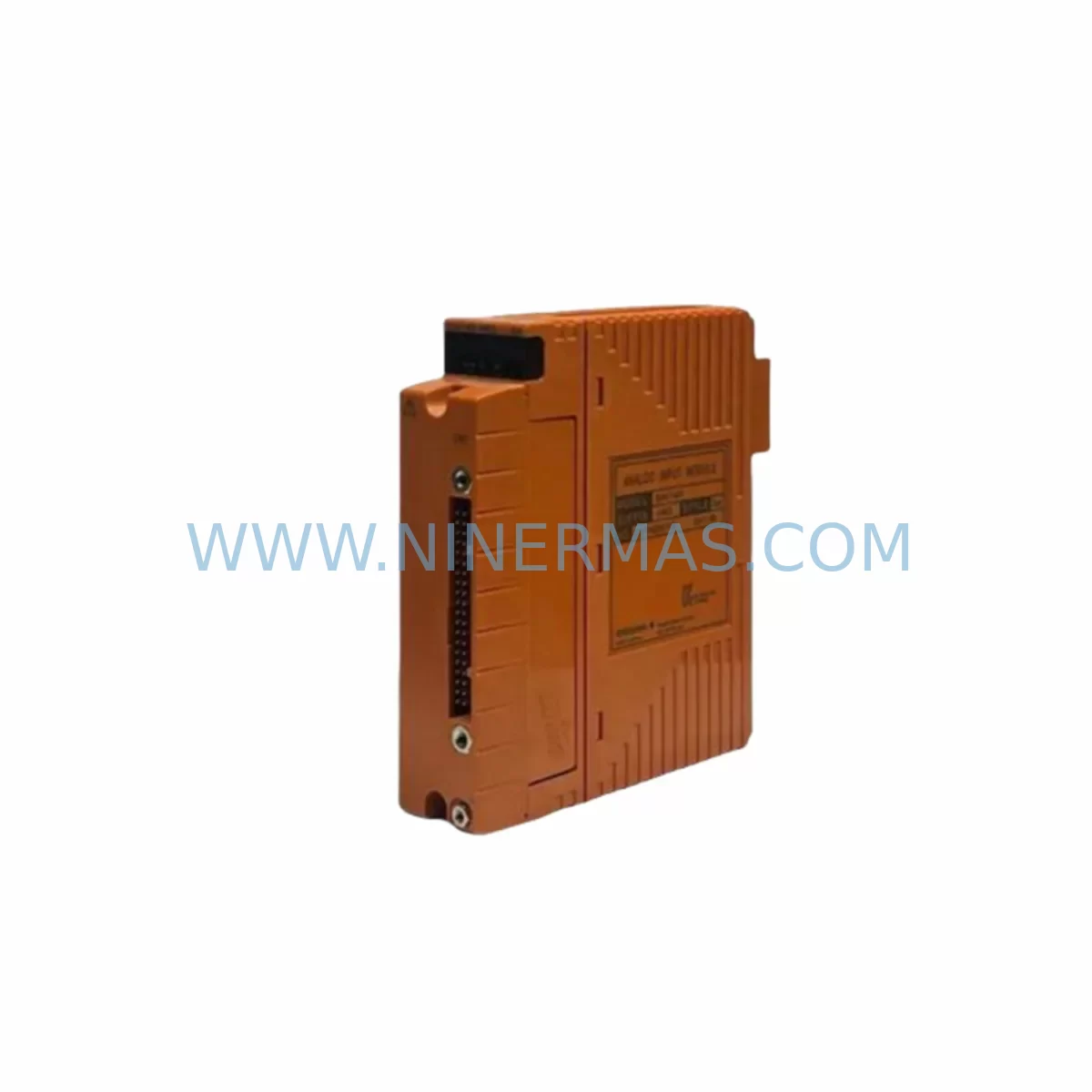

Yokogawa SAI143-H63/PRP S4 Safety Analog Input Module

Yokogawa SAI143-H63/PRP S4 Safety Analog Input Module: Reliable Control for Critical Industrial Sites

The Yokogawa SAI143-H63/PRP S4 is a ruggedized analog input module engineered for deployment in safety-critical and continuous-process industrial environments. Designed as part of Yokogawa’s CENTUM VP distributed control system (DCS) architecture, this module delivers high-integrity signal acquisition with built-in redundancy through its PRP (Parallel Redundancy Protocol) S4 configuration — ensuring uninterrupted data flow even under single-point failure conditions.

In industries where control loop integrity is non-negotiable — including petrochemical refining, power generation, mining, water treatment, metallurgy, and continuous manufacturing — the SAI143-H63/PRP S4 provides the signal stability and fault tolerance required to maintain safe, uninterrupted operations. Its ruggedized design addresses the most demanding field conditions: high electromagnetic interference (EMI), voltage surges, ambient temperature extremes, mechanical vibration, dust ingress, and high-humidity environments.

As a direct replacement spare part for aging CENTUM VP control cabinets, the SAI143-H63/PRP S4 supports lifecycle extension programs for critical infrastructure without requiring costly system-wide upgrades. Every unit supplied by NINERMAS undergoes pre-shipment functional testing and is backed by a 12-month warranty, giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the Yokogawa SAI143-H63/PRP S4 within a CENTUM VP control cabinet is a proven strategy for reducing unplanned downtime and mitigating signal-related failure modes. In high-stakes control architectures, analog input integrity is the foundation of every downstream control decision — from PID loop regulation to safety interlock activation.

In a well-engineered control cabinet, the SAI143-H63/PRP S4 works in concert with complementary Yokogawa CENTUM VP components. The SAO141 analog output module handles actuator command signals, while the SDV144 digital input/output module manages discrete interlock and status signals. Together, these modules form a tightly integrated I/O layer that minimizes signal latency and eliminates single points of failure across the control loop.

Power supply integrity is equally critical. The Yokogawa PW481 and PW482 redundant power supply units provide stable, conditioned DC power to the I/O bus, protecting sensitive analog circuits from voltage fluctuations and power surges that could cause signal drift or module lockup. In environments with unstable grid power — common in mining, port operations, and heavy manufacturing — redundant power architecture is not optional; it is a safety requirement.

For communication-layer protection, the PRP S4 network interface embedded in the SAI143-H63 ensures that control data continues to flow across the Vnet/IP communication backbone even if one network path is disrupted. This is particularly valuable in large-scale DCS installations where the ACG10S gateway and BCV1D bus coupler modules bridge field device networks to the supervisory control layer. Any communication anomaly at the I/O level — whether caused by cable degradation, connector corrosion, or EMI-induced packet loss — is transparently handled by the redundant path, preventing false trips or missed interlock signals.

In safety instrumented system (SIS) architectures, the SAI143-H63/PRP S4 is often paired with Yokogawa ProSafe-RS safety controllers and associated I/O modules to form a complete safety loop from sensor to final element. The analog input data acquired by the SAI143 feeds directly into safety logic solvers, where it is compared against defined safe operating limits. Accurate, drift-free signal acquisition — which the SAI143-H63’s ruggedized design ensures — is therefore a direct contributor to SIL (Safety Integrity Level) compliance and functional safety performance.

For field-level signal conditioning, the Yokogawa AXFA11G magnetic flowmeter transmitter and EJA110E differential pressure transmitter are representative field instruments whose 4–20 mA outputs are directly compatible with the SAI143-H63/PRP S4 input channels. Maintaining calibrated, interference-free signal paths between these transmitters and the DCS input module is essential for accurate process measurement and safe control response.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous refining operations, the SAI143-H63/PRP S4 supports real-time monitoring of temperature, pressure, and flow signals across distillation columns, heat exchangers, and reactor vessels. Its redundant PRP architecture ensures that critical process variables remain visible to the DCS even during network maintenance or partial infrastructure failure — a key requirement for maintaining safe operating envelopes in ATEX-classified zones.

Power Generation: Thermal and hydroelectric power plants rely on high-integrity analog input modules to monitor turbine parameters, boiler conditions, and generator outputs. The SAI143-H63/PRP S4’s surge-protected inputs and EMI-hardened design make it well-suited for the electrically noisy environments found in generator halls and switchgear rooms, where induced voltages and ground loops are persistent threats to signal accuracy.

Mining & Mineral Processing: In mining operations, control systems must withstand extreme vibration, dust, and temperature cycling. The ruggedized construction of the SAI143-H63/PRP S4 supports reliable analog signal acquisition from conveyor load cells, crusher motor current sensors, and flotation cell level transmitters — all in environments where module failure can halt production and create safety hazards for personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, uninterrupted monitoring of flow rates, chemical dosing levels, and tank levels. The SAI143-H63/PRP S4’s high-humidity tolerance and redundant communication path support reliable operation in pump stations and chemical dosing rooms where moisture ingress and corrosive atmospheres are common.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference that can corrupt analog signals and cause spurious control actions. The SAI143-H63/PRP S4’s EMI shielding and robust input protection circuits maintain signal integrity in these environments, supporting safe and precise control of high-energy processes.

Port & Marine Operations: Shipboard and port automation systems demand compact, vibration-resistant control hardware capable of operating in salt-air environments. The SAI143-H63/PRP S4’s ruggedized design and redundant network connectivity support reliable integration into vessel automation and cargo handling control systems where maintenance access is limited and reliability is paramount.
