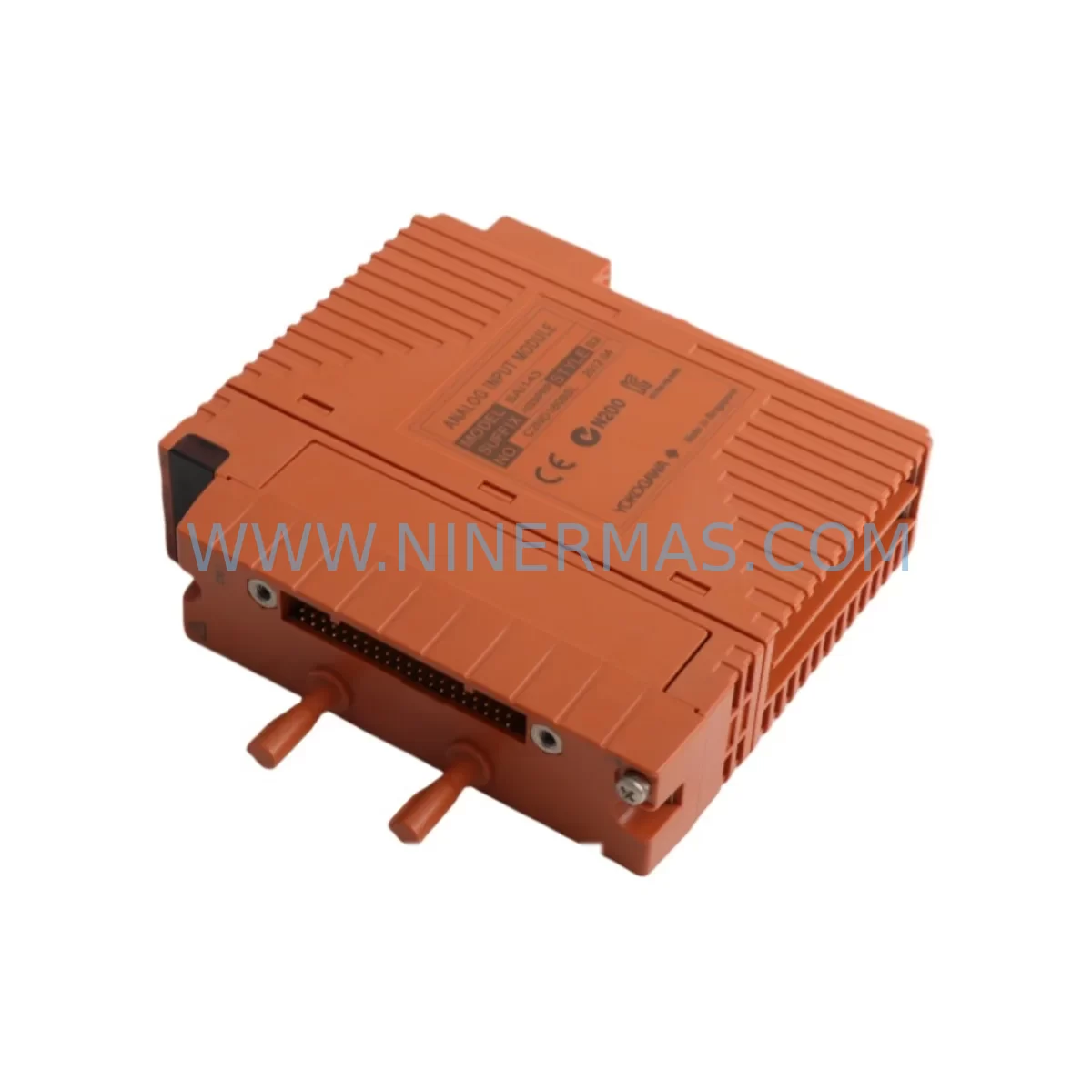

The YOKOGAWA SAI143-H33/PRP is a Safety Analog Input module designed for use within the ProSafe-RS Safety Instrumented System (SIS) and CENTUM VP Distributed Control System (DCS) platforms. As processing facilities extend the operational life of legacy control architectures, maintaining a verified stock of service-ready spare parts such as the SAI143-H33/PRP becomes a critical element of any maintenance strategy. Unplanned failure of a safety analog input module can trigger a full process shutdown, jeopardizing production continuity and regulatory compliance. Sourcing a pre-tested, original-specification replacement from a reliable supplier is the fastest path to restoring safe operation.

At NINERMAS, we supply the SAI143-H33/PRP as a service-ready spare — inspected, function-verified, and shipped with a 12-month warranty. Our inventory is maintained to support both emergency call-out scenarios and planned annual turnaround procurement. Whether you are a maintenance engineer responding to a fault alarm or a procurement engineer building a long-term spares program, we provide the documentation, compatibility confirmation, and lead-time certainty you need.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SAI143-H33/PRP fault is detected during a routine SIS proof test or triggered by a diagnostic alarm, the replacement workflow should not be limited to the module itself. A thorough site inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure the restored system meets its required Safety Integrity Level.

Maintenance engineers should simultaneously inspect the SAI143-H33 (non-PRP variant) if mixed redundancy configurations are in use, as well as the SAB143 analog input terminal assembly that interfaces directly with field wiring. The SCP401 or SCP451 safety controller processor cards governing the node should be checked for firmware currency and diagnostic health. If the cabinet houses a CENTUM VP FCS (Field Control Station), the associated AFV10D or AFV30D Vnet/IP communication modules should be verified for link integrity, as a degraded network path can mask upstream I/O faults.

Power distribution within the ProSafe-RS node unit relies on dedicated 24 VDC power supply modules — inspect these for output voltage stability and ripple, particularly in high-ambient-temperature environments. Terminal blocks and field wiring connectors on the SAB143 assembly should be torque-checked and inspected for corrosion, especially in offshore or humid process environments. If the process loop includes HART field transmitters, verify that the HART communication path is intact after module replacement, as some transmitter configurations require re-ranging or re-zeroing following a cold swap.

For facilities running extended SIS proof test intervals (up to 10 years under IEC 61511), maintaining a minimum of one SAI143-H33/PRP in on-site inventory — alongside a spare SCP401 processor, a set of SAB143 terminal assemblies, and at least one redundant power supply module — is strongly recommended. This spares kit approach ensures that any single-point failure within the safety node can be resolved within a single maintenance shift, avoiding the extended downtime associated with emergency international procurement.

Site Replacement Workflow

Replacing the SAI143-H33/PRP in a live ProSafe-RS environment requires adherence to the site’s Management of Change (MOC) procedure and the applicable YOKOGAWA installation and maintenance manual. The following workflow reflects best practice for minimizing downtime while maintaining SIS integrity:

1. Pre-Replacement Verification: Confirm the replacement SAI143-H33/PRP part number, firmware revision, and hardware revision match the installed module. NINERMAS provides a pre-shipment test report and revision confirmation with every unit. Verify that the PRP network configuration (primary and secondary Ethernet paths) is documented before removal.

2. Bypass and Isolation: Initiate the appropriate SIS bypass procedure via the ProSafe-RS engineering workstation (typically running YOKOGAWA ProSafe-RS R4.xx software). Place the affected safety function in bypass mode and notify the control room. Isolate the field loop at the marshalling cabinet if required by site procedure.

3. Module Removal and Installation: The SAI143-H33/PRP is a hot-swap capable module within the ProSafe-RS node unit. Remove the faulty module, insert the replacement, and allow the node to complete its automatic self-test sequence. Confirm that the module status LED returns to normal (green) and that no diagnostic alarms persist on the HIS (Human Interface Station) or CENTUM VP HMI.

4. Loop Verification and Bypass Release: Perform a loop check on all channels associated with the replaced module. Verify 4–20 mA signal integrity at the engineering workstation. Once all channels are confirmed healthy, release the SIS bypass and restore the safety function to its normal operating state. Update the site maintenance log and MOC record.

5. Post-Replacement Documentation: Record the replaced module’s serial number, installation date, and firmware revision in the site asset management system. Schedule the next proof test interval in accordance with the SIS safety requirements specification.

Spare Parts Support FAQ

Q1: Is the SAI143-H33/PRP you supply an original YOKOGAWA component?
Yes. NINERMAS supplies original YOKOGAWA SAI143-H33/PRP modules sourced from authorized channels and decommissioned plant inventories. Every unit undergoes pre-shipment functional testing, and a test report is provided with each shipment. We do not supply counterfeit, cloned, or reverse-engineered components.

Q2: What warranty coverage is provided, and what does it include?
All SAI143-H33/PRP units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. In the event of a warranty claim, we will provide a replacement unit or full refund, subject to inspection of the returned module. Warranty does not cover damage caused by incorrect installation, overvoltage, or physical impact.

Q3: Can you support long-term supply agreements for this module?
Yes. NINERMAS offers long-term spare parts supply programs for the SAI143-H33/PRP and related ProSafe-RS / CENTUM VP components. We can reserve inventory against a blanket purchase order, provide scheduled delivery across multiple fiscal years, and issue advance notification if stock availability changes. Contact our team to discuss a tailored supply agreement for your facility’s maintenance schedule.

Q4: How do I confirm compatibility before placing an order?
Provide your ProSafe-RS node unit model, existing module hardware revision, and firmware version currently running on your SCP processor. NINERMAS will confirm compatibility in writing before shipment. We also recommend cross-referencing the YOKOGAWA SAI143-H33/PRP installation manual (IM 32Q06B10-31E) for hardware revision compatibility notes. If you are replacing an older SAI143-H33 (non-PRP) variant, we can advise on the configuration changes required to enable PRP redundancy.
