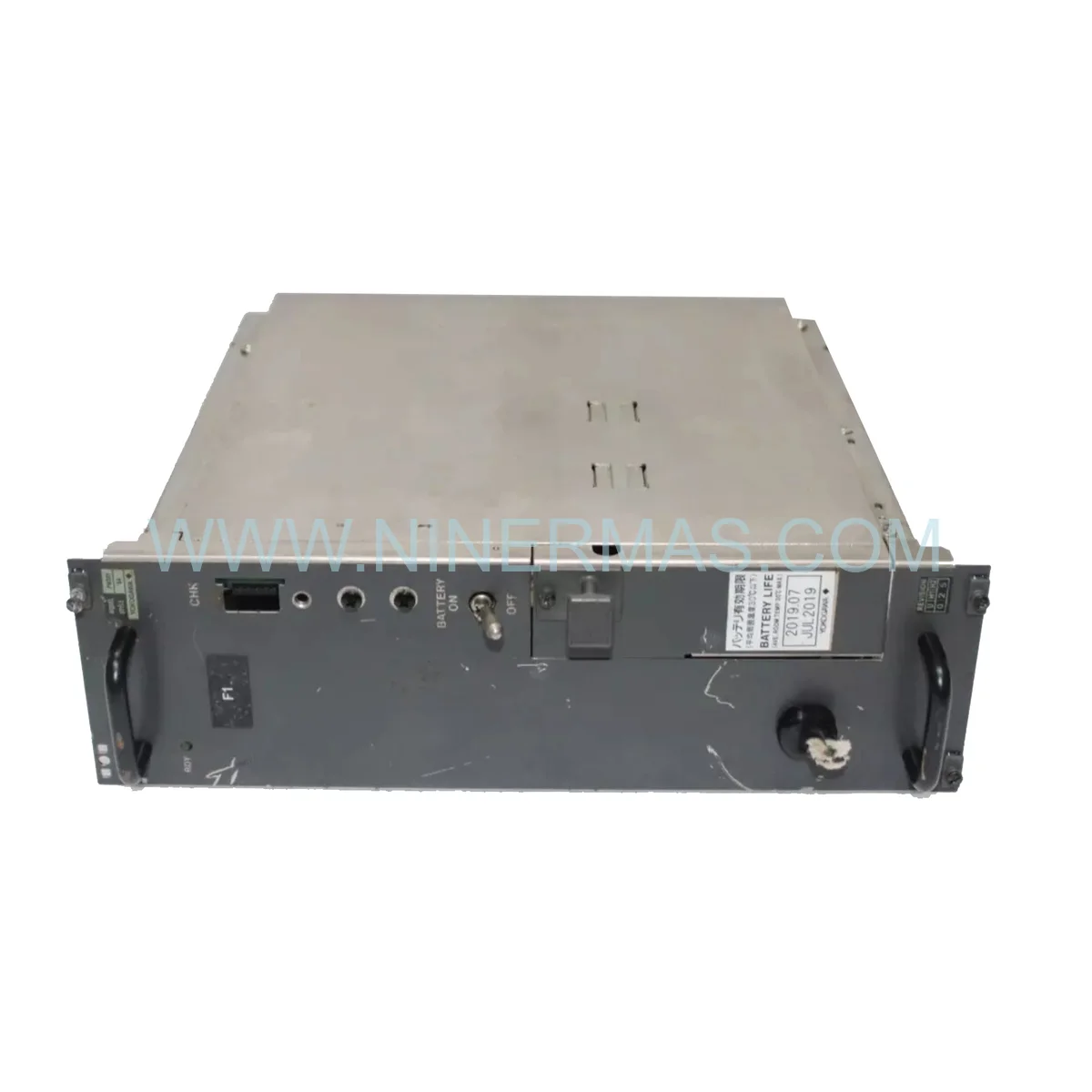

Yokogawa PW301 S4 Power Supply Module (Yokogawa) – New & Original in Stock

Yokogawa PW301 S4 Power Supply Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Yokogawa PW301 S4 stands as a cornerstone component in sustaining system availability across distributed control architectures. Deployed within CENTUM VP and CS 3000 DCS platforms, the PW301 S4 delivers regulated 24V DC output with the consistency demanded by mission-critical automation environments — where even milliseconds of power instability can cascade into unplanned shutdowns and significant production losses. Its role in process optimization is not merely functional; it is foundational to Operational Excellence across oil & gas, chemical, and pharmaceutical sectors.

In harsh industrial environments characterized by wide ambient temperature swings, vibration, and electromagnetic interference, the PW301 S4 demonstrates exceptional durability. Installation engineers should note that proper DIN-rail torque specifications and grounding continuity are essential during commissioning to preserve the module’s protection circuitry integrity. Adequate ventilation clearance — minimum 50mm on all sides — must be maintained to ensure thermal performance within rated parameters. These installation disciplines directly translate into extended service intervals and reduced corrective maintenance events.

For maintenance planners and procurement teams, maintaining a dedicated inventory of the PW301 S4 as a critical spare is a non-negotiable element of any robust asset management strategy. As Yokogawa’s installed base ages across global facilities, the availability of new and original PW301 S4 units becomes increasingly strategic — particularly for sites operating legacy CENTUM systems where system integration continuity is paramount and full platform migration is not yet feasible.

Key Operational Features

Regulated 24V DC Output — Stable voltage delivery under variable load conditions, protecting downstream I/O Modules and field instrumentation.
Wide AC Input Range (100-240V AC, 50/60Hz) — Auto-sensing input accommodates global grid variations without manual reconfiguration.
High Availability Design — Supports redundant power configurations for N+1 architectures, eliminating single points of failure in mission-critical loops.
Seamless Integration — Plug-compatible with Yokogawa CENTUM VP, CS 3000, and associated I/O Modules without firmware modification.
Comprehensive Protection Suite — Overvoltage, overcurrent, short-circuit, and thermal shutdown safeguards ensure system integrity under fault conditions.
Diagnostic LED Indicators — Real-time visual status for rapid fault isolation, minimizing mean time to repair (MTTR) during field interventions.

Maintenance & Performance Benchmarks

The PW301 S4 is engineered to adapt across diverse industrial network architectures — from compact skid-mounted control panels to large-scale multi-cabinet DCS installations spanning thousands of I/O points. Its MTBF rating exceeding 100,000 hours at 25°C ambient positions it as a long-lifecycle component suitable for facilities operating on 5-10 year maintenance cycles.

In redundant power topologies, dual PW301 S4 units operating in parallel load-sharing configurations provide seamless failover without process interruption — a critical requirement for continuous operations in refining, LNG, and specialty chemical plants. For facilities undergoing phased modernization, the module’s backward compatibility with legacy Yokogawa backplane architectures enables incremental system upgrades while preserving existing field wiring investments.

Preventive maintenance intervals for the PW301 S4 typically align with annual plant turnarounds. Recommended checks include output voltage verification under full load, terminal torque re-inspection, and visual inspection of capacitor condition. Proactive replacement at the 80,000-hour mark is advised for facilities with zero-tolerance downtime policies — a practice consistent with Operational Excellence frameworks adopted by leading process industries worldwide.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Yokogawa PW301 S4 unit dispatched from our facility ships in Original Factory Packaging, complete with manufacturer documentation, traceability certificates, and anti-static protective materials — preserving component integrity from warehouse to installation point. For time-sensitive plant turnarounds or emergency breakdowns, same-day dispatch is available for in-stock units confirmed before the daily cut-off time.

Our global supply network is specifically structured to support End-of-Life (EOL) and Legacy Module procurement — a critical capability for facilities maintaining aging CENTUM CS and CS 3000 platforms where OEM supply channels have been discontinued. Through established relationships with authorized Yokogawa distributors and certified secondary market sources, we maintain verified stock of the PW301 S4 to support worldwide express logistics to over 150 countries.

All units undergo pre-shipment functional verification and are accompanied by inspection reports upon request. Lead time for standard orders: 3-5 business days worldwide. Expedited freight options (DHL Express, FedEx Priority) are available for mission-critical procurement scenarios.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the PW301 S4 in a CENTUM VP cabinet?
Mount the module on a grounded DIN rail with minimum 50mm clearance on all sides. Connect AC input to the designated terminal block per Yokogawa wiring diagram IM 33J01B30-01E. Verify output voltage (24V DC ±2%) under no-load before connecting downstream I/O Modules. Secure all terminal screws to specified torque (0.5-0.6 Nm) to prevent intermittent contact faults.

Q2: Is the PW301 S4 compatible with both CENTUM CS 3000 and CENTUM VP systems?
Yes. The PW301 S4 is designed for cross-platform compatibility within the Yokogawa CENTUM family, including CS 3000 R3 and CENTUM VP R5/R6 environments. No firmware modification is required for integration — the module is recognized automatically upon installation within compatible power supply slots.

Q3: What firmware or software versions are relevant to PW301 S4 operation?
The PW301 S4 is a hardware power supply module and does not carry embedded firmware. System-level firmware compatibility is governed by the CENTUM VP or CS 3000 platform version. Consult Yokogawa’s system release notes for your specific DCS revision to confirm power budget allocations when adding modules to existing racks.

Q4: How does the redundancy configuration work with dual PW301 S4 units?
In N+1 redundant configurations, two PW301 S4 modules are installed in parallel within the power supply chassis. Load sharing is automatic; upon failure of one unit, the second assumes full load without interruption. Yokogawa’s power supply bus architecture supports hot-swap replacement of the failed unit during live operation, eliminating the need for process shutdown during corrective maintenance.

Q5: What is the warranty coverage and claim process for the PW301 S4?
All PW301 S4 units supplied by us carry a 12-month comprehensive warranty covering manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the unit serial number, purchase order reference, and a description of the observed fault. Replacement units are dispatched within 5 business days of claim verification, with return freight covered for confirmed warranty cases.

Q6: Can the PW301 S4 be used in hazardous area (Ex-zone) installations?
The PW301 S4 is rated for standard industrial environments (Pollution Degree 2, Installation Category II). For hazardous area applications requiring ATEX or IECEx certification, the module must be installed within a certified enclosure providing the appropriate zone protection. Consult Yokogawa’s hazardous area installation guidelines and local regulatory requirements before deployment in classified locations.
