Yokogawa EJA110E-JMS Service-Ready Spare Part for Industrial Maintenance

Yokogawa EJA110E-JMS Service-Ready Spare Part for Industrial Maintenance

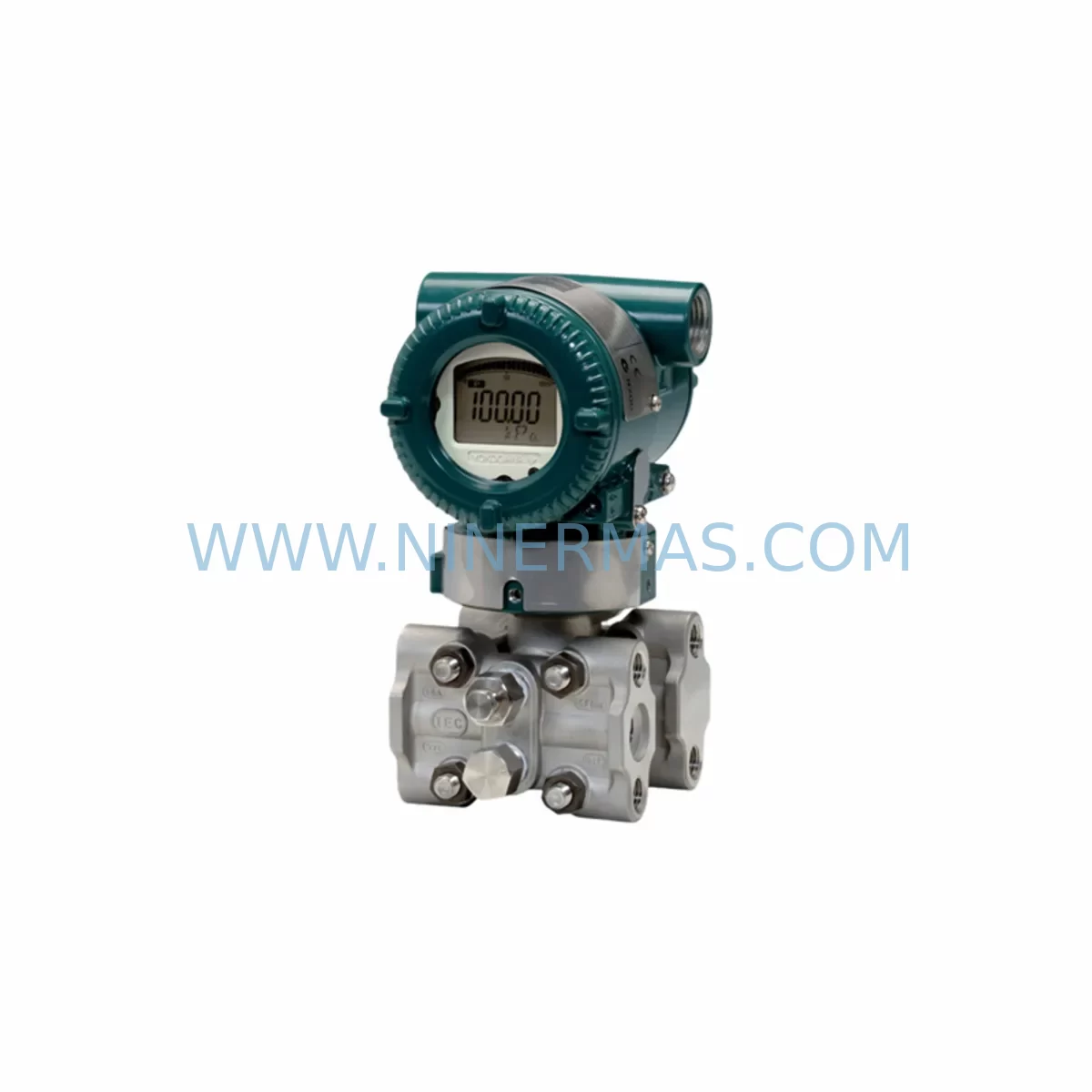

The Yokogawa EJA110E-JMS is a high-accuracy differential pressure transmitter from Yokogawa’s proven EJA-E series, engineered for continuous process measurement in demanding industrial environments. As a service-ready spare part, the EJA110E-JMS is stocked and tested to support rapid field replacement, minimising unplanned downtime across refinery, chemical, power generation, and water treatment facilities. Whether you are executing a scheduled annual shutdown, responding to an emergency fault isolation, or building a strategic spare parts inventory for a legacy DCS or PLC system, the EJA110E-JMS delivers the original performance specification your process demands.

Sourced as an original Yokogawa component, the EJA110E-JMS maintains full compatibility with HART communication protocol and 4–20 mA analogue output loops, making it a direct drop-in replacement for ageing EJA110A and EJA110E variants already installed in your control cabinet or field junction box. Every unit shipped by NINERMAS undergoes pre-shipment functional verification and is covered by a 12-month warranty, giving procurement engineers the confidence to commit to long-term spare parts programmes without quality risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a failing or drifted EJA110E-JMS during a routine control cabinet inspection or process loop audit, the replacement scope rarely ends at the transmitter itself. A comprehensive site replacement workflow should include a parallel review of all components sharing the same measurement loop and power rail to prevent repeat call-outs and ensure the restored loop meets its original design intent.

Begin by verifying the 24 V DC field instrument power supply feeding the 4–20 mA loop — a degraded power supply with excessive ripple or voltage sag is a common root cause of transmitter drift that is misdiagnosed as a sensor fault. Yokogawa’s own EJX110A and EJA430E transmitters installed on adjacent measurement points in the same process unit should be inspected for similar drift patterns, as shared process conditions or a common manifold block failure can affect multiple instruments simultaneously.

Check the two-valve or five-valve manifold connected to the EJA110E-JMS for seat wear, valve packing leaks, or blocked impulse lines — a blocked low-pressure leg is the most frequent cause of false high-differential readings. Inspect the field junction box terminal blocks and cable glands for moisture ingress, especially in outdoor or coastal installations where IP67 integrity may have been compromised by repeated maintenance access.

At the control cabinet level, verify the HART multiplexer or field device coupler used for remote configuration and diagnostics. If the site uses a Yokogawa CENTUM VP DCS or ProSafe-RS safety controller, confirm that the AI (analogue input) card channel assigned to this loop — such as an AAI141 or AAI543 I/O module — is reading correctly after the transmitter swap and that the HART tag address is re-commissioned. For sites running a third-party PLC, ensure the 4–20 mA input card and its associated signal isolator or barrier (particularly Zener barriers in Zone 1 hazardous areas) are within calibration and show no signs of thermal stress.

Spare parts procurement engineers should also consider stocking the EJA110E-JMS capsule assembly as a sub-component spare, alongside O-ring seal kits and process flange gaskets matched to the installed process connection. For facilities with a large installed base of EJA-series transmitters, a standing blanket order covering the EJA110E-JMS alongside related models such as the EJA118E (for remote diaphragm seal applications) and EJA120E (for low differential pressure measurement) provides cost-effective inventory coverage without overstocking any single model.

Site Replacement Workflow

Step 1 — Isolation and de-pressurisation: Close the high-pressure and low-pressure isolation valves on the five-valve manifold. Open the equalising valve to balance pressure across the transmitter before disconnecting process connections. Follow site lock-out/tag-out (LOTO) procedures.

Step 2 — Electrical isolation: Isolate the 24 V DC loop power at the field junction box or marshalling cabinet. Record the existing HART tag, range settings, and damping values using a HART communicator (e.g., Yokogawa YHC5150X or equivalent) before disconnecting field wiring.

Step 3 — Physical removal: Disconnect the two-wire field cable from the transmitter terminal block. Remove the transmitter from the process flange or pipe bracket. Inspect the process flange face and replace gaskets as standard practice — never reuse compressed gaskets on a pressure boundary.

Step 4 — Installation of EJA110E-JMS replacement unit: Mount the new unit using the original bracket or flange hardware. Reconnect field wiring observing polarity. Torque process flange bolts to the manufacturer’s specification. Restore loop power and confirm a stable 4 mA (zero) output before opening process isolation valves.

Step 5 — Recommissioning: Using a HART communicator or the DCS/PLC engineering workstation, restore the saved tag name, engineering units, range (LRV/URV), and damping settings. Perform a zero trim with equalising valve open and both process valves closed. Open process valves in sequence (high side first) and verify the live reading against an independent reference or process historian trend.

Step 6 — Documentation: Update the instrument maintenance record, calibration certificate, and spare parts consumption log. Replenish the EJA110E-JMS stock to the defined minimum holding level to maintain site readiness for the next replacement cycle.

Spare Parts Support FAQ

Q1: Is the EJA110E-JMS a direct replacement for the older EJA110A-JMS already installed on site?
Yes. The EJA110E-JMS is the current-generation successor to the EJA110A series and is dimensionally and electrically compatible for direct field replacement. The process flange bolt pattern, 2-inch pipe bracket, and 4–20 mA / HART wiring interface are unchanged. You may need to re-enter configuration parameters (range, tag, damping) via HART communicator after installation, as the new unit ships with factory default settings.

Q2: How does NINERMAS verify the EJA110E-JMS before shipment?
Every EJA110E-JMS unit undergoes a pre-shipment functional check covering loop output verification at 4 mA and 20 mA, HART communication handshake, and physical inspection of process connections, terminal block, and enclosure integrity. Units that do not pass are quarantined and not dispatched. A test report is available upon request for quality-critical procurement programmes. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can NINERMAS support a long-term supply agreement for the EJA110E-JMS across multiple plant sites?
Yes. NINERMAS specialises in long-term spare parts programmes for industrial automation components, including legacy and current-production Yokogawa instruments. We can establish a standing supply agreement with agreed lead times, minimum stock commitments, and consolidated shipment schedules to reduce per-unit procurement cost and administrative overhead for multi-site operations. Contact our team to discuss volume pricing and programme terms.

Q4: What should I do if the EJA110E-JMS SKU suffix does not exactly match my installed unit?
The suffix codes on Yokogawa EJA transmitters encode options such as process connection type, wetted material, output signal variant, and approvals (e.g., ATEX, IECEx, FM). If your installed unit carries a different suffix, contact NINERMAS with the full nameplate model number before ordering. Our technical team will confirm compatibility or identify the correct replacement model to ensure a like-for-like substitution that preserves your hazardous area certification and process integrity.
