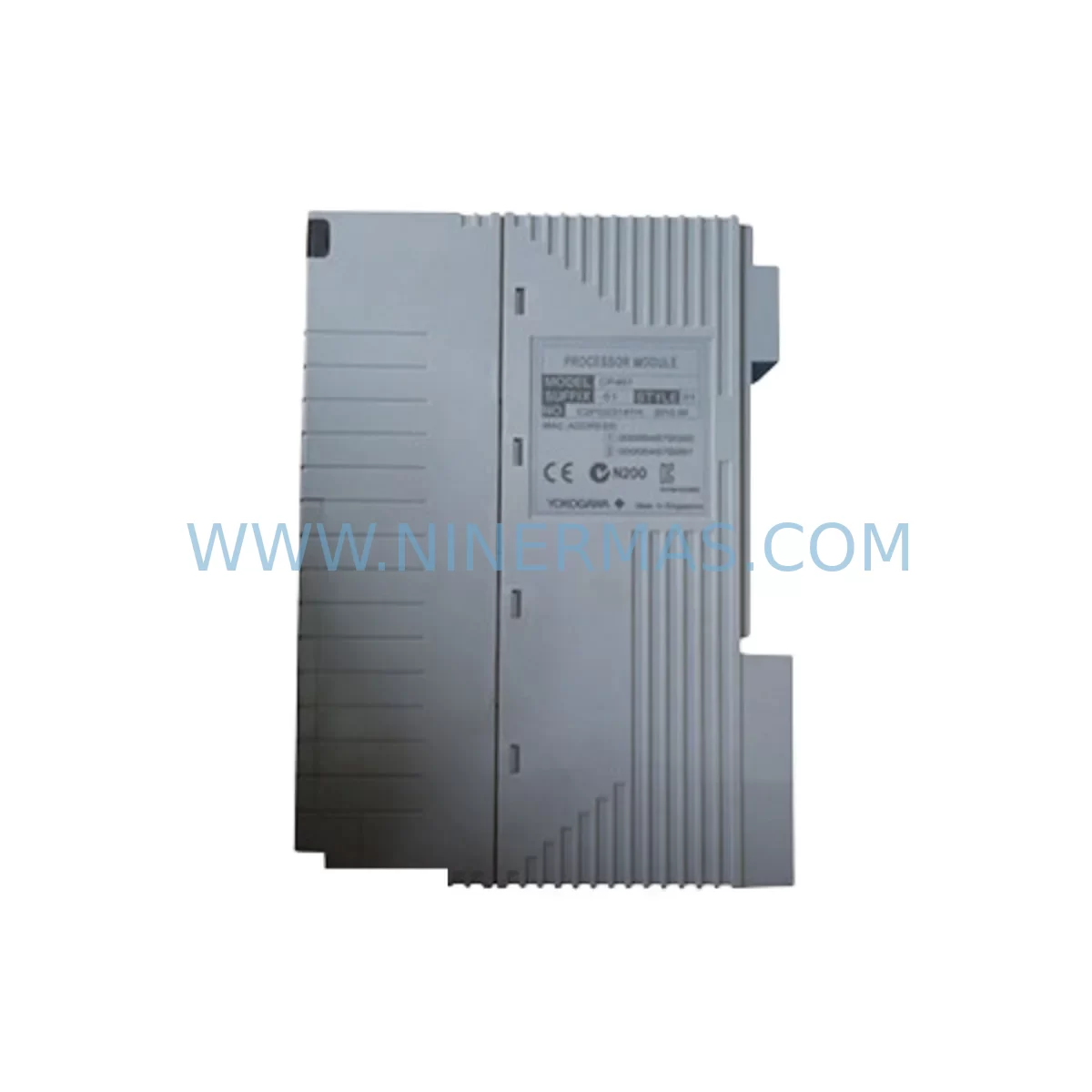

The Yokogawa CP461-11-S1 is a CPU module designed for the CENTUM series Distributed Control System (DCS), widely deployed across oil and gas, petrochemical, power generation, and continuous process manufacturing facilities. As a critical controller node within the CENTUM CS 3000 and CENTUM VP platform architecture, the CP461-11-S1 manages real-time process control execution, I/O scanning, and inter-node communication across the V-net/IP control network. When this module reaches end-of-service life or fails unexpectedly, the impact on production continuity is immediate and severe. Maintaining a verified spare unit in your on-site inventory is the most effective strategy for minimizing unplanned downtime and protecting process integrity.

Ninermas supplies the CP461-11-S1 as a service-ready spare part, sourced from authorized channels and subject to pre-shipment functional testing. Each unit is backed by a 12-month warranty and ships with full traceability documentation. Whether you are building a preventive maintenance stock, responding to an emergency fault, or planning a scheduled annual overhaul, our inventory team can confirm availability and lead time within one business day.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a CENTUM DCS installation requires a holistic view of the Field Control Station (FCS) architecture. The CP461-11-S1 CPU module does not operate in isolation — it depends on a tightly integrated set of components that must all be evaluated during any scheduled inspection or emergency replacement event.

The power supply module, typically a PW481-11-S1 or PW482-11-S1, feeds the backplane nest and must be verified for output voltage stability before a new CPU module is installed. A degraded power supply is a common root cause of intermittent CPU faults and should always be tested in parallel with any CPU replacement. Similarly, the NB series backplane nest itself should be inspected for connector wear, corrosion, and secure seating of all modules.

I/O modules connected to the FCS — including the AAI141-S00 analog input module, AAI543-S50 analog output module, and ADV151-P00 digital input module — should be confirmed as fault-free before returning the FCS to service. A CPU replacement that reveals underlying I/O faults will extend the recovery window unnecessarily. Maintenance engineers should use the CENTUM VP HIS (Human Interface Station) to run a full I/O diagnostic scan after the CPU module is reseated and the FCS has completed its self-test sequence.

Communication continuity across the V-net/IP control bus must also be validated. The ESB bus coupler and any ALE111 Ethernet communication modules in the cabinet should be checked for link status and packet error rates. If the plant uses a dual-redundant FCS configuration, the redundant CPU module — often a CP461-11-S1 paired unit — should be inspected at the same time to ensure the redundancy switchover mechanism is fully operational.

For facilities running legacy CENTUM CS 3000 installations, the SB401 serial communication module and RP series remote I/O panels may also be part of the control loop. These components should be included in the annual inspection checklist alongside the CPU module to prevent cascading failures during high-demand production periods. Terminal block assemblies and field wiring connections at the I/O marshalling cabinet should be torque-checked and visually inspected for insulation degradation, particularly in high-temperature or high-humidity environments.

Site Replacement Workflow

Replacing the CP461-11-S1 in a live CENTUM DCS environment requires careful sequencing to protect process continuity and avoid data loss. The following workflow reflects best practices for maintenance engineers performing a hot-swap or planned shutdown replacement.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s firmware version matches or is compatible with the existing FCS configuration. Use the CENTUM VP Engineering Environment (ENG) to export the current FCS parameter set and store it on the engineering workstation before any hardware change.

Step 2 — Redundancy Check: If the FCS is configured in dual-redundant mode, verify that the standby CPU is online and healthy. Initiate a manual switchover to the standby unit before removing the primary CP461-11-S1 to ensure zero-impact replacement.

Step 3 — Module Removal: Power down the target FCS nest if a hot-swap is not supported by the installed firmware version. Remove the CP461-11-S1 by releasing the front-panel locking lever and sliding the module out of the backplane slot. Avoid touching the backplane connector pins.

Step 4 — Installation and Boot: Insert the replacement CP461-11-S1 firmly into the backplane slot until the locking lever engages. Apply power and observe the module status LEDs. A normal boot sequence will show the RUN LED steady green within 60–90 seconds.

Step 5 — Configuration Restore and Validation: Download the saved FCS parameter set from the engineering workstation. Run a full I/O scan and verify all process values are within expected ranges on the HIS operator station. Confirm V-net/IP communication link status and check the system alarm log for any residual fault codes before returning the FCS to automatic control mode.

Step 6 — Documentation: Record the replacement event in the plant maintenance management system (CMMS), including the removed module’s serial number, the replacement unit’s serial number, and the date of installation. Update the spare parts inventory register accordingly.

Spare Parts Support FAQ

Q1: Is the CP461-11-S1 still available as a new original spare part?
A: Yes. Ninermas maintains stock of the CP461-11-S1 sourced from authorized Yokogawa distribution channels. Each unit is verified for authenticity and tested prior to shipment. Contact our sales team to confirm current inventory levels and lead time for your region.

Q2: Can the CP461-11-S1 be used as a direct replacement in both CENTUM CS 3000 and CENTUM VP systems?
A: The CP461-11-S1 is designed for the CENTUM FCS platform and is compatible with both CS 3000 and CENTUM VP architectures when installed in the correct NB series backplane nest. Firmware version alignment should be confirmed via the CENTUM VP Engineering Environment before installation. Our technical team can assist with compatibility verification based on your system revision.

Q3: What pre-shipment testing does Ninermas perform on the CP461-11-S1?
A: Every CP461-11-S1 unit shipped by Ninermas undergoes a functional power-on test and V-net/IP communication link verification. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What warranty and long-term supply commitment does Ninermas offer?
A: All CP461-11-S1 units supplied by Ninermas carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For facilities requiring long-term supply assurance, Ninermas offers blanket order arrangements and reserved stock programs to guarantee availability across multi-year maintenance cycles.
