Yokogawa AAT145-S50 S1 Service-Ready Spare Part

Yokogawa AAT145-S50 S1 Service-Ready Spare Part for Industrial Maintenance

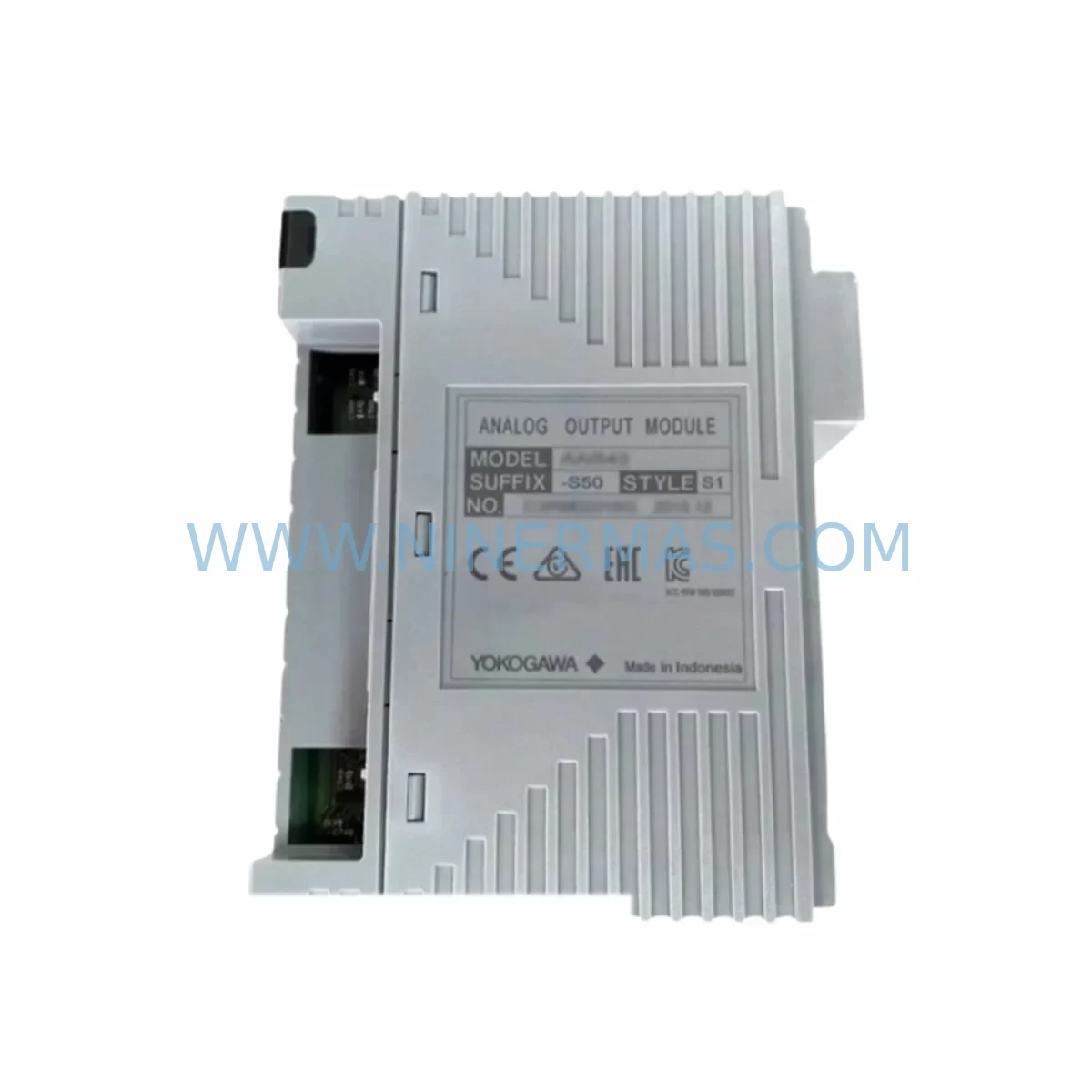

The Yokogawa AAT145-S50 S1 is a field-proven process control module designed for deployment within the CENTUM VP Distributed Control System (DCS) platform. As a service-ready spare part sourced and pre-shipment tested by NINERMAS, this unit is positioned to support maintenance engineers and procurement teams managing critical process automation infrastructure across refining, petrochemical, power generation, and continuous manufacturing environments.

Unplanned downtime caused by module failure in a CENTUM VP control cabinet can cascade rapidly across process loops, triggering alarm floods, interlock activations, and production losses that far exceed the cost of maintaining a qualified spare inventory. The AAT145-S50 S1 addresses this risk directly — providing a drop-in replacement that preserves system configuration integrity, I/O mapping, and communication continuity without requiring engineering rework or firmware re-commissioning in most standard deployment scenarios.

NINERMAS maintains long-term supply commitments for Yokogawa CENTUM VP series components, including modules that have reached end-of-active-production status. This ensures that facilities operating legacy DCS infrastructure can continue to source qualified spares without migrating to newer hardware generations ahead of their planned lifecycle schedule.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a CENTUM VP control system requires a holistic view of the control cabinet ecosystem. When scheduling replacement of the AAT145-S50 S1, maintenance engineers should simultaneously inspect and — where appropriate — stock spares for the following interconnected components to prevent secondary failures during or after the primary replacement event.

The Yokogawa PW481 and PW482 power supply modules are the primary DC power sources feeding CENTUM VP field control stations. A degraded power supply can cause intermittent module resets that mimic process faults, making it critical to verify power rail stability before and after any module swap. Similarly, the Yokogawa ACM12 communication module governs Vnet/IP traffic between field control stations and the HIS (Human Interface Station); a failing ACM12 can isolate an otherwise functional AAT145-S50 S1 from the control network entirely.

I/O integrity is equally important. The AAI141 and AAI143 analog input modules feeding process variable signals into the control loop should be verified for calibration drift and terminal block integrity. Loose or corroded terminal blocks on TB series wiring units are a common source of signal noise that can trigger false alarms and mask genuine process deviations. Inspect and torque all field wiring terminations during the same maintenance window.

For facilities running advanced alarm management or safety-instrumented functions alongside the CENTUM VP, the Yokogawa AAB841 bus interface module and any installed ALR111 alarm relay output modules should be included in the inspection checklist. These components interact directly with the alarm management layer that the AAT145-S50 S1 supports, and a degraded relay output can prevent alarm annunciation from reaching field devices or DCS operator stations.

Where signal isolation is required between field instruments and the DCS I/O cards, Yokogawa-compatible signal isolators and barriers (such as those in the JUXTA series) should be checked for output drift. Additionally, the CENTUM VP ESB bus coupler connecting remote I/O nodes should be inspected for communication error counts, as elevated error rates indicate impending hardware degradation that can affect module performance across the entire node.

Finally, for sites maintaining older CENTUM VP revisions, the Yokogawa HIS workstation software version and the FCS (Field Control Station) firmware should be confirmed compatible with the replacement module revision level before installation to avoid configuration mismatch errors during system restart.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the installed module part number and revision suffix (S1) against the CENTUM VP engineering drawing and the spare unit label. Verify that the replacement AAT145-S50 S1 carries the same hardware revision to ensure firmware and configuration compatibility. Document the current module status via the CENTUM VP engineering tool (CENTUM VP Builder) before removal.

Step 2 — System State Assessment: Determine whether the control loop can be placed in manual mode or whether a hot-swap procedure is permissible under the site’s management of change (MOC) protocol. For critical process loops, coordinate with the control room operator to transfer loop control to manual or backup before proceeding.

Step 3 — Module Removal: Follow the CENTUM VP hardware maintenance manual for safe module extraction. Discharge any static buildup using an ESD wrist strap. Label all field wiring and I/O terminations before disconnection if the replacement requires rewiring.

Step 4 — Replacement Installation: Insert the AAT145-S50 S1 into the designated slot. Secure the module latch and reconnect all field wiring per the original termination schedule. Power on the field control station and confirm module recognition in the CENTUM VP system status display.

Step 5 — Post-Replacement Validation: Verify all process variable readings against field instrument outputs. Confirm alarm setpoints are active and annunciating correctly. Run a loop check on all I/O channels associated with the replaced module before returning the loop to automatic control.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the replacement date, module serial number, and post-replacement test results. Log the removed module condition for root cause analysis and warranty claim processing if applicable.

Spare Parts Support FAQ

Q1: Is the AAT145-S50 S1 still available as a new original part, or is it a refurbished unit?
NINERMAS sources both original new-old-stock (NOS) and professionally refurbished-to-specification units depending on current inventory. The condition of the specific unit available for your order will be confirmed at the time of quotation. All units — regardless of condition classification — undergo functional power-on and communication verification testing prior to shipment, and are covered by a 12-month warranty from the date of dispatch.

Q2: How do I confirm compatibility between the AAT145-S50 S1 and my installed CENTUM VP system revision?
Compatibility is primarily determined by the CENTUM VP hardware generation (VP R4, R5, R6) and the FCS firmware version running on your field control station. Provide your system’s engineering drawing reference, FCS model number, and current firmware revision when placing your inquiry, and our technical team will confirm compatibility before order confirmation. The S1 suffix denotes a specific hardware revision that should be matched to the installed system configuration.

Q3: What is NINERMAS’s long-term supply commitment for discontinued Yokogawa CENTUM VP modules?
NINERMAS operates a long-term spare parts program specifically targeting DCS and PLC modules that have reached end-of-active-production status with the original manufacturer. For the CENTUM VP series, we maintain strategic stock commitments and source from qualified secondary market channels to support facilities that are not yet ready to migrate to newer hardware platforms. Customers can request a standing purchase agreement or annual blanket order to secure priority allocation of critical spares including the AAT145-S50 S1.

Q4: What documentation is provided with the shipped unit?
Each shipment includes a packing list with the part number, serial number (where available), and condition classification. A test report confirming pre-shipment functional verification is included. A certificate of conformance is available upon request. Warranty terms (12 months from shipment date) are documented on the commercial invoice. For units requiring customs clearance, a commercial invoice with HS code and country of origin declaration is provided as standard.

—
