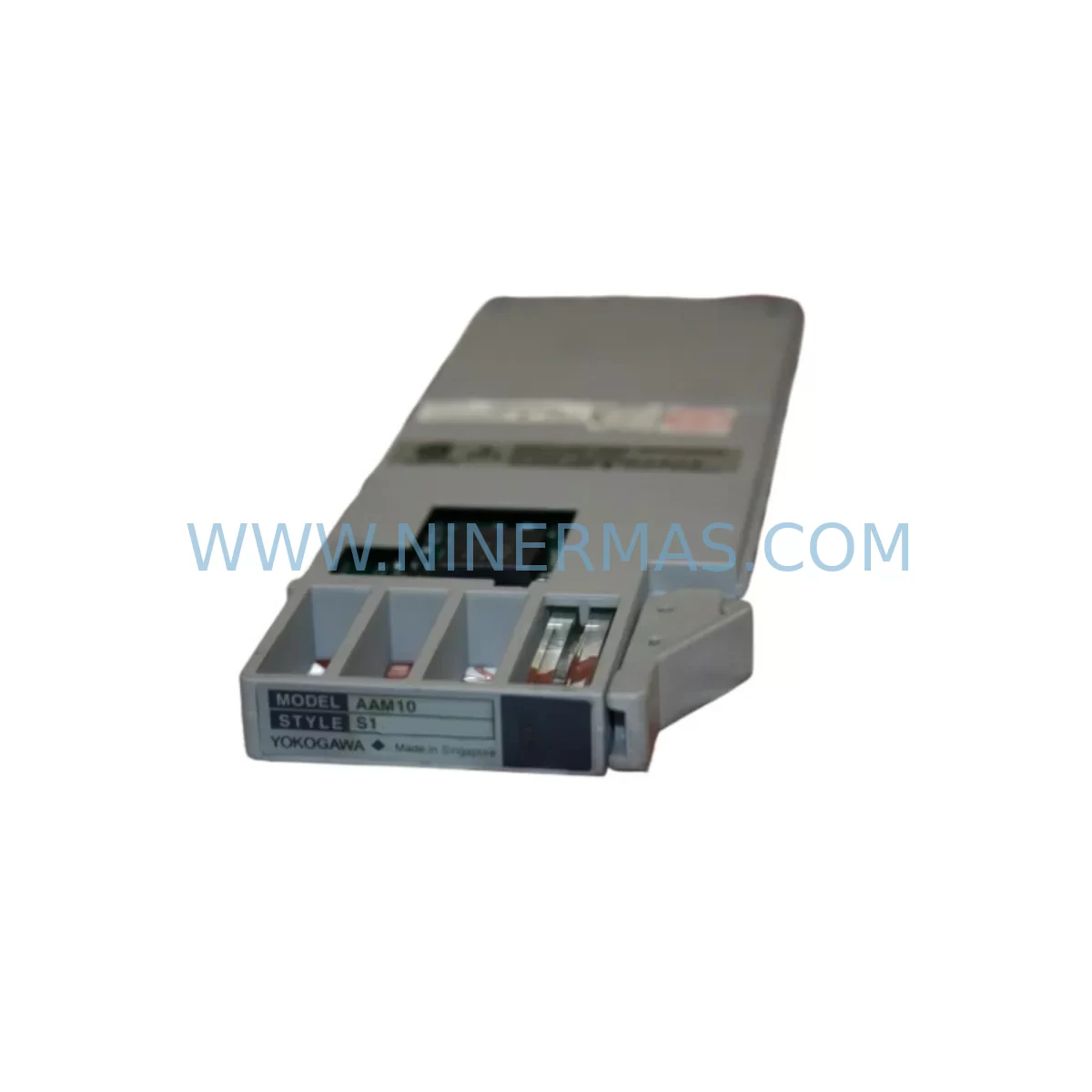

YOKOGAWA AAM10 Safety-Reliable Current Voltage Input Module

YOKOGAWA AAM10 Safety-Reliable Current Voltage Input Module for Critical Control Sites

The YOKOGAWA AAM10 is a high-precision analog input module engineered for mission-critical industrial control environments where signal integrity, operational continuity, and safety reliability are non-negotiable. Designed as a core component within the YOKOGAWA CENTUM distributed control system (DCS) platform, the AAM10 accepts both current (4–20 mA) and voltage (1–5 V DC) input signals, making it a versatile and dependable choice for process measurement across a wide range of field instruments.

In continuous production facilities — including petrochemical refineries, power generation plants, metallurgical smelters, and water treatment stations — the AAM10 plays a pivotal role in maintaining accurate process variable acquisition. Its robust signal conditioning circuitry minimizes the risk of signal drift caused by temperature fluctuations, ground loops, or electromagnetic interference (EMI) from adjacent variable frequency drives, high-voltage switchgear, or heavy motor loads. This makes it especially well-suited for deployment in control cabinets located near high-EMI sources, where lesser modules may introduce measurement errors that cascade into process upsets or safety interlock activations.

The AAM10 is built to operate reliably in harsh industrial environments characterized by elevated ambient temperatures, mechanical vibration, humidity, and airborne particulates. Its sealed construction and conformal-coated PCB provide protection against moisture ingress and conductive dust accumulation — common failure modes in mining, port, and shipboard control applications. When installed alongside YOKOGAWA’s AAI141-S00 multi-channel analog input modules and AAI543-S00 analog I/O modules within the same CENTUM VP field control station (FCS), the AAM10 contributes to a fully redundant, fault-tolerant I/O architecture that supports continuous process operation even under single-point failure conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the YOKOGAWA AAM10 within a well-engineered control cabinet architecture significantly reduces the risk of unplanned shutdowns and safety interlock failures. In a typical CENTUM VP field control station, the AAM10 occupies a slot within the ANB10D or ANB11D node unit, sharing the backplane with other I/O modules such as the AAI141-S00 analog input module and the ADV151-P00 digital output module. This integrated architecture ensures that all process signals — from temperature transmitters, pressure transducers, flow meters, and level sensors — are acquired with consistent accuracy and routed to the controller without signal degradation.

To protect the AAM10 and its associated field wiring from surge events caused by lightning strikes or switching transients, it is standard practice to install YOKOGAWA MTL surge protection barriers or equivalent DIN-rail-mounted surge arresters at the cabinet entry point. For intrinsically safe applications in Zone 1 or Zone 2 hazardous areas, YOKOGAWA safety barriers (Zener or galvanic isolator type) are installed in series with the field instrument loop, ensuring that the AAM10 input terminals never receive energy levels capable of igniting flammable atmospheres.

Power supply stability is equally critical. The CENTUM VP FCS is typically powered by a redundant PW481 or PW482 power supply module, which provides regulated DC bus voltage to all I/O nests. A power supply failure or voltage sag can cause the AAM10 to report erroneous values or drop offline entirely, triggering false alarms or safety shutdowns. Specifying a redundant power supply configuration — with automatic switchover — eliminates this single point of failure and maintains continuous analog signal acquisition during power disturbances.

For facilities operating YOKOGAWA CENTUM CS 3000 systems alongside newer CENTUM VP installations, the AAM10 may also be used as a compatible replacement for legacy analog input modules, reducing the need for full rack replacement during partial system upgrades. In such mixed-generation environments, the ESB Bus coupler and EB401 enhanced bus interface modules facilitate communication between old and new I/O nests, preserving existing field wiring and minimizing retrofit costs. Communication integrity between the FCS and the HIS (Human Interface Station) running YOKOGAWA’s FAST/TOOLS or Exaopc OPC server is maintained through the Vnet/IP control network, which provides deterministic, high-speed data exchange with built-in redundancy.

Critical Industrial Safety Applications

The YOKOGAWA AAM10 is deployed across a broad spectrum of safety-critical industrial sectors where measurement accuracy and system availability directly impact personnel safety, environmental compliance, and production continuity.

In petrochemical and refining facilities, the AAM10 acquires analog signals from pressure transmitters monitoring reactor feed lines, temperature elements in distillation column overhead systems, and flow transmitters on crude oil transfer pumps. Any signal anomaly in these loops can trigger emergency shutdown (ESD) sequences, making the AAM10’s high-accuracy, low-drift performance essential for distinguishing genuine process deviations from instrument faults.

In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the AAM10 monitors boiler drum level, turbine exhaust temperature, and generator cooling water flow. These measurements feed directly into the plant’s distributed control and protection systems, where a missed or erroneous reading can result in turbine trip, boiler damage, or grid instability.

In mining and mineral processing operations, the AAM10 is installed in control cabinets managing ball mill motor current, flotation cell level, and thickener underflow density. The harsh environment — characterized by heavy vibration, conductive dust, and wide temperature swings — demands the AAM10’s robust construction and sealed terminal design.

In water and wastewater treatment plants, the AAM10 monitors influent flow, chemical dosing pump output, and effluent pH and turbidity. Accurate analog acquisition is critical for regulatory compliance and for preventing chemical overdosing events that could damage downstream equipment or violate discharge permits.

In metallurgical and steel production facilities, the AAM10 supports continuous casting machine control, electric arc furnace electrode regulation, and rolling mill tension control — all applications where millisecond-level response and sub-percent measurement accuracy are required to maintain product quality and prevent equipment damage.
